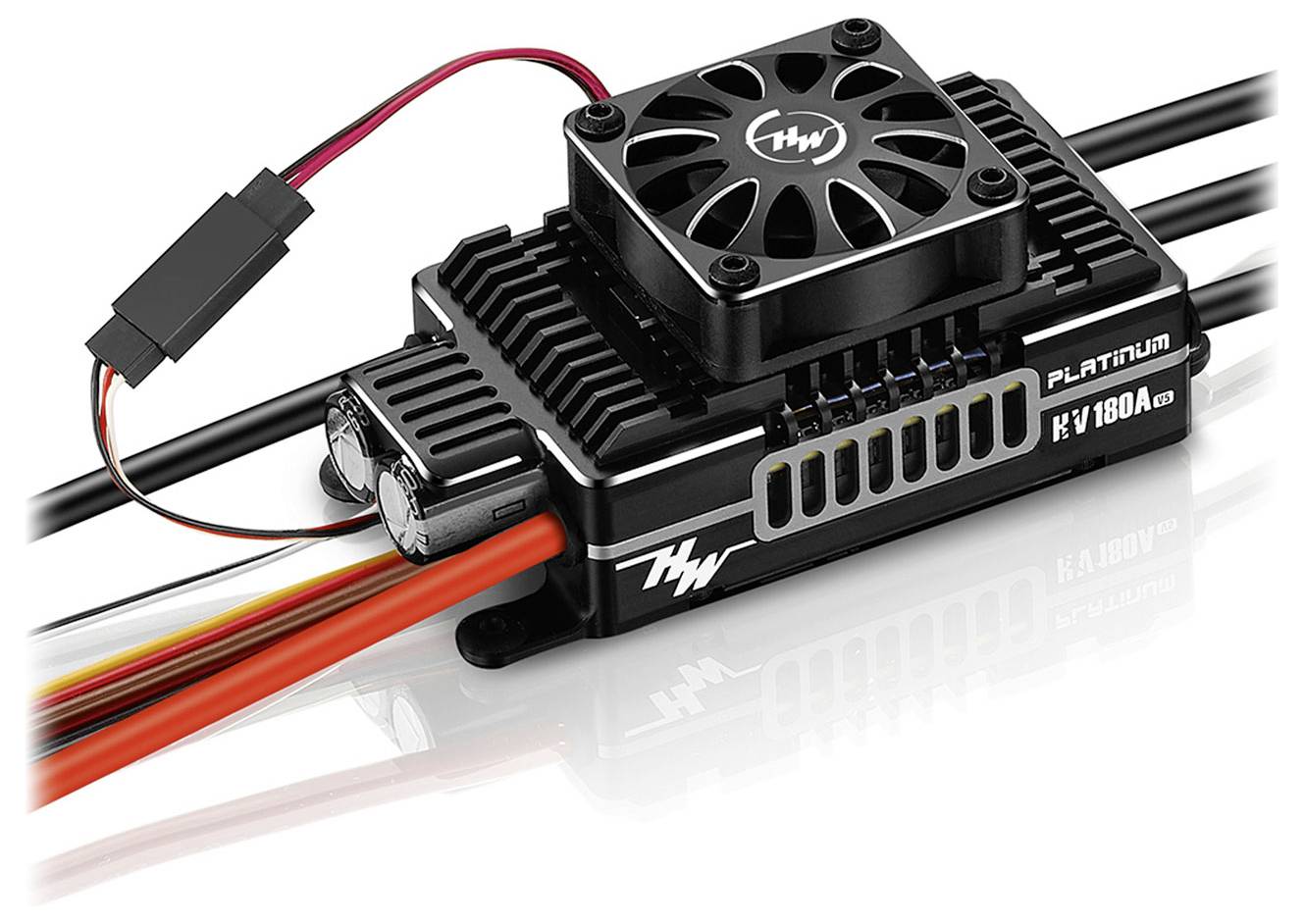

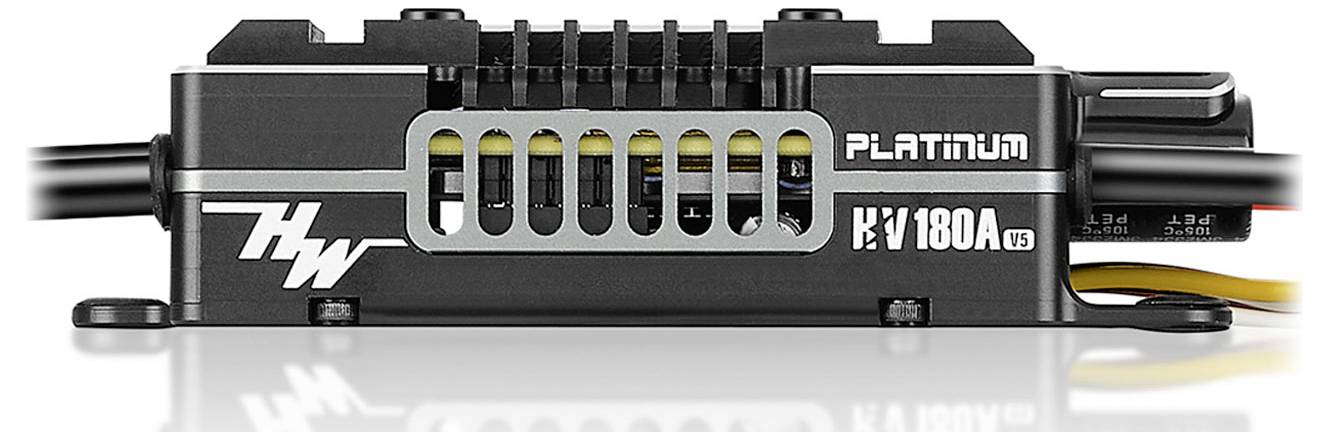

Hobbywing Platinum Pro 180A HV V5 Model aircraft brushless motor controller Load (Amp max.): 260 A
EAN:
Part number:
Item no:
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
14-day return policy included
Technical specifications
- Input voltage 6-14S LiPo
- Cable battery/motor: 1x 10AWG (red, black), 3x 10AWG (black)
- Plug: 3.5mm gold-contact (female)
- Programming: LCD programming box, OTA programming module
- Applications:550-700 electric helicopters or fixed wings
- Telemetry: Mikado VBar; Futaba S.Bus2; etc.
- Product type
Model aircraft brushless motor controller
- Permanent current
180 A
- Dim
(L x W x H) 101 x 46 x 26 mm
- Load (max.)
260 A
- Weight
251 g
- BEC data
5-12V @10A (Switch Mode)
- Width
46 mm
- Height
26 mm
- Length
101 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400177 Hobbywing Platinum Pro 180A HV V5 Model aircraft brushless motor controller Load (Amp max.): 260 A
Description
The Platinum V5 180A HV V5 is an extremely powerful controller with 5-12V switch BEC for the 550-700 aircraft range This is ensured by the installed 32-bit processor in combination with a specially developed algorithm for speed accuracy, which makes the performance of the controller clearly stand out from similar controllers on the market. In addition to this algorithm, the Platinum V5 is equipped with 180A protocols, which permit different transmitter systems to read the data of the controller. These include, for example, the Mikado VBar system and Futaba S.BUS2.

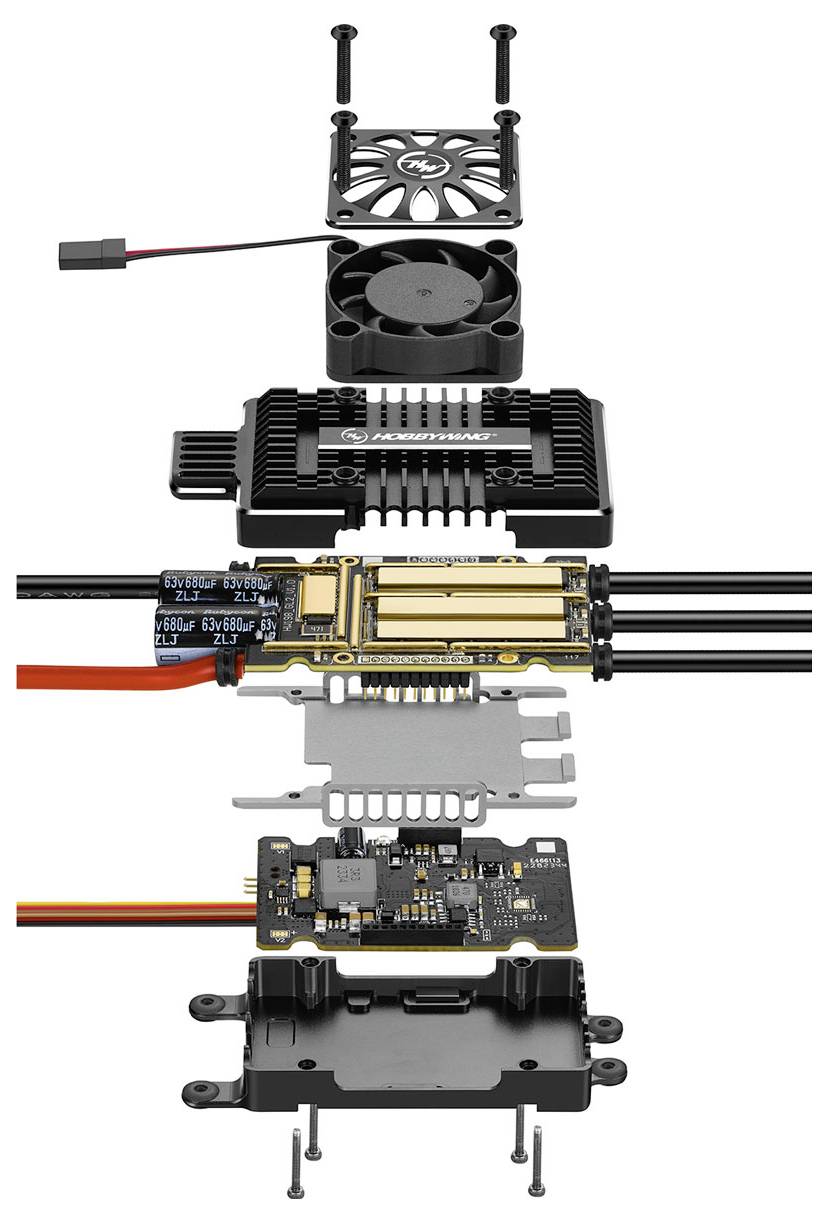

The design also shows the modern advantages of the Platinum V5, such as the many protective functions to make the next flight as safe as possible. Below it there is a protection from overheating of the actual controller as well as also for the attached capacitors. In order to prevent too much heat from developing at all and to activate this protection, the controller has a double-sided heat sink with side ventilation. This way, the air can quickly flow through the inside of the controller and cool it efficiently. If this is no longer sufficient, the different protective functions will work and prevent greater damage.
This text is machine translated.
The design also shows the modern advantages of the Platinum V5, such as the many protective functions to make the next flight as safe as possible. Below it there is a protection from overheating of the actual controller as well as also for the attached capacitors. In order to prevent too much heat from developing at all and to activate this protection, the controller has a double-sided heat sink with side ventilation. This way, the air can quickly flow through the inside of the controller and cool it efficiently. If this is no longer sufficient, the different protective functions will work and prevent greater damage.
This text is machine translated.
Features
- Efficient cooling with designed chiller chamber.
- Integrated 12V switch BEC (5-12V)
- Supports several data protocols such as Mikado VBar System, Futaba S.BUS2, etc.
- Including data recording, retrieve on Smartphone thanks to Bluetooth
- Multiple safety functions (e.g. against reverse currents)
- 16 adjustable parameters, including 4 flight modes: Fixed wing, helicopter - external governor, helicopter - eleven governor, helicopter - store governor
