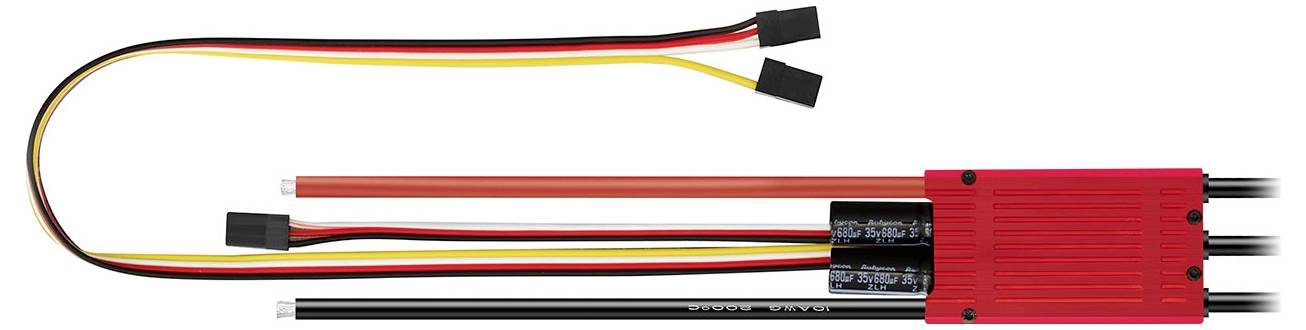

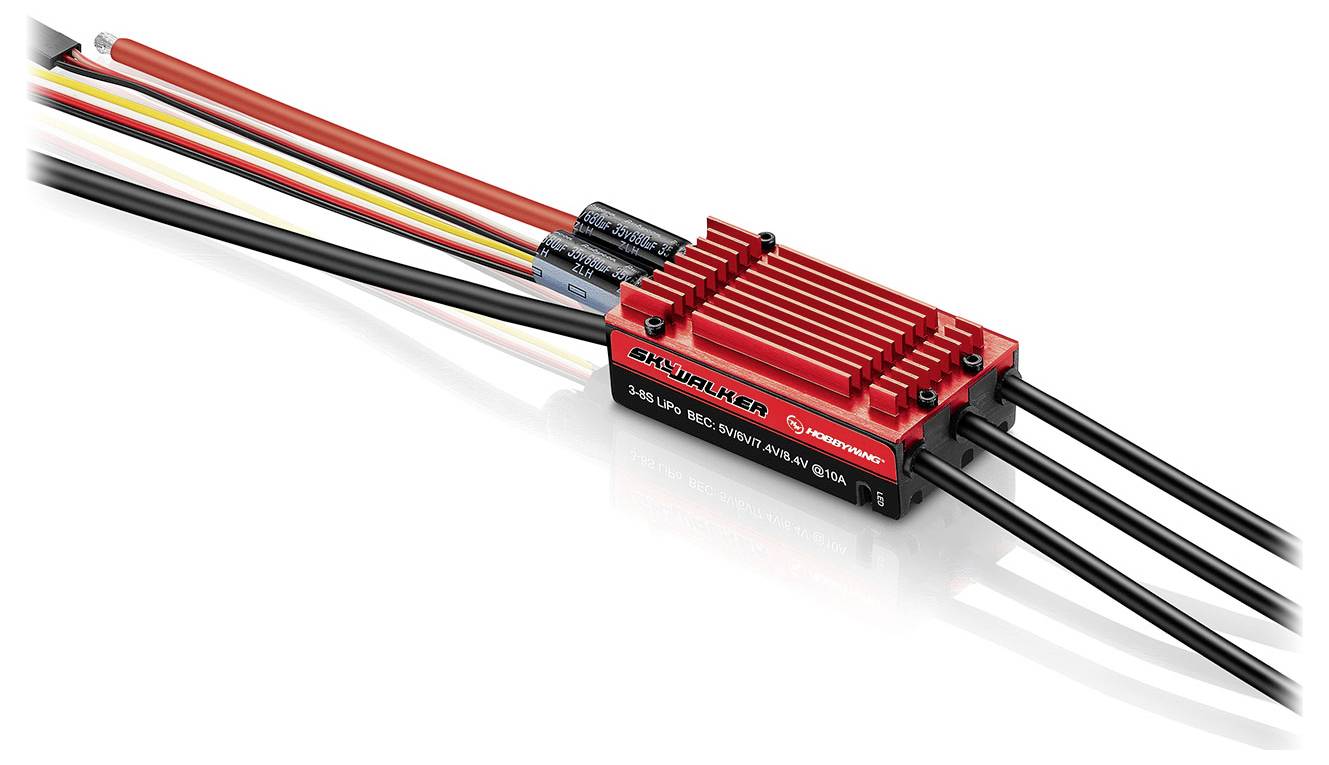

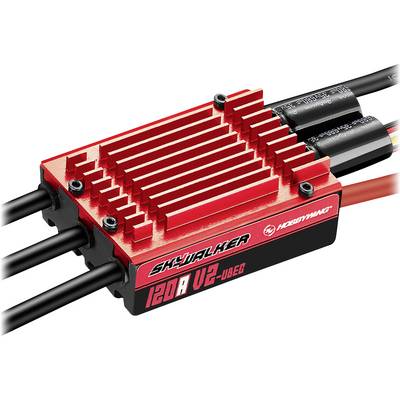

Hobbywing Skywalker V2 120A Model aircraft brushless motor controller Load (Amp max.): 150 A
EAN:
Part number:
Item no:
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
14-day return policy included
Technical specifications
- Input voltage 3-8s LiPo
- Product type
Model aircraft brushless motor controller
- Permanent current
120 A
- Dim
(L x W x H) 83 x 35 x 22 mm
- Load (max.)
150 A
- Weight
117 g
- BEC data
5V / 6V / 7.4V / 8.4V Switch Mode BEC
- Width
35 mm
- Height
22 mm
- Length
83 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400176 Hobbywing Skywalker V2 120A Model aircraft brushless motor controller Load (Amp max.): 150 A
Description
The Skywalker series is back and in the version 2 now still more powerful and still just as cheap as the predecessor. Mainly the Skywalker regulators are developed especially for RC-aircrafts and offer with their properties everything, WAS the heart desires. It includes the built-in 32-bit microprocessor with a running frequency of up to 120 MHz and programming options that are second to the predecessor in no time. These include braking type, braking strength, shutdown voltage, setting of the LiPo cells, start-up and search mode, as well as timing and active freewheeling. Also included is the type of switch-off voltage and generously adjustable BEC voltage.
Naturally these controllers are also subject to strict quality assurance by Hobbywing to ensure maximum safety and fun. The Skywalker regulators are especially suitable for RtF models and beginners, who build their first model.
This text is machine translated.
Naturally these controllers are also subject to strict quality assurance by Hobbywing to ensure maximum safety and fun. The Skywalker regulators are especially suitable for RtF models and beginners, who build their first model.
This text is machine translated.
Features
- Compatible with different brushless motors
- Integrated 32-bit microprocessor
- Fitted with the DEO (Driving Efficiency Optimization)-technology for improving the gas acceptance and reduction of the regulator temperature
- Reduce effectively the landing distance of the airman with the programmable brake modes
- Various protection mechanisms such as low voltage cut-off, overheating protection and gas signal loss protection
- Easy to program with the LED programming box (HW30501003) or the transmitter
