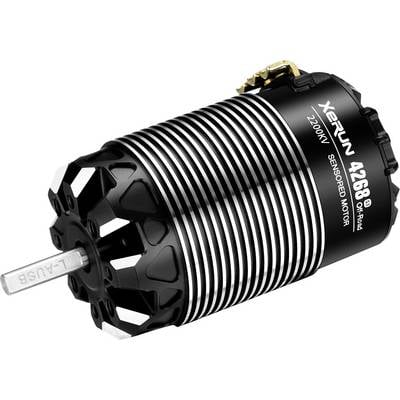

Hobbywing Xerun 4268SD G3 2200kV Model car brushless motor
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 113.44 / piece)
€
Technical specifications
- Number of motor poles: 4
- Motor control: Sensored
- Number of LiPo cells: 2-6S
- Consumption without load: 4.1A
- Timing adjustable from 20°-60°
- Application: 1/8 Off-Road
- Dim
(Ø x L) 42 mm x 67.8 mm
- (Ø)
42 mm
- Length
67.8 mm
- Manufacturer part #
30401907
- Shaft Ø
5 mm
- Weight
285 g
- Product type
Model car brushless motor
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400187 Hobbywing Xerun 4268SD G3 2200kV Model car brushless motor
Description
The Xerun 4268 G3 motor offers RC drivers of 1/8 off-road models great driving pleasure at even better performance. This is thanks to the improved design and efficiency for combating the arising heat. Because in comparison to the G2-predecessor motors this has been increased by 6%, WAS significantly reduces the heat development.
100% Sensor Mode
With the built-in chip, the Xerun G3 motor can also be detected by Hobbywing Xerun XR8 controllers. This combination results in a 100% sensor-controlled drive system. In addition, the Hall-Sensor system ensures a clean and stable operation in sensor mode.
Turbo timing technology
When used with a controller of the XERUN XR8 series, the "Turbo Timing" can also be activated. This is already used very successfully in the 1/10 on-road range and releases the last power reserves of the engine.
This text is machine translated.
100% Sensor Mode
With the built-in chip, the Xerun G3 motor can also be detected by Hobbywing Xerun XR8 controllers. This combination results in a 100% sensor-controlled drive system. In addition, the Hall-Sensor system ensures a clean and stable operation in sensor mode.
Turbo timing technology
When used with a controller of the XERUN XR8 series, the "Turbo Timing" can also be activated. This is already used very successfully in the 1/10 on-road range and releases the last power reserves of the engine.
This text is machine translated.
Features
- Low heat generation
- Low locking torque
- High quality materials as well as excellent workmanship
- Easy to Set Up
- Dust-proof according to IP5X standard (1900kV, 2200kV and 2250kV)
