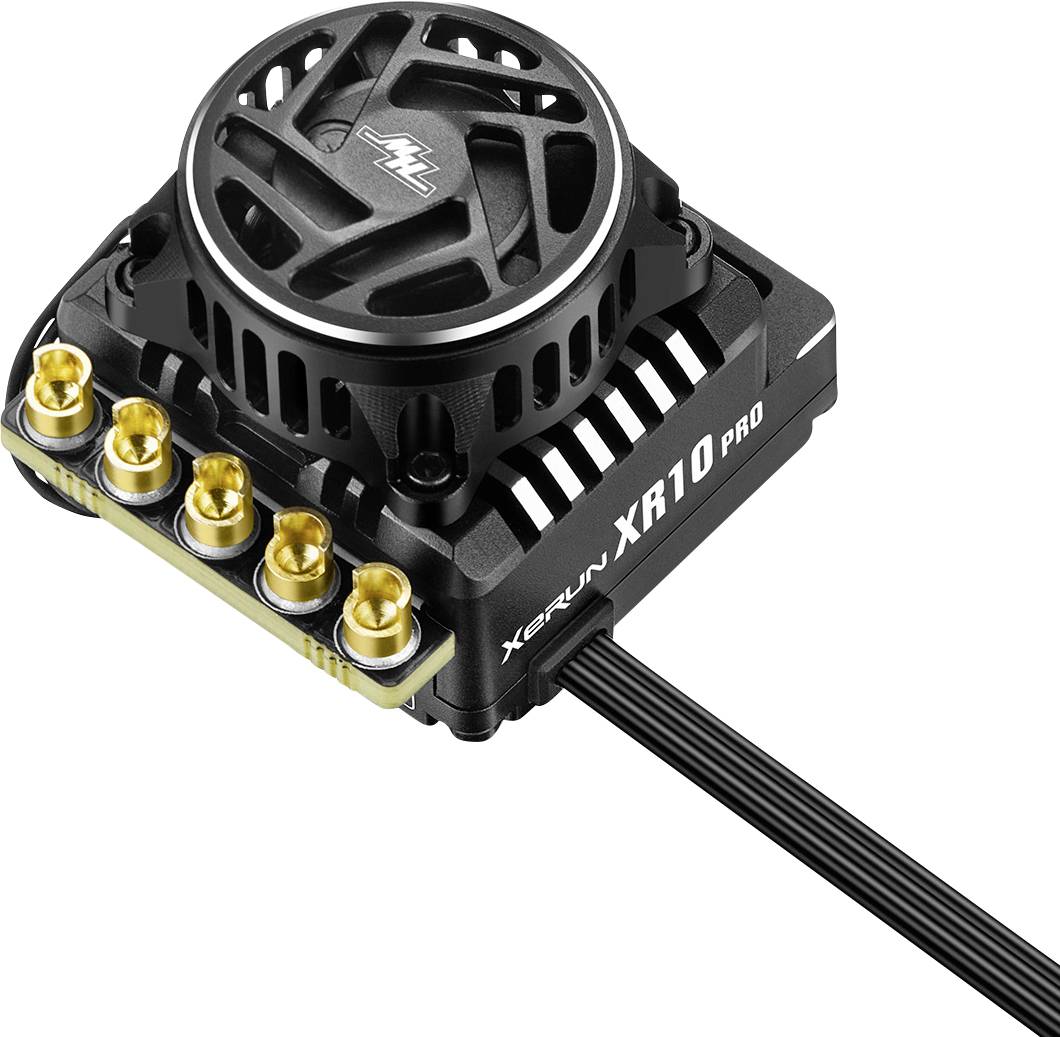

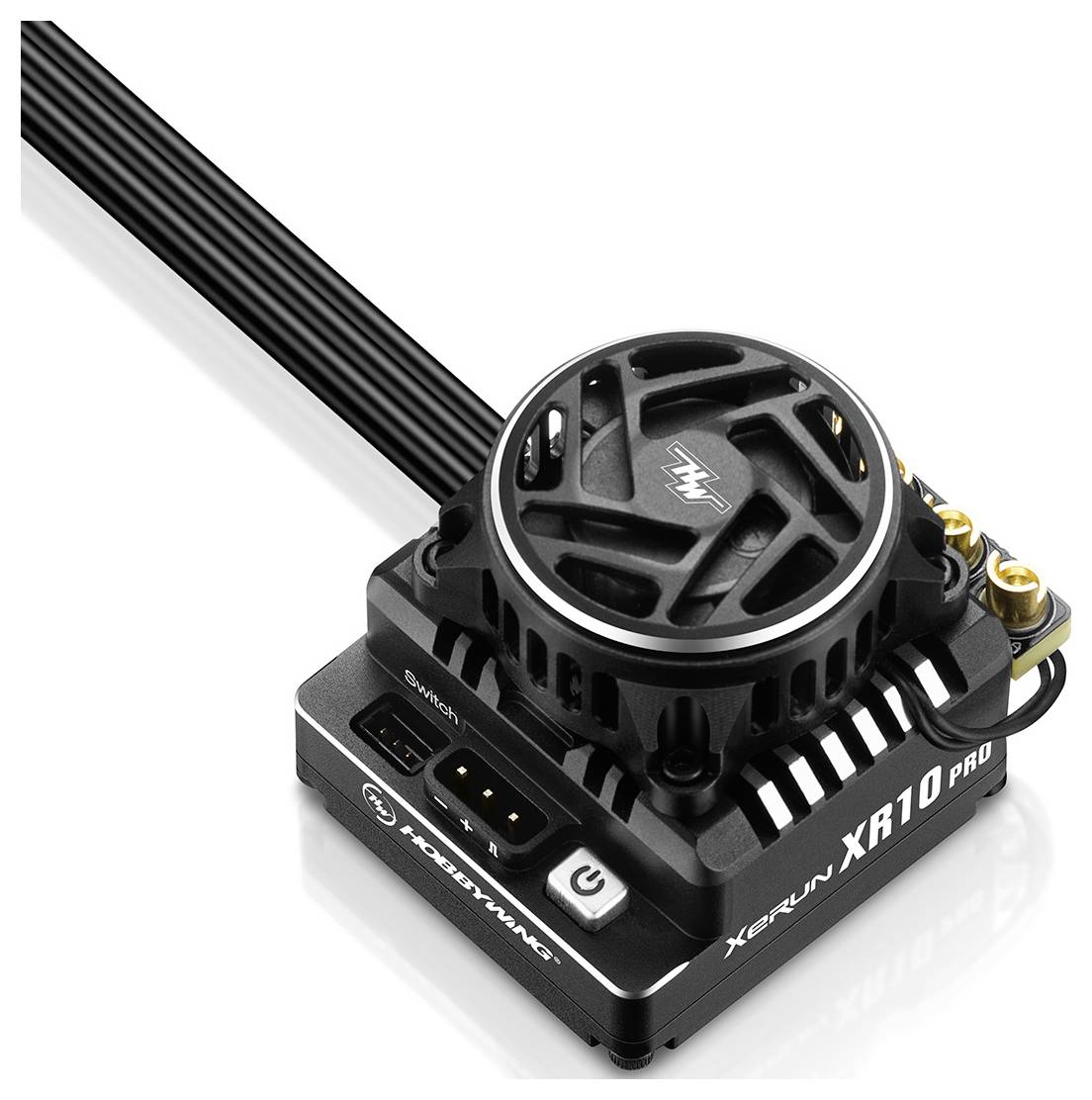

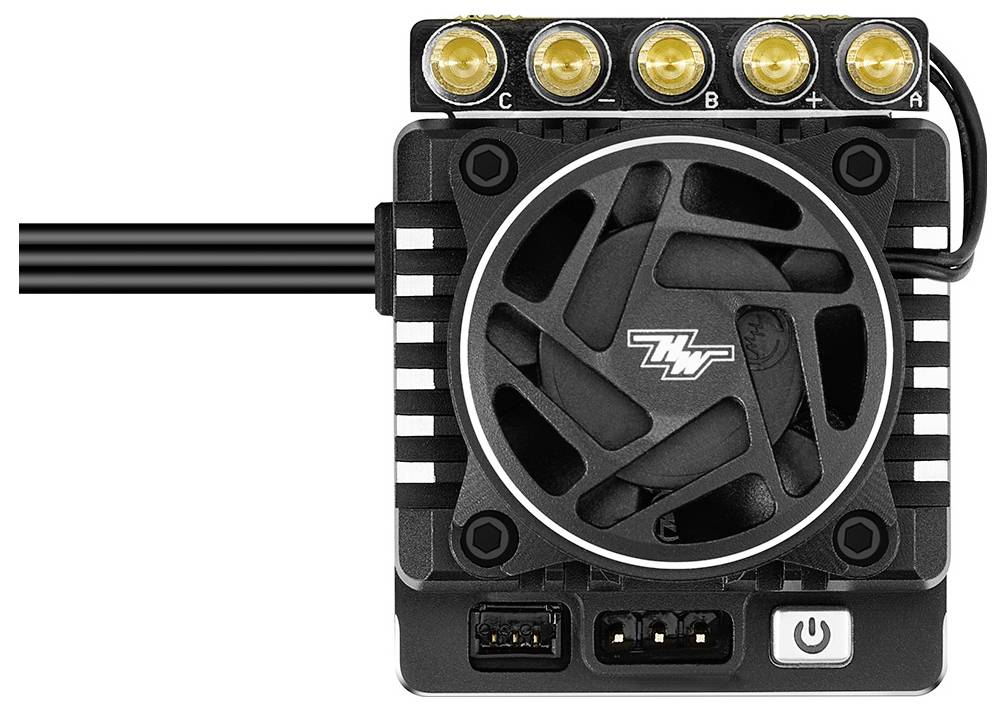

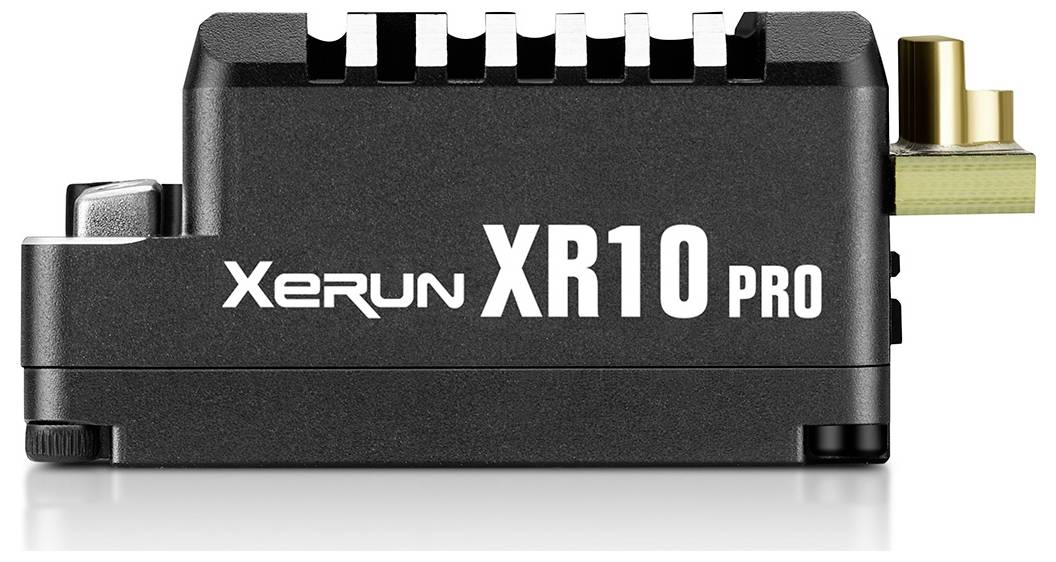

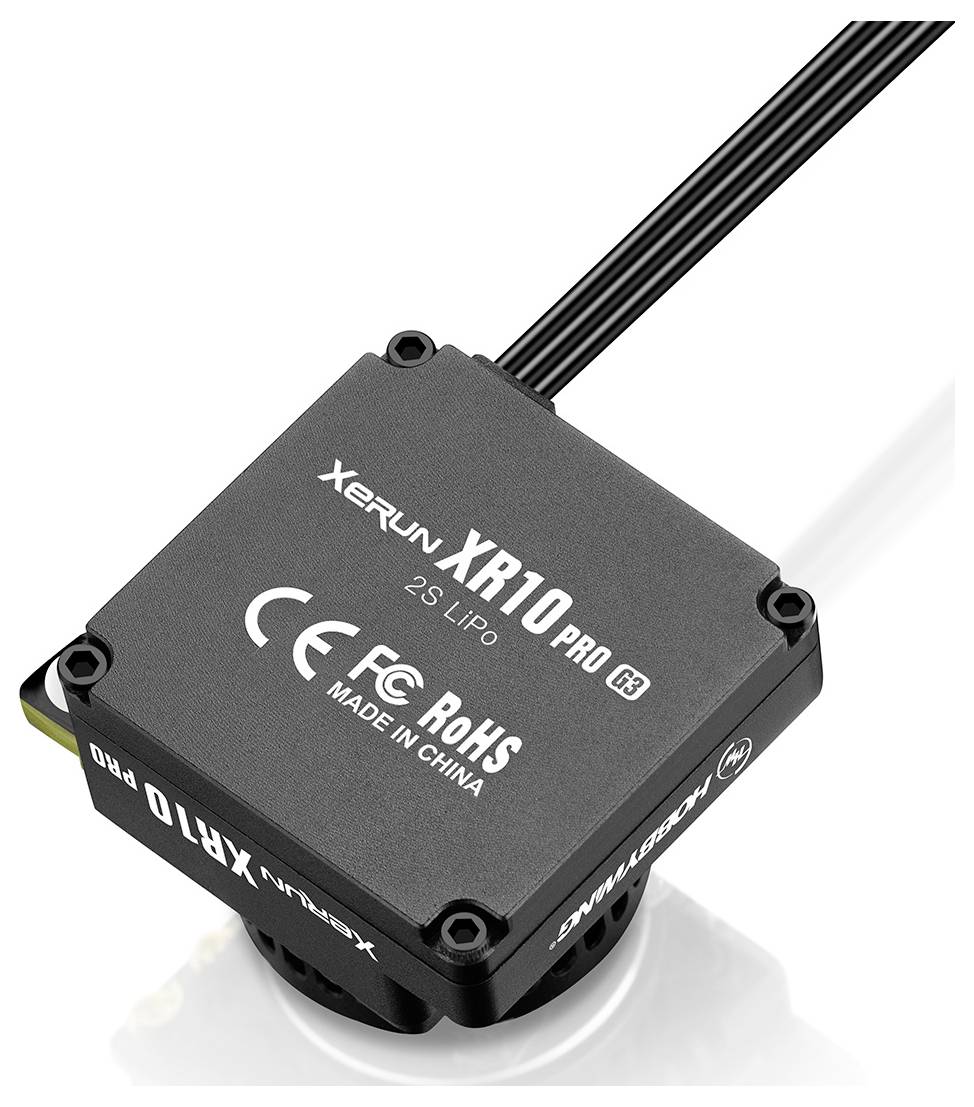

Hobbywing Xerun XR10 Pro G3 Model car brushless speed control Load (Amp max.): 1200 A
EAN:
Part number:
Item no:
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
14-day return policy included
Technical specifications
- Input voltage 2S LiPo
- Motor types: Touring car: 4.5T+, Buggy: 5.5T+, 3650(540) size 2-pole motor
- Applications: 1/10
- Product type
Model car brushless speed control
- Dim
(L x W x H) 35 x 34 x 30 mm
- Weight
93 g
- BEC data
Switch mode 5V-7.4V @ 5 A
- Load (max.)
1200 A
- Permanent current
160 A
- Manufacturer part #
30112619
- Width
34 mm
- Height
30 mm
- Length
35 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400156 Hobbywing Xerun XR10 Pro G3 Model car brushless speed control Load (Amp max.): 1200 A
Description

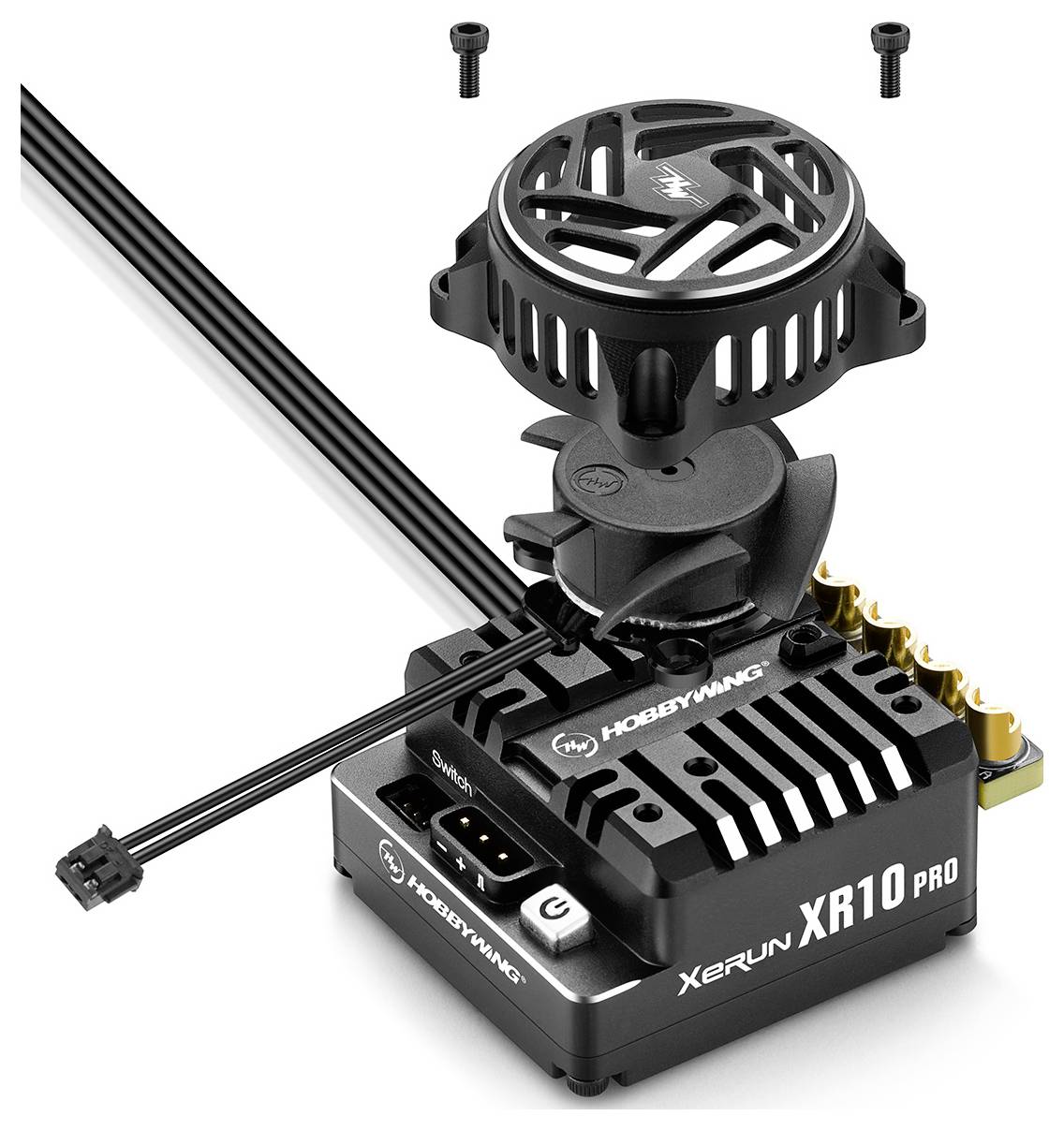

The Hobbywing XeRun XR10 Pro G3 sets new standards for competition speed controllers and raises the level of performance with many innovative features to a new level. Compared to the previous model, the XR10 Pro G2S, the regulator is now equipped with a frameless and improved fan, an optimized LCG design reduces the overall height by 2 mm, WAS leads to a lower center of gravity and an improved vehicle balance. In addition, the XR10 Pro G3 has an integrated data-logging module, which can store up to 19 data sets of 20 minutes each and makes a continuous connection to the OTA-Bluetooth module unnecessary.
Along with the integrated data logging, the G3 comes with many interesting additional innovations! The Freewheeling function provides for more efficient cooling by significantly reducing the operating temperature compared to the predecessor. And the new disc brake mode enables an extremely precise and linear brake force control, which makes the brake feeling consistent and controllable over all speeds. With over 44 programmable parameters and two setting levels, the properties can now be adapted even better to any situation.
This text is machine translated.
Along with the integrated data logging, the G3 comes with many interesting additional innovations! The Freewheeling function provides for more efficient cooling by significantly reducing the operating temperature compared to the predecessor. And the new disc brake mode enables an extremely precise and linear brake force control, which makes the brake feeling consistent and controllable over all speeds. With over 44 programmable parameters and two setting levels, the properties can now be adapted even better to any situation.
This text is machine translated.
Features
- Integrated data recording (OTA/LCD is required for evaluation)
- Optimized temperature control
- Disc brake mode for precise brake control
- 44+ parameters
- Softening 2.0
- LCG design and optimized cabling
- Built-in reverse polarity protection
- Optimised for modified competitions
