Hobbywing Xerun XR8 Plus G2S Model car brushless speed control Load (Amp max.): 1080 A
EAN:
Part number:
Item no:
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
14-day return policy included
Technical specifications
- Input voltage 2-6S LiPo
- Motor types: 4S LiPo: KV <3000 – 4268/4274 motor, 6S LiPo: KV <2400 – 4274 motor
- Programming: LCD programming box, OTA programming module
- 1/8 On-Road/Off-Road/Truggy Racing
- Product type
Model car brushless speed control
- Dim
(L x W x H) 56 x 42 x 39 mm
- Weight
122 g
- BEC data
6V - 8.4V Current (continuous/short): 6A/15A (switch mode)
- Load (max.)
1080 A
- Permanent current
200 A
- Manufacturer part #
30113304
- Width
42 mm
- Height
39 mm
- Length
56 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400158 Hobbywing Xerun XR8 Plus G2S Model car brushless speed control Load (Amp max.): 1080 A
Description

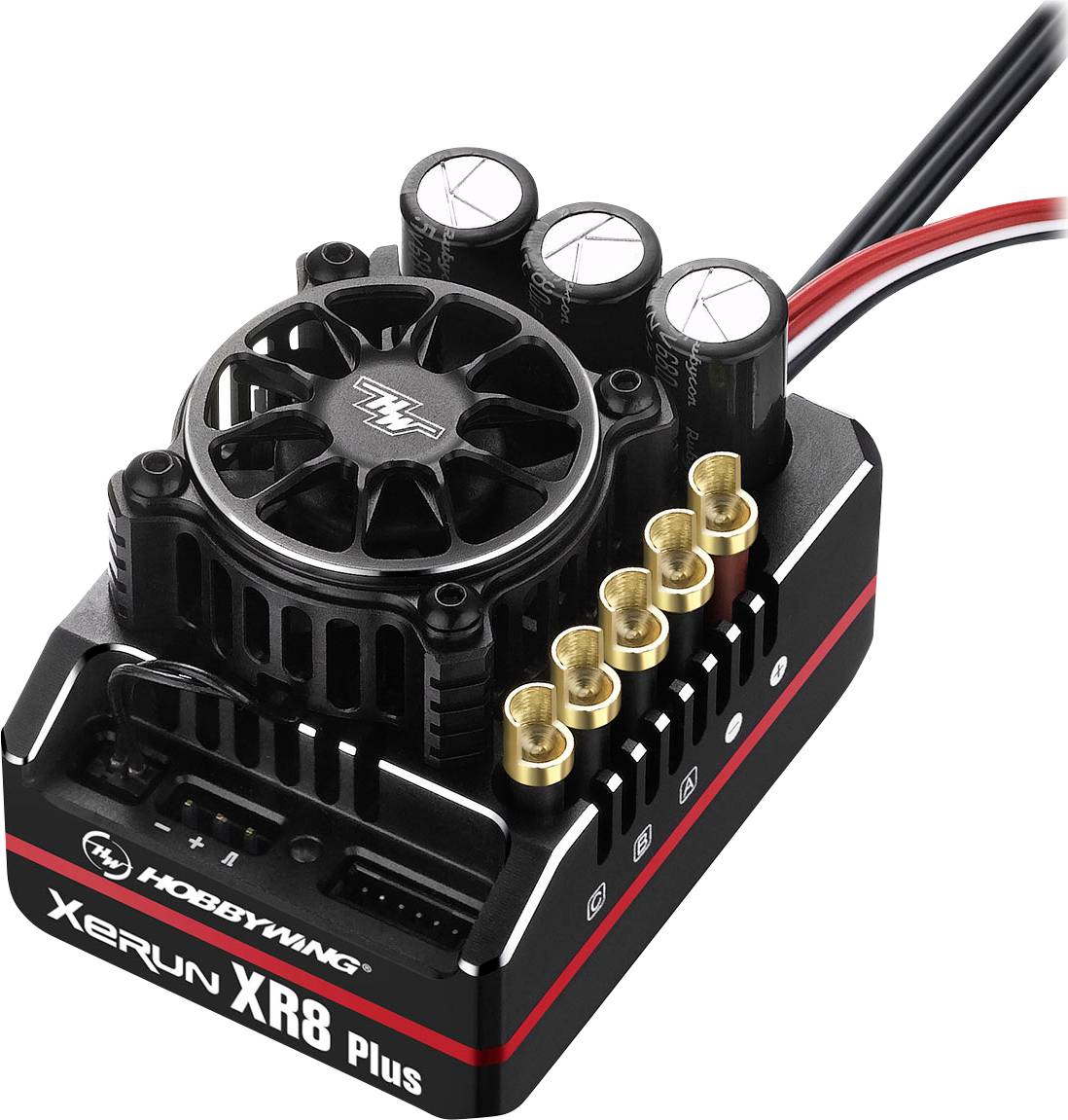

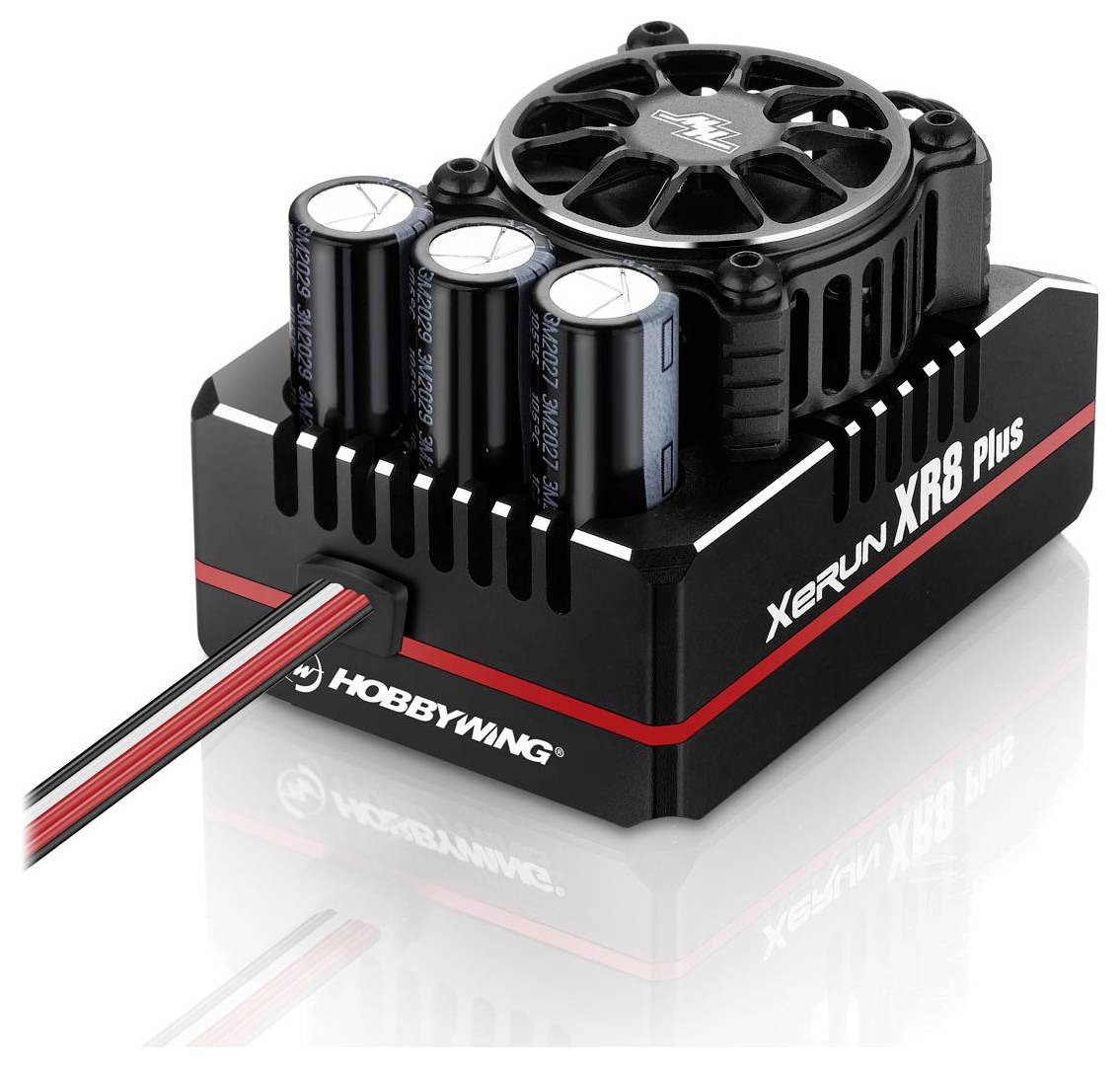

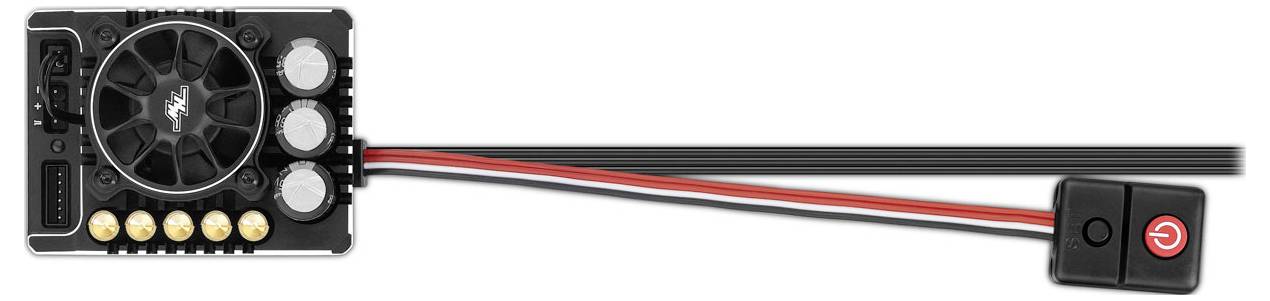

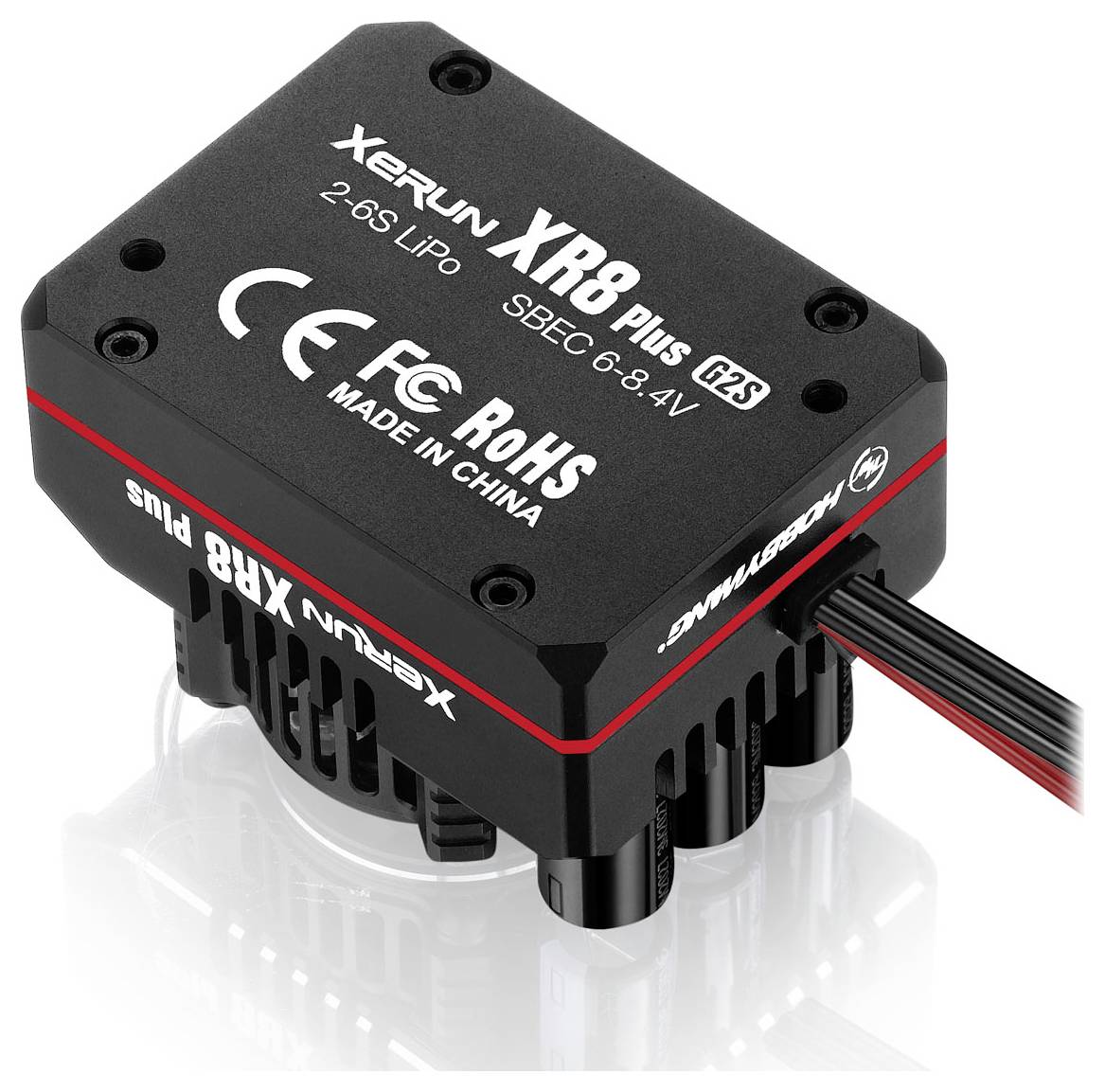

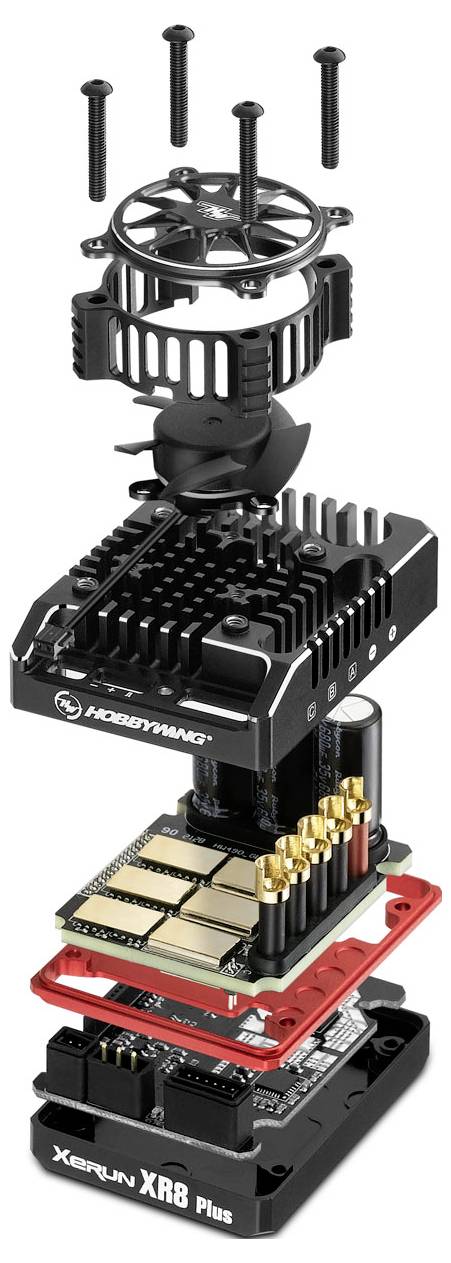

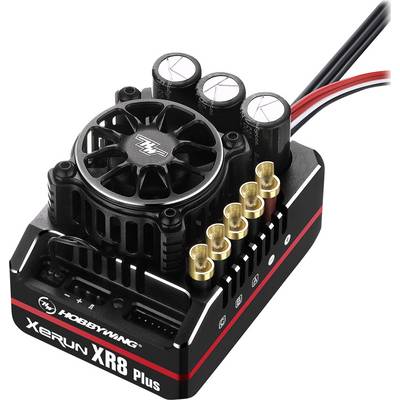

The XR8 Plus G2S controller is the advancement of an outstanding 1 series with 6 RPM limit profiles. An efficient heat regulation system reduces heat generation than with other conventional controllers, because the XR8 is optimally protected thanks to the strong airflow at the sides of the fan and the heat sink made of copper inside. This is also urgently needed in some of the heated races.

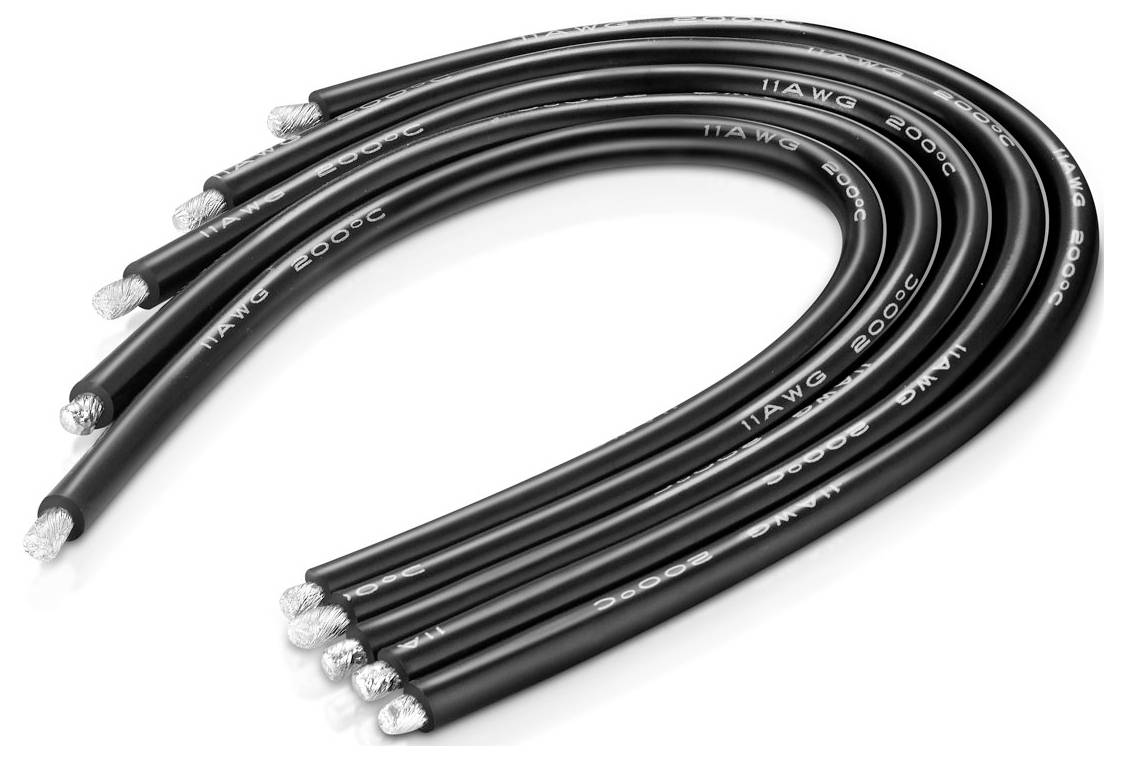

Designed for use with 2-6S LiPo rechargeable batteries, the ultra-soft cable ducts made of 11AWG cables, the specially designed soldering lugs as well as the elegant appearance are examples of high-quality workmanship. When it comes to functionality, the XR8 Plus G2S has an extended BEC of 6-8.4V in 0.1 steps, because this means a large range of servos can be addressed. The thermal protection of the capacitors also provides safety and durability. And if you place a great deal of emphasis on performance measurement, you will of course also get your money's worth fully. If the controller is linked to the Hobbywing application, the collected data can not only be evaluated, but also viewed live.
This text is machine translated.
Designed for use with 2-6S LiPo rechargeable batteries, the ultra-soft cable ducts made of 11AWG cables, the specially designed soldering lugs as well as the elegant appearance are examples of high-quality workmanship. When it comes to functionality, the XR8 Plus G2S has an extended BEC of 6-8.4V in 0.1 steps, because this means a large range of servos can be addressed. The thermal protection of the capacitors also provides safety and durability. And if you place a great deal of emphasis on performance measurement, you will of course also get your money's worth fully. If the controller is linked to the Hobbywing application, the collected data can not only be evaluated, but also viewed live.
This text is machine translated.
Features
- 5 selectable profiles for all 1/8 RC car racing: Zero-timing Blinky Mode, 1/8 off-road racing, 1/8 on-road racing, 1/8 GT racing, 1/8 sport mode
- Adjustable up to 30 different parameters
- Includes 48° boost and turbo timing
- Variable frequency control of PWM and brake frequencies
- Softening function for milder or even wilder control of driving and better driving efficiency
- Various protective functions: Reverse polarity, overheating, undervoltage switch-off, signal loss
- Data logging of temperature, number of revolutions, etc.
- Firmware upgrades possible
