Holzmann Maschinen ABS3000SE_400V ABS3000SE_400V Extractor 1500 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

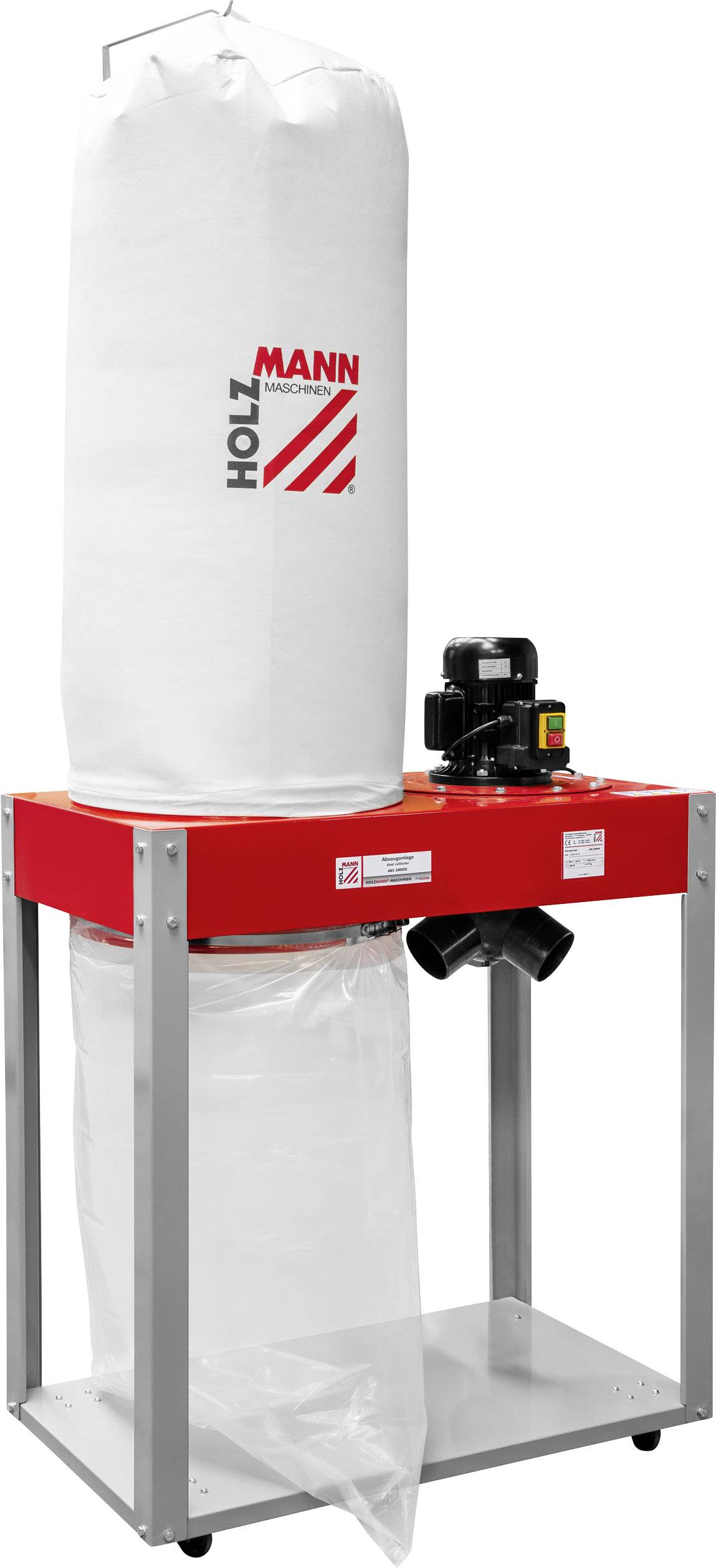

Extraction system ABS 3000 SE_400V
- Resistant wind vane wheel
- Constant suction power
- Large filter area
Technical specifications
- Positioning dimensions in mm: 985 x 560 x 2250
- Extraction performance in m³/h: 3000
- Chip collection bag diameter in mm: 500
- Chip collection bag length in mm: 850
- Wind impeller diameter in mm: 300
- Outputs: 3 (ø 100 mm)
- Vacuum In Pa: 2200
- Sound pressure level in dB(A): 85.
- Product type
Extractor
1500 W
- Vacuum
2200
- Compatible with
Holzmann
- Operating voltage
400 V
- Weight
45 kg
Documents & Downloads
Datasheet
Datasheet 1889877 Holzmann Maschinen ABS3000SE_400V ABS3000SE_400V Extractor 1500 W
User & Safety Instructions
User & Safety Instructions 1889877 Holzmann Maschinen ABS3000SE_400V ABS3000SE_400V Extractor 1500 W
Description
Solid sheet-metal design provides for an ideal flow ratio
Resilient wind vane
Constant suction power even at continuous use
Connection of up to three machines is possible by means of provided distributors
High suction power by large filter area (filter dimension: ø500x1100mm)
Integrated driving device for simple shunting
This text is machine translated.
Resilient wind vane
Constant suction power even at continuous use
Connection of up to three machines is possible by means of provided distributors
High suction power by large filter area (filter dimension: ø500x1100mm)
Integrated driving device for simple shunting
This text is machine translated.
Scope of delivery
- Extraction system
- Chassis
- Dust and Chip collection bag
- Distributor (connection for 3 xø 100mm exhaust pipes)
- Includes 2 x cover plate
