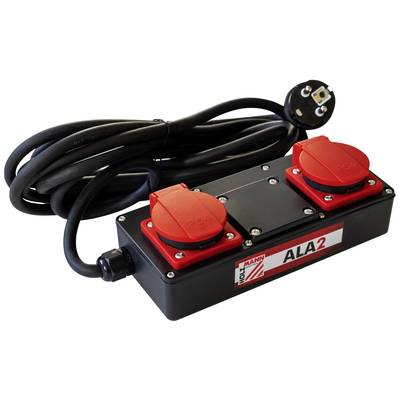

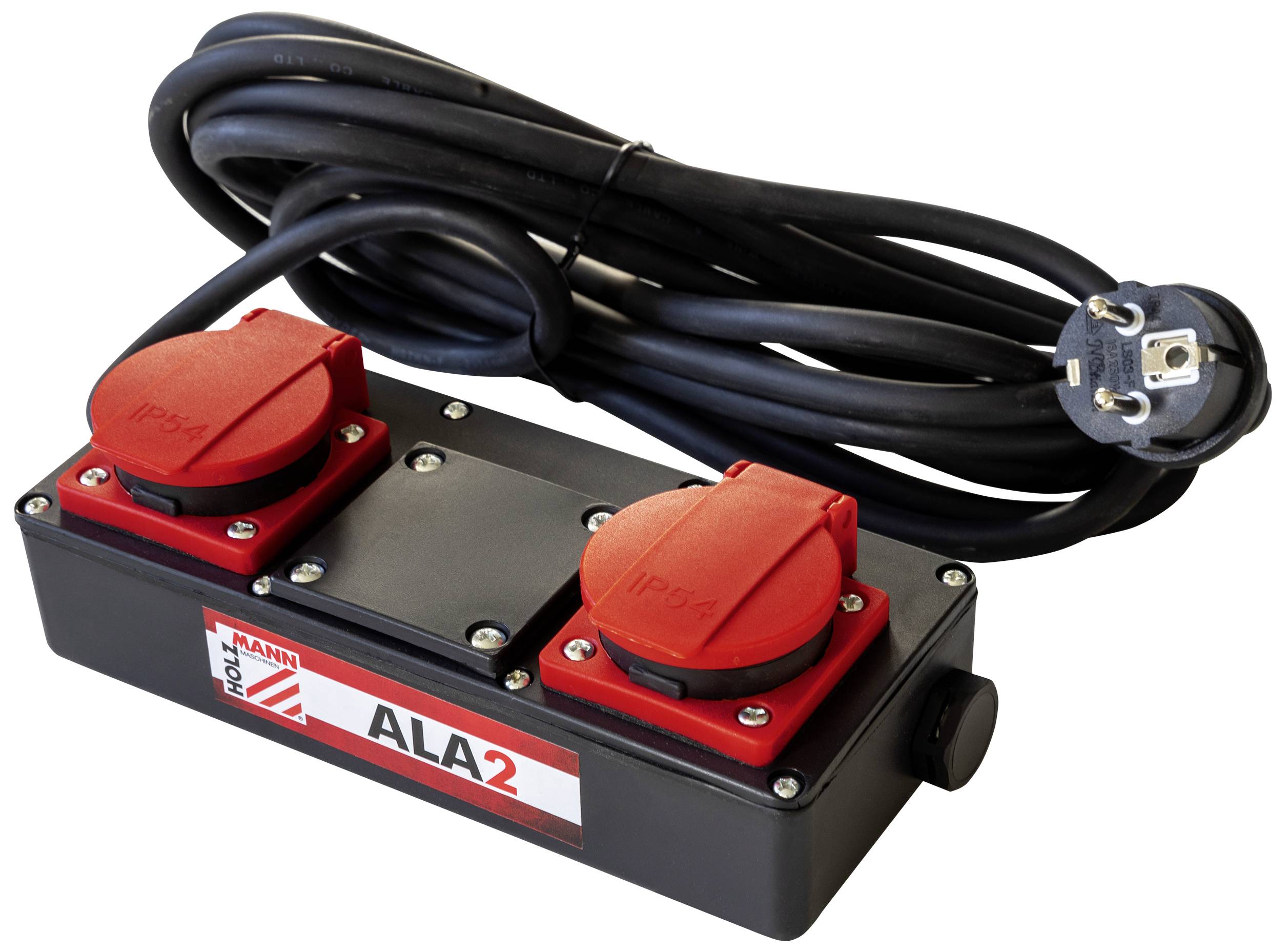

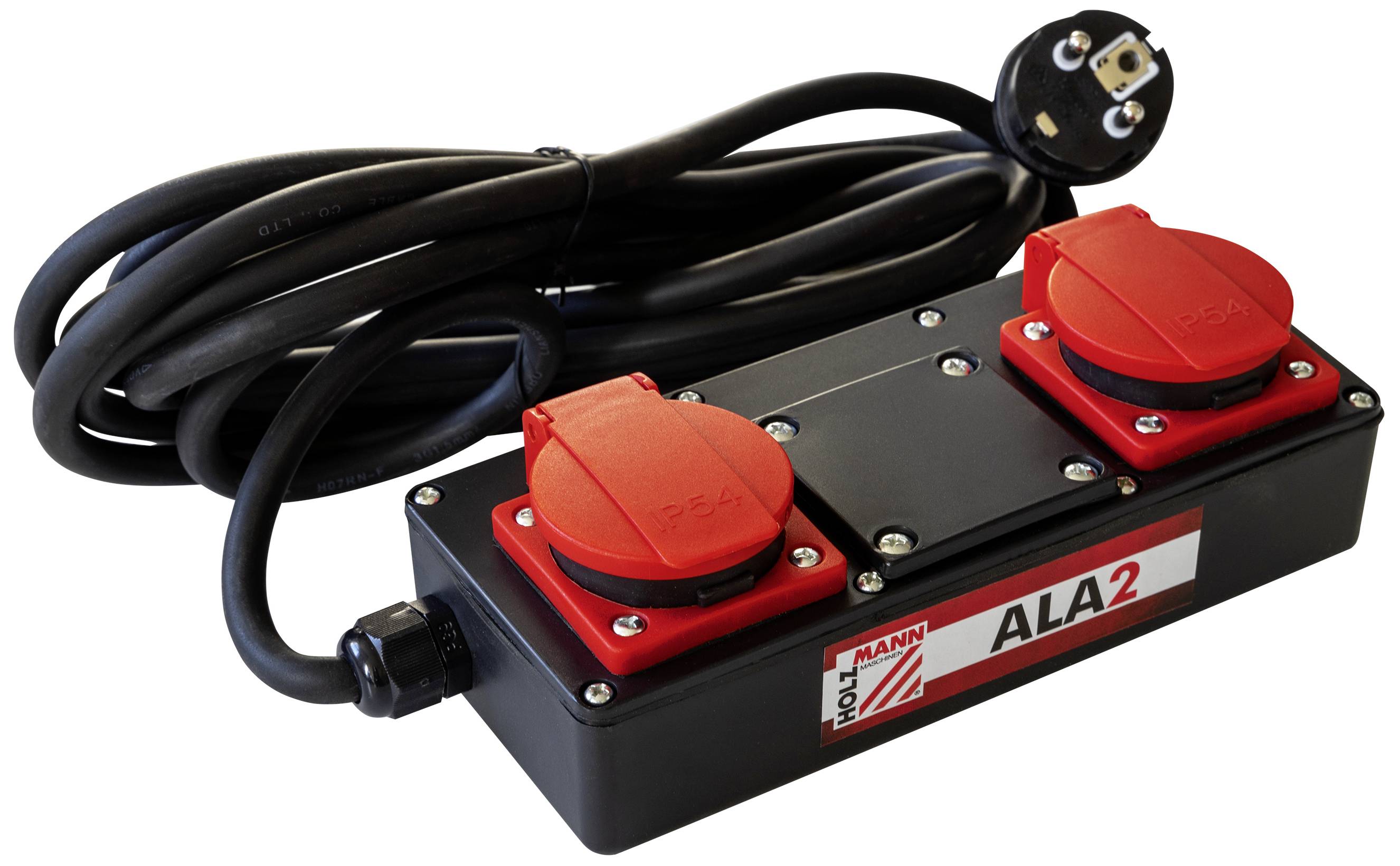

Holzmann Maschinen ALA2_230V ALA2_230V Starter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Starting mechanism for suction devices
- Automatic start-up for 2 x 230V machines
Technical specifications
- Max. Nominal power 3680W (16A)
- Cable length 4 m
- Operating voltage
230 V
- Length
195 mm
- Width
80 mm
- Height
65 mm
- Weight
0.93 kg
- Product type
Starter
Documents & Downloads
Datasheet
Datasheet 3219029 Holzmann Maschinen ALA2_230V ALA2_230V Starter
User & Safety Instructions
User & Safety Instructions 3219029 Holzmann Maschinen ALA2_230V ALA2_230V Starter
Description
After switching on the machine (Master), the second connected machine, e.g. suction (slave), is released after 2-4 seconds; after switching off the machine, the second machine is also switched off after 3-4 seconds.
This text is machine translated.
This text is machine translated.
Features
- A machine can be connected to the automatic start
- After switching on the machine (Master), the second connected machine, e.g. suction (slave), is released after 2-4 seconds
- After switching off the machine, the second machine is also switched off after 3-4 seconds
- Automatic start-up for 2 x 230V machines
- Max. Nominal power 3680W (16A)
- Connection cable H07RN-F 3G1.5 mm² with 4m length
- Master-slave socket with on/off delay of 2-4 seconds
Scope of delivery
- Connection cable H07RN-F 3G1.5 mm² with 4m length
