Holzmann Maschinen CEE power distributor SSV32A 400 V 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 247.90
-25 %
€ 184.87
plus VAT.
Only 3 Piece(s) available
Highlights & Details

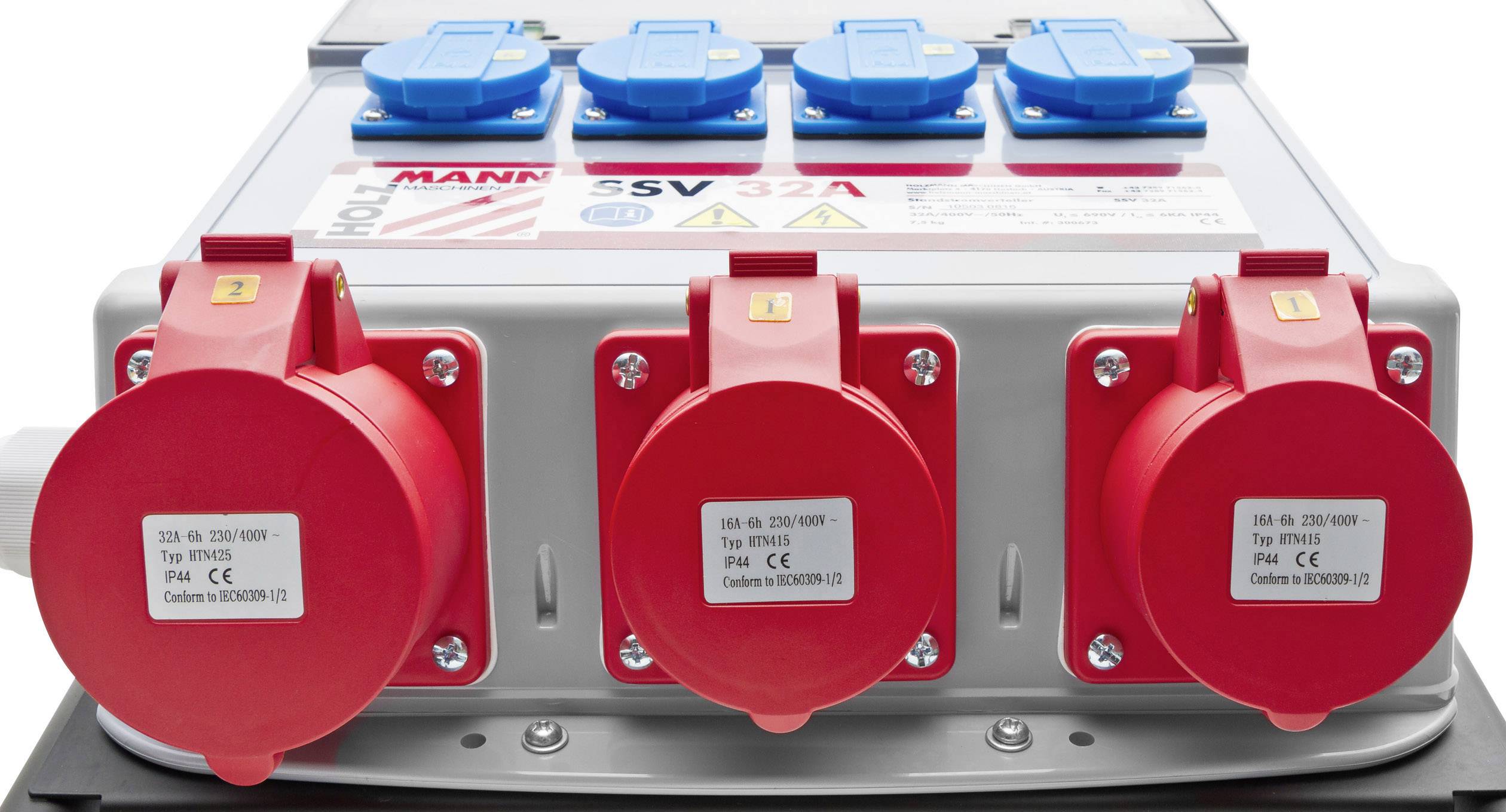

Holzmann SSV32A construction current distributor, standing current distributor 1x32A/400V 2x 16A/400V 4x230V
- 32A / 400V / 50Hz
- UI≤690V / ICC≤6KA
- IP44
- 1x 400V 32A
- 2x 400V/16A
- 4x 230V/plug socket
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
1
- Type A

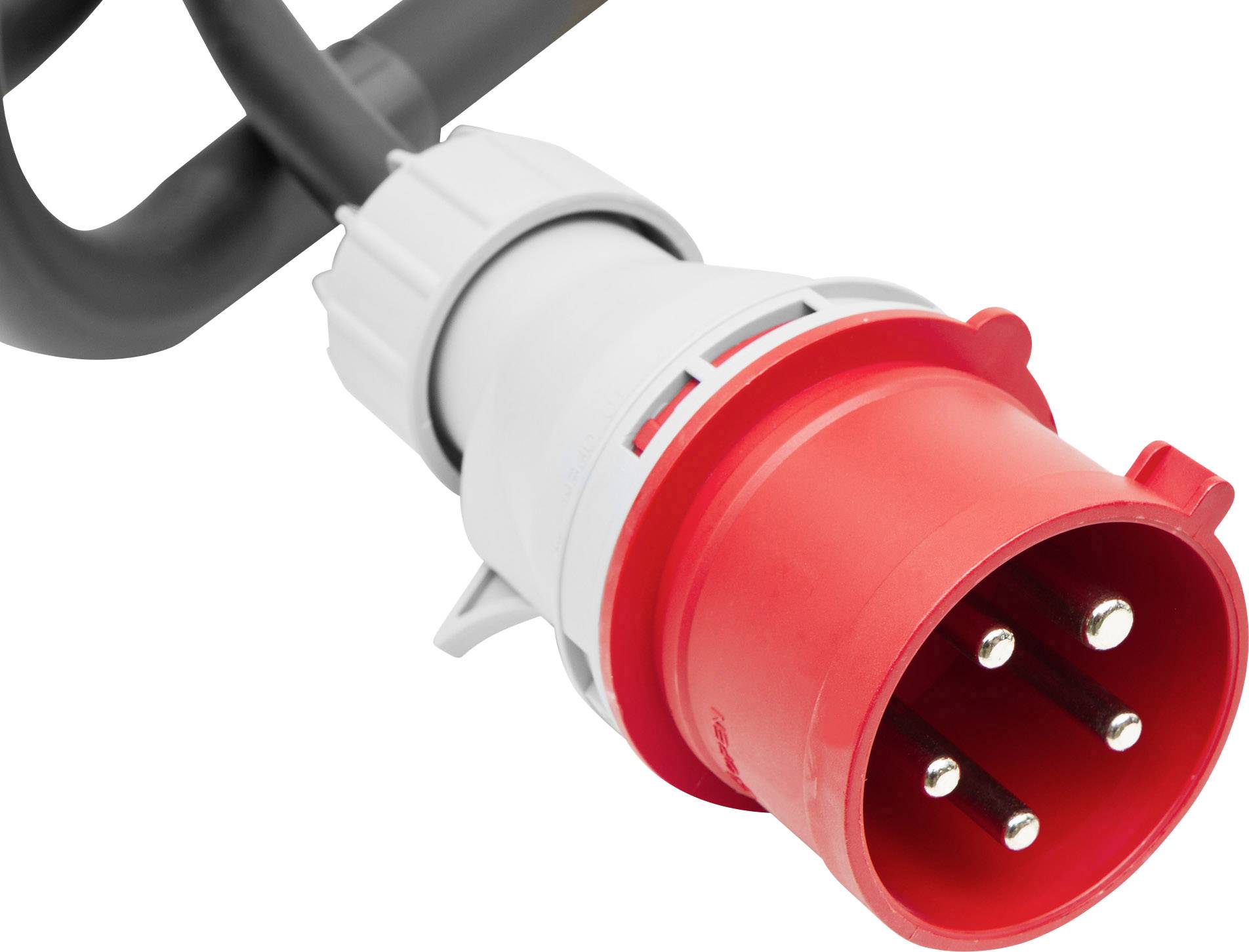

CEE plug (5-pin, 32 A)
- Inputs
1
- Outputs
7
- Nominal input voltage
400 V
- Nominal input current
32 A
IP44
- Cable length
1.80 m
- Weight
9 kg
- Dim
(L x W x H) 540 x 385 x 540 mm
- Length
540 mm
- Width
385 mm
- Height
540 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1534772 Holzmann Maschinen CEE power distributor SSV32A 400 V 32 A
User & Safety Instructions
User & Safety Instructions 1534772 Holzmann Maschinen CEE power distributor SSV32A 400 V 32 A
Description
On construction sites are sockets often lack. With this power supply distributors can be used with a 32 A supply current and unterverteilen on individual devices.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Stand power distributor
