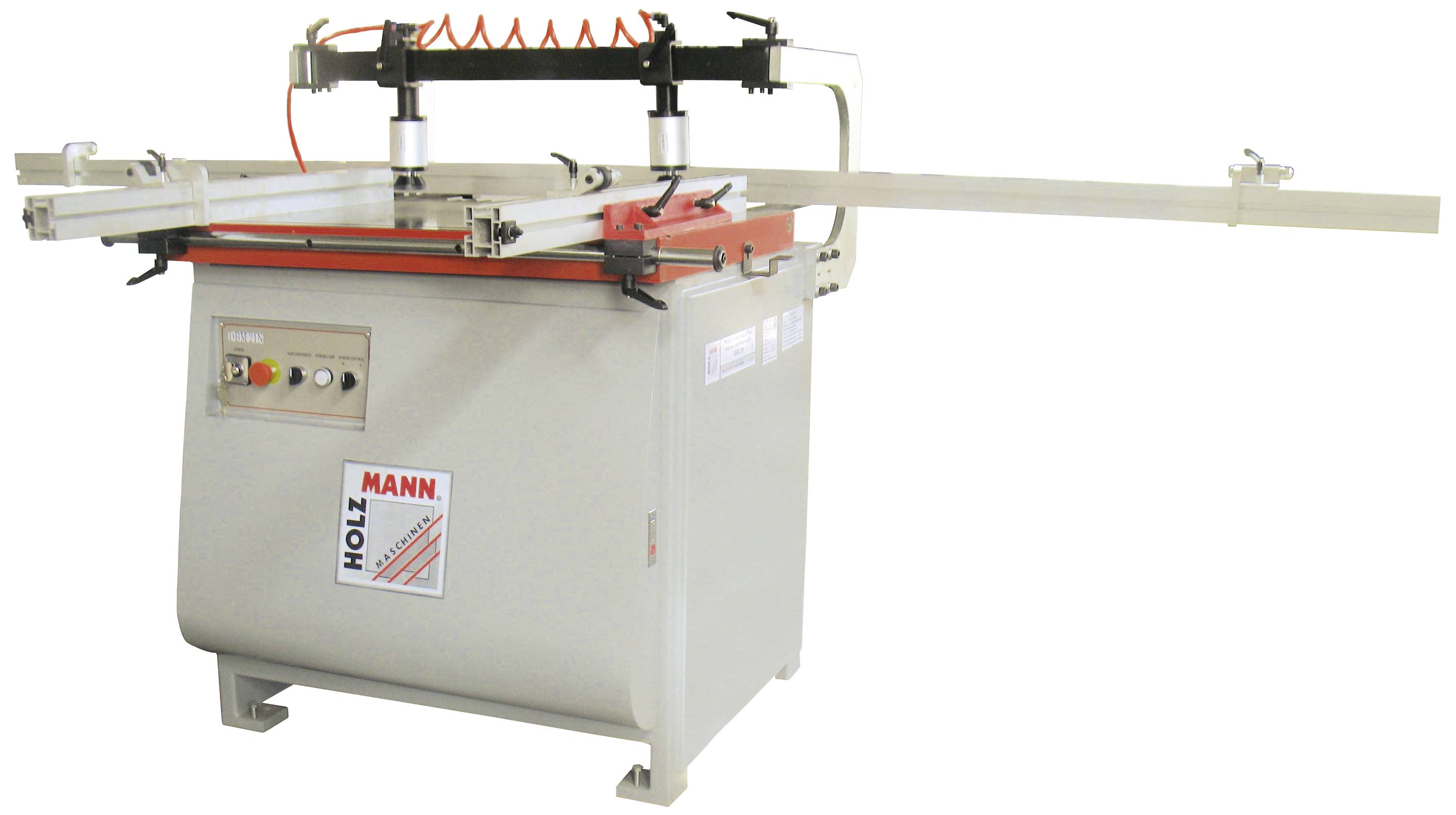

Holzmann Maschinen DBM21N_400V Drill 1500 W 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Dowel drill incl. foot control
- 1500 W
- Max. drill bit Ø
Technical specifications
- Workpiece thickness max. 80 mm
- Working air pressure in bar 6-8
- Max. Drilling depth 50 mm
- Spindle distance 32 mm
- Distance of the first-last spindle 640 mm
- Number of spindles 21
- Product type
Drill
1500 W
- Rotational speed range
1 - 2840
- Operating voltage
400 V
- Table length
550 mm
- Table width
870 mm
- Weight
341 kg
Documents & Downloads
Datasheet
Datasheet 3219031 Holzmann Maschinen DBM21N_400V Drill 1500 W 400 V
User & Safety Instructions
User & Safety Instructions 3219031 Holzmann Maschinen DBM21N_400V Drill 1500 W 400 V
Description
Ideal for corner and frame connections, holes for cabinet fittings.
This text is machine translated.
This text is machine translated.
Features
- Pneumatic drilling unit 0°- 45°- 90° swiveling for drilling on the front and surface side
- 2 pneumatic clamping modules
- Foot pedal for clamping – drilling - release
- Number of spindles: 21, spindle distance: 32mm
- Distance from first to last spindle: 640mm
- Pneumatic connection: 6bar (0.6MPa), up to max. 8 bar (0.8MPa)
- With 3 m stop
