Holzmann Maschinen DHM330PROSMW2_230V Planer incl. dust extractor 1500 W 33 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 626.05 / piece)
€ 626.05
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Planer
- Planer width: 33 cm
- Dim. table
Technical specifications
- Feed speed 6 m/min.
- min Workpiece length in mm 15
- min Workpiece thickness in mm 5
- max. Workpiece thickness in mm 152
- Product type
Planer
- Features
incl. dust extractor
1500 W
- Rotational speed
8500 U/min
- Plane width
33 cm
- Operating voltage
230 V
- Weight
31 kg
Documents & Downloads
Datasheet
Datasheet 3473840 Holzmann Maschinen DHM330PROSMW2_230V Planer incl. dust extractor 1500 W 33 cm
User & Safety Instructions
User & Safety Instructions 3473840 Holzmann Maschinen DHM330PROSMW2_230V Planer incl. dust extractor 1500 W 33 cm
Description

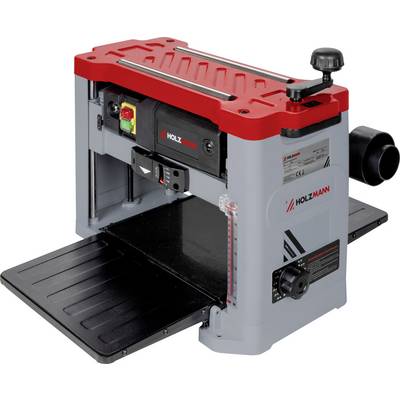

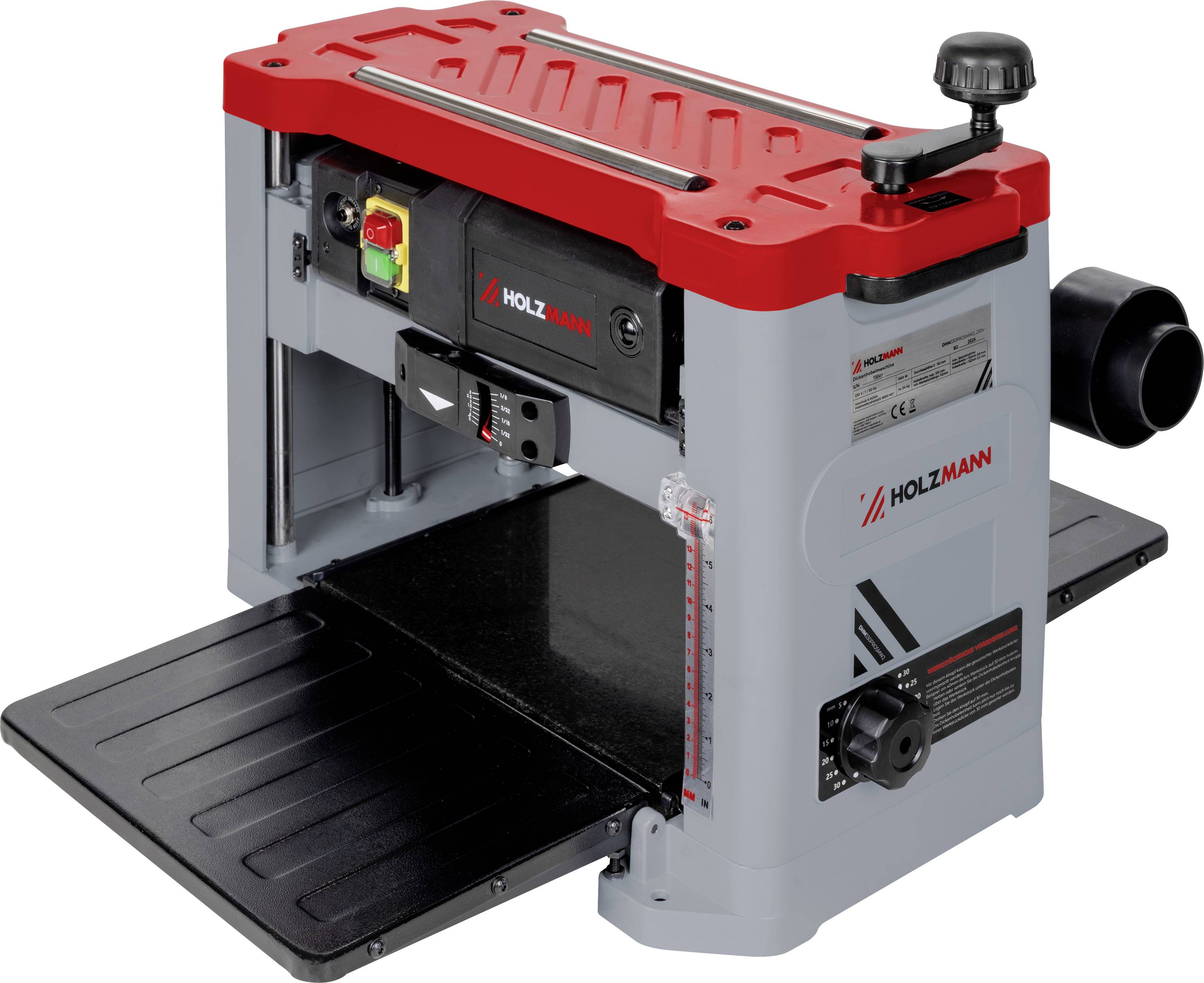

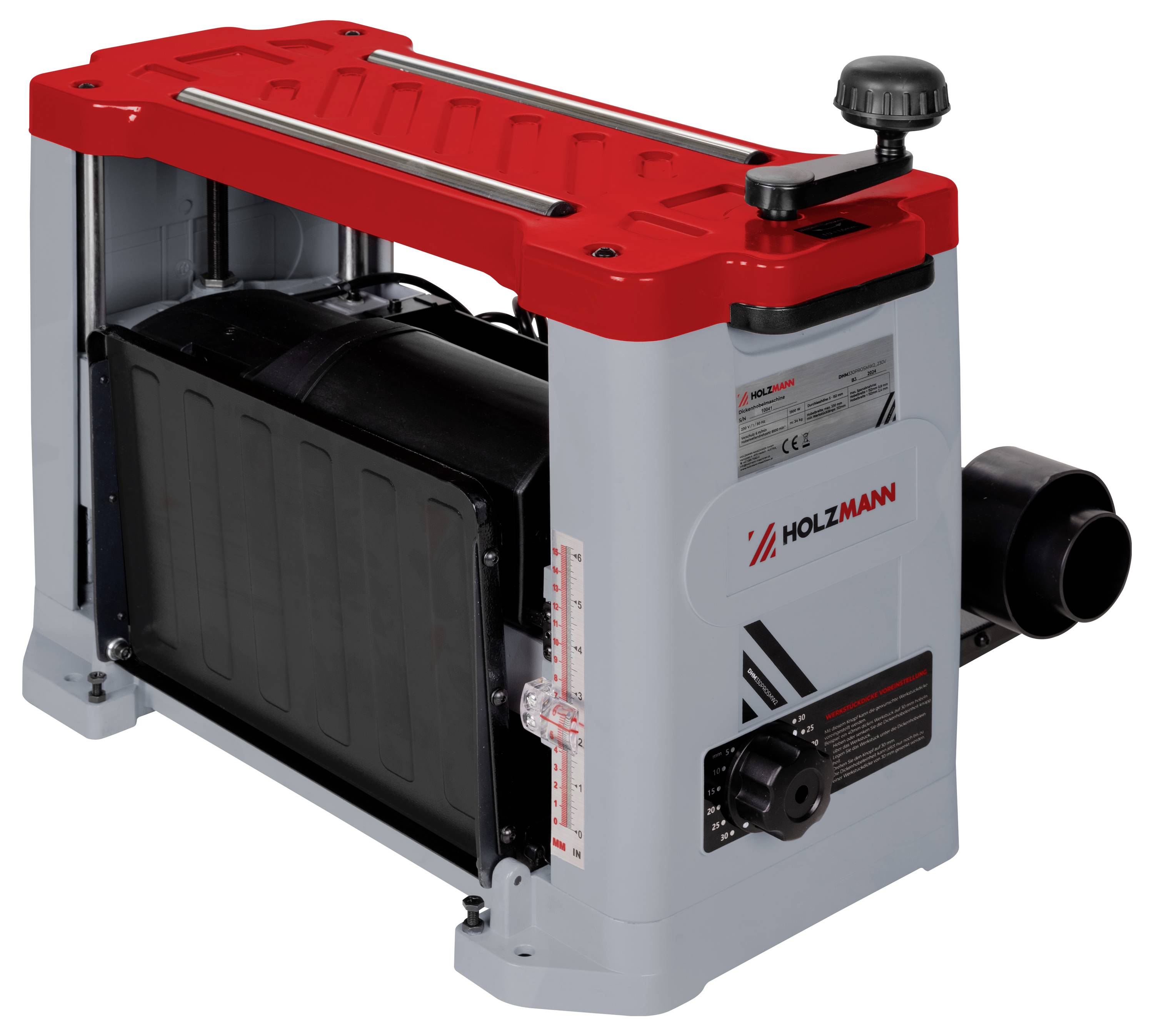

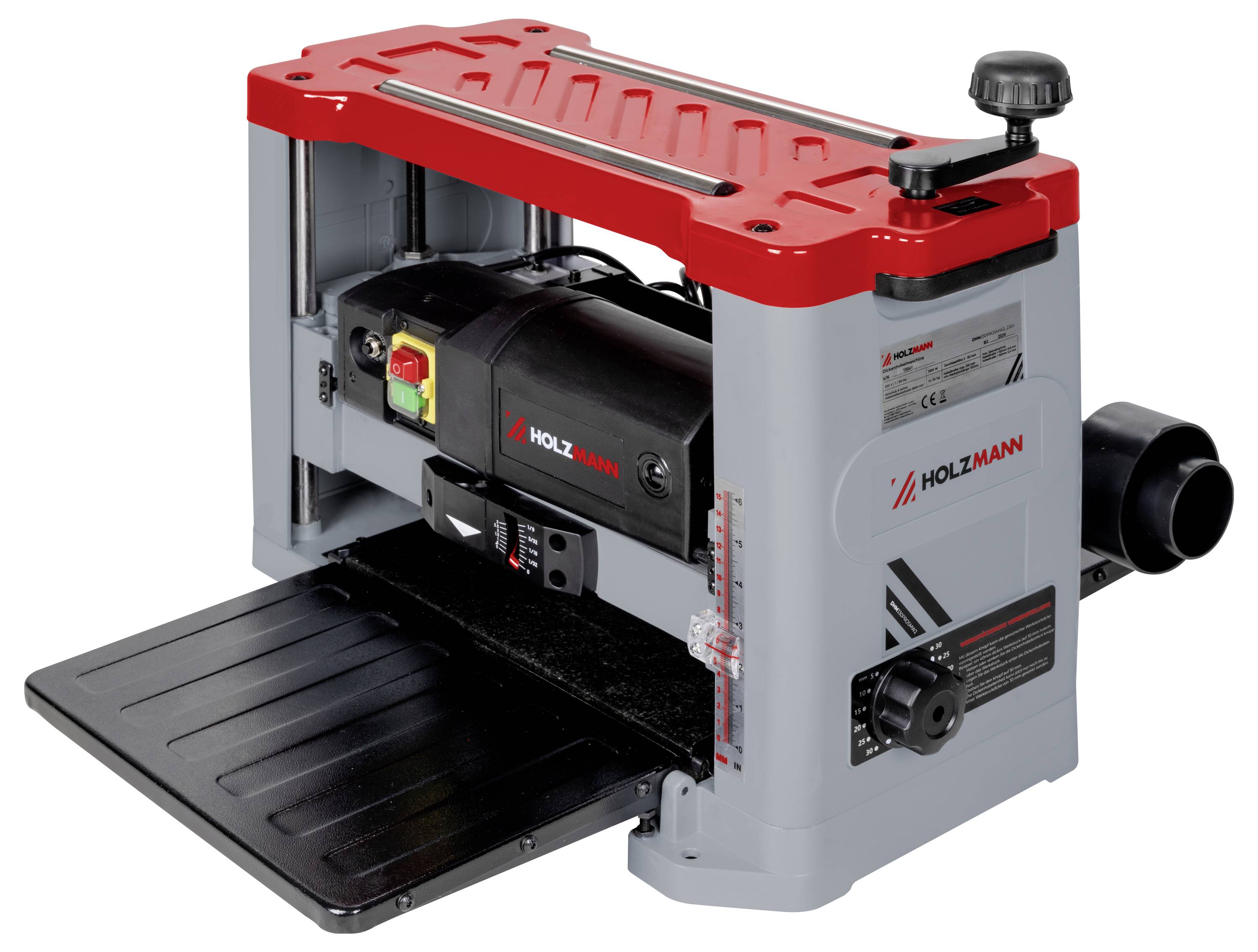

The HOLZMANN thick planing machine DHM330PROSMW2_230V with a max. Plane width of 330 mm, max cut-off height of 152 mm plands your beam / wooden board accurately. Thanks to its compact design, it is simply placed on a workbench or desk and therefore suitable for use outside the workshop, e.g.: Building site. With a spiral knife shaft, the granite thickness planing table and the ability to adjust the desired workpiece thickness, this model becomes a PRO version.
This text is machine translated.
This text is machine translated.
Features
- Suction connection Ø65,5/101.5 mm
- Spiral blade shaft with 2 grooves
Scope of delivery
- Tipped tool mounted (30 piece 15 x 15 x 2.5 mm, 37°)
Hints
max. Cut-off: 2.4 mm (for planer widths of more than 152 mm), 0.8 mm (for working widths of more than 152 mm), installed dimensions in mm: 710 x 600 x 475
