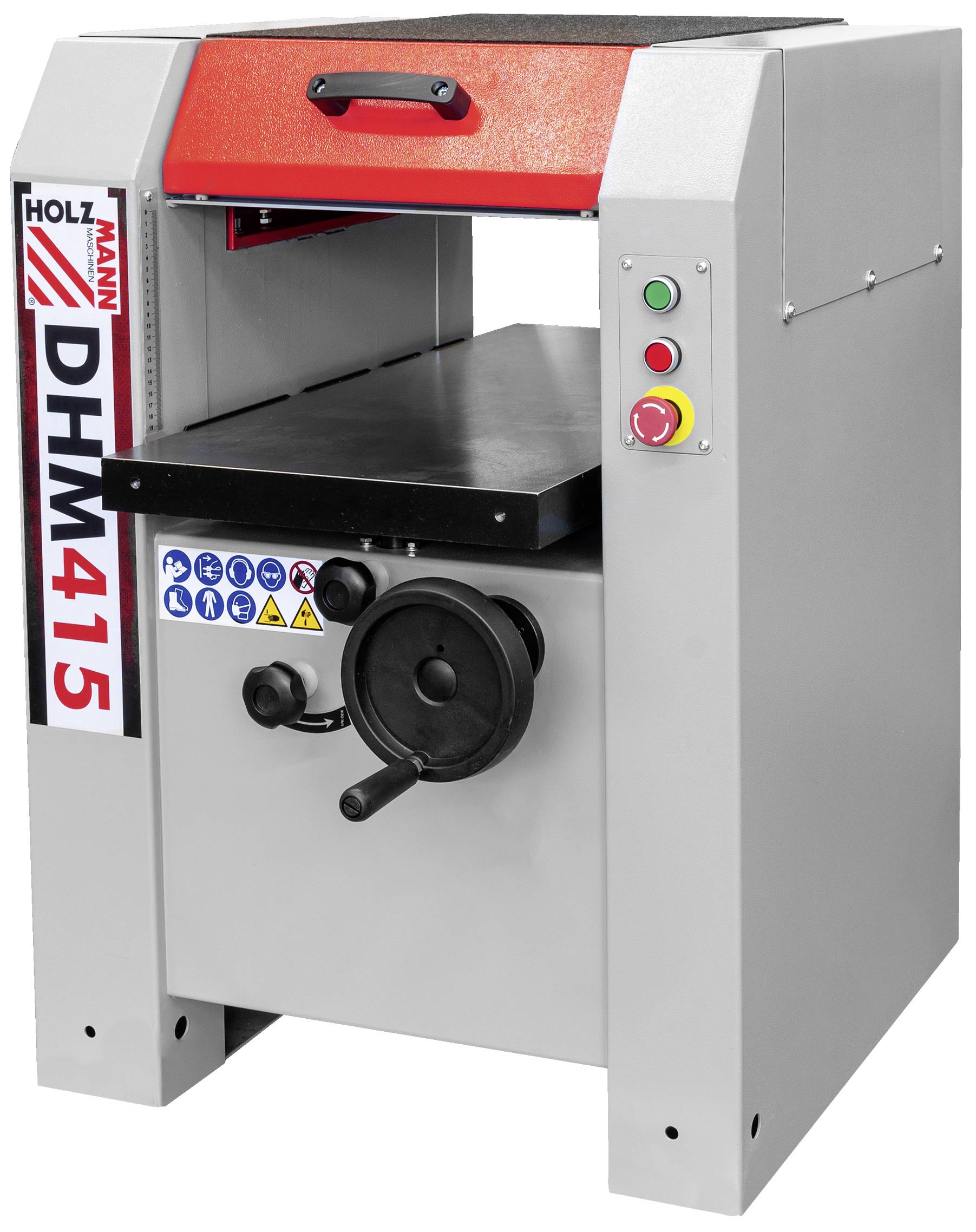

Holzmann Maschinen DHM415_400V Planer 4000 W 40.8
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Planer
- Planer width: 40.8
- Dim. table 75 mm
Technical specifications
- Passage height max. 220 mm
- Planer shaft diameter 95 mm
- Plane blade number: 3
- Sound power level in dB(A) 108
- Sound pressure level in dB(A) 100.1
- Product type
Planer
- Power S6
4000 W
4000 W
- Rotational speed
4200 U/min
- Plane width
40.8
- Operating voltage
400 V
- Table length
75 mm
- Table width
48 mm
- Length
96.8 mm
- Width
98.5 mm
- Height
95.5 mm
- Weight
233 kg
Documents & Downloads
Datasheet
Datasheet 3219032 Holzmann Maschinen DHM415_400V Planer 4000 W 40.8
User & Safety Instructions
User & Safety Instructions 3219032 Holzmann Maschinen DHM415_400V Planer 4000 W 40.8
Description
Features
- Ground thick table for friction minimization
- Hand wheel for fine tuning chip removal
- Precision positioning of the blade shaft ensures perfect planer results
- Powerful chain drive of the feed gear
- Suction connection 120mm
- Ergonomic and high quality finish
- Max. Planer width 405mm
- This text is machine translated.
Scope of delivery
- Strip plane blade installed (410 x 3 x 30mm)
- Planer blade gauge
