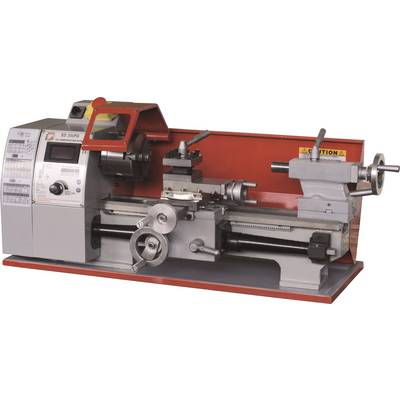

Holzmann Maschinen ED300FD_230V Metal Lathe 450/630 W
EAN:
Part number:
Item no:
Highlights & Details
Metal lathe ED 300 FD_230V
- Tip width 30 mm
Technical specifications
- Product type
Lathe
- Material
Metal
- Power S1
450 W
- Power S6
630 W
- Mandrel speed (max.)
2500 U/min
- Tip width
30 mm
- Operating voltage
230 V
- Weight
60 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1889901 Holzmann Maschinen ED300FD_230V Metal Lathe 450/630 W
Description
Features
- High concentricity of the main spindle
- Infinitely adjustable speed, comfortable to read about digital speed display
- Standard provided change gear for large thread cutting area
- Wedge strips the carriage guide clearance-free operating positions
- Powerful, maintenance-free engine with undervoltage release
- Extremely high-torque, largely constant torque curve
- Right-left rotation on the operator panel can be switched digitally
- Tailstock can be moved to the taper turning
Scope of delivery
- Metal lathe
- 3-jaw chuck Ø 100 mm
- Four-way steel holder
- Fixed grain point MK3
- Fixed grain point MK2
- Clamping rear wall
- Clamping trough
- Ac wheel set
- Control tool
