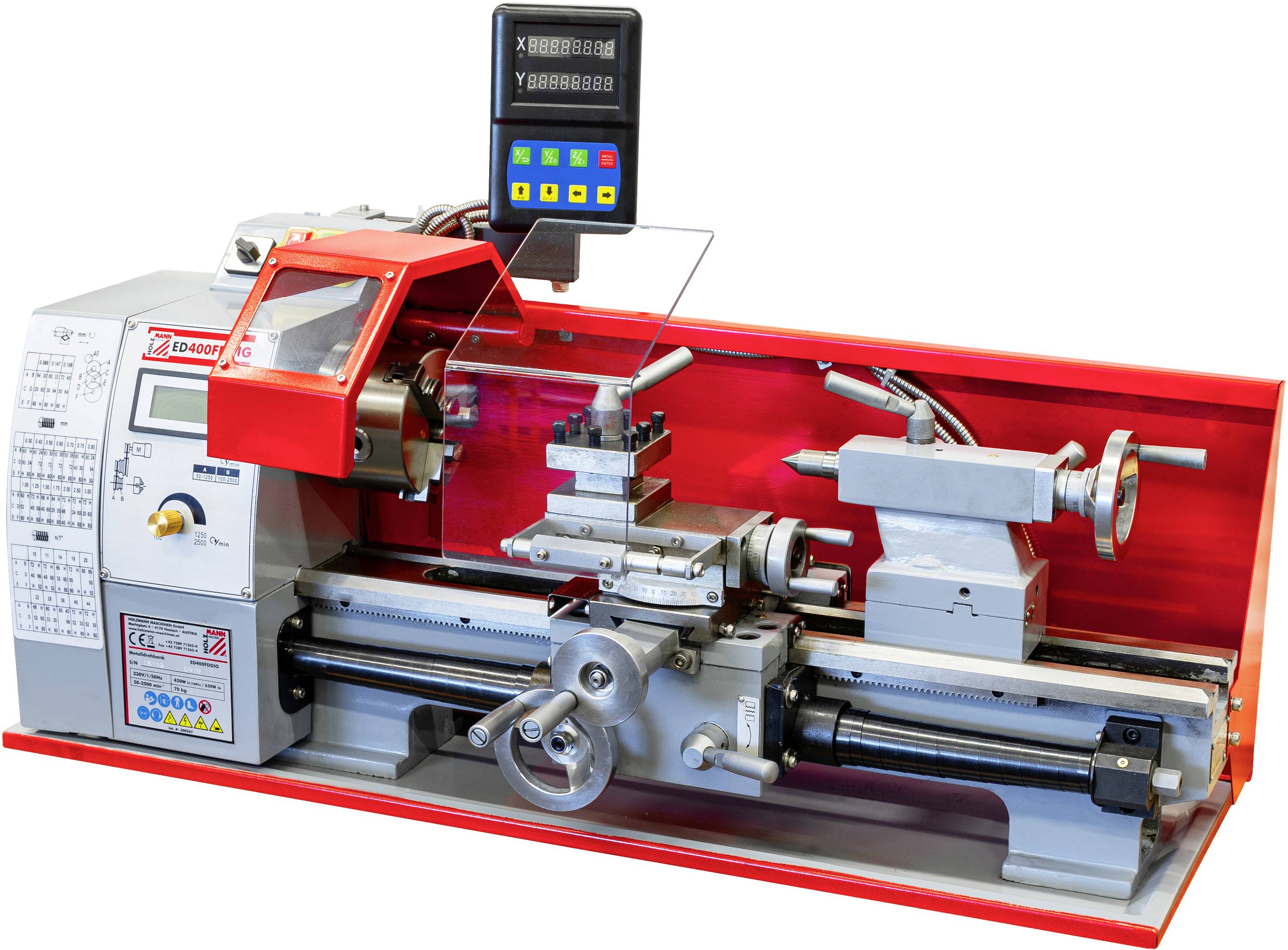

Holzmann Maschinen ED400FDDIG_230V Metal Lathe 450/630 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Tip width 40 mm
Technical specifications
- Max. Bed diameter: 210 mm
- Max. Cross slide diameter 134 mm
- 21 mm spindle bore
- Spindle cone: MK3
- Tailstock cone: MK2
- Longitudinal feed: 0.089 / 0.147 / 0.198 mm/rev
- Longitudinal carriage stroke: 376 mm
- Cross-slide stroke 80 mm
- Upper slide lift: 55mm
- Metric thread: 0.5 - 3mm
- Thread inch 8 - 44 TPI
- Max. Tool holder: 10
- Product type
Lathe
- Material
Metal
- Power S1
450 W
- Power S6
630 W
- Mandrel speed (min.)
50 U/min
- Mandrel speed (max.)
2500 U/min
- Tip width
40 mm
- Operating voltage
230 V
- Weight
77 kg
- Length
94 cm
- Width
38 cm
- Height
34.5 cm
Documents & Downloads
Datasheet
Datasheet 2482810 Holzmann Maschinen ED400FDDIG_230V Metal Lathe 450/630 W
User & Safety Instructions
User & Safety Instructions 2482810 Holzmann Maschinen ED400FDDIG_230V Metal Lathe 450/630 W
Description
Features
- With leading spindle for thread cutting or automatic longitudinal turning
- Prism bed guides induction hardened and precision ground
- Hardened main spindle stored in adjustable precise tapered roller bearings
- High concentricity of the main spindle
- Speed continuously adjustable, easy to read via digital speed display
- Interchangeable wheels for large thread cutting area supplied as standard
- Wedge bars of the slide guide can be adjusted without play
- Powerful, maintenance-free motor with undervoltage release
- Extremely powerful, largely constant torque characteristic
- Clockwise/anti-clockwise rotation can be switched on the control panel
- Tailstock can be moved to taper rotation
- Note: Machine runs at half speed when reversing.

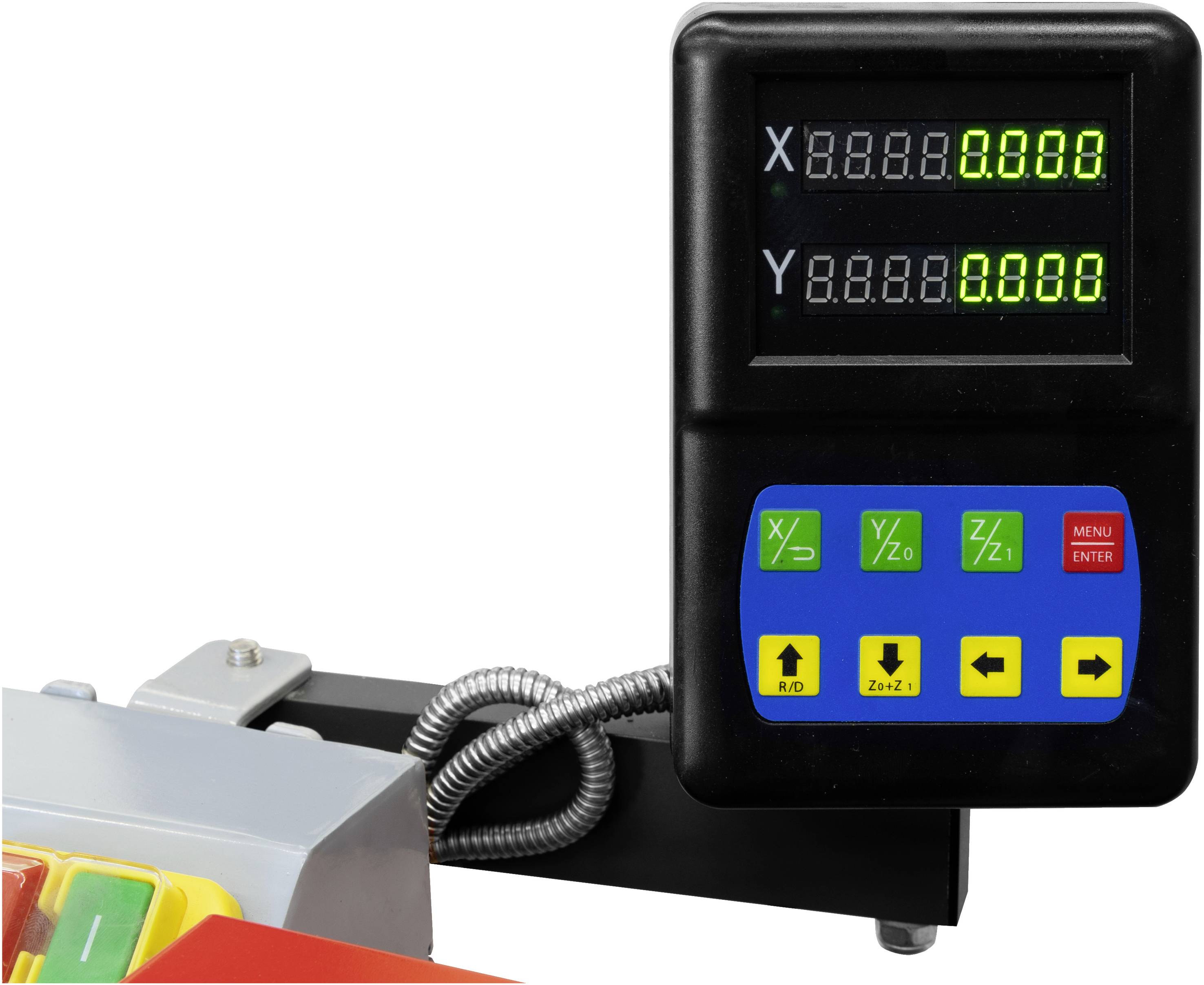

- Digital position display (2-axis) for easier operation
- This text is machine translated.
Scope of delivery
- 3-jaw chuck Ø 100mm
- Four-way steel holder
- Fixed center punch tip MK3
- Fixed center punch tip MK2
- Chip rear panel
- Chip trough
- Replacement wheel set
- Operating tool
