Holzmann Maschinen ED420FXL_230V Metal Lathe
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Metal lathe variable speed
- Tip width 73.5 mm
Technical specifications
- Longitudinal feed: 0.11 | 0.152 | 0.198 mm/rev
- Spindle cone MK5 / MT5

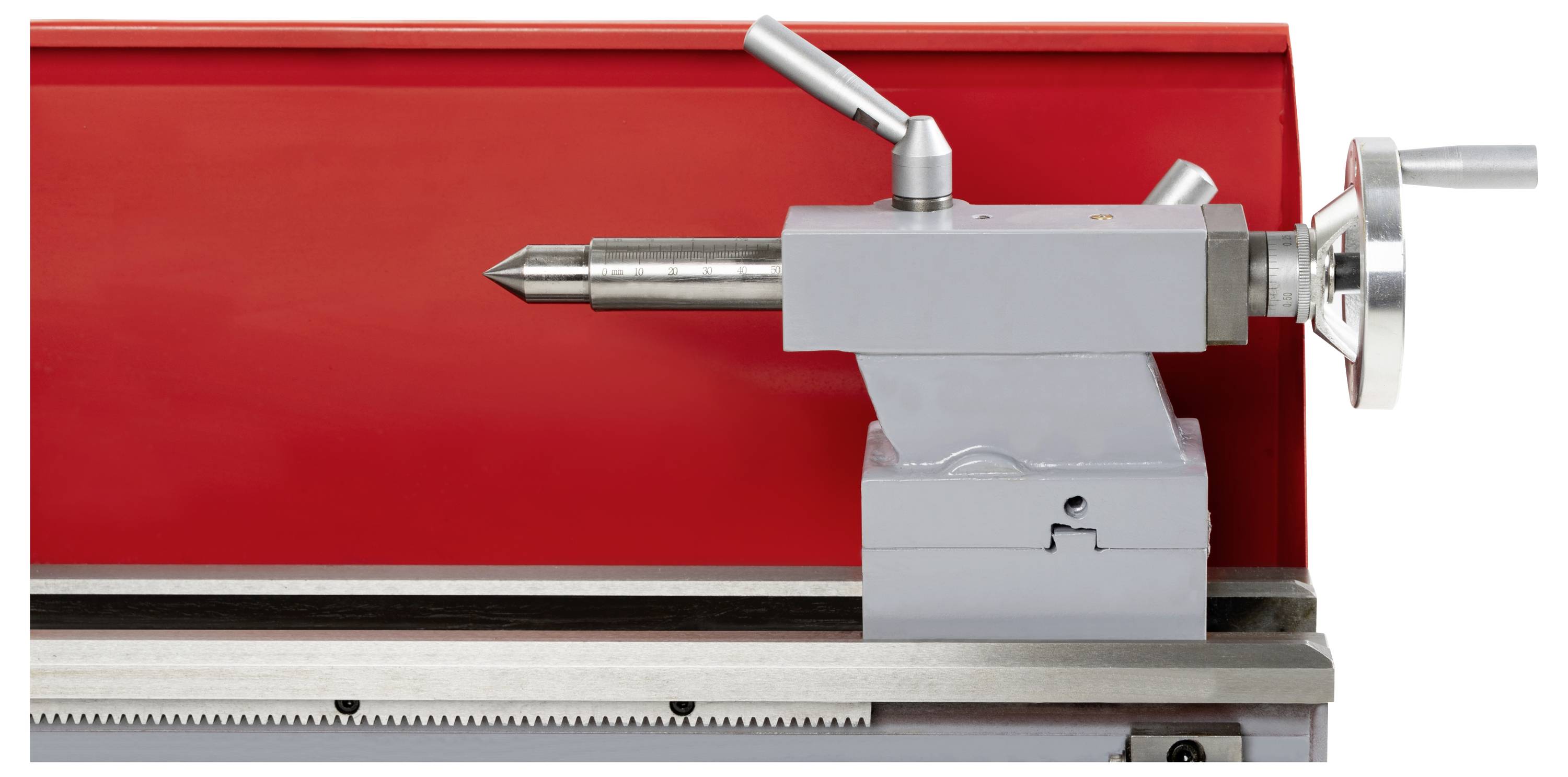

- Tailstock cone MK2 / MT2
- max. Tool holder 12 x 12
- Spindle bore 38 mm
- Installation dimensions in mm 1200 x 340 x 360
- max. Recirculating diameter bed 210 mm
- Product type
Lathe
- Material
Metal
- Power S1
750 W
- Mandrel speed (min.)
50 U/min
- Mandrel speed (max.)
2500 U/min
- Tip width
73.5 mm
- Operating voltage
230 V
- Weight
79 kg
Documents & Downloads
Datasheet
Datasheet 3473844 Holzmann Maschinen ED420FXL_230V Metal Lathe
User & Safety Instructions
User & Safety Instructions 3473844 Holzmann Maschinen ED420FXL_230V Metal Lathe
Description

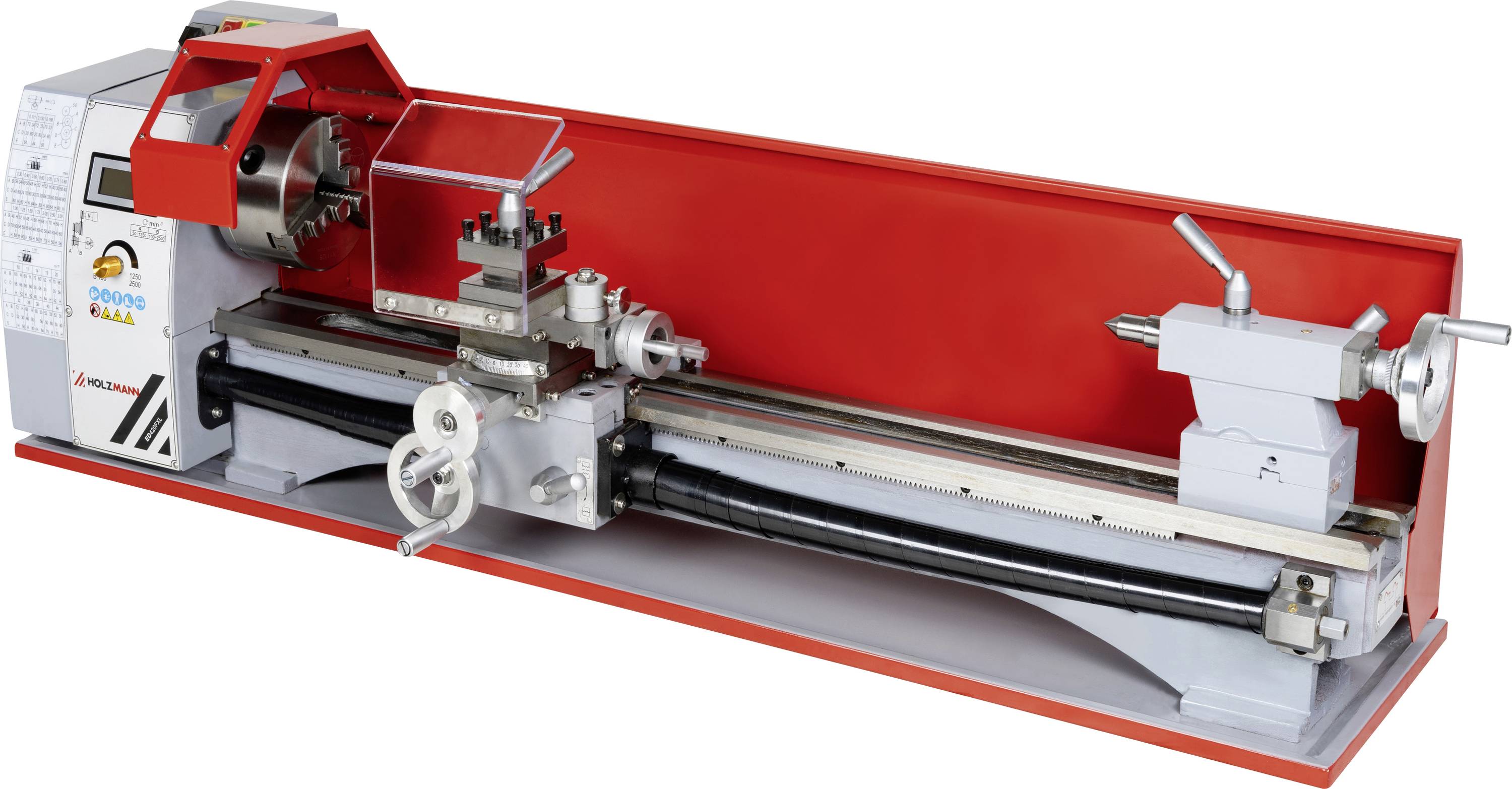

The HOLZMANN ED420FXL_230V is a compact table turning machine for machining steel, cast iron, non-ferrous metals, aluminum, brass and plastics. With a tip width of 735 mm, it can also be used to work on long workpieces. The prismatic bed guide is inductively hardened and precision ground. High concentricity and high-quality design results in a compact, high-torque rotary bench for the ambitious metal labeler.
This text is machine translated.
This text is machine translated.

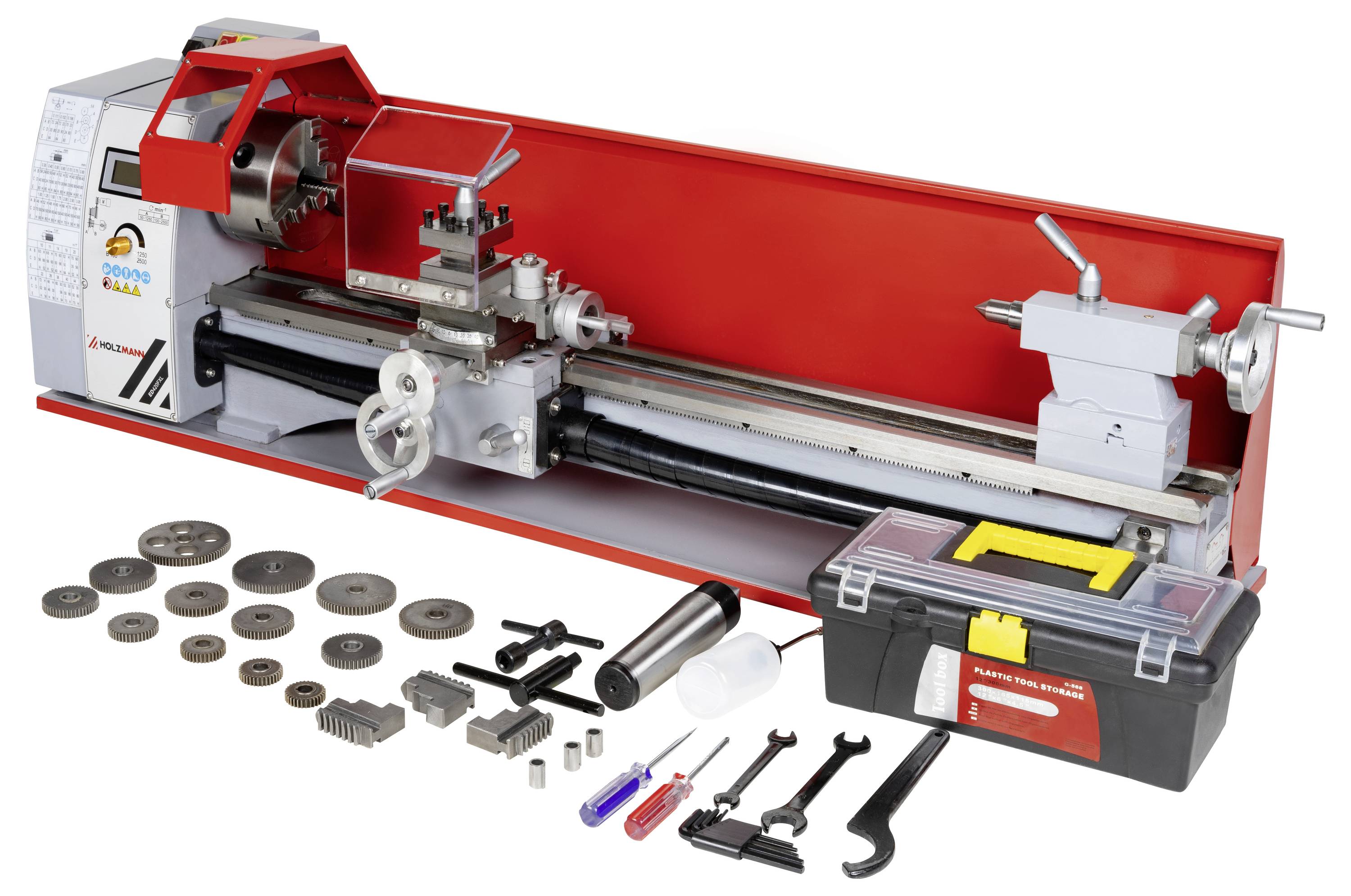

Scope of delivery
- 3 jaw chuck Ø 125 mm
- Quadruple steel holder
- Fixed center punch tip MK5
- Fixed center punch tip MK2
- Chip rear panel
- Chip collection tray
- Change wheel set
- Operating tool
Hints
Note: Machine is running at half speed when turning reverse.
