Name: Holzmann Maschinen FKS305V32TOP_400V Panel saw 315 mm 30 mm 400 V
Brand: Holzmann Maschinen
SKU: 3219034

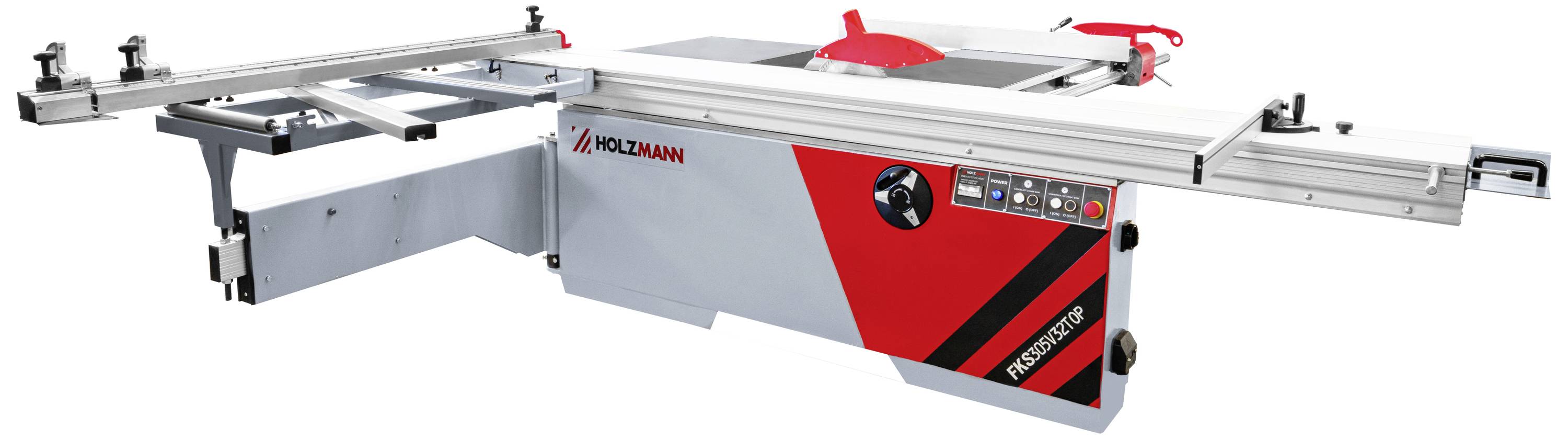

A red and grey Holzmann circular table saw with sliding carriage and control panel for woodworking.

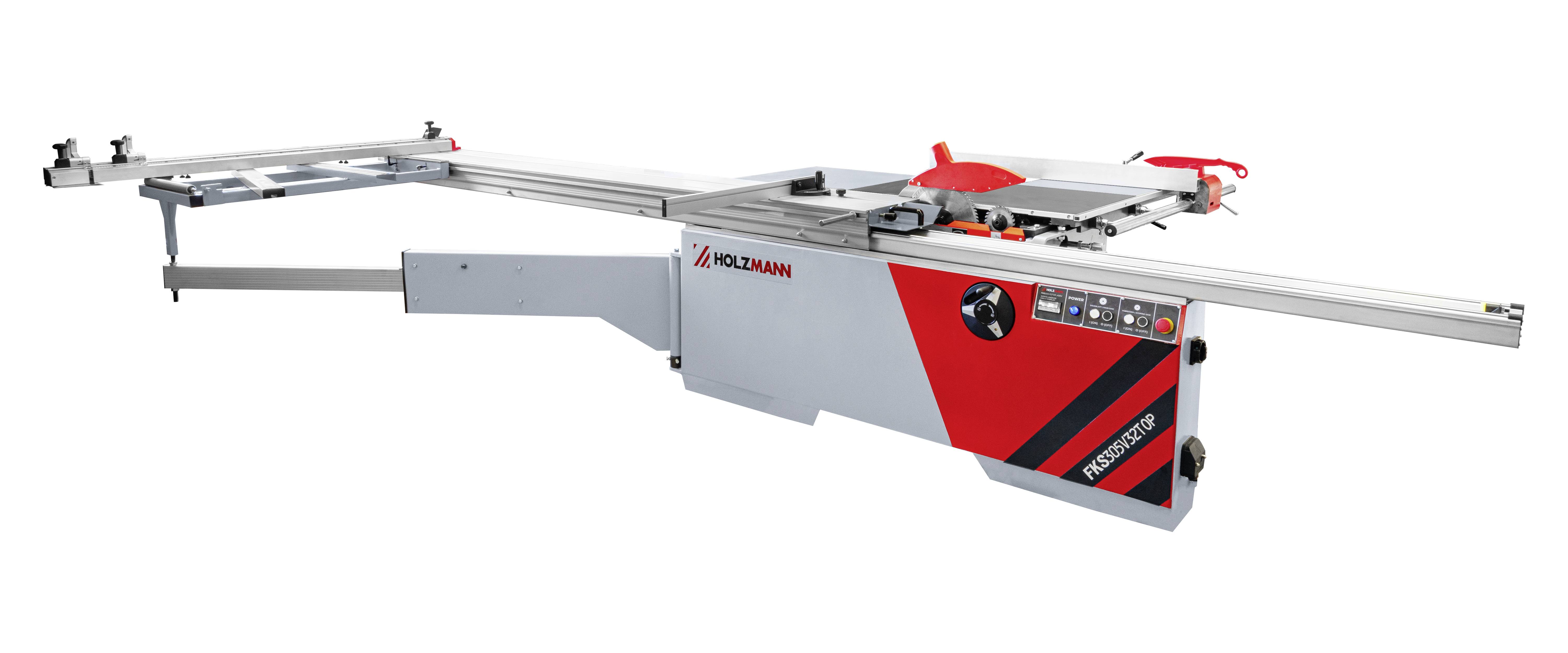

Format circular saw with red and grey housing, long guide rail and precise adjustment options for professional woodworking.

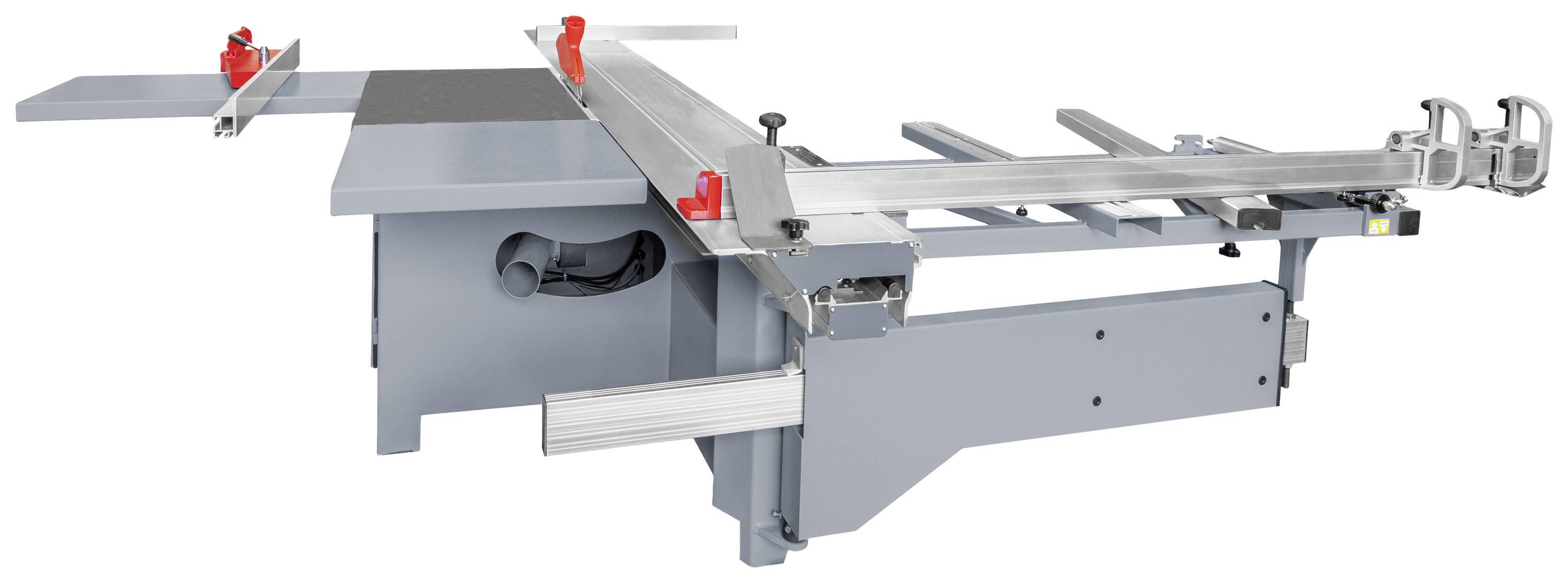

Grey panel saw with guide rails and red mountings, suitable for precision cutting of wood and other material boards.

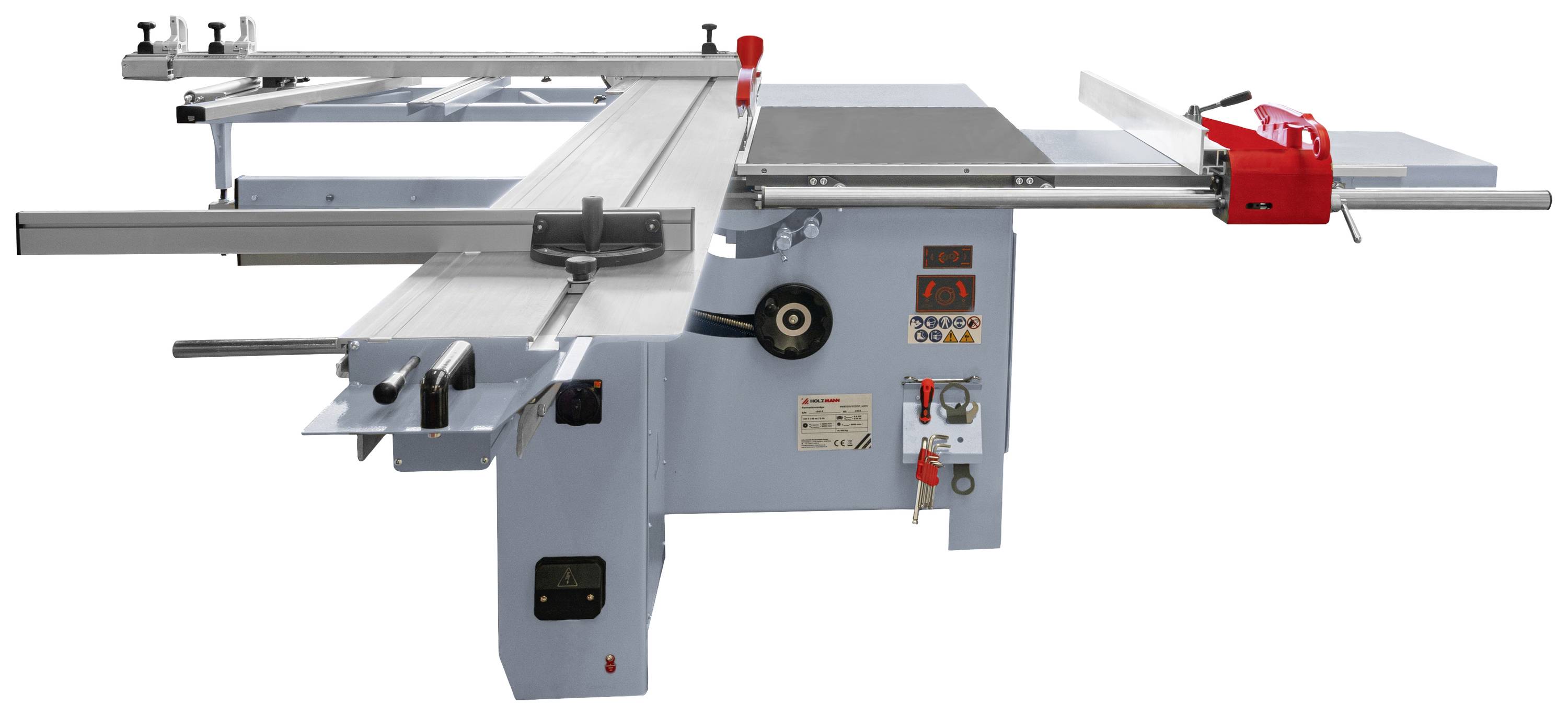

Large table circular saw with extendable table, red safety switch, and narrow saw blade. Suitable for precise woodworking.

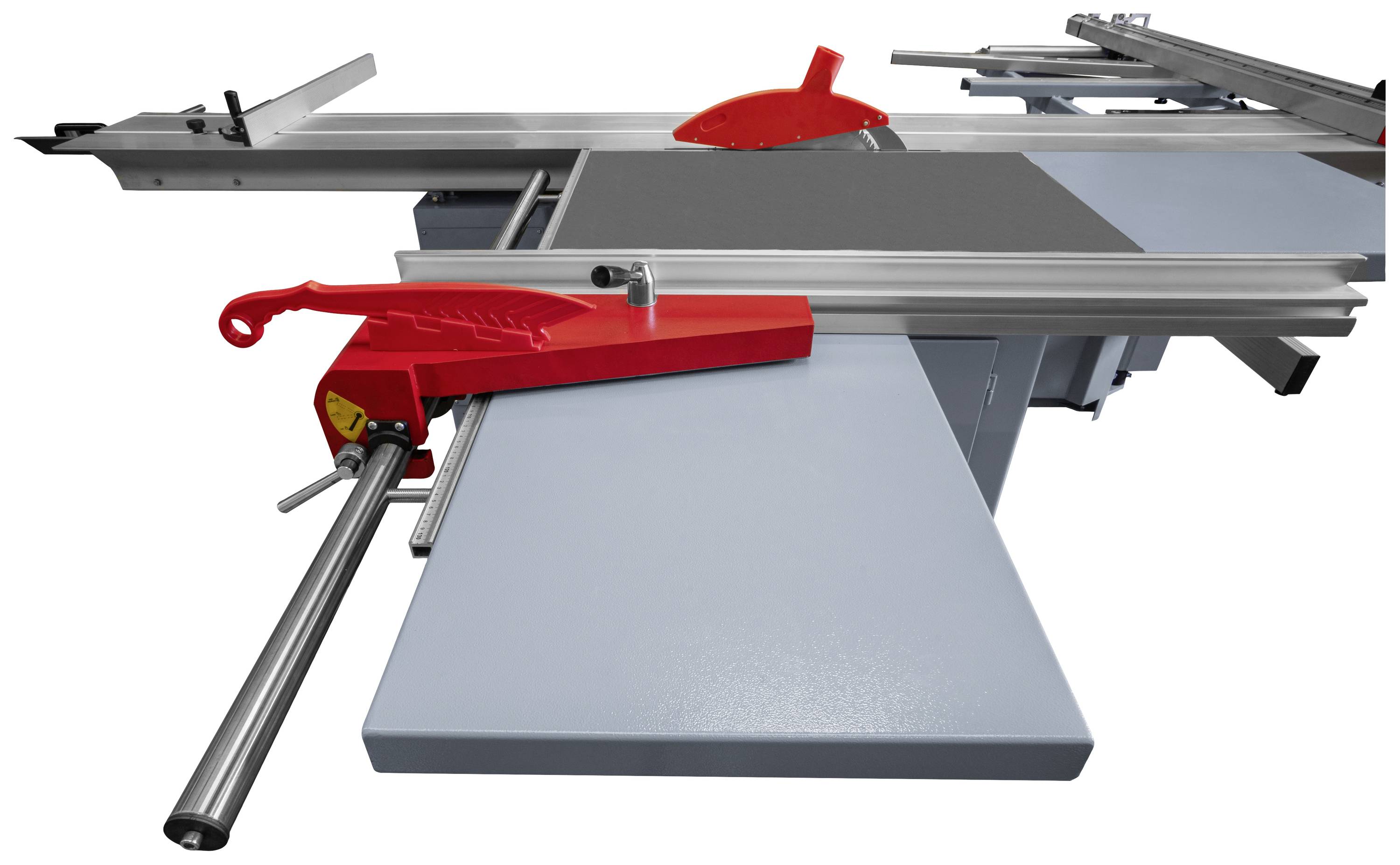

Circular table saw with a red safety guard and guide rail in a workshop setting. Tool for precise cutting of materials.

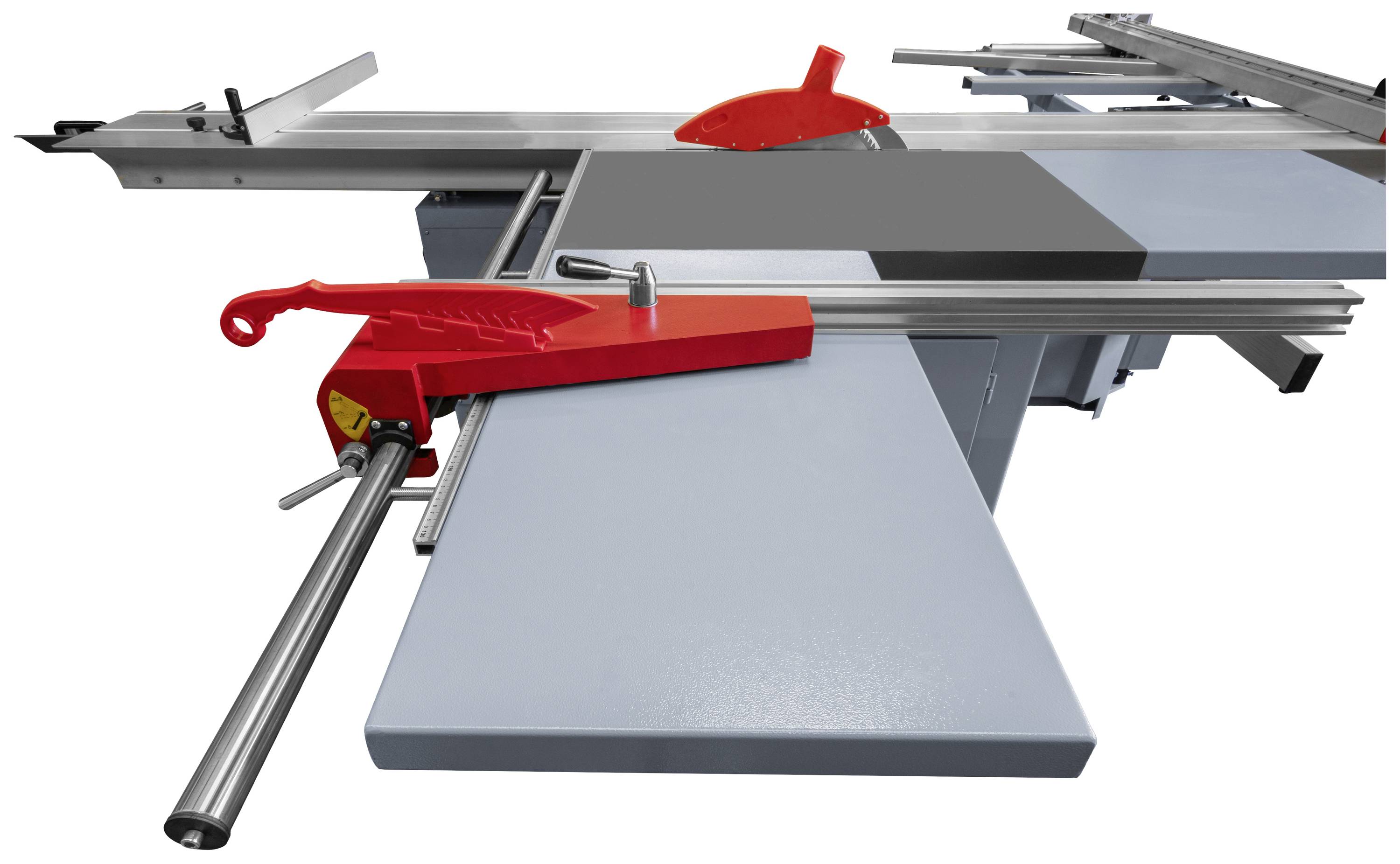

A table circular saw with a red guide carriage and grey working surface, suitable for precise woodworking.

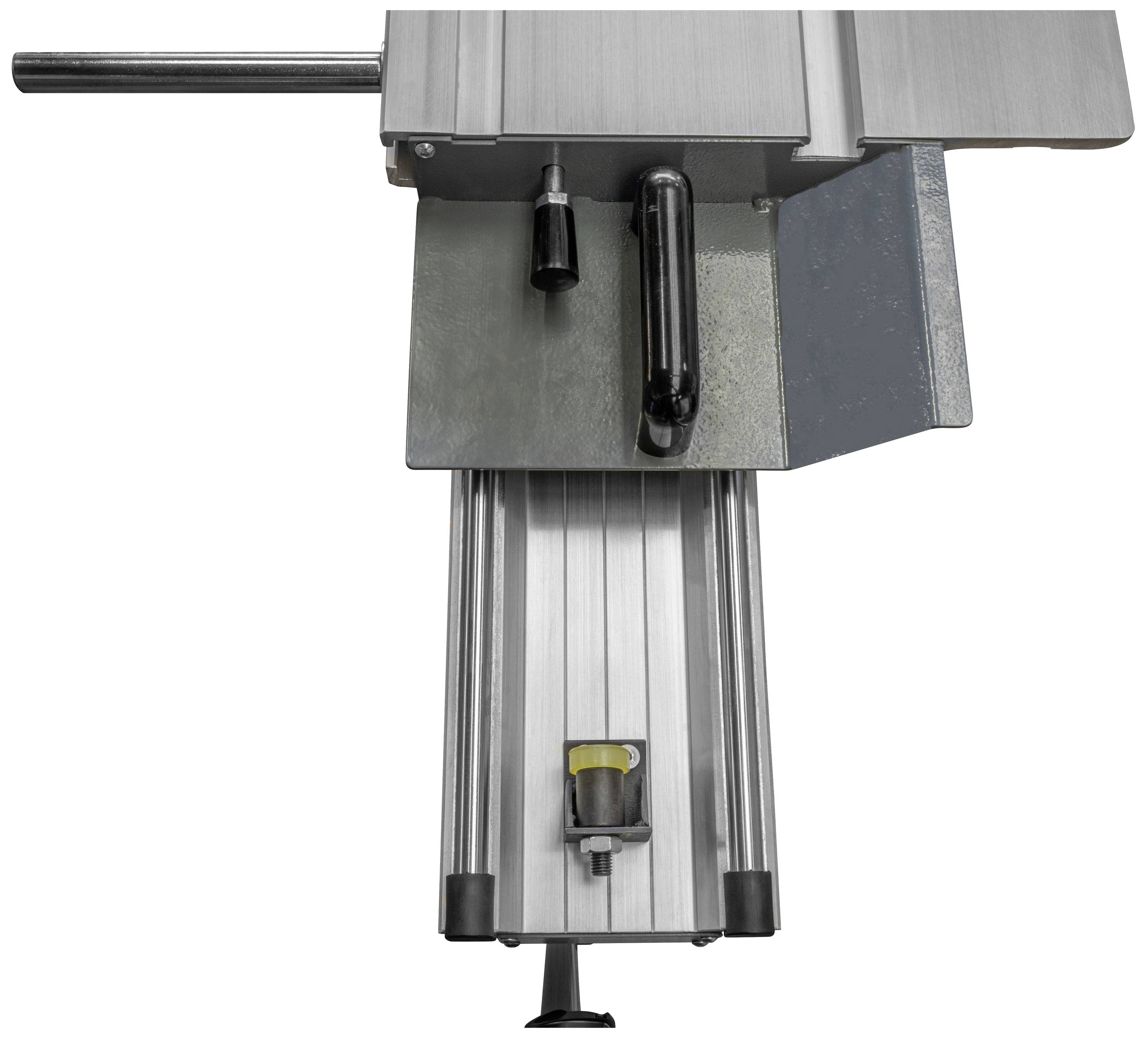

Metal workbench with elongated hole drilling facility, with a lever, guide rail, and clamping device clearly visible.

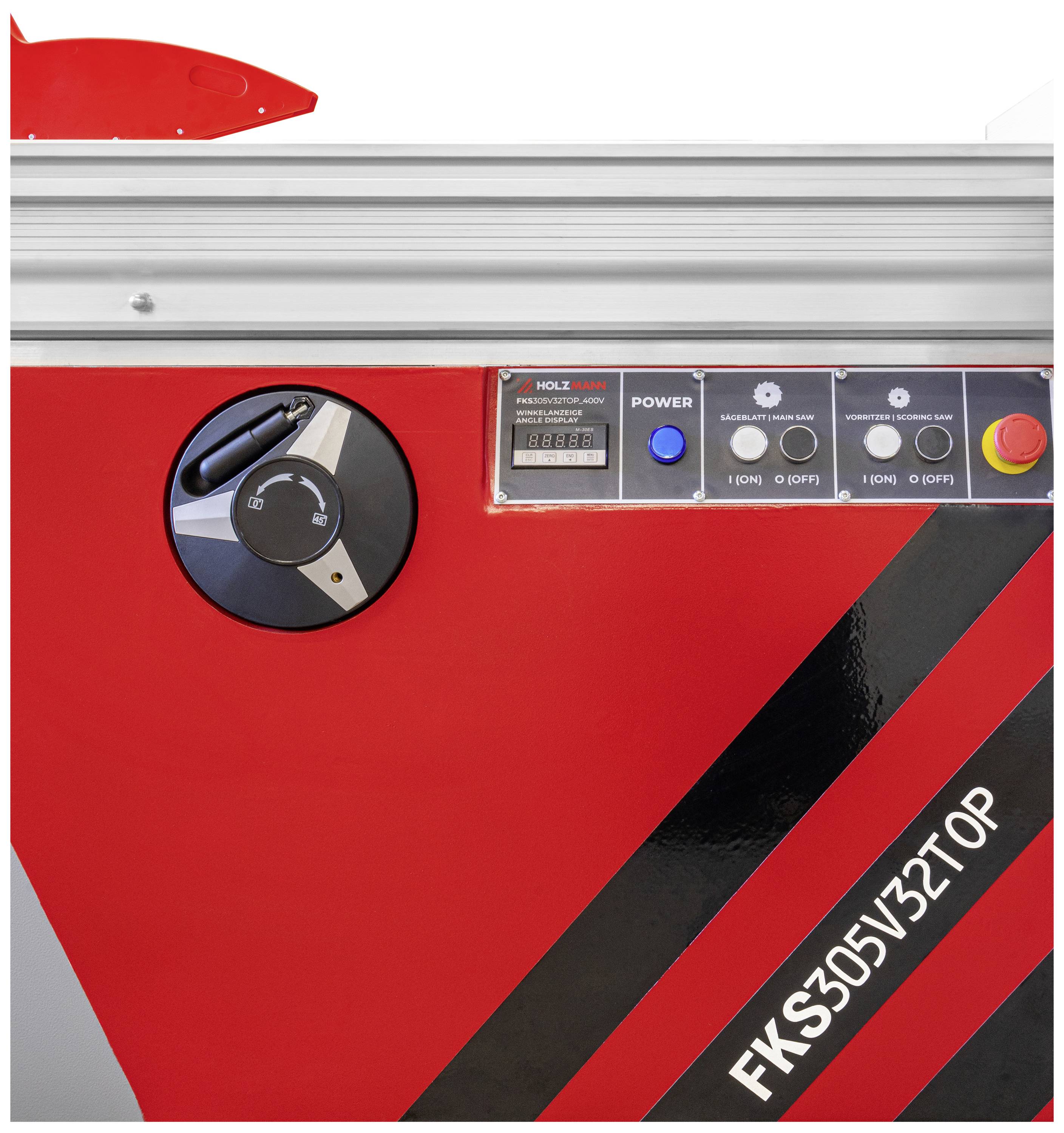

A red industrial machine with a control panel. Buttons and display for operation, a large rotary knob on the left. Text: 'FKS305V32TOP'.

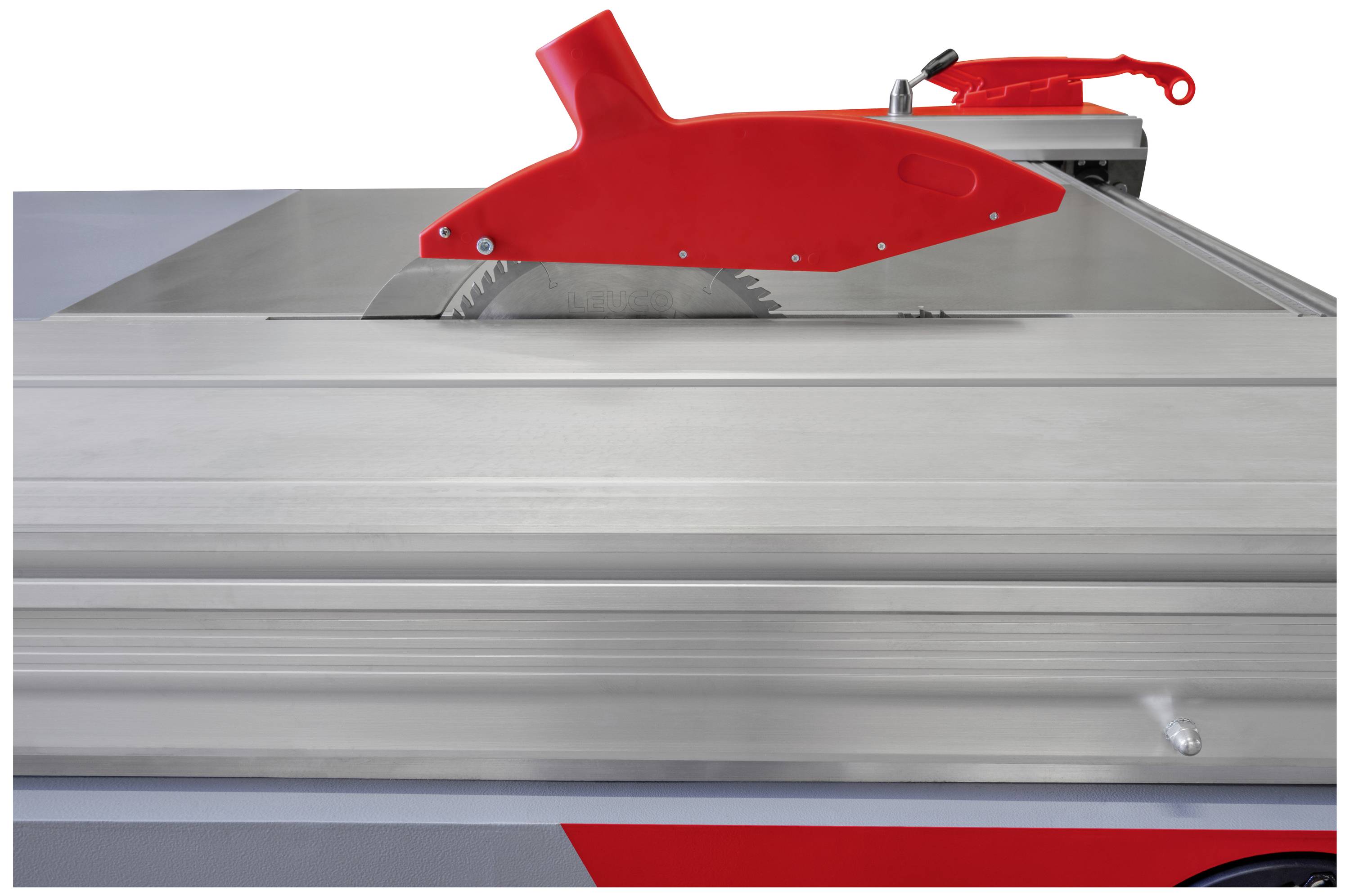

Saw blade of a table circular saw with a red protective cover, ready for use.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Table height 890 mm
Slide format table 3200 x 360 mm
Side table 1220 x 530 mm
Suction connection 100 mm
Swivelling range of saw-blade 0° - 45°
Cutting width at parallel stop 1250 mm
Scoring saw blade in mm Ø120 x 20 x 3.2-4.2/2.2
Sound power level in dB(A) 90
Sound pressure level in dB(A) 88.2

Product type: Panel saw

Saw blade diameter: 315 mm

Bore Ø: 30 mm

Power S1: 4000 W

Power S6: 6000 W

Operating voltage: 400 V

Table dimensions: 3200 x 360 mm

Weight: 645 kg

Documents & Downloads

Datasheet

Datasheet 3219034 Holzmann Maschinen FKS305V32TOP_400V Panel saw 315 mm 30 mm 400 V

User & Safety Instructions

User & Safety Instructions 3219034 Holzmann Maschinen FKS305V32TOP_400V Panel saw 315 mm 30 mm 400 V

Description

The HOLZMANN format circular saw FKS305V32TOP_400 with 3.2 m sliding table, scoring (height and adjustable to the side), main saw blade with height and angle adjustment, table extension, boom table for short of a perfect saw for their board cutting in your carpenter's workshop.

This text is machine translated.

Features

Solid design
With large aluminum slide table and boom Ideal for processing large work pieces and the cutting of large, heavy plates
Work table made of cast iron (935 x 600 mm) including table width (900 x 500 mm) and table extension (600 x 520 mm) made of solid steel construction
Outlayer table (1220 x 530 mm) and cut-off stopper (1950 - 3300 mm)
Including Vorritzer with own motor and manual height and side adjustment
Manually pivotable saw blade 0°-45° (via angle indicator)
Height adjustment of the main saw blade via handwheel

Scope of delivery

Main saw blade (HW: Ø300 x 30 x 3.2 mm Z(72))
Scoring saw blade (Ø120 x 20 x 3-3.8 Z=24)
