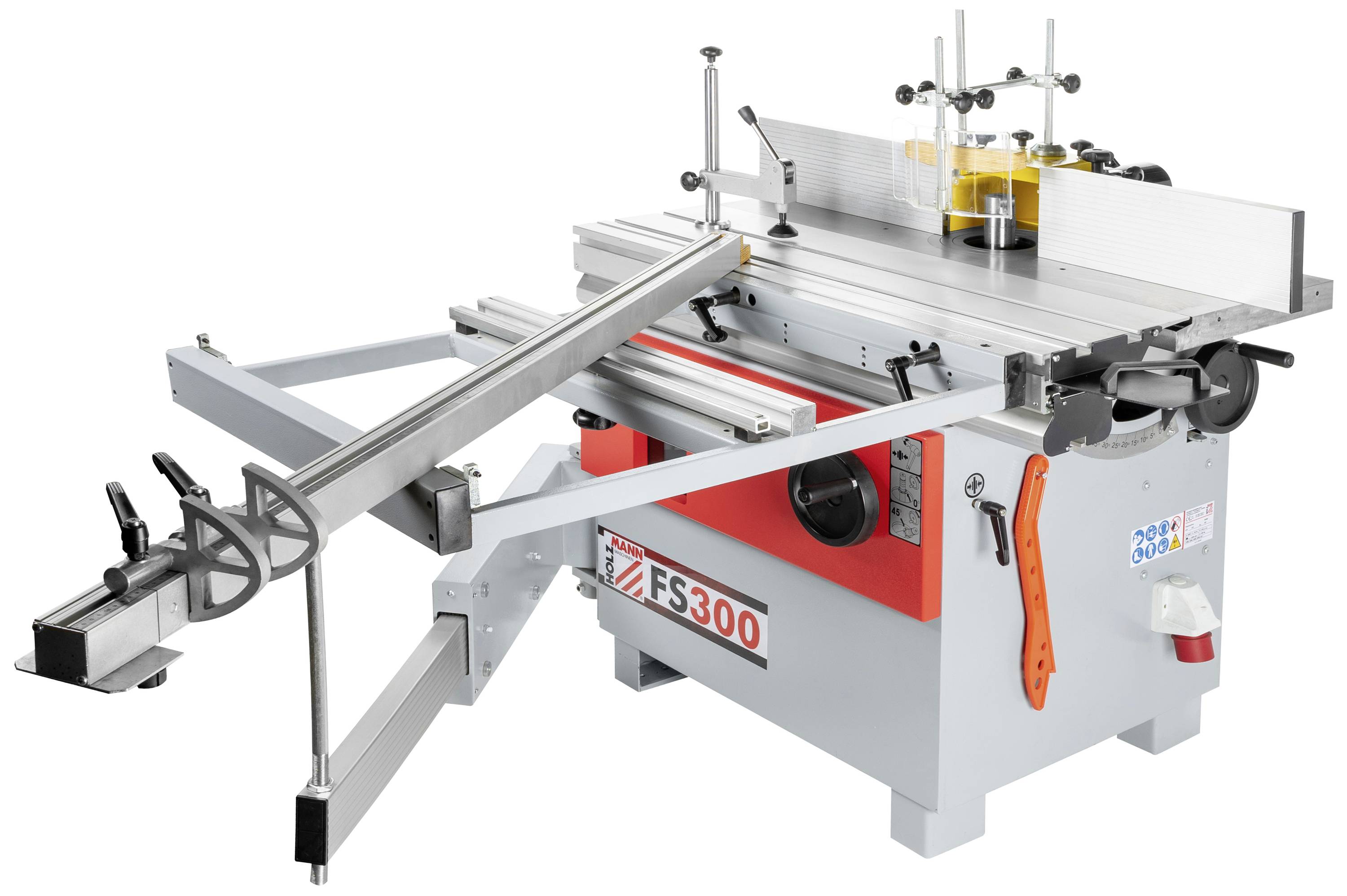

Holzmann Maschinen FS300_400V Bench-mount milling machine 3000/4000 W 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Pivot spindle table milling machine with sliding table and outboard table
- Power S1: 3000 W
- Dim. table 1000 x 350 mm
Technical specifications
- Milling spindle diameter 30 mm
- Cutting spindle speed in MIN-11400 / 3500 / 6000 / 8000
- Spindle stroke 130 mm
- max. Milling diameter 175 mm

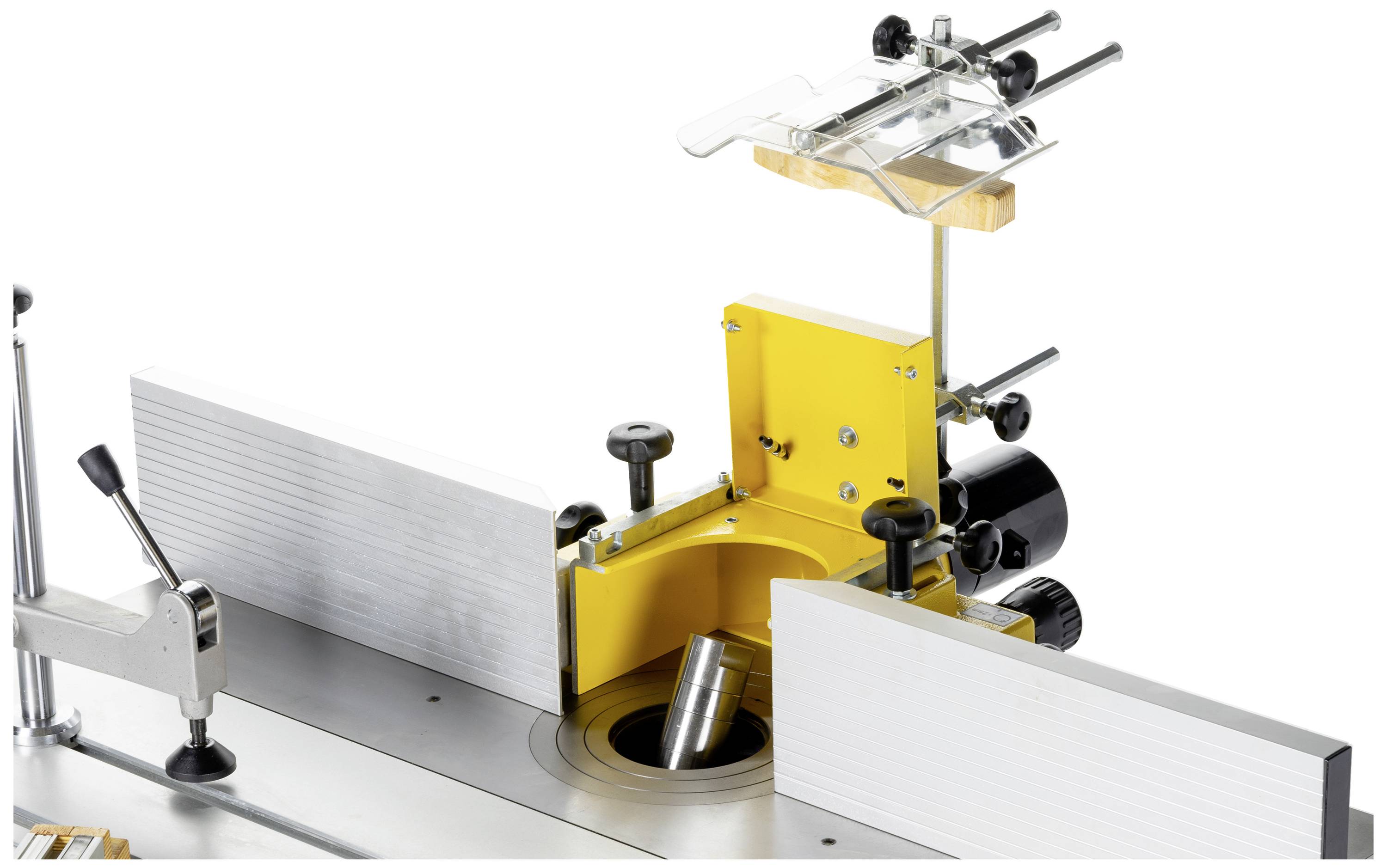

- Milling spindle swing(-5)0-45°
- max. Clamping height 140 mm
- Table aperture 178 mm
- Max. Tool diameter retractable to mm170 (90°) , 100 (45°)
- Max. Tool diameter over table: 200 mm
- Milling stop in mm 450 x 160 (L +R)
- Mounting dimensions (L x W x H): 2155 x 990 x 1430 without format slide table, 2155 x 2400 (+1150) x 1430 with format slide table
- Sound power level in dB(A)96.8
- Sound pressure level in dB(A)80.7
- Product type
Bench-mount milling machine
- Power S1
3000 W
- Power S6
4000 W
- Operating voltage
400 V
- Hose connector
100 mm
- Table dimensions
1000 x 350 mm
- Table height
89 cm
- Weight
280 kg
- Voltage
400 V
Documents & Downloads
Datasheet
Datasheet 3219036 Holzmann Maschinen FS300_400V Bench-mount milling machine 3000/4000 W 400 V
User & Safety Instructions
User & Safety Instructions 3219036 Holzmann Maschinen FS300_400V Bench-mount milling machine 3000/4000 W 400 V
Description
Scope of delivery
- Format slide table
- Telescopic stop with 2 stop flaps
- Lower holder

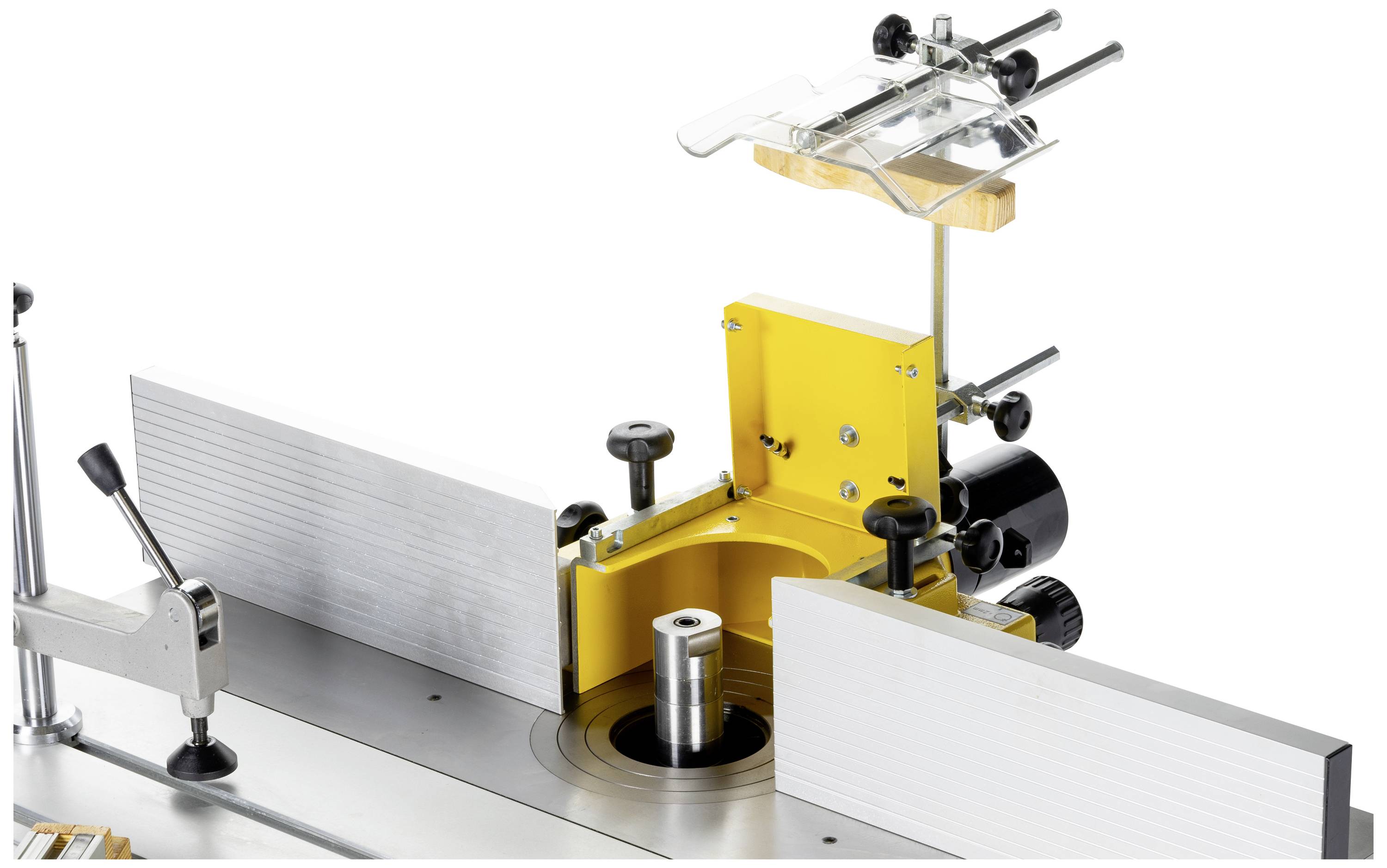

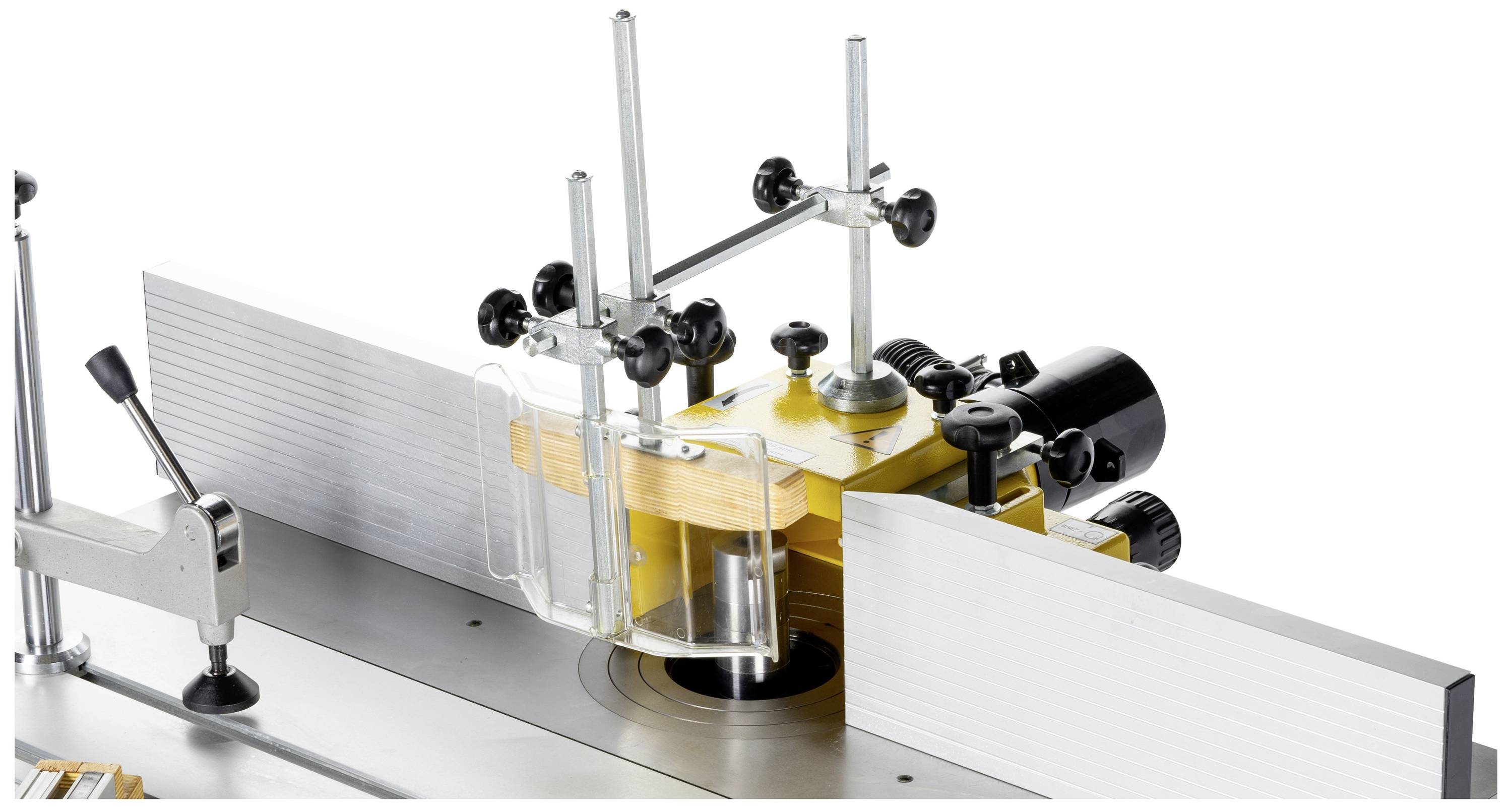

- Milling protective cover
