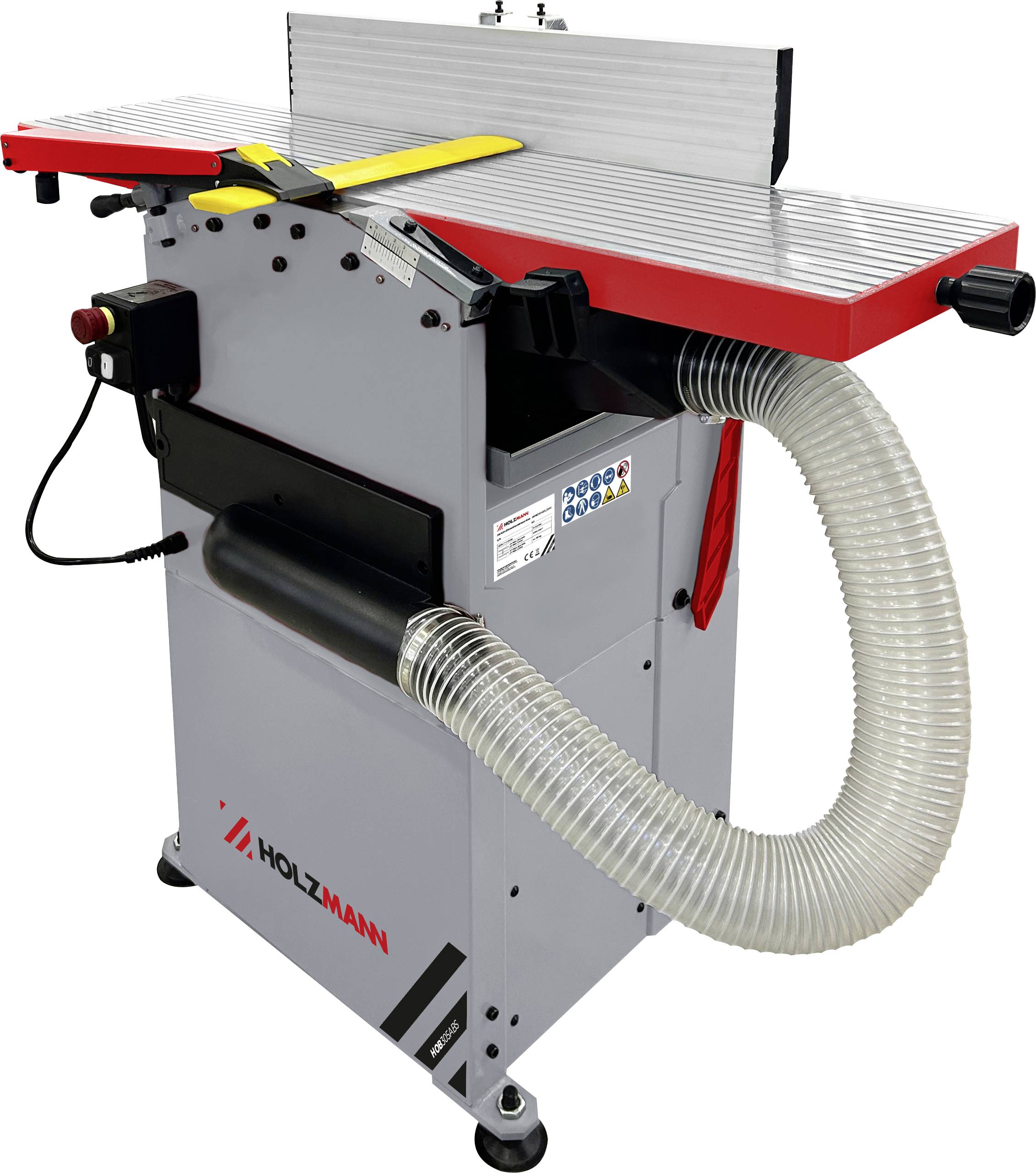

Holzmann Maschinen HOB305ABS_400V Jointer planer combo incl. dust extractor 30.5 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Jointer planer combo
- Planer width: 30.5 cm
- Dim. table 1.075 mm
Technical specifications
- Max. Thickness planing Chip removal in mm: 2
- Max. Dressing Chip removal in mm: 3
- Alignment stop in mm 643 x 126
- Feed speed 8.3 m/min.
- Sound power level in dB(A) 96.2
- Thickness planer table size in mm: 500 x 305
- Product type
Jointer planer combo
- Features
incl. dust extractor
- Power S1
1800 W
- Rotational speed
6700 U/min
- Plane width
30.5 cm
- Swivel range (min)
90°
- Swivel range (max.)
45°
- Swivel range (range)
90 - 45 °
- Operating voltage
400 V
- Table length
1.075 mm
- Table width
30.5 mm
- Desk height
92.5 cm
- Weight
93 kg
Documents & Downloads
Datasheet
Datasheet 3473848 Holzmann Maschinen HOB305ABS_400V Jointer planer combo incl. dust extractor 30.5 cm
User & Safety Instructions
User & Safety Instructions 3473848 Holzmann Maschinen HOB305ABS_400V Jointer planer combo incl. dust extractor 30.5 cm
Description
The HOB305ABS_230V HOLZMANN is a panel-thickness planer machine with integrated suction system. You save space and costs for an external suction system. By the standard driving device included, it is done away in no time after use. An additional advantage in confined spaces!
This text is machine translated.
This text is machine translated.
Features
- Installation dimension in mm 1140 x 780 x 1080
Scope of delivery
- Integrated suction
- Substructure
- Plane blade mounted (308 x 2.5 x 20 mm)
- Dust bag
