Buy Holzmann Maschinen HOB310ECO_400V Jointer planer combo 2200 W 31 cm

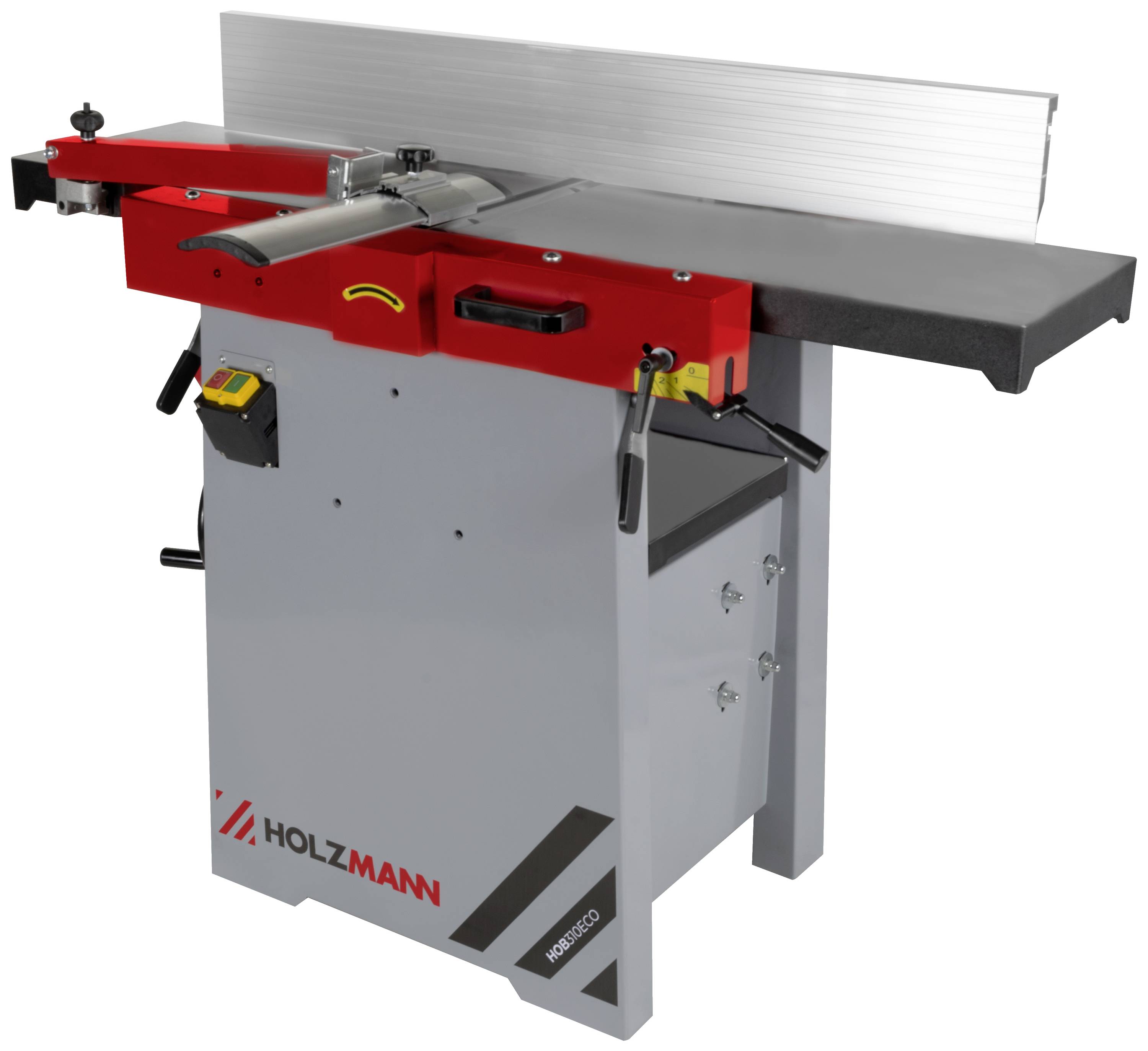

A Holzmann planing machine with a red and grey casing. It has two operating levers and a long working surface.

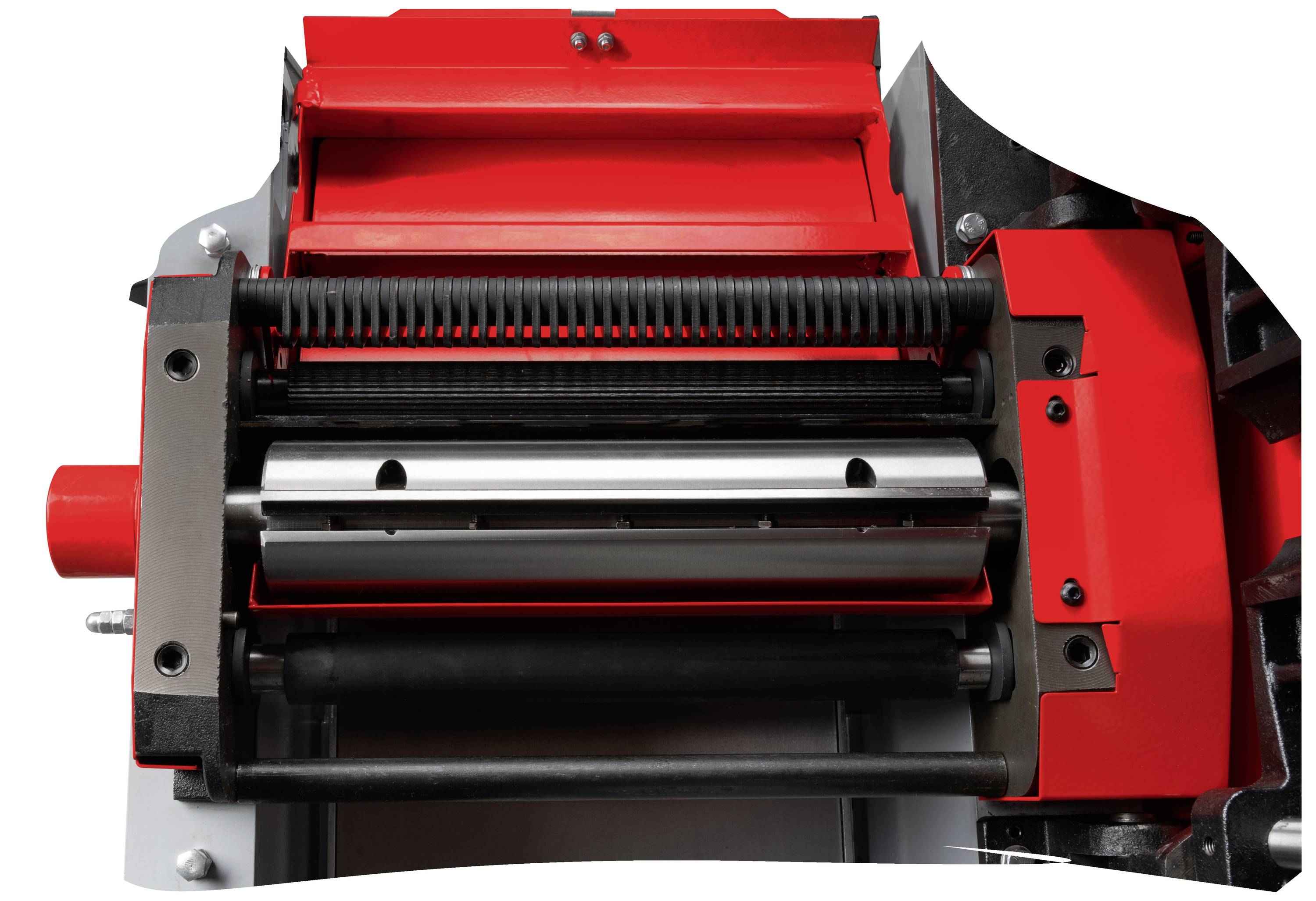

A red and black industrial machine with rollers and levers, possibly a press tool, is shown in close-up.

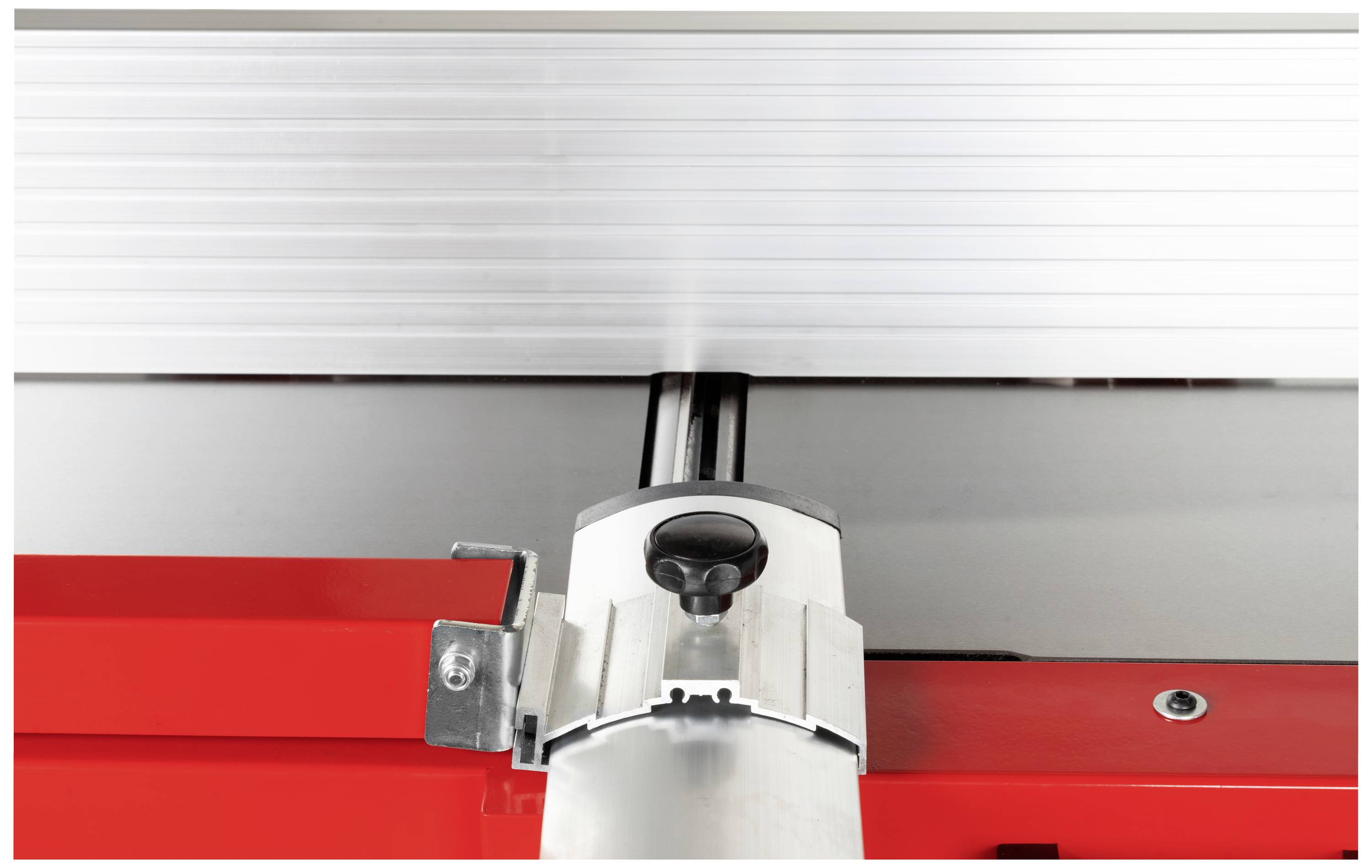

Machine surface with guide rail and red housing, possibly a milling or cutting machine.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

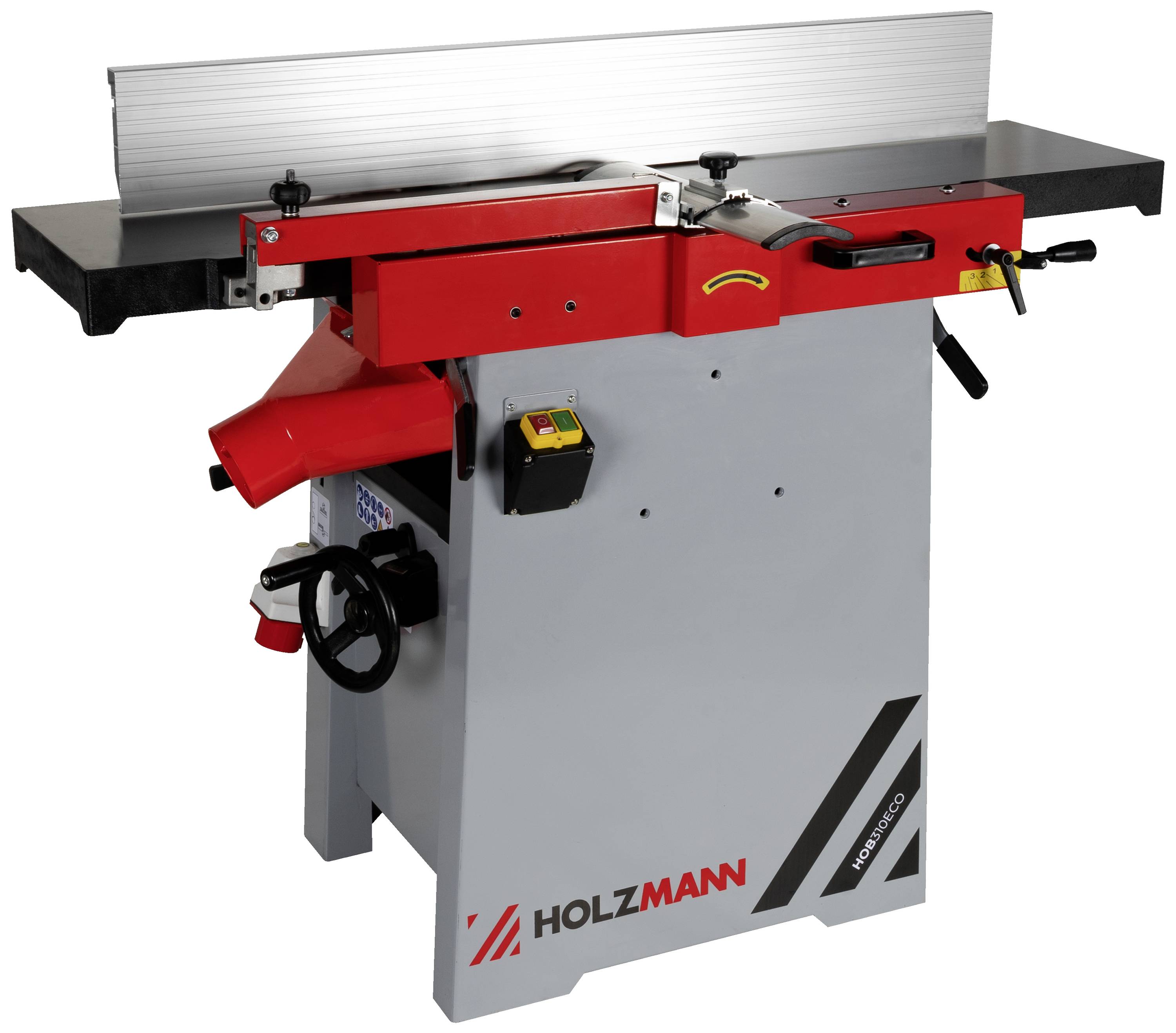

Holzmann planer machine

Planer width: 31 cm
Dim. table 1.285 mm

Technical specifications

Suction connection Ø 100 mmThickness plane table size 545 x 308 mmPassage height 225 mmAlignment stop 1100 x 150 mmPlaner shaft diameter: Ø 70 mmNumber of blades: 3

Product type: Jointer planer combo

Power S1: 2200 W

: 2200 W

Rotational speed: 5500 U/min

Plane width: 31 cm

Swivel range (min): 0°

Swivel range (max.): 45°

Swivel range (range): 0 - 45 °

Operating voltage: 400 V

Table length: 1.285 mm

Table width: 31 mm

Desk height: 85.2 cm

Length: 1.285 m

Width: 0.75 m

Height: 1 m

Weight: 179.5 kg

Documents & Downloads

Datasheet

Datasheet 2839858 Holzmann Maschinen HOB310ECO_400V Jointer planer combo 2200 W 31 cm

User & Safety Instructions

User & Safety Instructions 2839858 Holzmann Maschinen HOB310ECO_400V Jointer planer combo 2200 W 31 cm

Description

Smooth central height adjustment of the thickness planing table including counter. The trimming stop of the plane machine can be swiveled.

This text is machine translated.
