Buy Holzmann Maschinen HOB410PRO_400V Jointer planer combo 41 cm

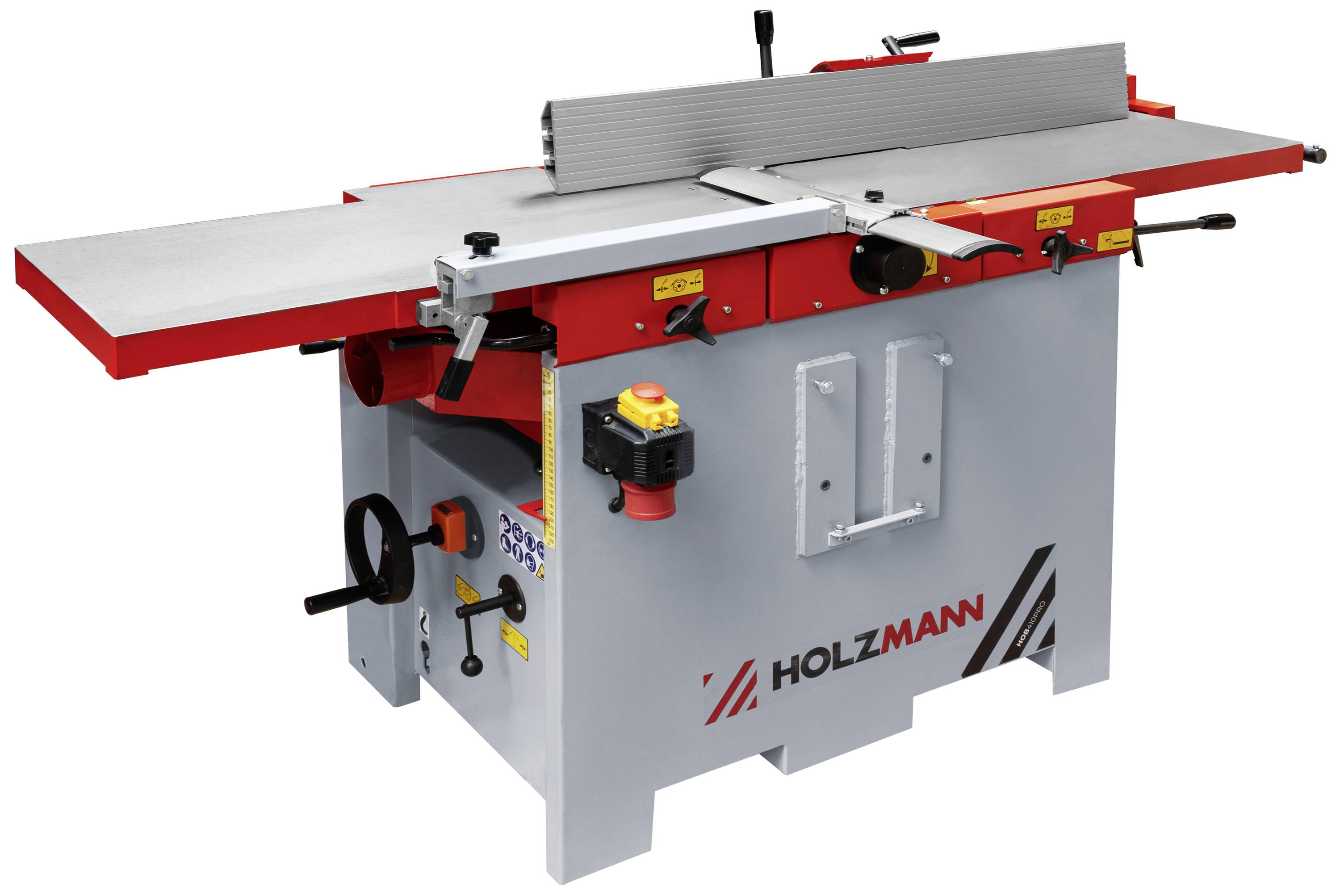

View of a Holzmann planing machine. The device has a red and grey colour scheme and is designed for woodworking.

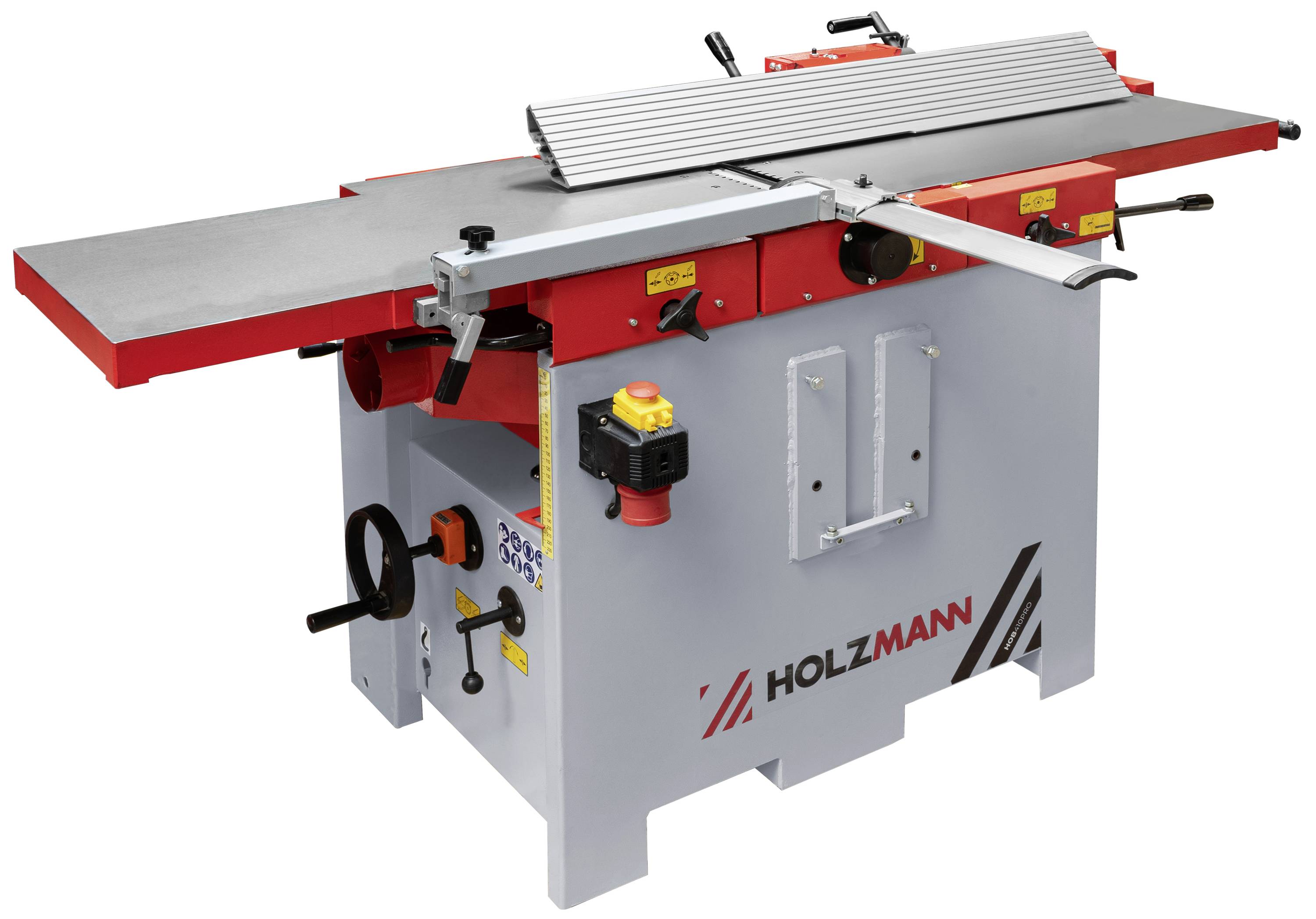

Planing machine with a red housing and silver table. Control buttons and levers on both sides, in an upright position.

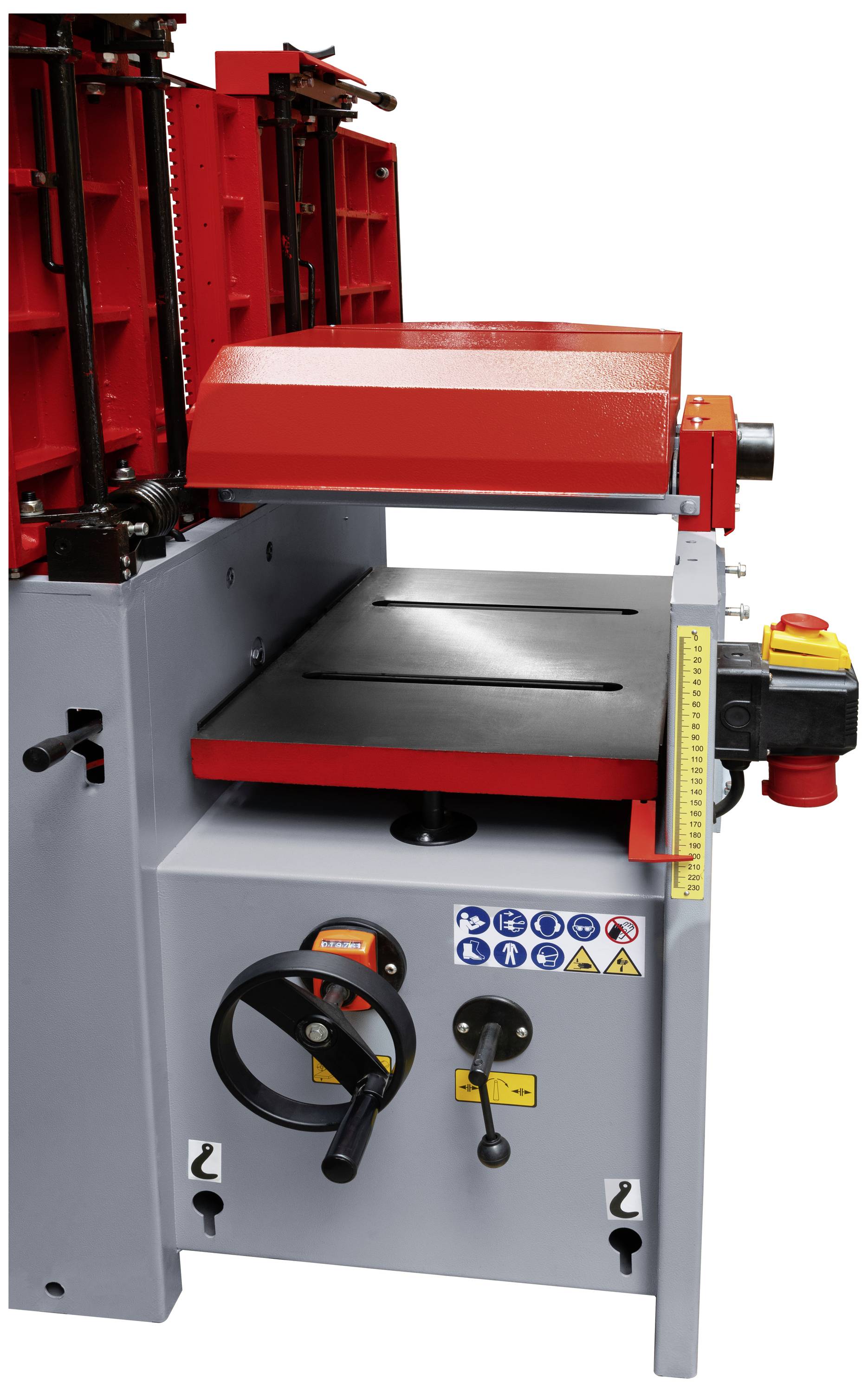

Red wood milling machine with safety shields and adjustment dials mounted on a grey housing.

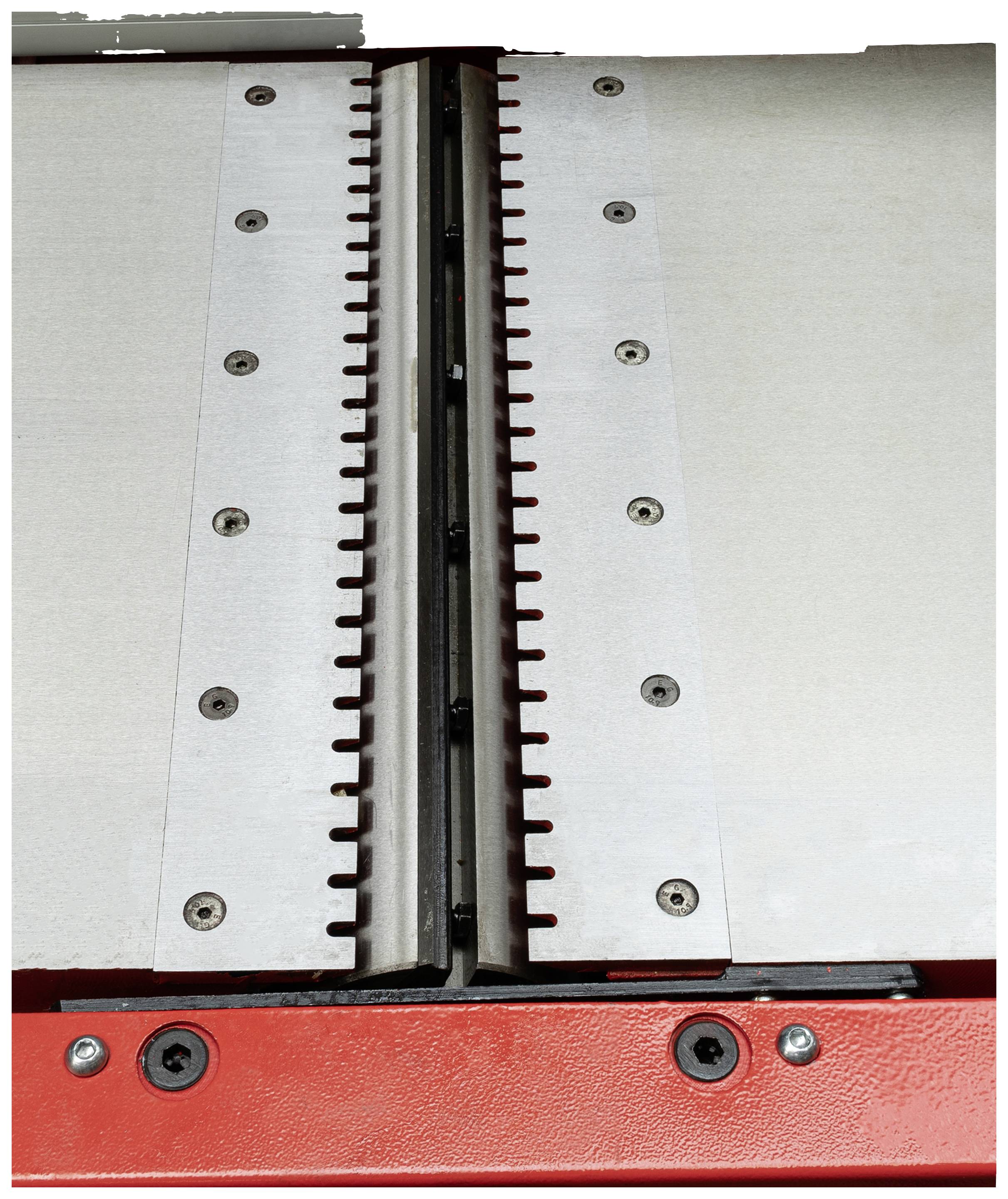

Machine with metal blades and screws, possibly part of a cutting or pressing tool, on a red background.

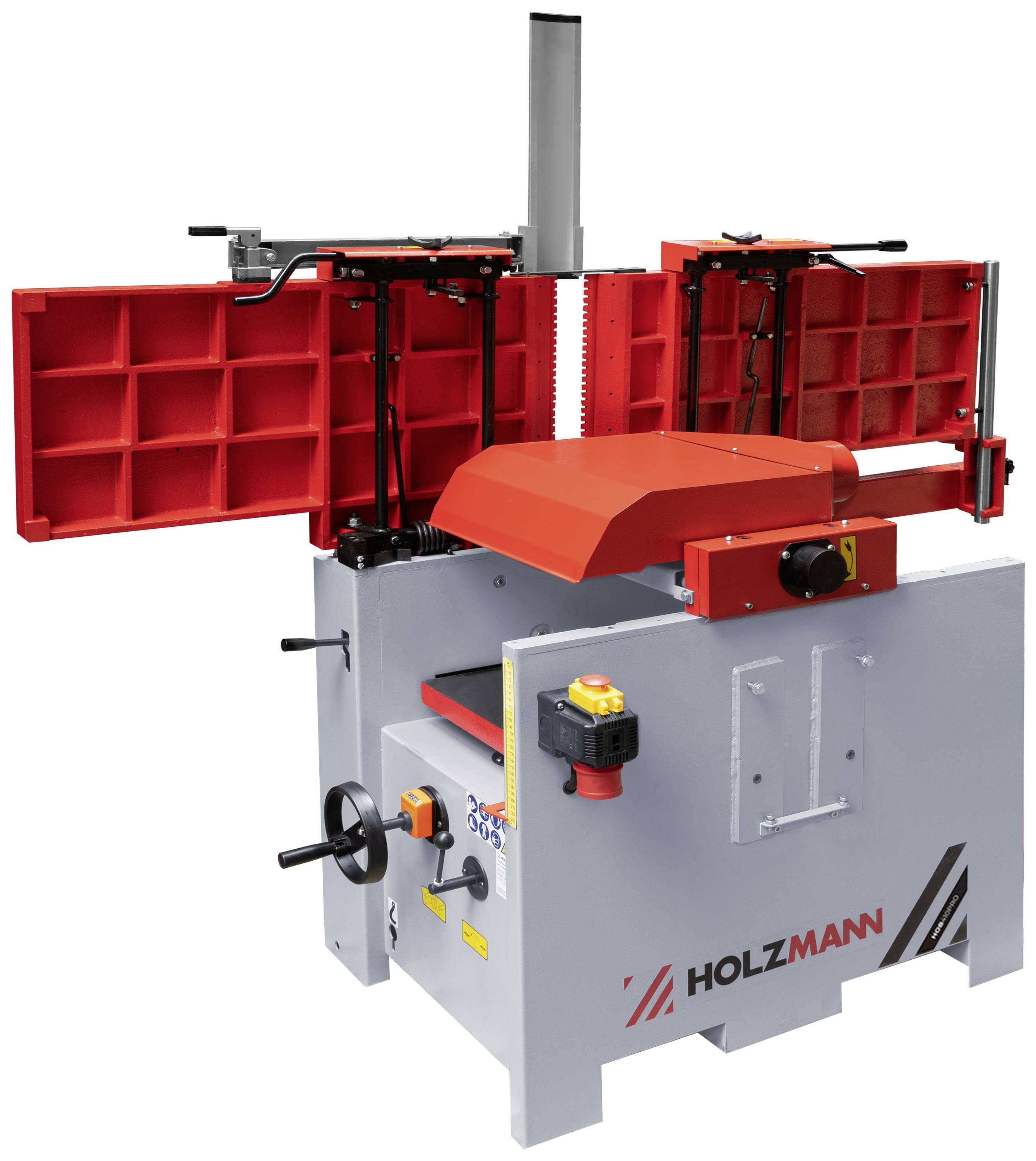

A Holzmann machine with a red housing and black control elements, used for woodworking processes.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Jointer planer combo

Planer width: 41 cm
Dim. table

Technical specifications

Table size 1800 x 410 mm
Max. Dressing Clamping intake 5 mm
Planer table size 700 x 410 mm
Max. Thickness planing Clamping intake 4 mm
Planer shaft diameter 98 mm
Plane blade number: 4
Sound power level in dB(A) 111
Sound pressure level in dB(A) 82

Product type: Jointer planer combo

Power S6: 5500 W

Rotational speed: 4700 U/min

Plane width: 41 cm

Operating voltage: 400 V

Weight: 420 kg

Documents & Downloads

Datasheet

Datasheet 3219038 Holzmann Maschinen HOB410PRO_400V Jointer planer combo 41 cm

User & Safety Instructions

User & Safety Instructions 3219038 Holzmann Maschinen HOB410PRO_400V Jointer planer combo 41 cm

Description

The HOB410PRO wood-Office smoothing machine with approx. 410mm plane width for trimming and thickness planing of their already somewhat larger boards. The heavy-duty construction gives a very good look. The conversion process from dressing to thickness planer is done easily and simply through the folding tables. For thickness planing, the feed of the board takes place by means of the feeder and extraction roller that can be connected. This allows a constant board speed and even plane image. The feed can be activated and deactivated using a lever.

This text is machine translated.

Features

Very high-quality and qualitative processing
Basing tables fold to the back, thus not disturbing with thick planing and space saving
Grey-cast table with ground surface
Stable, professional alignment stop can be swiveled by 90°- 45°
Adjustable thick table rollers ensure optimum workpiece transport
Precision-mounted 4-blade lever shaft
Dickensian-style table with central column guide and additional guide
Spiral-toothed feed roller ensures perfect transport of the workpiece
Space-saving lateral routing of the professional stop

Scope of delivery

Heavy professional stop
Tape counter
