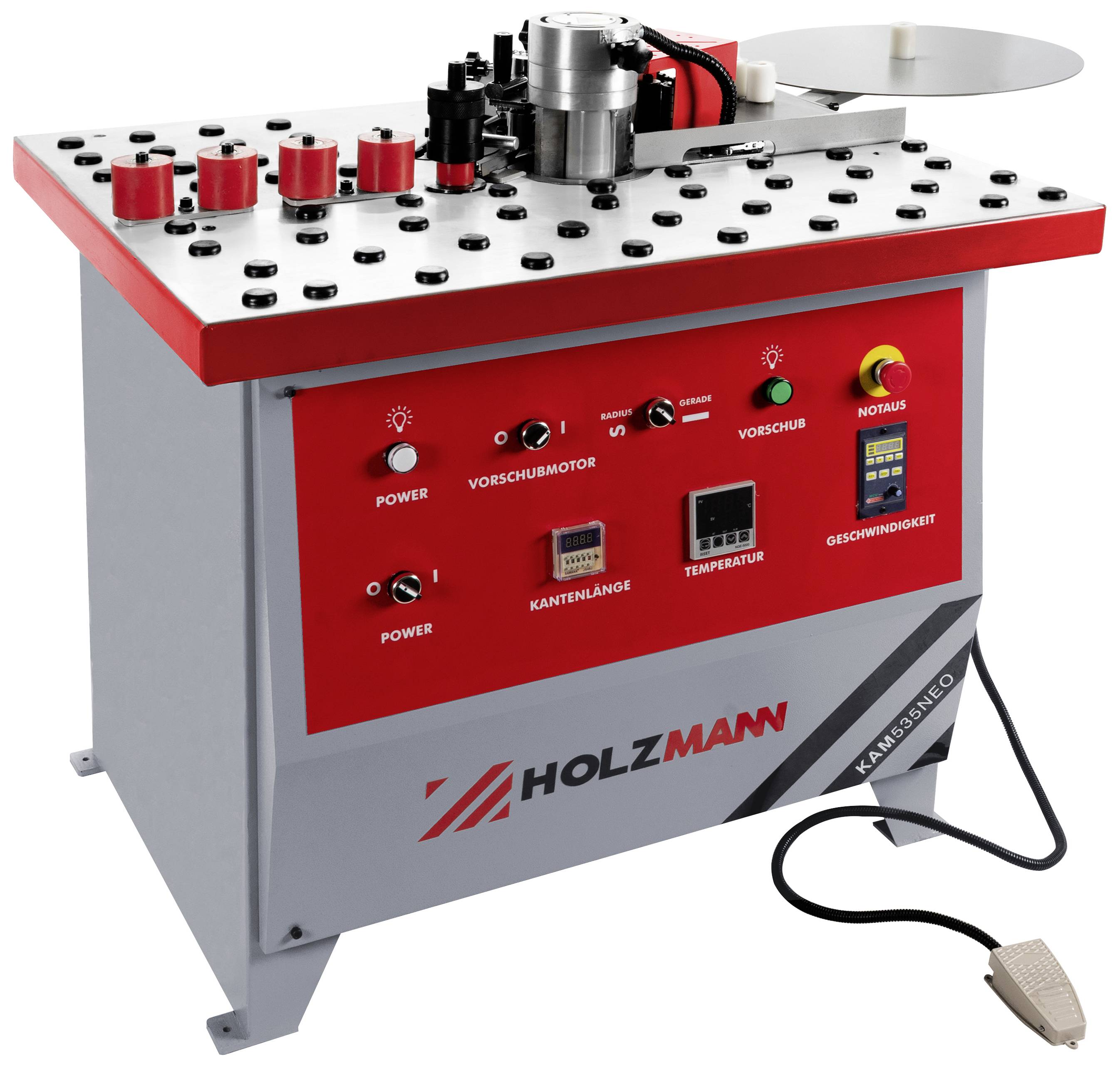

Holzmann Maschinen KAM535NEO_400V Edge strip fitting tool 1750 W 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Edge width 13 - 54 mm
- Edge thickness 0.3 - 3 mm
- Working air pressure in bar 4-5
- Min Inner curve radius 20 mm
- Sound pressure level in dB(A) < 70
- Min Workpiece thickness 10 mm
- Max. Workpiece thickness 50 mm
- Table size 1000 x 700 mm
- Table height 850 mm
- Product type
Edge strip fitting tool
- Weight
138 kg
- Operating voltage
400 V
- Operating temperature (max.)
170 °C
1750 W
Documents & Downloads
Datasheet
Datasheet 3219041 Holzmann Maschinen KAM535NEO_400V Edge strip fitting tool 1750 W 400 V
Description
The machine is suitable not only for straight but also for gluing curved edges.
This text is machine translated.
This text is machine translated.
Features
- Direct glue output on straight and curved edges
- Both sides on laminate and edge
- Automatic length section
- Electronically adjustable adhesive temperature
- Feeder speed can be controlled variably
- 1750 W heating power 250W feed motor
