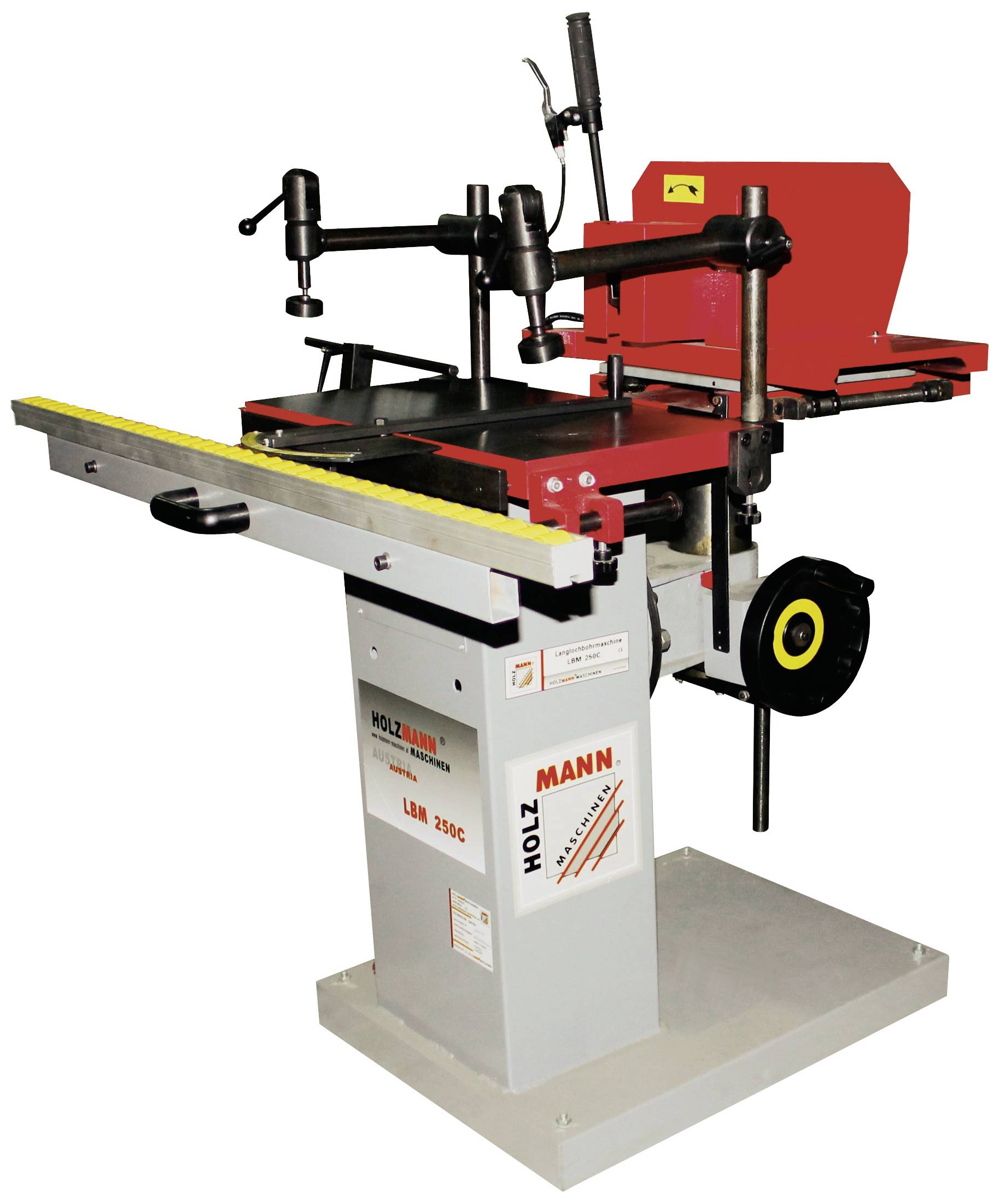

Holzmann Maschinen LBM250C_400V Drill 2200 W 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Holzmann Maschinen LBM250C_400V Drill 2200 W 400 V
- 2200 W
- Max. drill bit Ø
Technical specifications
- Table stroke 155 mm
- Dowel hole pattern spacing in mm 16/22/25/32
- Max. Drilling depth 215 mm
- Drill width max. 250 mm
- Product type
Drill
2200 W
- Operating voltage
400 V
- Table length
320 mm
- Table width
600 mm
- Weight
205 kg
Documents & Downloads
Datasheet
Datasheet 3219046 Holzmann Maschinen LBM250C_400V Drill 2200 W 400 V
User & Safety Instructions
User & Safety Instructions 3219046 Holzmann Maschinen LBM250C_400V Drill 2200 W 400 V
Description
Features
- Solid deformation-free cast iron construction for highest precision
- Milling of oblique long holes as well as setting of precision drilling by swiveling the drilling unit on both sides is possible
- Comfortable one-hand operation
- Very large action radius, therefore hardly any need to re-clamp the work piece
- Dowel hole punch with 4 different Grid levels (16-22-25-32mm)
- Simple and comfortable height adjustment with hand wheel
- Drilling length and drilling depth stops as standard
- Integrated phase inverter and zero-voltage release
- With 6 bits. Mitre stop and retractable table extension
- This text is machine translated.
Scope of delivery
- Mitre stop
- 2x Eccentric chuck
- Wescott drill chuck 0-20mm
- Motor protection switch
- Extendable table extension
- Dowel hole punch
