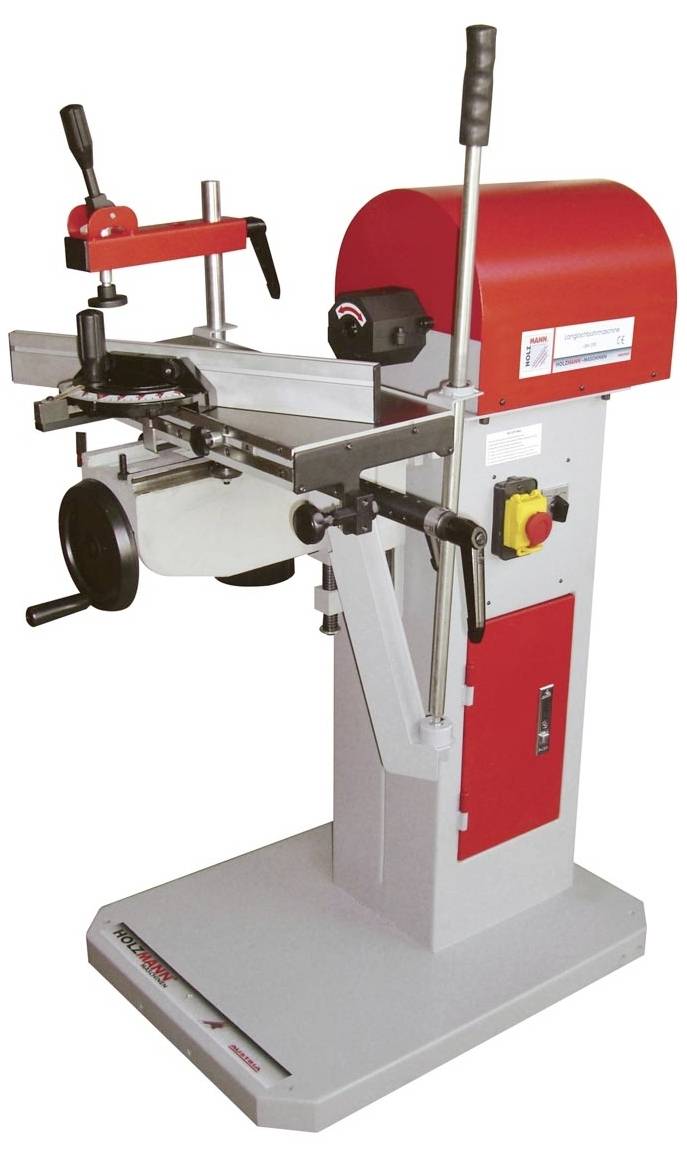

Holzmann Maschinen LBM290_230V Drill 2200 W 230 V, 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Holzmann Maschinen LBM290_230V Drill 2200 W 230 V, 400 V
- 2200 W
- Max. drill bit Ø
Technical specifications
- Table stroke 140 mm
- Dowel hole pattern spacing in mm 16/22/25/32
- Max. Drilling depth 140 mm
- Drill width max. 290 mm
- Product type
Drill
2200 W
- Operating voltage
230 V
400 V
- Table length
210 mm
- Table width
500 mm
- Weight
97 kg
Documents & Downloads
Datasheet
Datasheet 3219047 Holzmann Maschinen LBM290_230V Drill 2200 W 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 3219047 Holzmann Maschinen LBM290_230V Drill 2200 W 230 V, 400 V
Description
Features
- Precise and very smooth table movement by multiple storage
- Simple adjustable of table height by means of dovetail guide
- Two table height positions adjustable via hand wheel
- High-quality 2-jaw chuck for the professional clamping of the long-hole drill
- Extraction options via 100mm suction nozzles
- Storage compartment for tools in the machine base
- Dowel hole punch with 4 different Grid levels
- With Left-right-handed drive and miter stop
- This text is machine translated.
Scope of delivery
- Wescotter drill chuck 16 mm
- Lower holder
- Suction connection
