Holzmann Maschinen Metal band saw BS128HDR_230V 230 V 550 W Saw blade length 1638 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

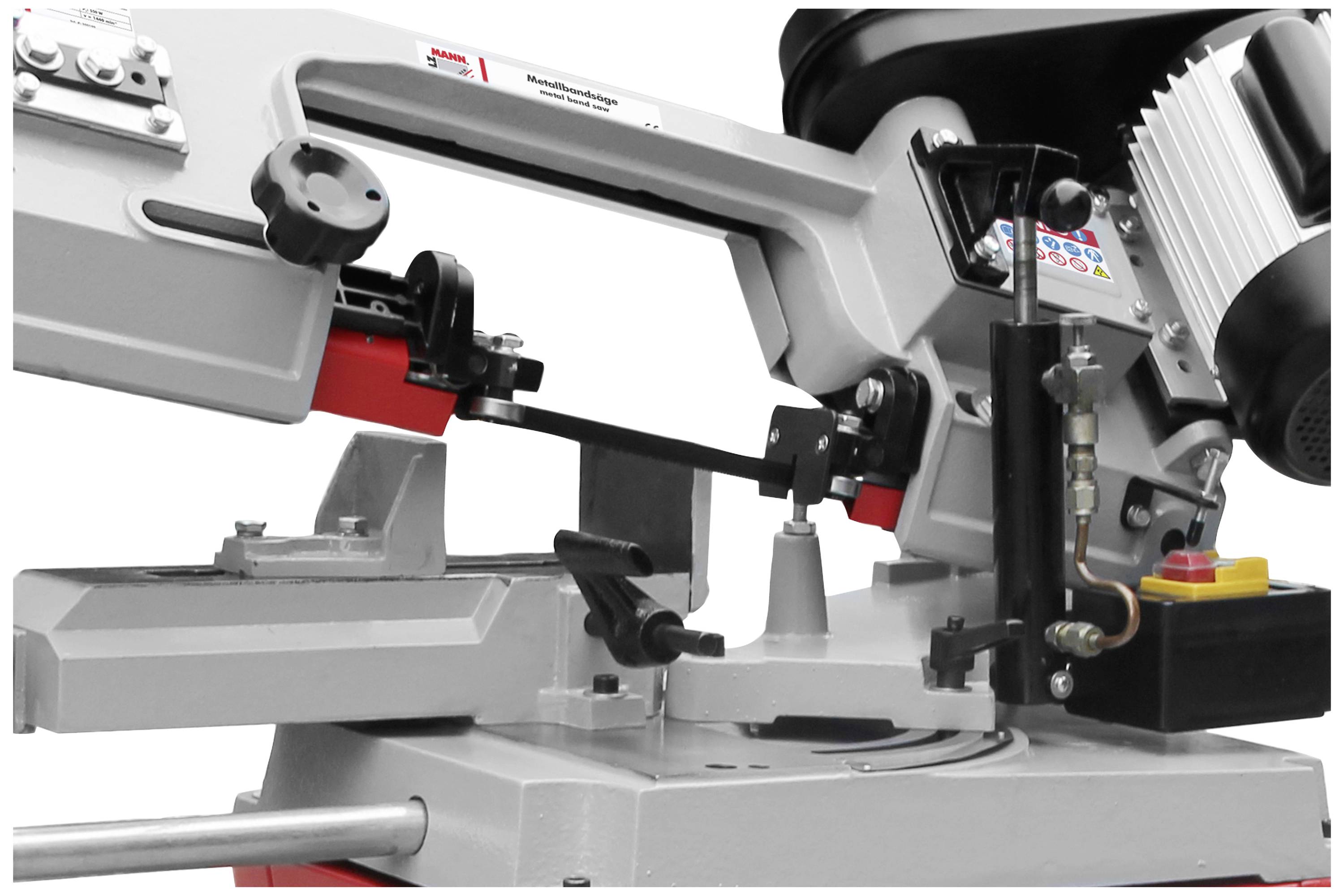

Metal band saw BS 128 HDR
- Tape speed: 23/34/54 m/min
Technical specifications
- Cutting power round Ø 90° in mm: 125 Cutting power round Ø 45° in mm: 95Cutting power round Ø 60° in mm: 50 Cutting depth LxH 90° in mm:100x150Cutting power LxH 45° in mm: 95x76 Cutting power LxH 60° in mm: 50x56Swivel range -45° +60°
- Product type
Metal band saw
550 W
- Power S1
550 W
- Power S6
825 W
- Tape speed
23/34/54 m/min
- Operating voltage
230 V
- Saw blade length
1638 mm
- Weight
76 kg
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2839880 Holzmann Maschinen Metal band saw BS128HDR_230V 230 V 550 W Saw blade length 1638 mm
User & Safety Instructions
User & Safety Instructions 2839880 Holzmann Maschinen Metal band saw BS128HDR_230V 230 V 550 W Saw blade length 1638 mm
Description
3 saw tape speeds allow you to cut various materials. Solid cast machine with ball-bearing saw-band guide. The lowering speed of the saw arm can be adjusted continuously via the hydraulic cylinder.
This text is machine translated.
This text is machine translated.
Features
- Rotating saw unit
- Automatic switch-off standard
- lowering speed of the saw arm via hydraulic cylinder can be set continuously
- solid casting machine with ball-bearing saw band guide
- Quick adjustable vice with the workpiece stop
- with telescopic handle and chassis for easy maneuvering the machine
- 3 band saw blade speeds allow the cutting of different materials and ensures smooth cutting
- With base frame for a simpler way of working.
Scope of delivery
- HSS saw-band
- drive control
- Automatic limit stop
- workpiece stop
- Base frame.
Hints
This text is machine translated.
What kind of Band Saws are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
€ 20.99*
