Name: Holzmann Maschinen Metal band saw BS320TOP_400V 400 V 1100 W Saw blade length 2680 mm
Brand: Holzmann Maschinen
SKU: 2839853

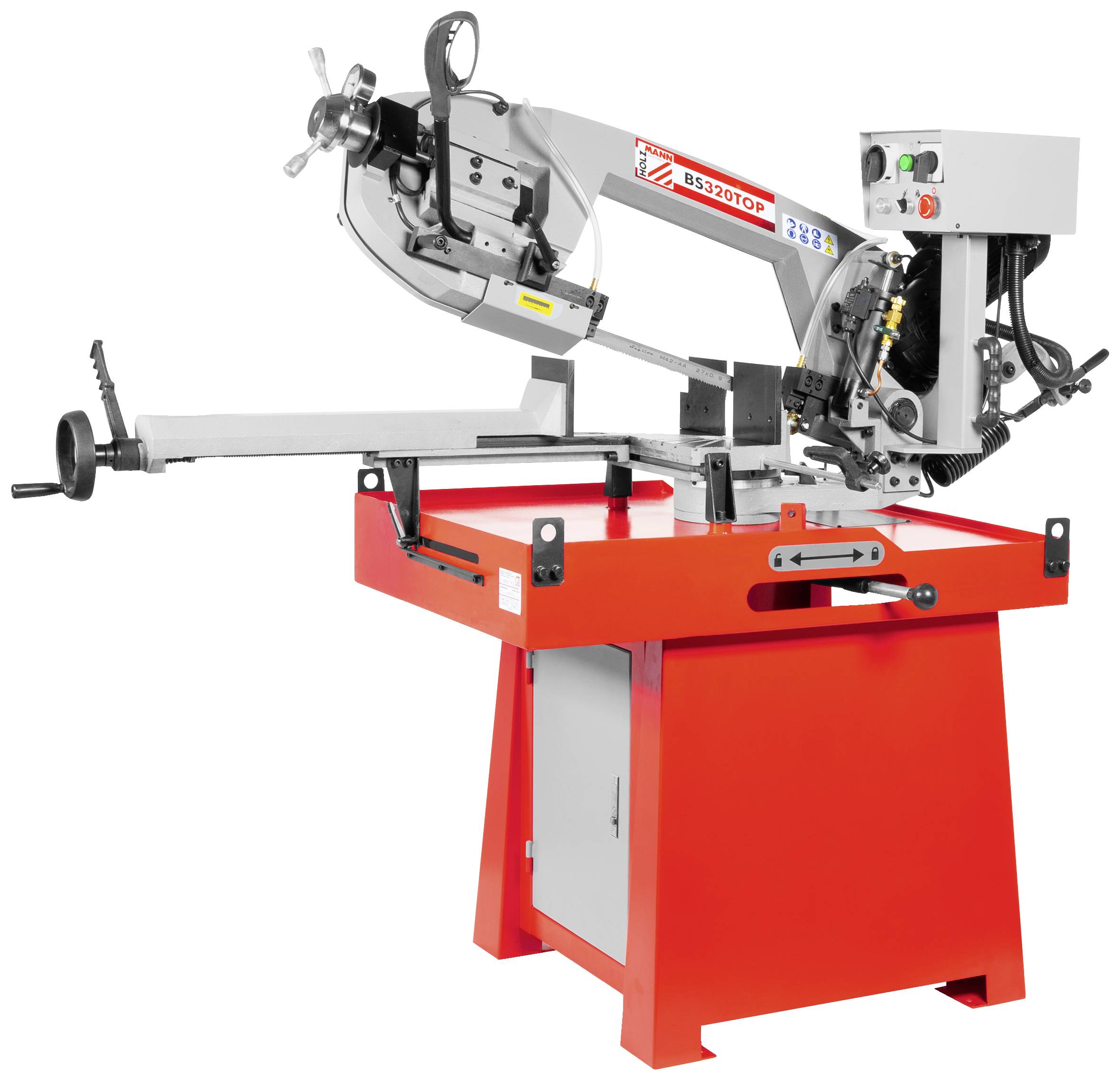

Metal bandsaw on a red stand, with adjustable sawband arm and control elements, suitable for precise cuts in metal.

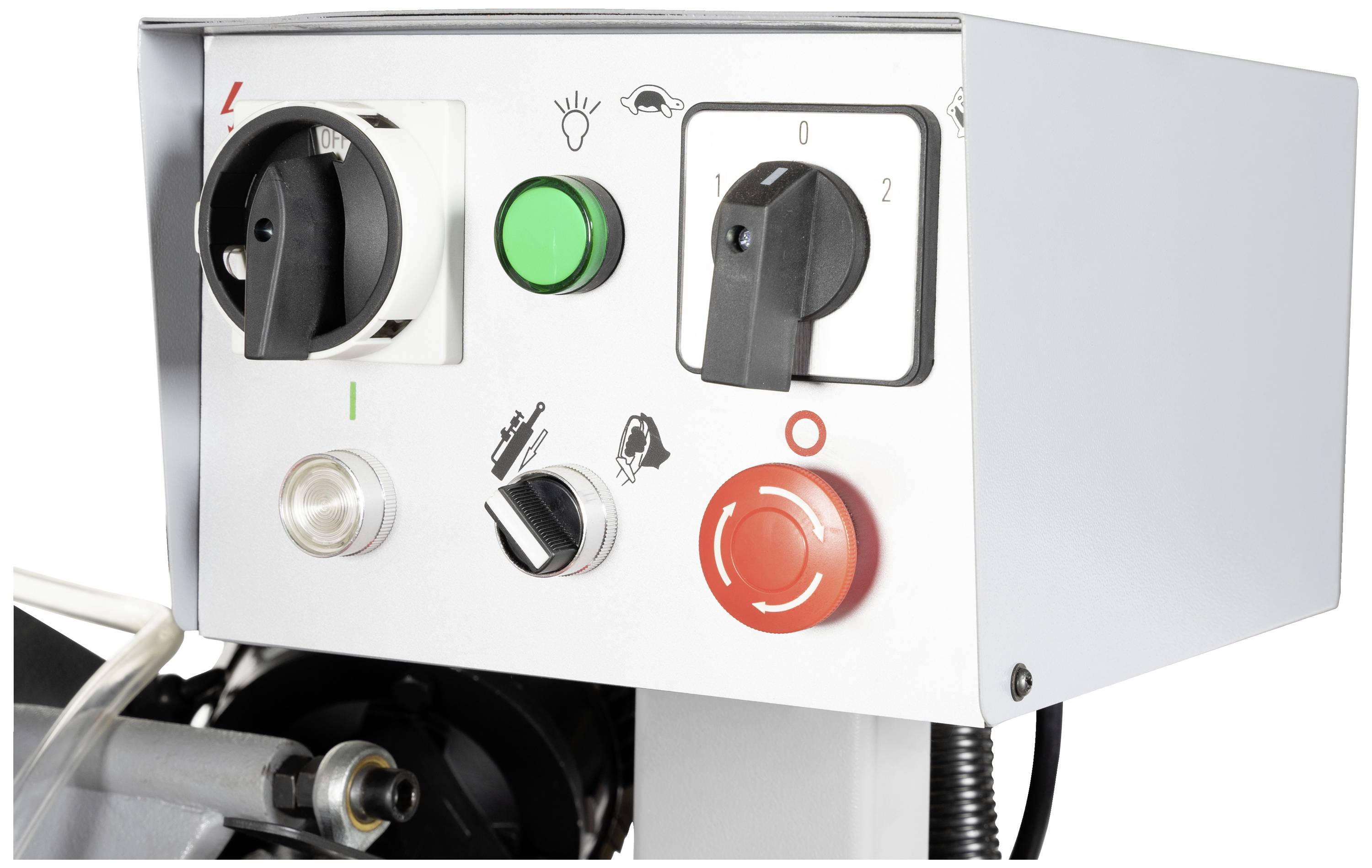

Control panel of a machine with various buttons and levers. Main switch on the left, red emergency stop switch bottom right.

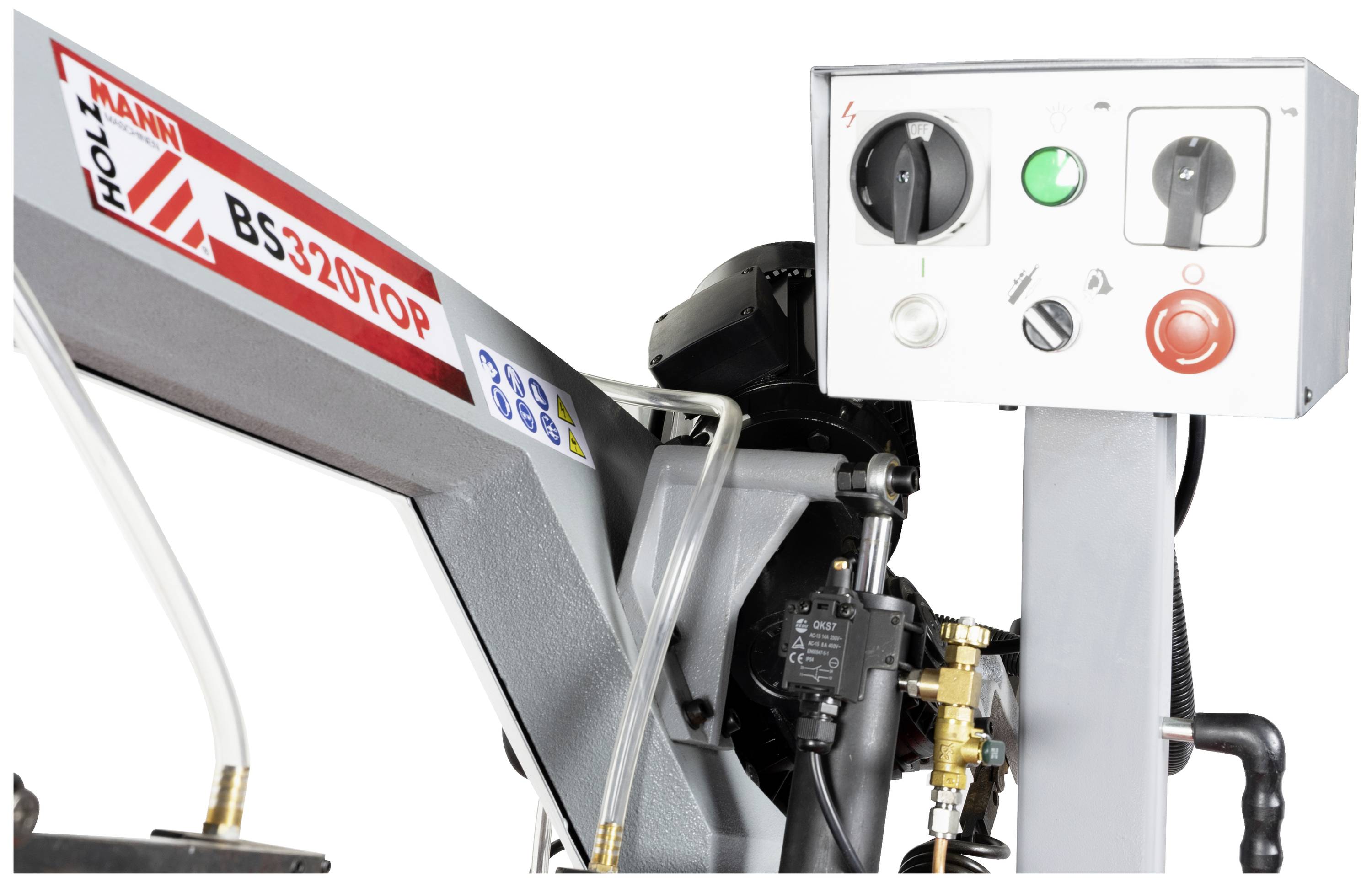

Metal saw 'MAN' with control panel and regulators. Model 'BS320TOP'.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Holzmann metal band saw

Tape speed: 35/70 m/min

Technical specifications

Cutting power round Ø 45° in mm: 190 Cutting power round Ø 60° in mm: 140Cutting power round Ø 90° in mm: 245Cutting power round Ø -45° in mm 190 Cutting power LxH 90° in mm 320 x 195 (245 x 245 )Cutting depth LxH 45° in mm 180 x 140 (155 x 155) Cutting depth LxH 60° in mm 140 x 125Cutting depth LxH -45° in mm:200 x 140 (155 x 155) Saw band in mm 2680 x 27 x 0.9Wheel diameter 300 mm

Product type: Metal band saw

: 1100 W

Power S1: 1100 W

Tape speed: 35/70 m/min

Operating voltage: 400 V

Saw blade length: 2680 mm

Length: 2000 mm

Width: 1500 mm

Height: 1900 mm

Dim: (L x W x H) 2000 x 1500 x 1900 mm

Weight: 320 kg

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2839853 Holzmann Maschinen Metal band saw BS320TOP_400V 400 V 1100 W Saw blade length 2680 mm

User & Safety Instructions

User & Safety Instructions 2839853 Holzmann Maschinen Metal band saw BS320TOP_400V 400 V 1100 W Saw blade length 2680 mm

Description

Precise metal band saw in a heavy construction with powerful 2-stage drive in gear design and cutting angle adjustment (L: 0-45°, R: 0-60°). The cutting speed can be adjusted via a 2-stage motor, the lowering speed of the saw arm can be adjusted continuously via the hydraulic cylinder.

This text is machine translated.

Features

Precise metal band saw in difficult constructionPowerful 2-stage drive in gear designCutting angle adjustment:L:0-45°, R:0-60°Lowering saw arm can be selected automatically or manuallyAfter the cut is completed, automatic switch-off using limit switchesRobust vice (contact surface to the ground = 950 mm)Hydraulic counter cylinder for easily adjustable lowering speed2-step saw band speed switch (35 m/min; 70 m/min)Manometer for displaying the saw band voltageMachine level with door and storage compartment and coolant tank (15 L) and coolant pump (45W)

Scope of delivery

Saw blade 2680 x 27 x 0.9mmCEE plug
