Name: Holzmann Maschinen Metal band saw BS370TOP_400V 400 V 1100 W Saw blade length 3160 mm
Brand: Holzmann Maschinen
SKU: 2839854

Band saw with a red housing, silver cutting arm, and control elements. It is used for precise wood processing.<br><br>Translation to British English:<br>Bandsaw with a red casing, silver cutting arm, and control elements. It is used for precise woodworking.

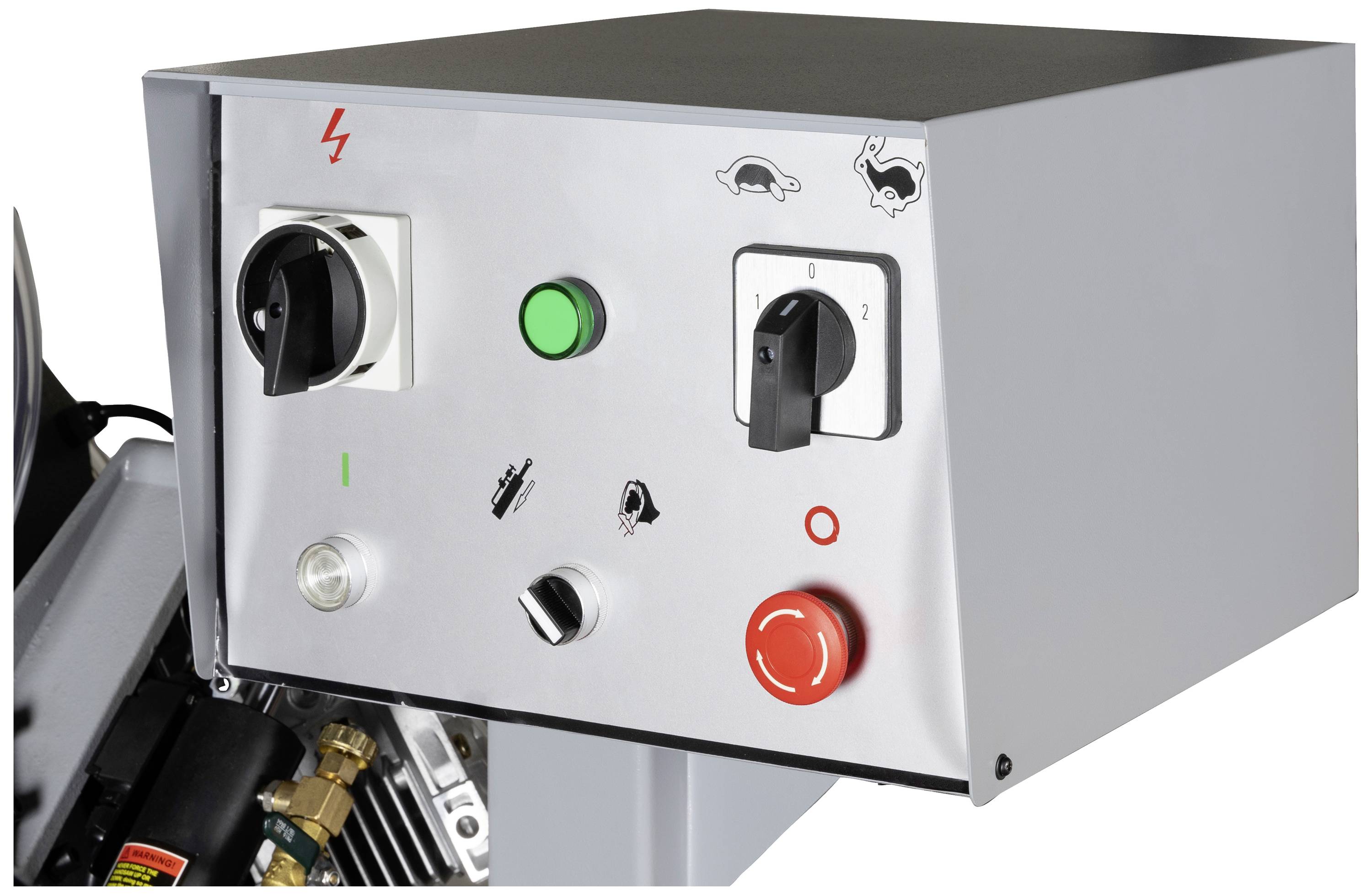

'Control panel of a machine with main switch, green start button, red stop button, and additional control elements.'

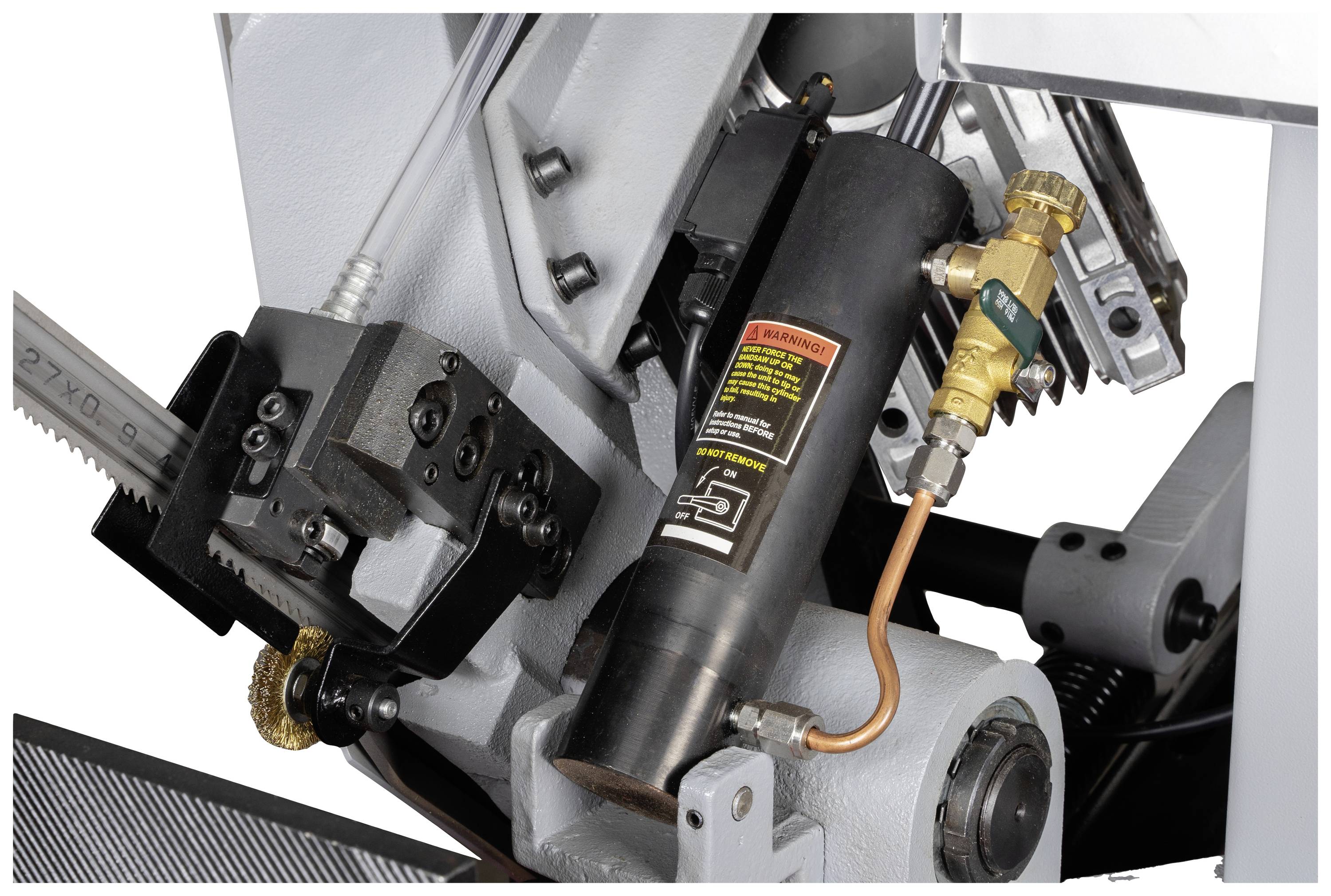

Close-up of a hydraulic component of a band saw machine with cylinders, levers, and hoses.

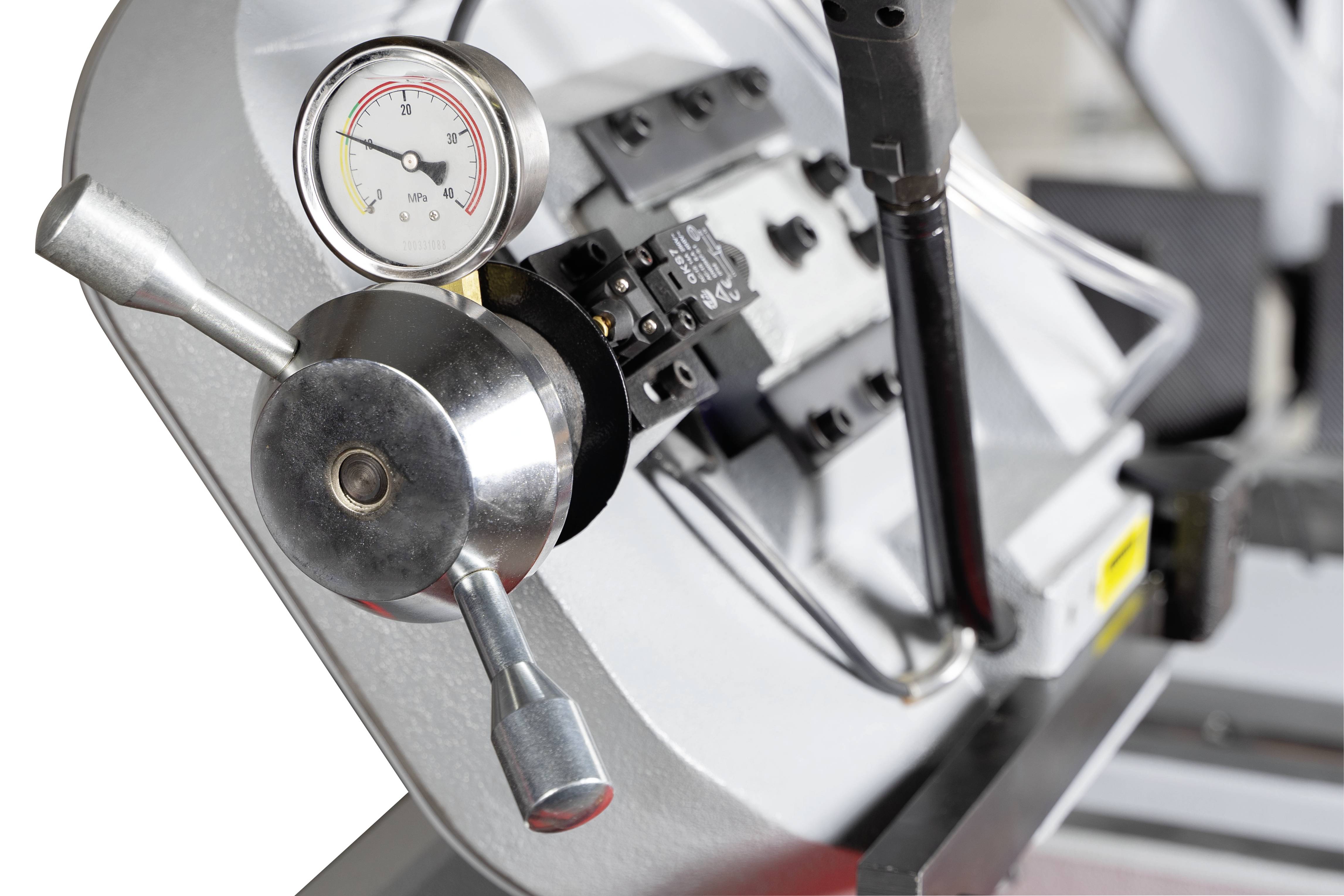

Close-up of a metal machine with a pressure gauge and lever. The machine is likely used for precision work in industry.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Holzmann Maschinen Metal band saw BS370TOP_400V 400 V 1100 W Saw blade length 3160 mm

Tape speed: 34/68 m/min

Technical specifications

Cutting power round Ø 45° in mm: 240 Cutting power round Ø 60° in mm: 160Cutting power round Ø 90° in mm: 270Cutting power round Ø -45° in mm: 210 Cutting depth LxH 90° in mm 370 x 220 (260 x 260)Cutting depth LxH 45° in mm 240 x 160 (220 x 220) Cutting depth LxH 60° in mm 150 x 150Cutting depth LxH -45° in mm:180 x 180 Saw band in mm 3160 x 27 x 0.9Wheel diameter 380 mm

Product type: Metal band saw

: 1100 W

Power S1: 1100 W

Tape speed: 34/68 m/min

Operating voltage: 400 V

Saw blade length: 3160 mm

Length: 2200 mm

Width: 1800 mm

Height: 2100 mm

Dim: (L x W x H) 2200 x 1800 x 2100 mm

Weight: 420 kg

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2839854 Holzmann Maschinen Metal band saw BS370TOP_400V 400 V 1100 W Saw blade length 3160 mm

User & Safety Instructions

User & Safety Instructions 2839854 Holzmann Maschinen Metal band saw BS370TOP_400V 400 V 1100 W Saw blade length 3160 mm

Description

Precise metal band saw in a heavy construction with powerful 2-stage drive in gear design and cutting angle adjustment (L: 0-45°, R: 0-60°). The cutting speed can be adjusted via a 2-stage motor, the lowering speed of the saw arm can be adjusted continuously via the hydraulic cylinder.

This text is machine translated.

Features

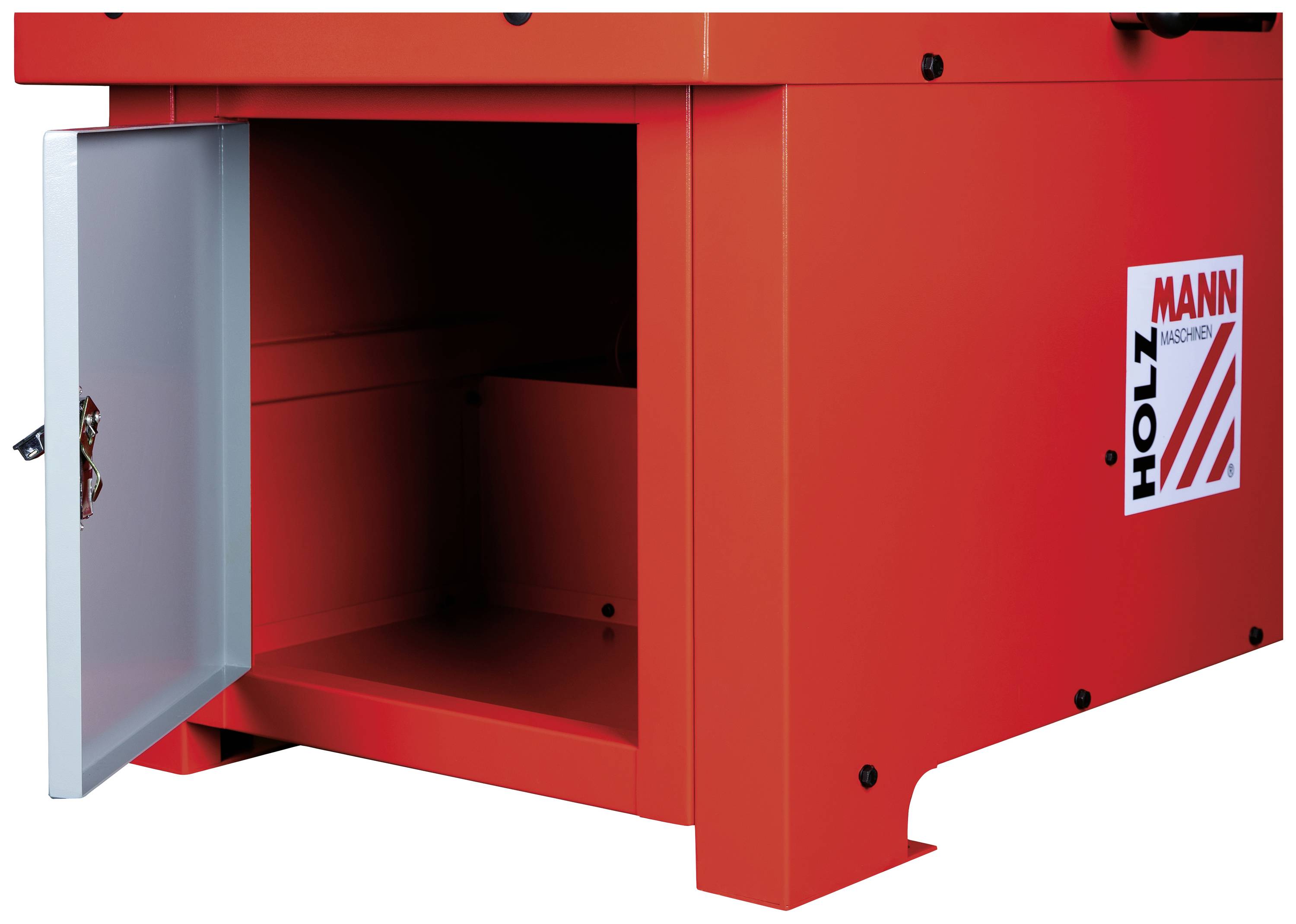

Precise metal band saw in difficult constructionPowerful 2-stage drive in gear designCutting angle adjustment:L:0-45°, R:0-60°Lowering saw arm can be selected automatically or manuallyAfter the cut is completed, automatic switch-off using limit switchesRobust vice (contact surface to the ground = 900 mm)Hydraulic counter cylinder for easily adjustable lowering speed2-step saw-band speed switch (34m/min; 68m/min)Manometer for displaying the saw band voltageMachine level with door and storage compartment and coolant tank (13 L) and coolant pump (45W)

Scope of delivery

Saw blade 3160 x 27 x 0.9mm
CEE plug

Hints

This text is machine translated.
