Holzmann Maschinen SB253VH_230V Box column drill press 1100 W 230 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

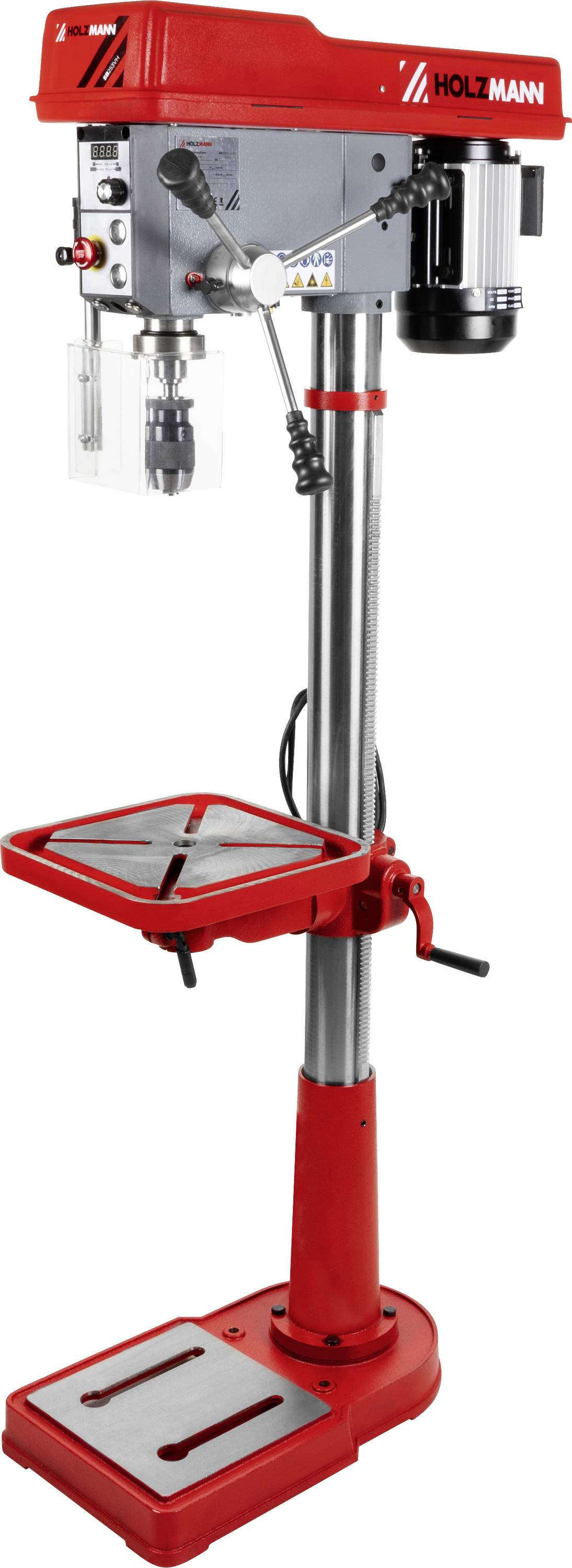

Holzmann Maschinen SB253VH_230V Box column drill press 1100 W 230 V
- 1100 W
- 2-speed
- Max. drill bit Ø 25 mm
Technical specifications
- Product type
Box column drill press
1100 W
- Rotational speed range
50-3000 U/min
- Transmission type
2-speed
- Nosing
215 mm
- Max. drill diameter
25 mm
- Tool holder
MK3
- Drill chuck clamping range
1 - 16 mm
- Operating voltage
230 V
- Table length
315 mm
- Table width
315 mm
- Column width
80 mm
- Weight
82 kg
Documents & Downloads
Datasheet
Datasheet 3473855 Holzmann Maschinen SB253VH_230V Box column drill press 1100 W 230 V
User & Safety Instructions
User & Safety Instructions 3473855 Holzmann Maschinen SB253VH_230V Box column drill press 1100 W 230 V
Description

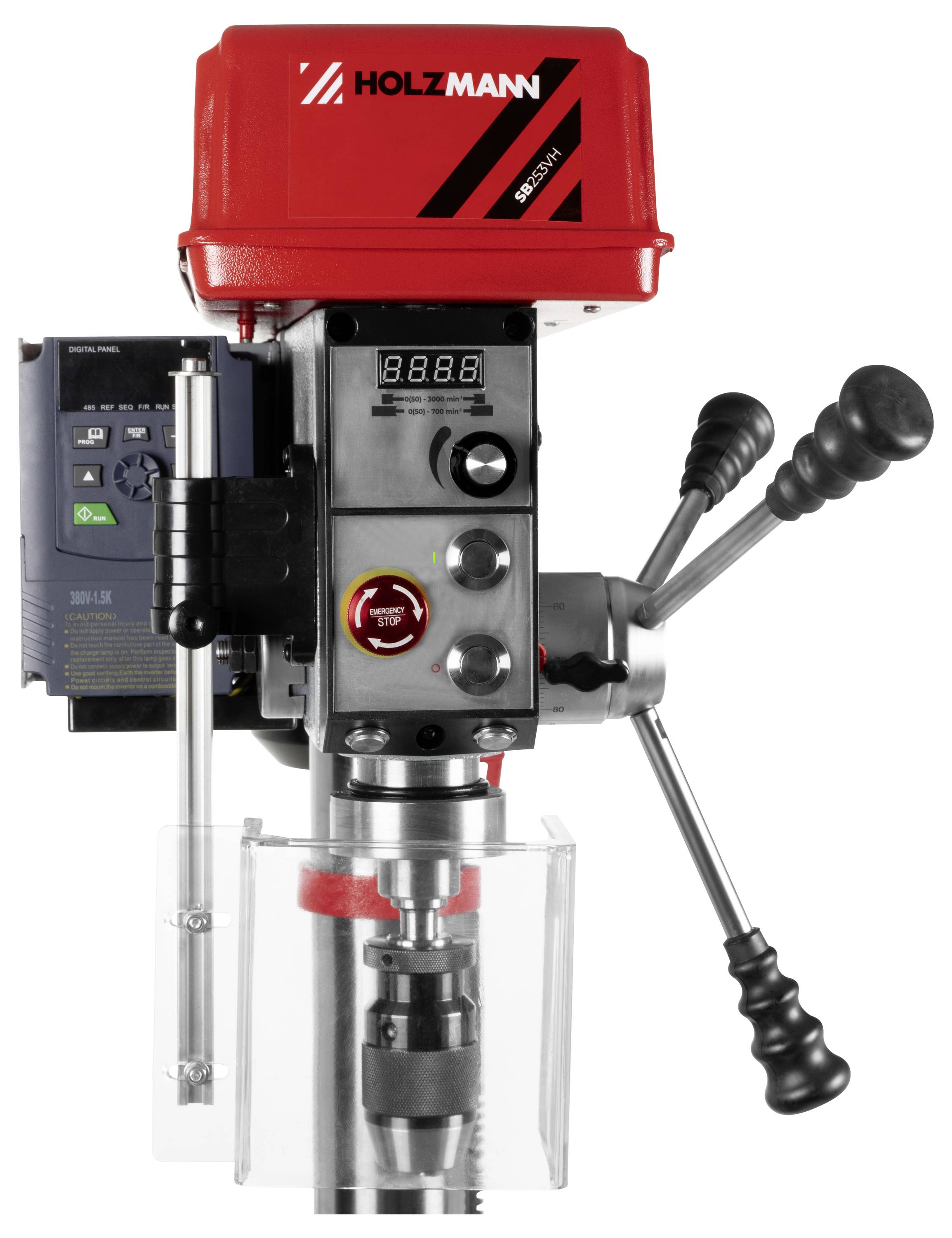

The HOLZMANN stator drill SB253VH_230V is a reliable and low-maintenance stator drill. Using a frequency converter, you can easily adjust the speed to the optimal machining speed of the drill/workpiece. It has a built-in drilling center laser and a LED work light to ensure accurate work.
This text is machine translated.
This text is machine translated.
Features
- Installation dimension in mm 710 x 390 x 1620
- Nosing in mm 215 mm
- Table size in mm: 315 x 315
Scope of delivery
- Quick-action drill chuck to 16 mm drill retaining
- Expulsion wedge
