Buy Holzmann Maschinen TKS500S_400V Table saw 500 mm 30 mm 4200 W 400 V

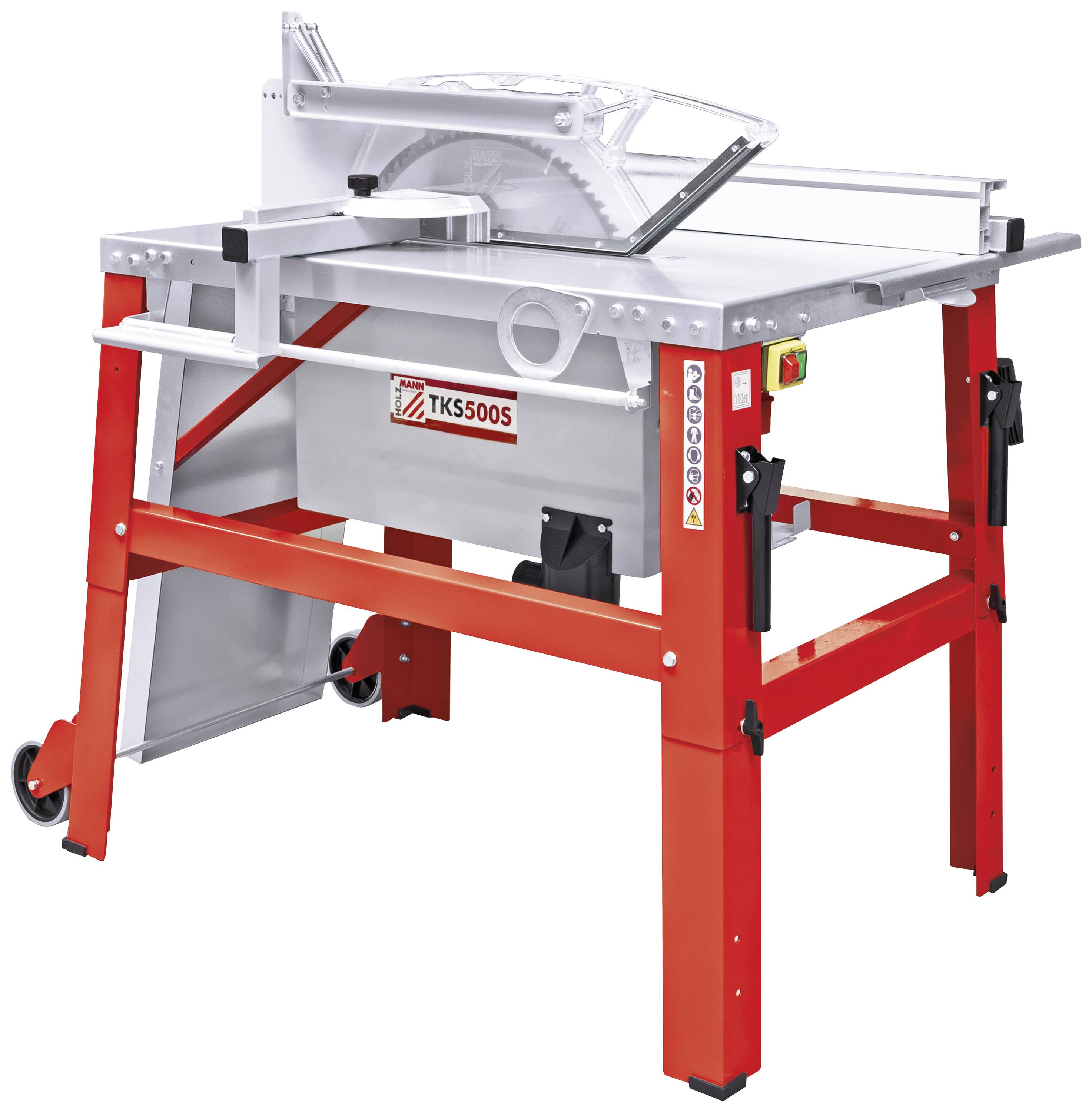

Red and silver table circular saw with safety guards and wheels, model 'TKS500S', suitable for woodworking.

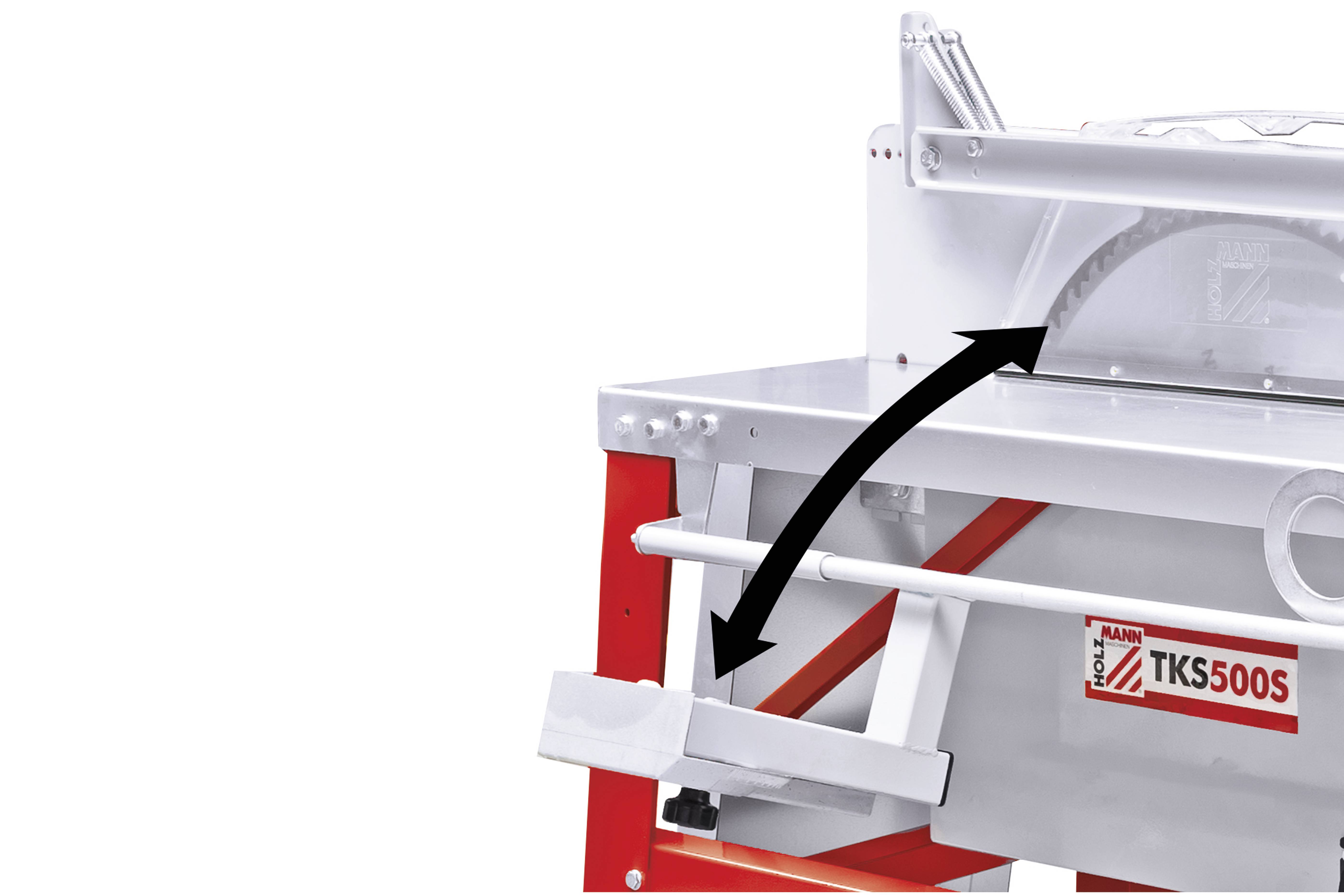

An industrial device with a lever and a rotary mechanism, the model 'TK5500S', partially visible. Lever instructions displayed.

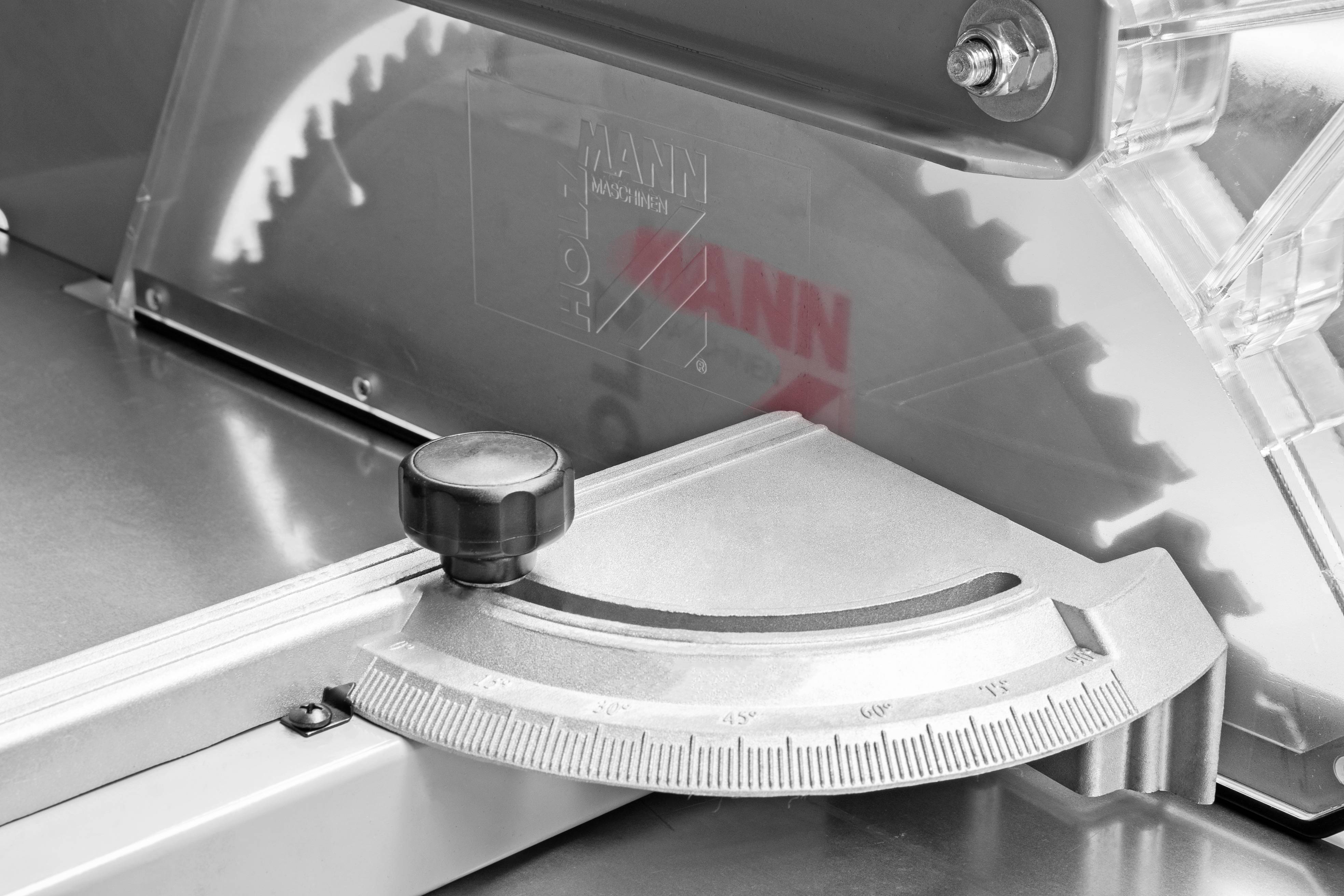

'Close-up of a circular saw table with scale and handle for angle adjustment. The saw blades are partially visible.'

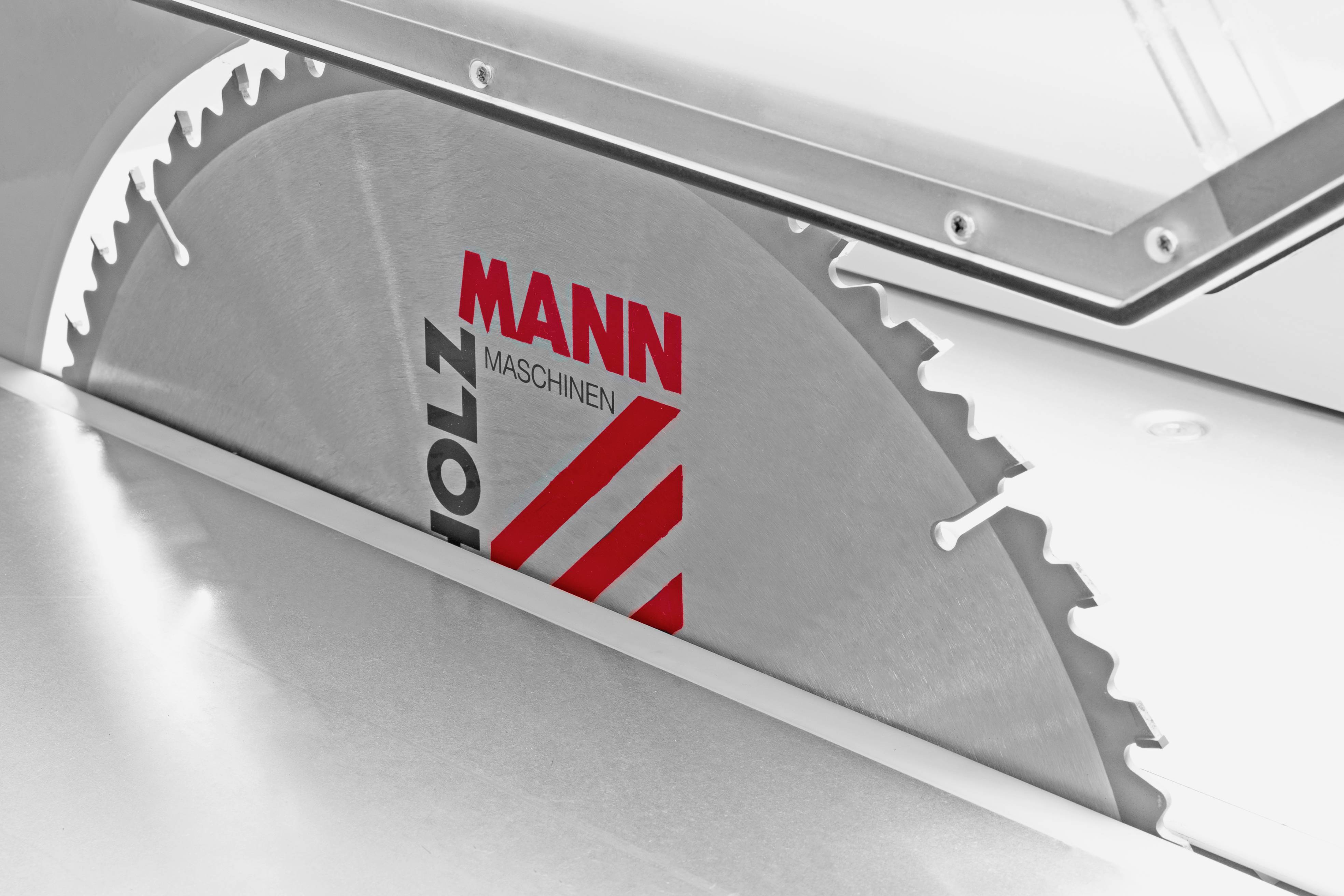

Close-up of a circular saw blade with the inscription 'HOLZMANN MASCHINEN' and red stripes, partially surrounded by a table.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Holzmann Maschinen TKS500S_400V Table saw 500 mm 30 mm 4200 W 400 V

Technical specifications

Table height 850 mmTable extension 800 x 400 mmSuction connection Ø 100 mm

Product type: Table saw

Saw blade diameter: 500 mm

Bore Ø: 30 mm

: 4200 W

Power S6: 4200 W

Operating voltage: 400 V

Cutting depth (max.) (90°): 150 mm

Table dimensions: 1000 x 660 mm

Length: 1075 mm

Width: 790 mm

Height: 1035 mm

Dim: (L x W x H) 1075 x 790 x 1035 mm

Weight: 96 kg

Idle speed: 2800 U/min

Factory colour: Red

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2839870 Holzmann Maschinen TKS500S_400V Table saw 500 mm 30 mm 4200 W 400 V

User & Safety Instructions

User & Safety Instructions 2839870 Holzmann Maschinen TKS500S_400V Table saw 500 mm 30 mm 4200 W 400 V

Description

The circular saw bench from Holzmann has a high-performance 4200 W motor. The rotation speed of the table saw is 2800 rpm.

This text is machine translated.

Features

Robust table saw, Ideal for use on the construction siteLarge cutting height of 150 mm thanks to 500 mm HW saw bladeBase frame with table extension (foldable)Powerful 4.2 kW motorCross-cutting gauge with integrated wedge-cutting gauge + parallel stop/longitudinal stopTransport equipment (handles and wheels)
