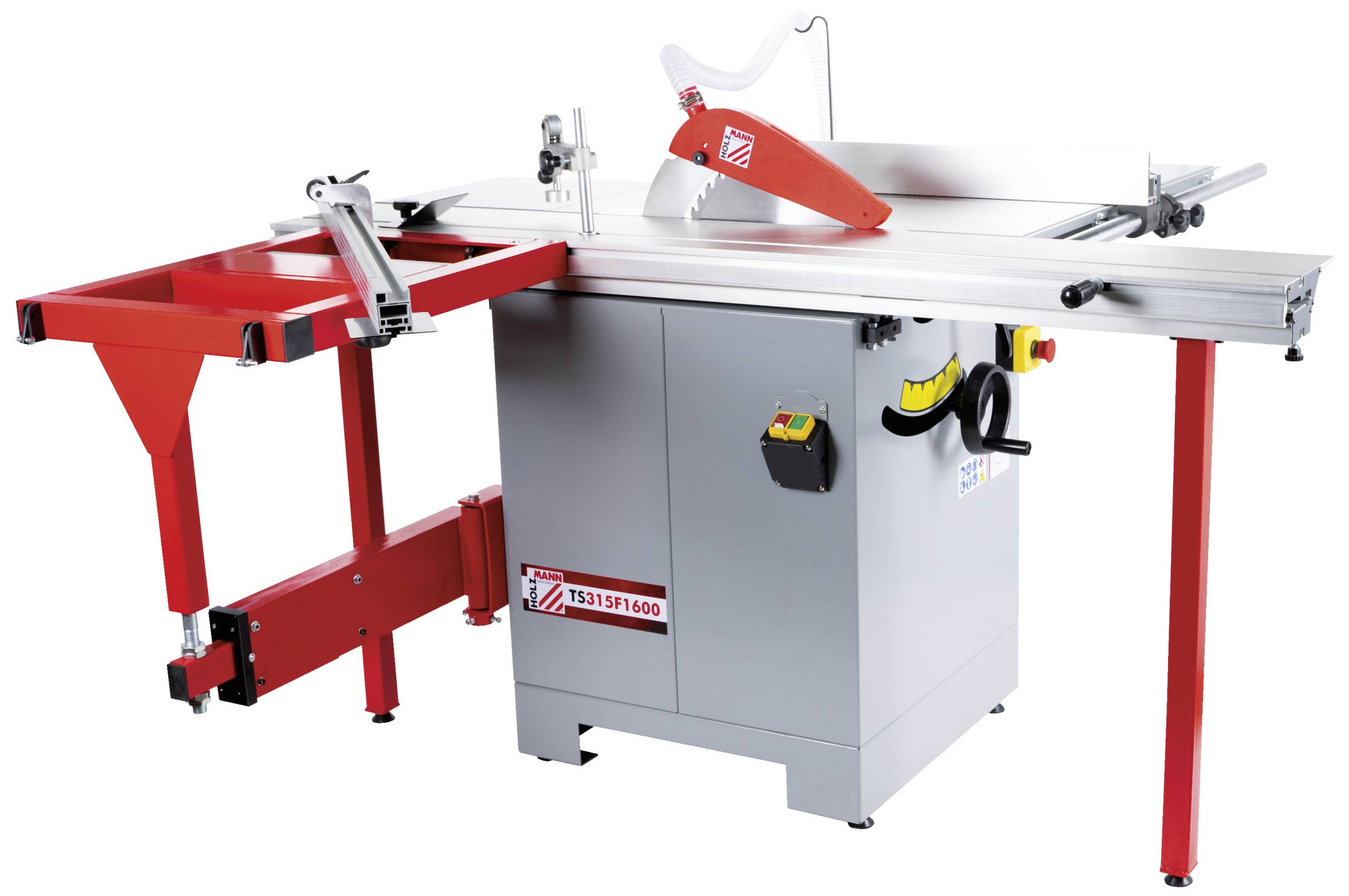

Holzmann Maschinen TS315F1600_230V Panel saw 315 mm 30 mm 230 V, 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Table height 850 mm
- Slide format table 1600 x 238 mm
- Table extension 350 x 365 mm
- Table extension 800 x 540 mm
- Suction connection 100 mm
- Swivelling range of saw-blade 0° - 45°
- Max. Trim length 1400 mm
- Cutting width at parallel stop 900 mm
- Sound power level in dB(A) 103
- Sound pressure level in dB(A) 89.5
- Product type
Panel saw
- Saw blade diameter
315 mm
- Bore Ø
30 mm
- Power S1
2800 W
- Power S6
3920 W
- Operating voltage
230 V
400 V
- Table dimensions
1600 x 238 mm
- Weight
164 kg
Documents & Downloads
Datasheet
Datasheet 3219064 Holzmann Maschinen TS315F1600_230V Panel saw 315 mm 30 mm 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 3219064 Holzmann Maschinen TS315F1600_230V Panel saw 315 mm 30 mm 230 V, 400 V
Description
Features
- Swivelling and height-adjustable circular saw blade
- 1600 mm long slide format table with support roller at the beam

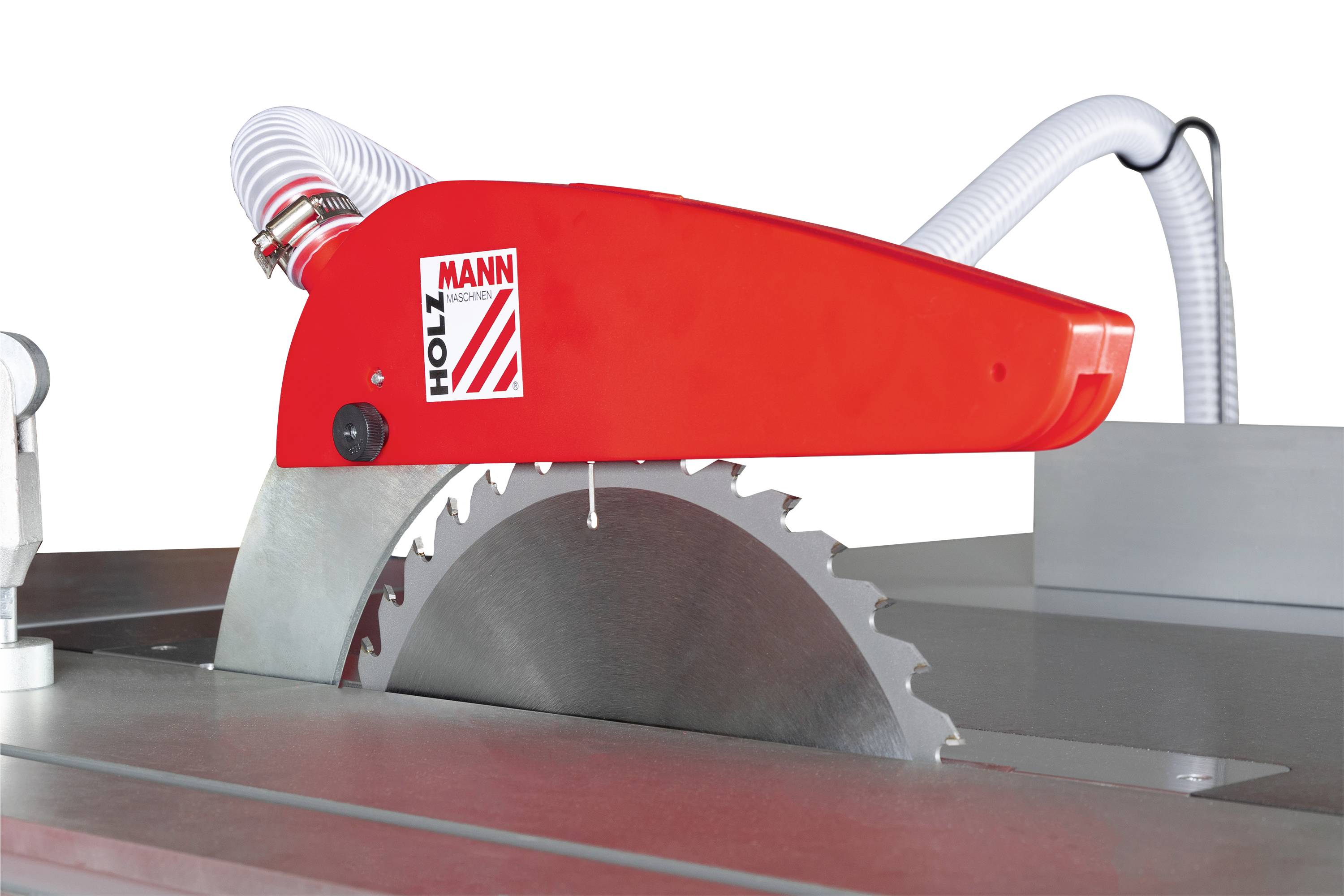

- Ø315mm saw blade allows a cutting height of up to 85mm

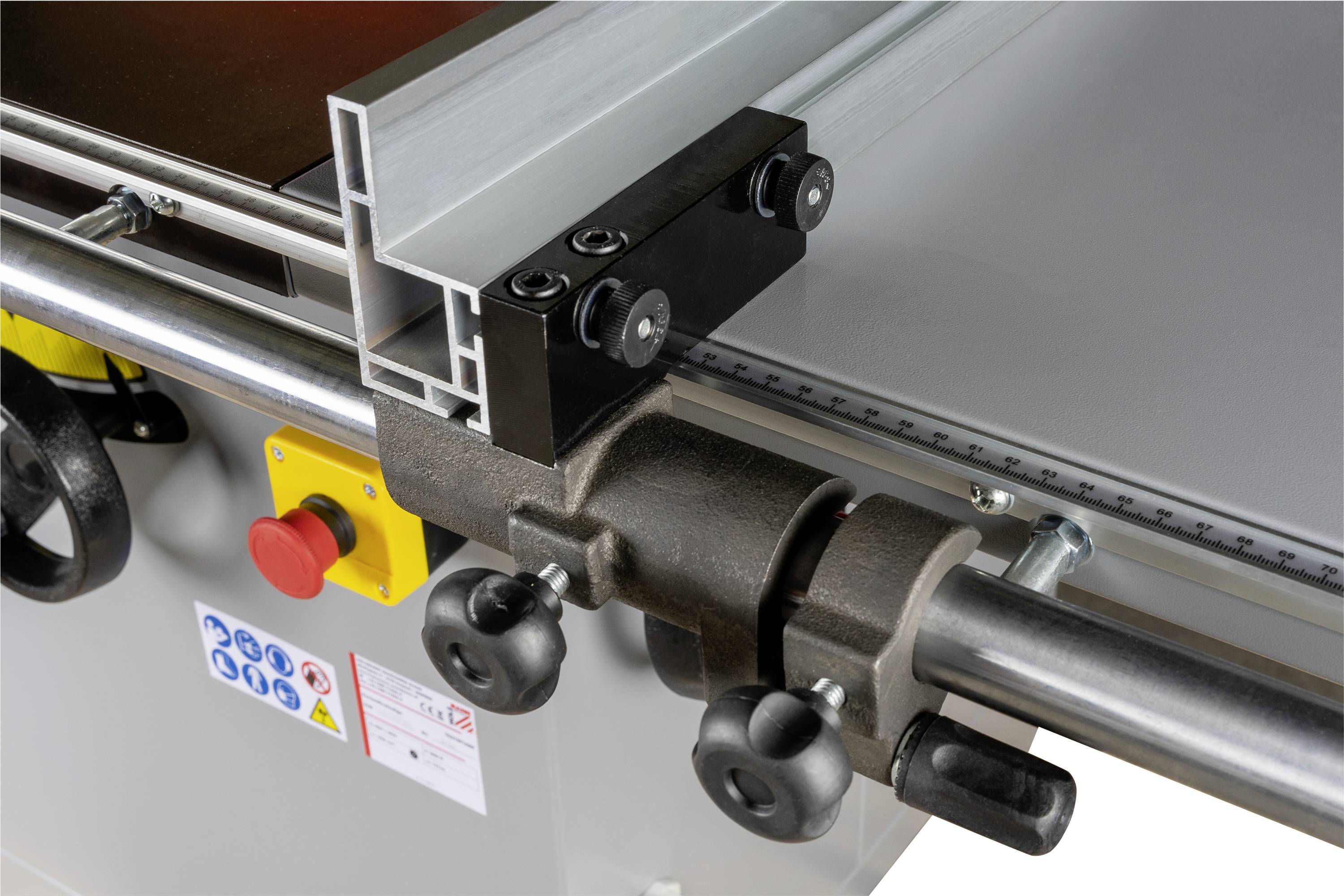

- Stable and precise guided parallel attack
- Strong cast-iron table for long service life
- Table extension and table extension
- This text is machine translated.
Scope of delivery
- Hard metal circular saw blade Ø315mm
- Outlayer
- Table expansion
- Table extension parallel stop
- Telescopic arm stop
- Barting shoe
- Lower holder
- Sliding stock and sliding wood
