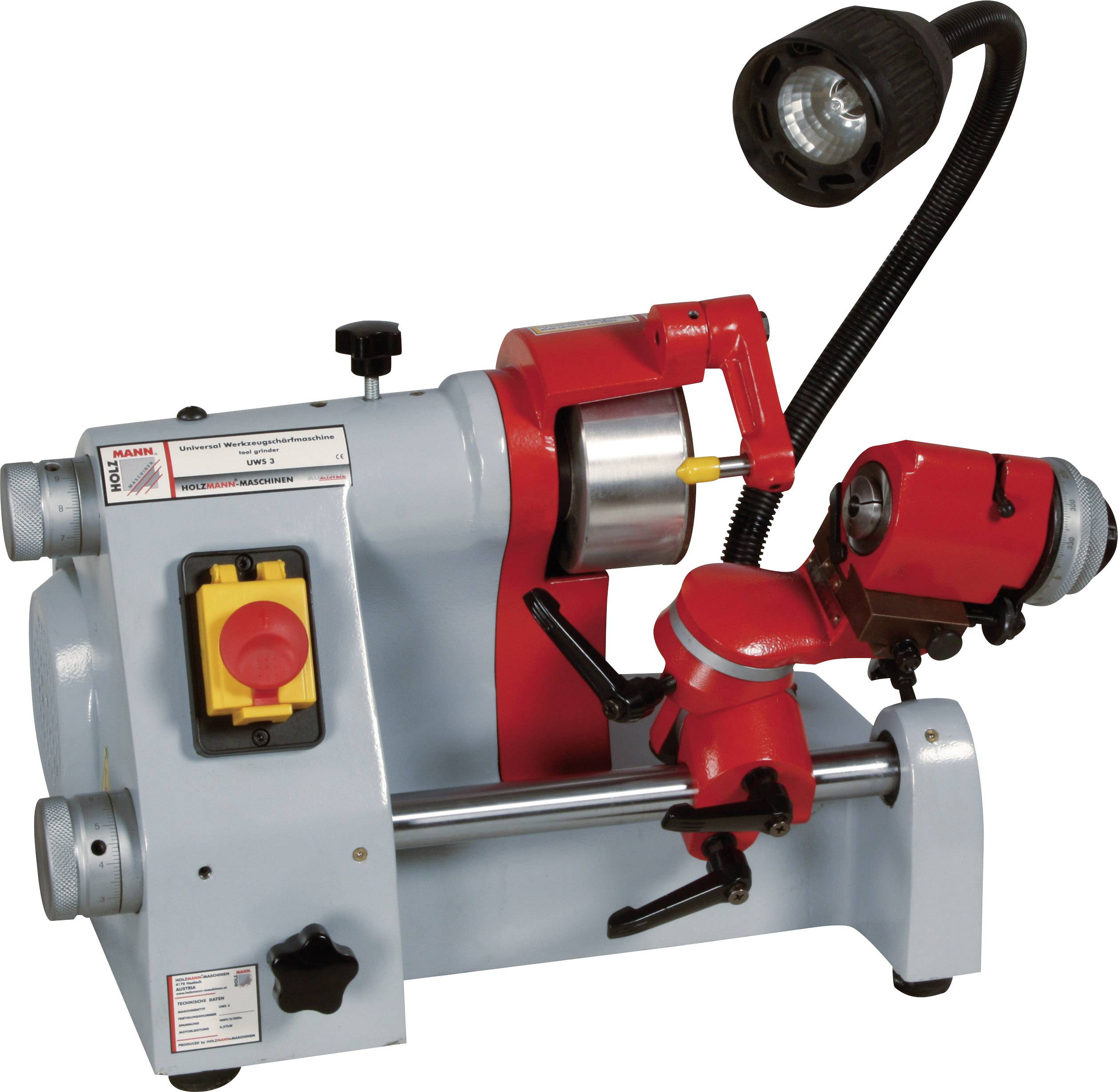

Holzmann Maschinen UWS3_230V Sharpener 370 W 100 mm
EAN:
Part number:
Item no:
Technical specifications
- Negative Angle: 0-25°
- Bevel gear loops: 0 to -180°
- Collet diameter in mm: 3-16
- Grinding wheels dimension in mm: 100 x 50 x 20
- Behind loops: 0-45°.
- Product type
Sharpener
- Features
incl. accessories
370 W
- Grinding disc Ø
100 mm
- Recess diameter
20 mm
- Operating voltage
230 V
- Weight
52 kg
- Idle speed
5000 U/min
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1695466 Holzmann Maschinen UWS3_230V Sharpener 370 W 100 mm
Description
Can be used universally through versatile swivel and setting options. For grinding of punch, twist drills, electrodes, rotary chisel, centring tips, etc. High precision through robust machine body and vibration-free driven precision grinding spindle. Simple handling and use.
This text is machine translated.
This text is machine translated.

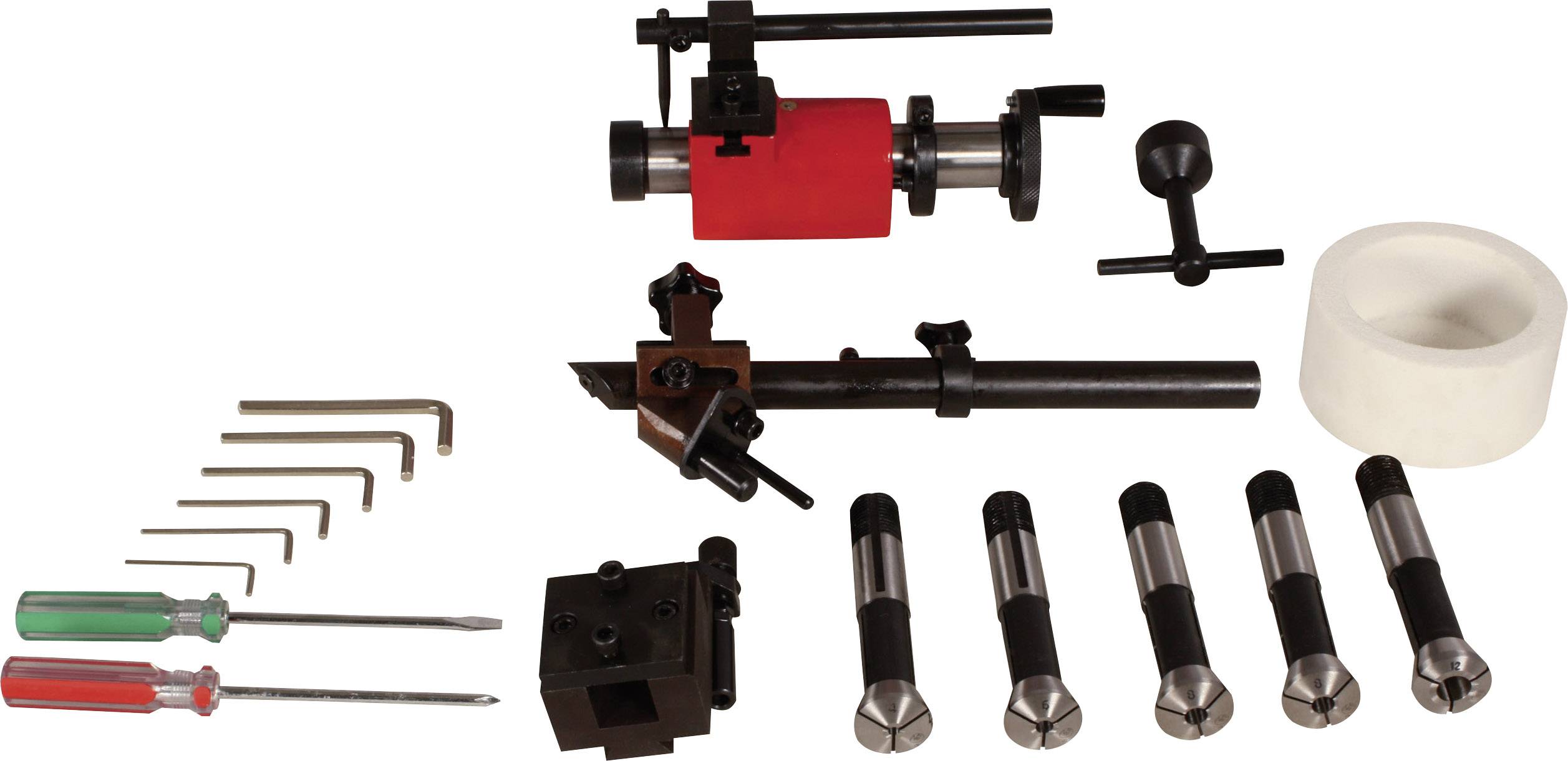

Scope of delivery
- Tool sharpening machine
- 4,6,8,10,12 collets (mm)
- Twist drill, mill and rotary chisel recording
- Corundum grinding disc
- Diamond grinding disc
- Drive belts.
