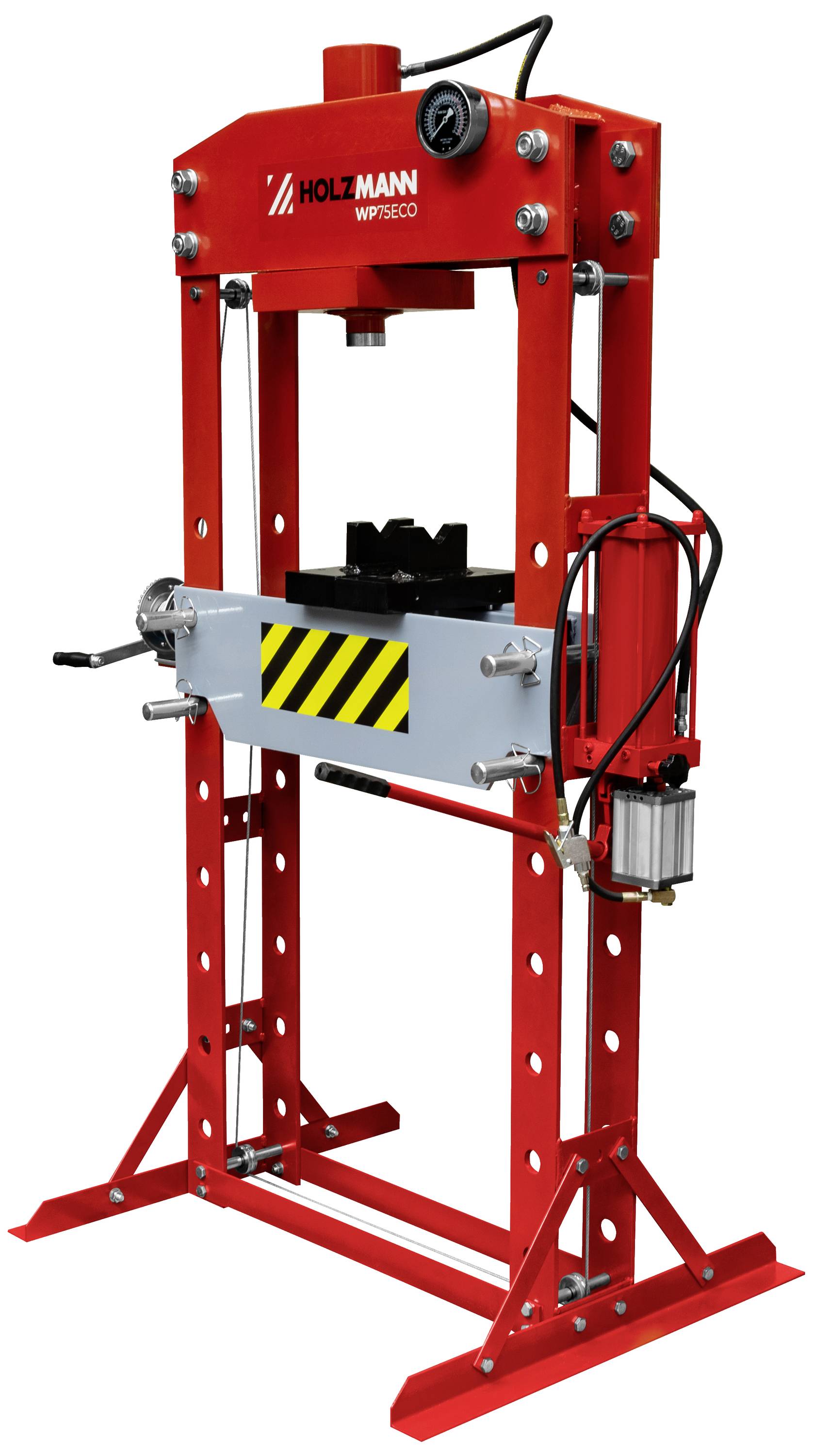

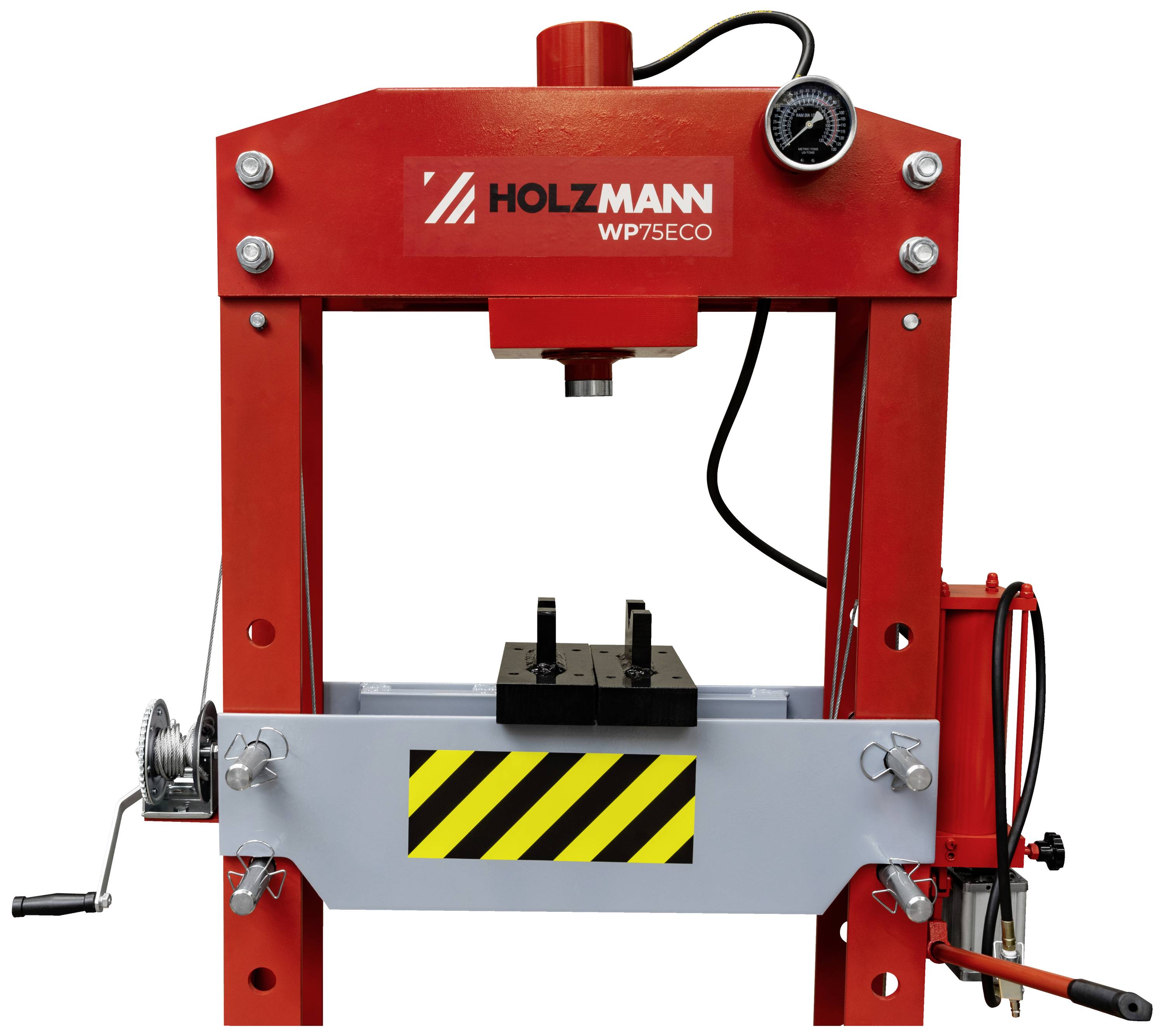

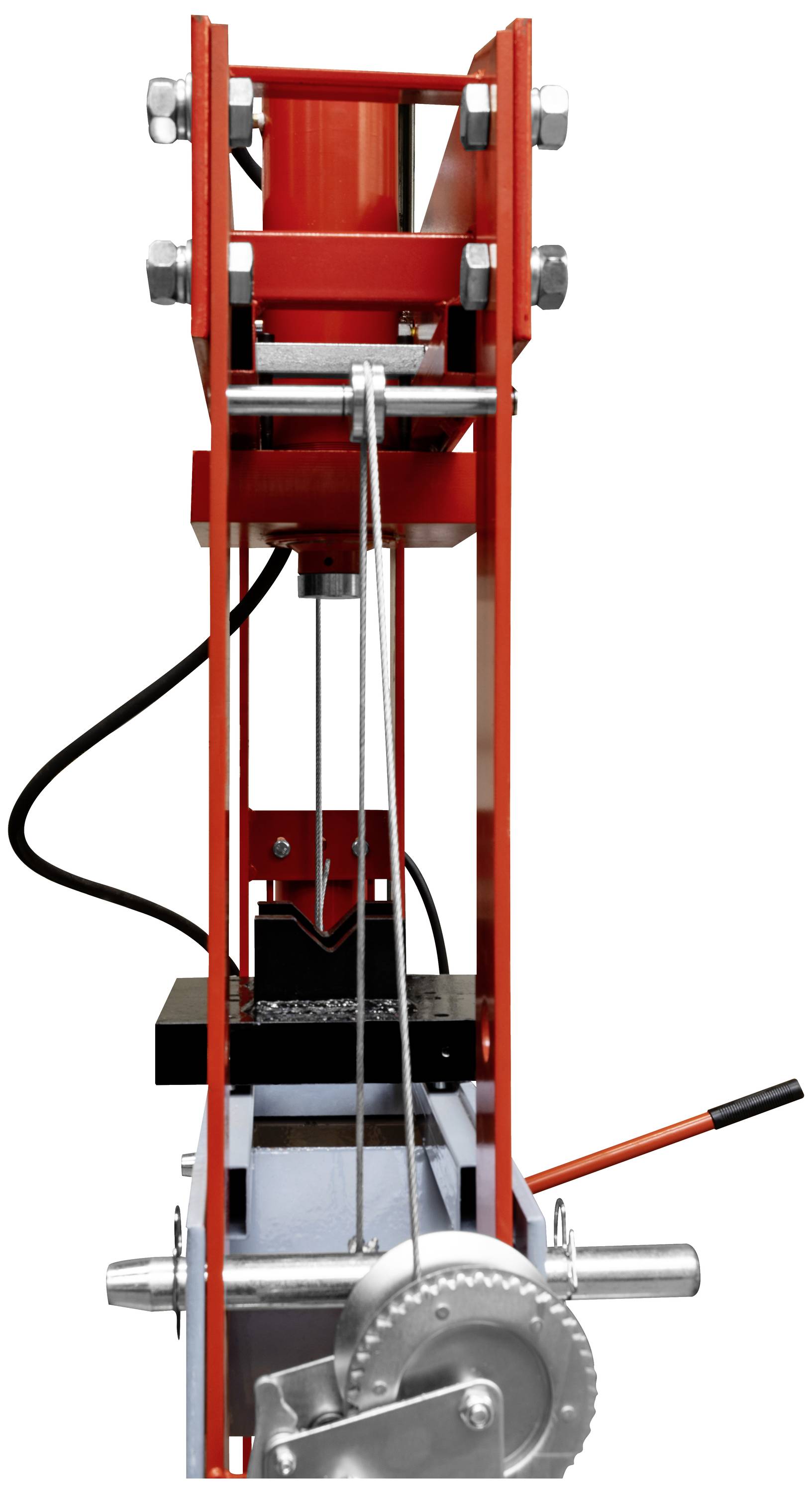

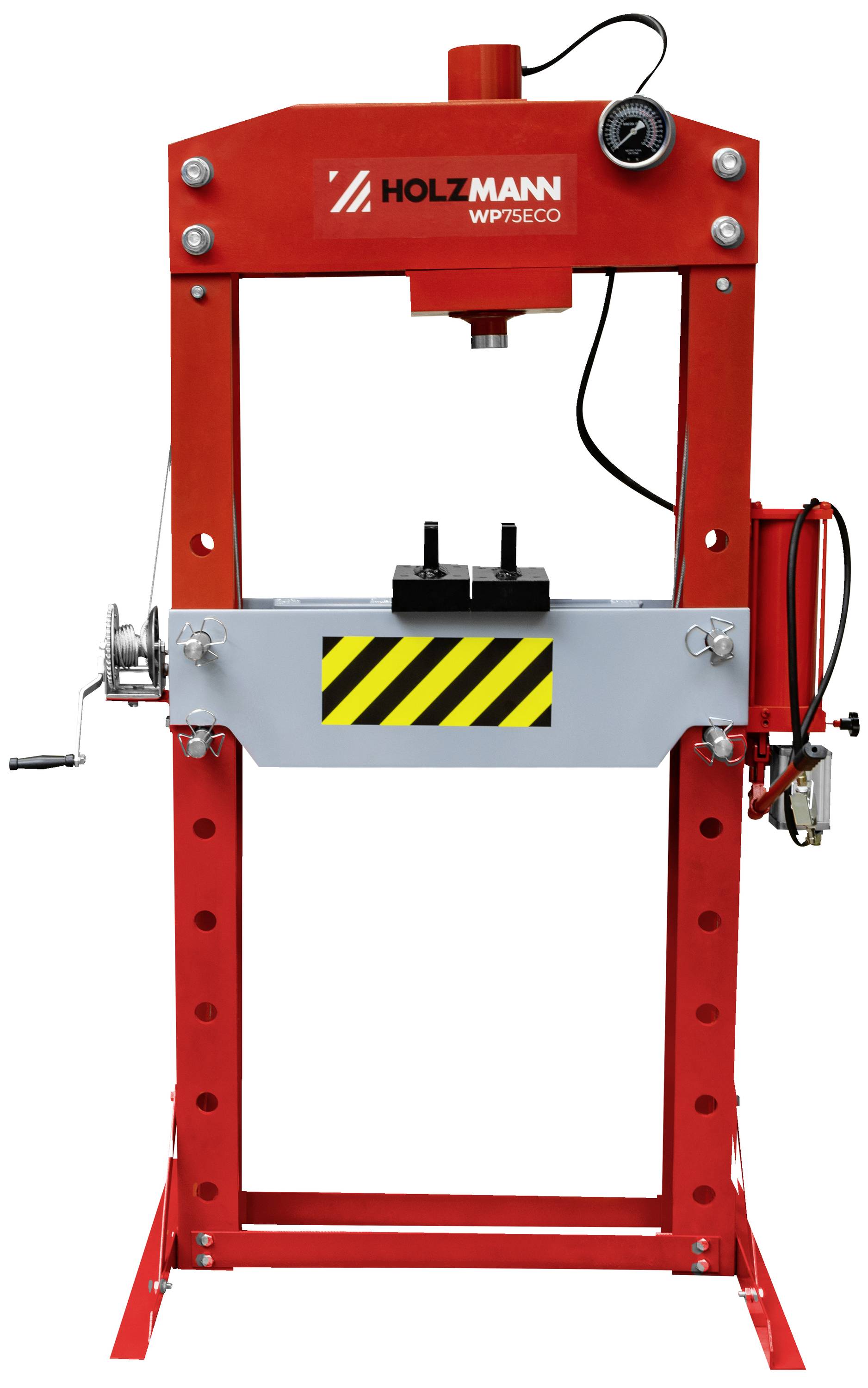

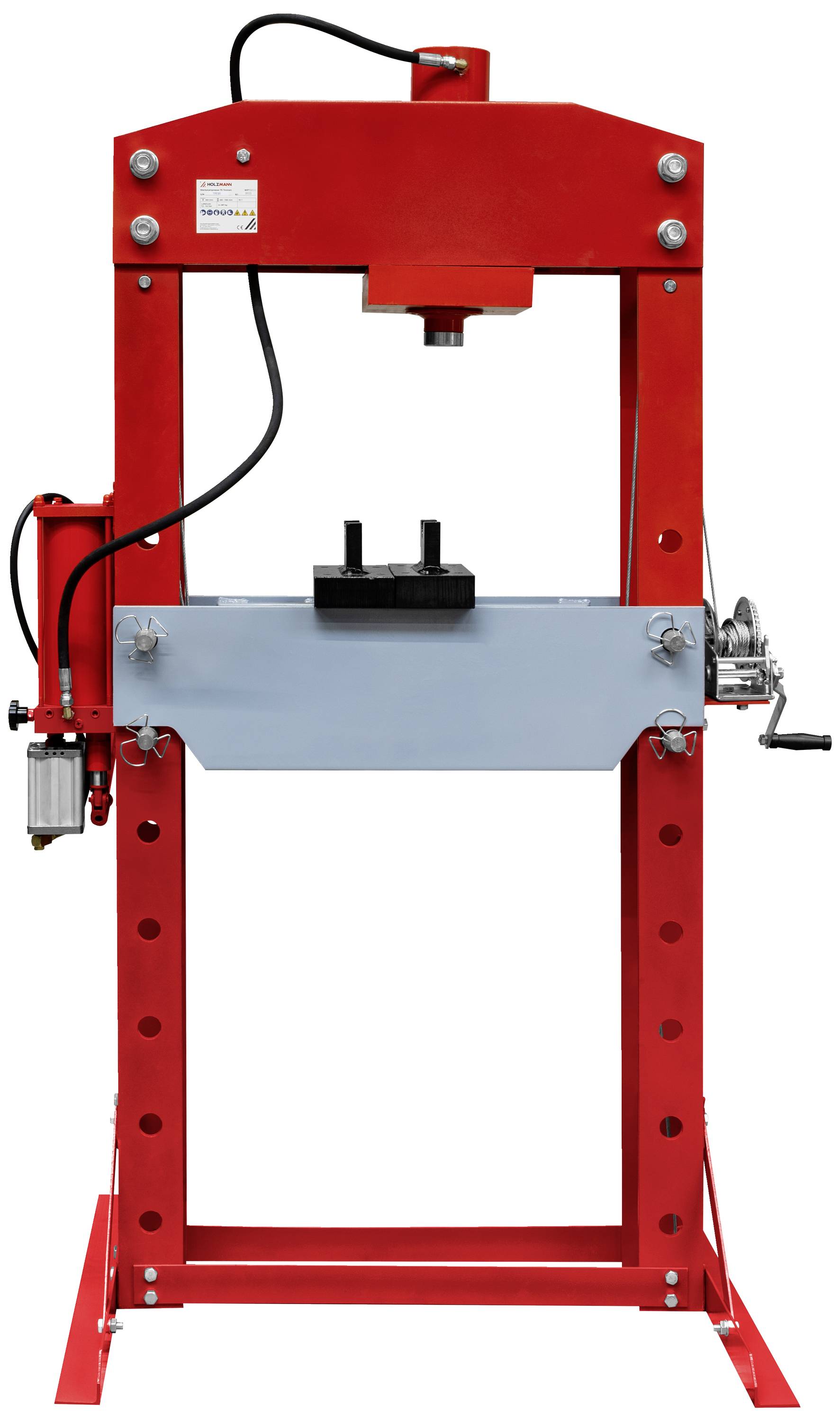

Holzmann Maschinen WP75ECO Hydraulic punch press
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Holzmann workshop press
- / battery
Technical specifications
- Stroke: 250 mmBed width 700 mmPress pressure 75 tWorking range 255 - 1155 mm
- Product type
Hydraulic punch press
- Weight
284 kg
- Width
850 mm
- Height
1940 mm
- Length
1330 mm
- Dim
(L x W x H) 1330 x 850 x 1940 mm
Documents & Downloads
Datasheet
Datasheet 2839879 Holzmann Maschinen WP75ECO Hydraulic punch press
User & Safety Instructions
User & Safety Instructions 2839879 Holzmann Maschinen WP75ECO Hydraulic punch press
Description
The Holzmann Maschinen workshop press has a robust single-stage hydraulic cylinder incl. Pressure gauge for pressure force indication The height of the table can be adjusted.
This text is machine translated.
This text is machine translated.
Features
- Suitable for pressing, aligning and bendingInclusive of pressure gauge for pressure force displayRobust single-stage pneumatic hydraulic cylinderAutomatic piston returnAdjustable height when sitting tableThe ideal workshop assistant for repair and installation workPressure can be controlled manually or pneumaticallyWith 6 bits. Compressed air unit with 1/4" connection and operating pressure from 7.5-8.5 barPrinting plate 290 x 130 x 125 mm
