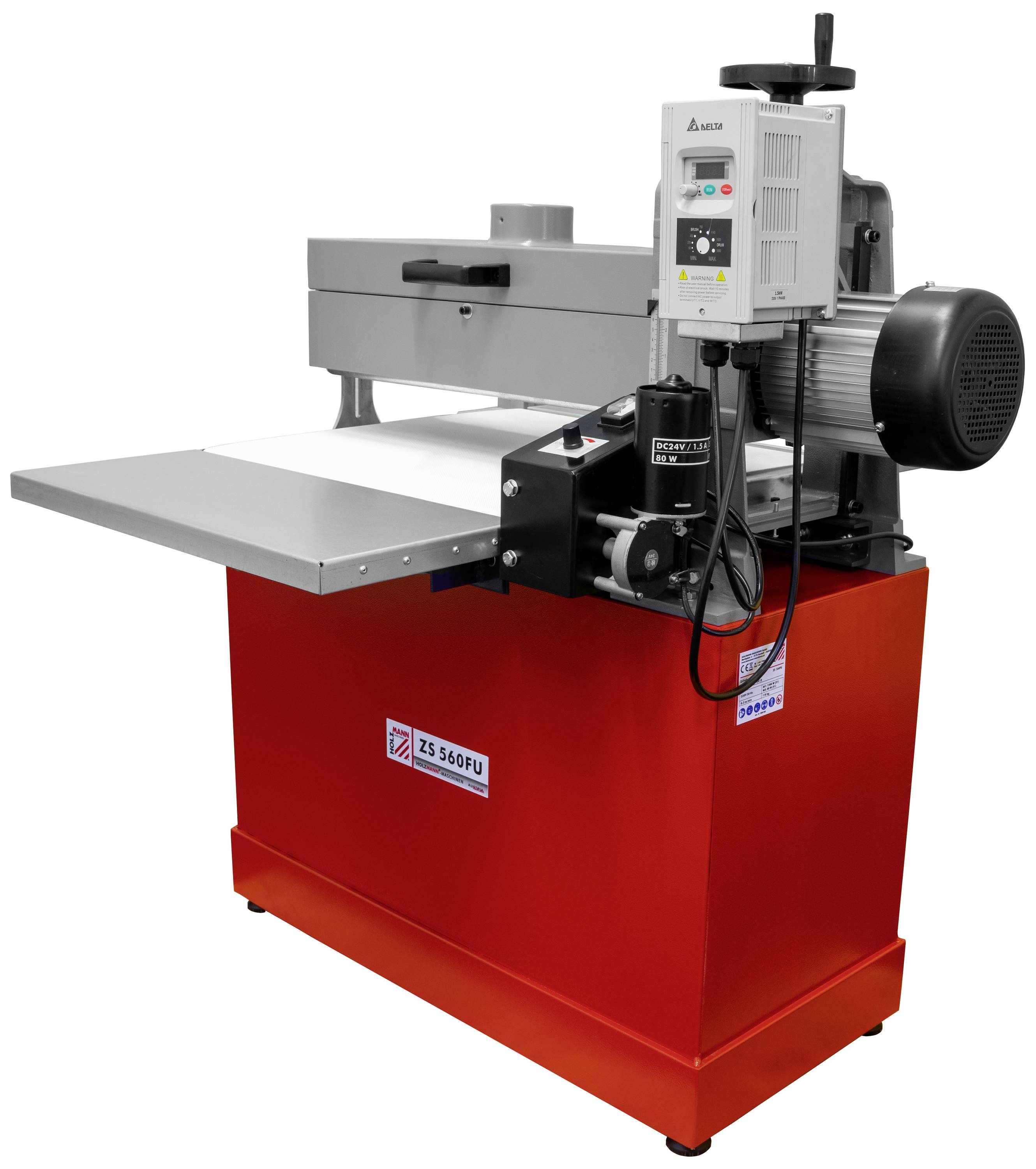

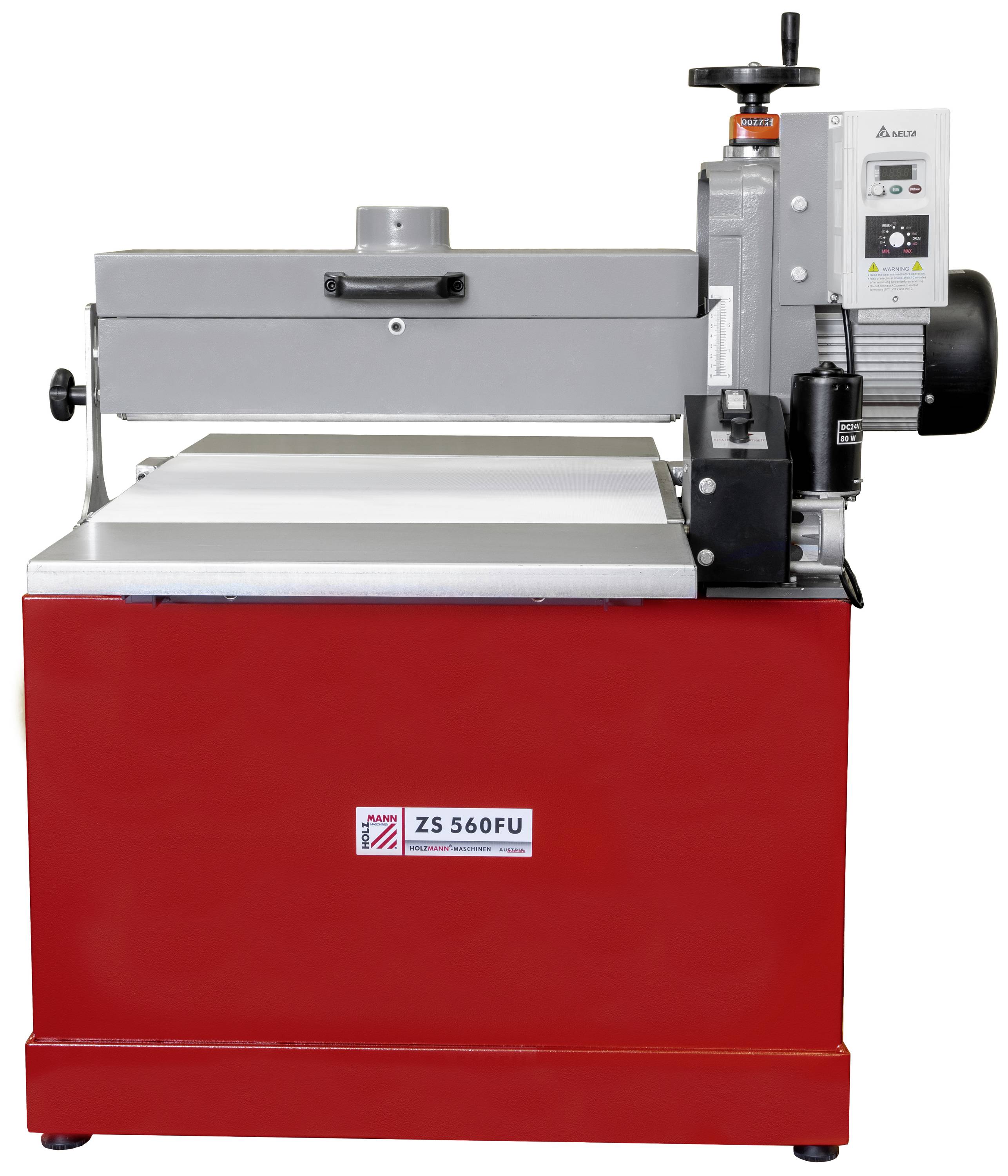

Holzmann Maschinen ZS560FU_230V ZS560FU_230V Drum sander 1500 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Table size 592x505 mm
- Table extension 582x245 mm
- Suction connection 100 mm
- Min Workpiece thickness 5 mm
- Max. Workpiece thickness 80 mm
- Tape measure 3280 x 78 mm
- Feed rate 0-3 m/min.
- max. Grinding width 560 mm
- Diameter of roller in mm ø132 x 565
- Roller speed in MIN-1 0-1800
- Sound power level in dB(A) 96
- Sound pressure level in dB(A) 87
- Product type
Drum sander
1500 W
- Belt length
3280 mm
- Belt width
78 mm
- Operating voltage
230 V
- Weight
118 kg
Documents & Downloads
Datasheet
Datasheet 3219072 Holzmann Maschinen ZS560FU_230V ZS560FU_230V Drum sander 1500 W
User & Safety Instructions
User & Safety Instructions 3219072 Holzmann Maschinen ZS560FU_230V ZS560FU_230V Drum sander 1500 W
Description
Features

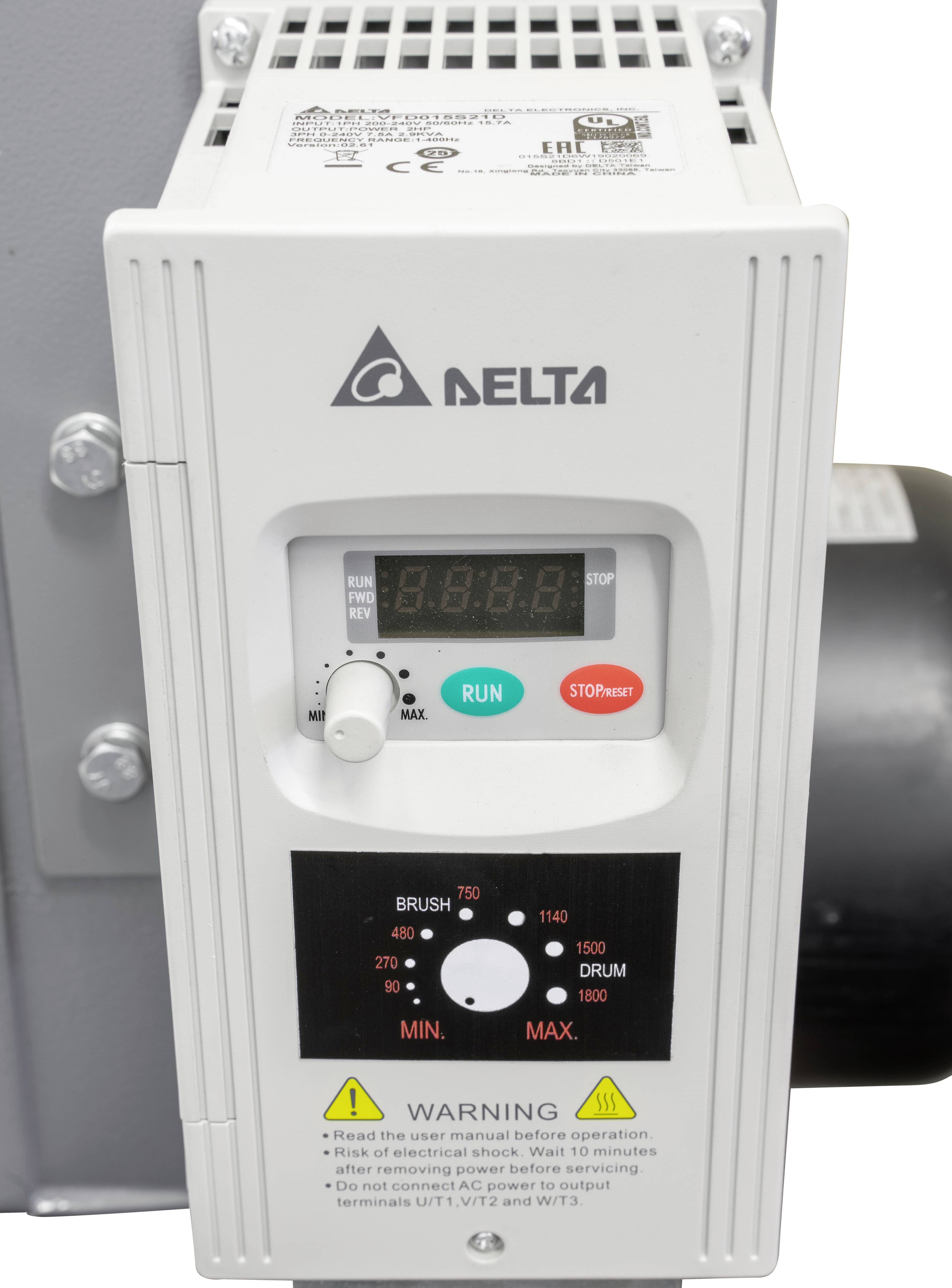

- Infinitely variable cylindrical grinding roller speed adjustable by potentiometer

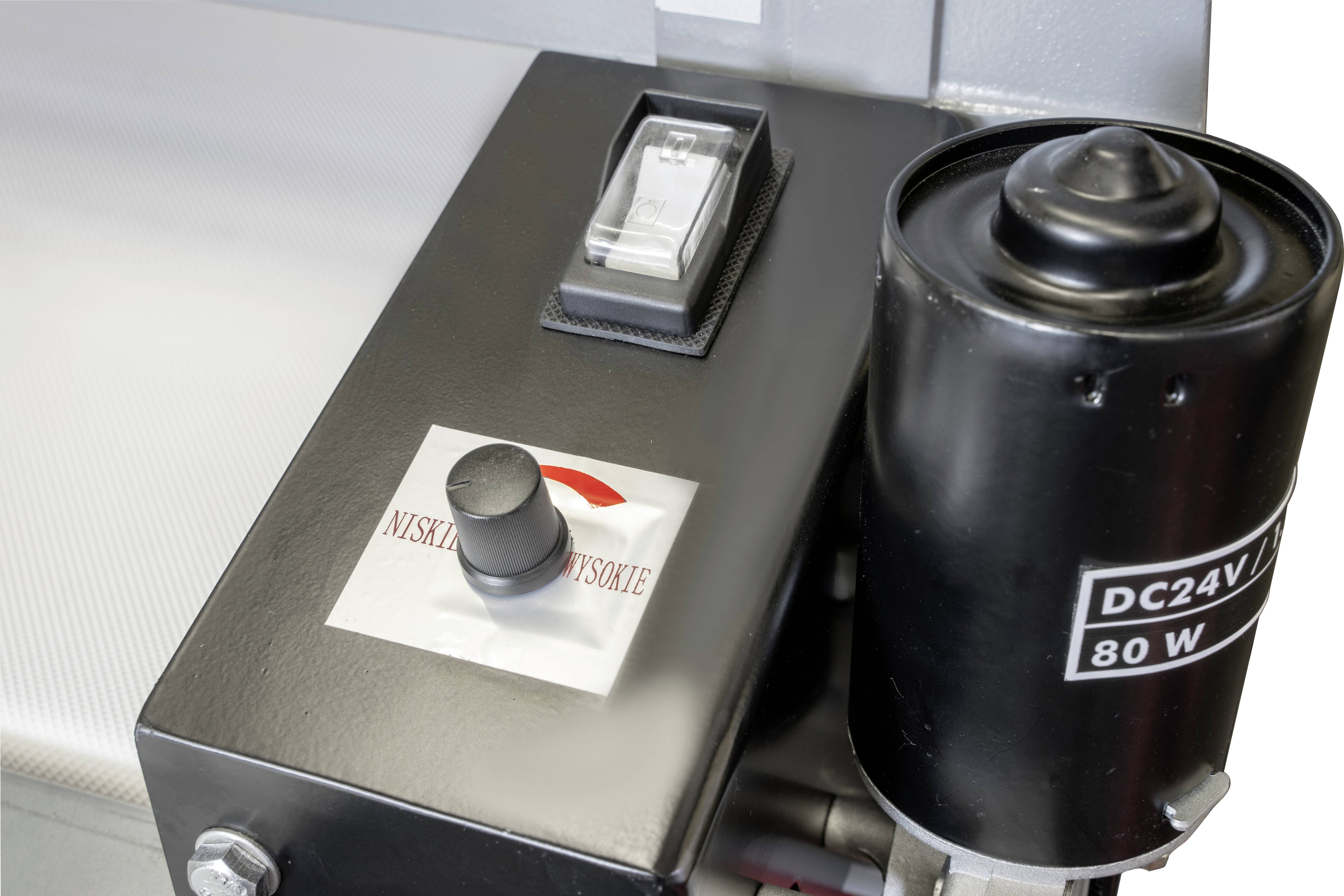

- Infinitely adjustable feed by potentiometer

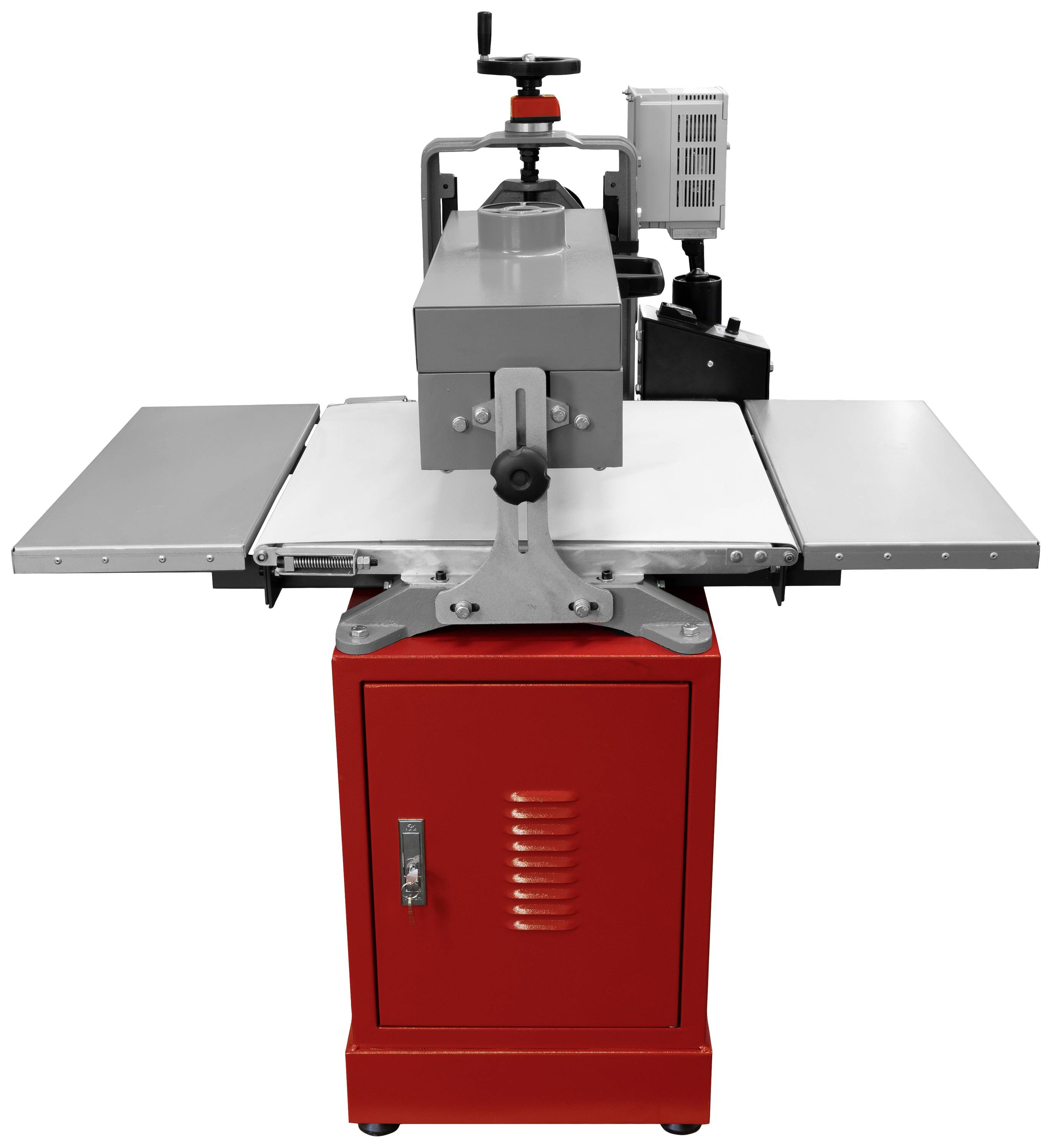

- Inlet and outlet table extension
- Stable cast construction of grinding unit
- Closed under frame with cabinet system
- Single-insertion wiping tensioning device via spring system
- Use of standard sanding belts is possible
- Selection of optional cylinder grinding rollers suitable for the machine
- Brush function with suitable roller (ZS560FU_DSW)
- This text is machine translated.
Scope of delivery
- Sanding belt, base frame
