Buy Homematic Wireless Adapter HM-LC-Dim1TPBU-FM

Homematic Wireless Adapter HM-LC-Dim1TPBU-FM-0

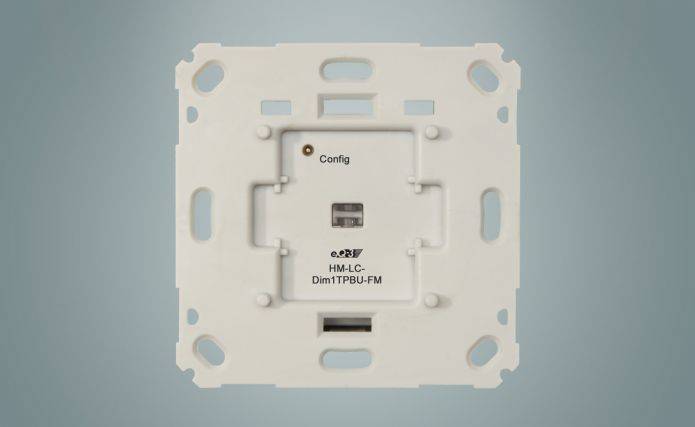

Homematic Wireless Adapter HM-LC-Dim1TPBU-FM-1

Homematic Wireless Adapter HM-LC-Dim1TPBU-FM-2

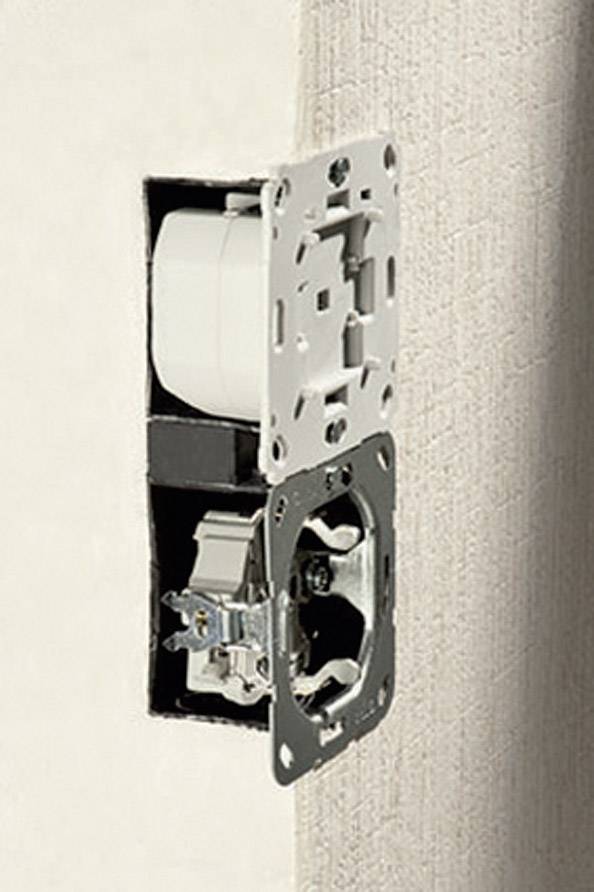

A partially mounted socket on a wall, without a cover, reveals exposed electrical components.

An open wall socket without a cover reveals the metal contacts and internal wiring against a beige wall.

Electrical wall socket with its cover plate removed, revealing the internal wiring and connection mechanisms on a wall.

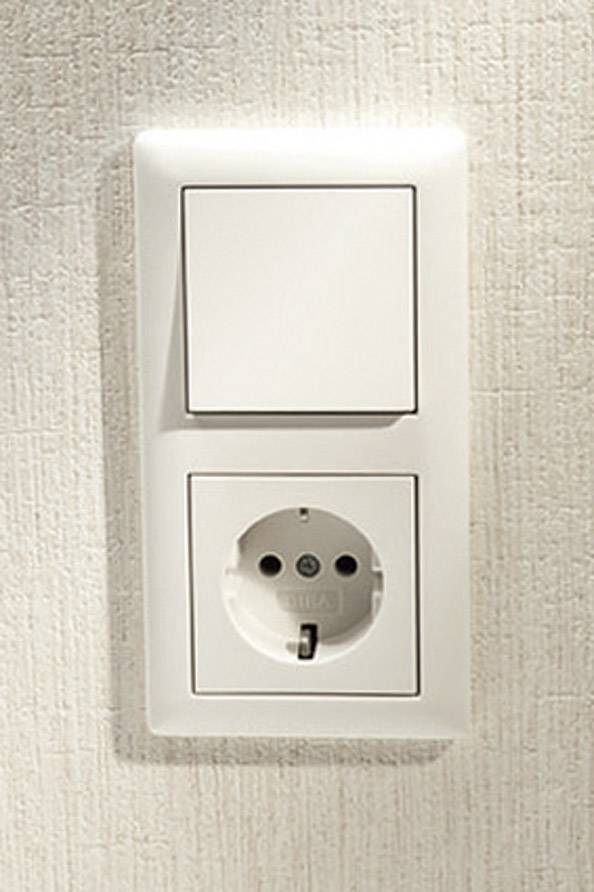

A white socket with a switch on a light beige wall.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 84.03 / piece)

€ 84.03

plus VAT.

14-day return policy included

Report legal concerns

Wireless dimming, 1-fold, flush-mounted

Highlights & Details

Compact design for installation in 60 mm flush-mounted boxes
Low assembly and installation expense

Technical specifications

Minimum load: 10 VA
Dimming process: phase section
StandBy consumption: 1 W

Product type: Adapter

Series: Homematic

Transfer Standard (Smart Home): Manufacturer-specific

Max. switching capacity: 180 W

Power supply (LOV): mains-powered

Operating voltage: 230 V

Data transfer (Smart Home): Wireless

Channels: 1

Frequency: 868 MHz

: 100 m

Mounting type: Flush mount

Width: 71 mm

Height: 71 mm

Depth: 37 mm

Weight: 54 g

Dim: (W x H x D) 71 x 71 x 37 mm

Hub: Required

Data exchange: Bidirectional (bi)

: n.rel.

Use: Lighting and appliance control

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 640538 Homematic Wireless Adapter HM-LC-Dim1TPBU-FM

Information

Information 640538 Homematic Wireless Adapter HM-LC-Dim1TPBU-FM

Radio certificate

Radio certificate 640538 Homematic Wireless Adapter HM-LC-Dim1TPBU-FM

Description

This phase section dimmer is intended for dimming the light bulbs, HV Halogen lamps, NV-Halogen lamps with electronic transformer and for dimmable energy saving lamps. Programming of several remote controls as well as the direct operation via rocker switch is possible.
This wireless dimmer can be used with the corresponding adapter in the most common design leading switch manufacturer can be integrated: Busch-Jaeger, Gira, Merten, Berker, young, duwi, Kopp. The existing installation and cabling can still be used.

This text is machine translated.

Scope of delivery

Wireless dimmer
Mounting material
Instructions for use.
