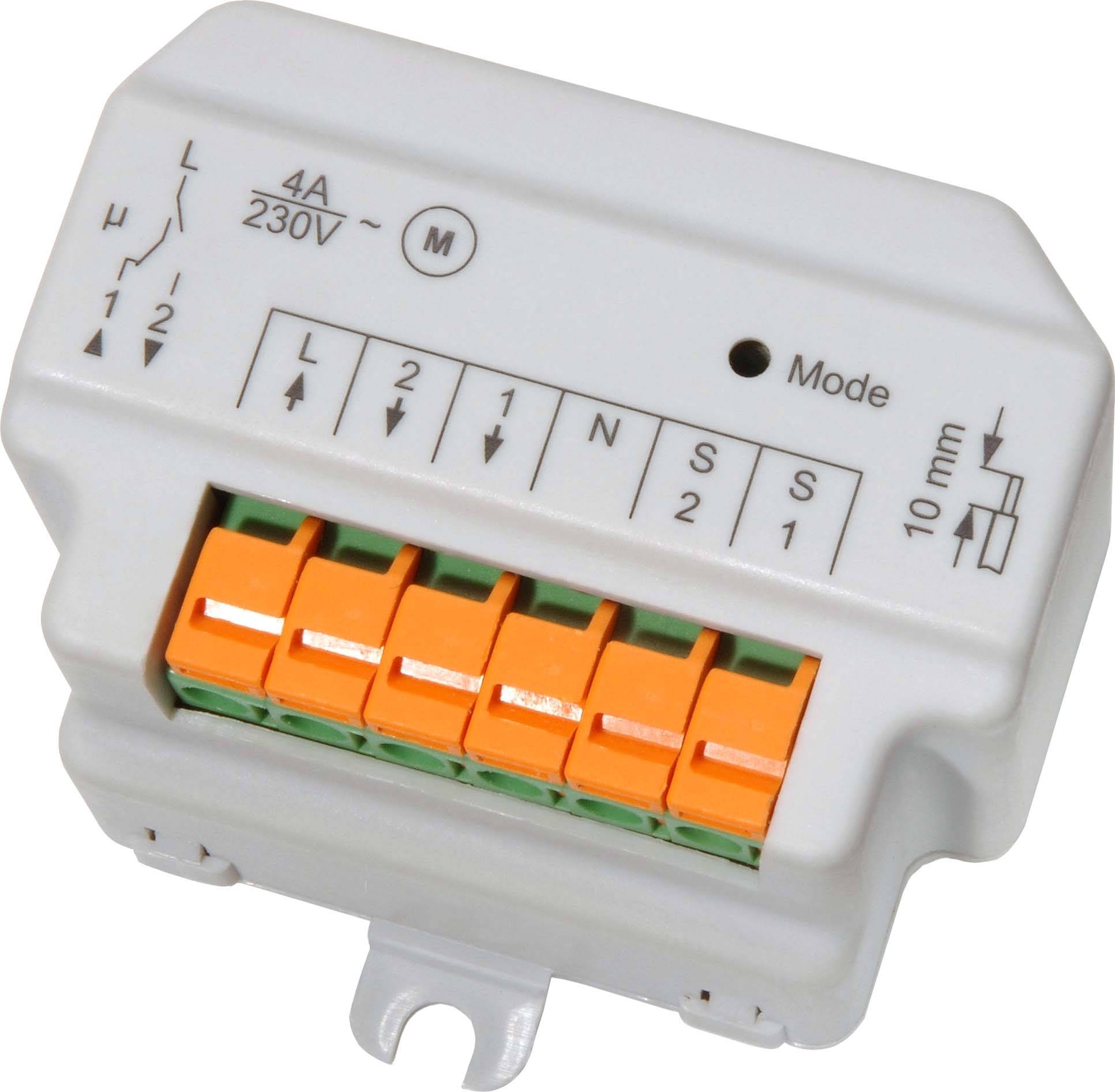

Homematic IP Wireless Adapter eQ-3 AG
EAN:
Part number:
Item no:
Datasheet (PDF)
Wireless blinds actuator 1-way, flush-mounted
Highlights & Details
- Operate via remote control or directly from the device
- Low standby consumption
- Signal-LED on the device
Technical specifications
- Relay contact: 1x closer, 1x changer
- Max. Output current: 250 W motor load
- Product type
Adapter
- Series
Homematic IP
- Transfer Standard (Smart Home)
Manufacturer-specific
- Max. switching capacity
250 W
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Channels
1
- Frequency
868 MHz
100 m
- Mounting type
Flush mount
- Width
53 mm
- Height
53 mm
- Depth
30 mm
- Weight
48 g
- Dim
(W x H x D) 53 x 53 x 30 mm
- Hub
Required
- Data exchange
Bidirectional (bi)
n.rel.
- Operating voltage
230 V/50 Hz
Documents & Downloads
Datasheet
Datasheet 646345 Homematic IP Wireless Adapter eQ-3 AG
User & Safety Instructions
User & Safety Instructions 646345 Homematic IP Wireless Adapter eQ-3 AG
Radio certificate
Radio certificate 646345 Homematic IP Wireless Adapter eQ-3 AG
Description
can be covertly installed in connection box or switch box, with connections for conventional switches/buttons.
Features
- Suitable for multiple standard venetian blind motors
- Relay contact: 1x closer, 1x changer
- Max. Output current: 250 W motor load
- Protection class: IP20
Scope of delivery
- Wireless venetian blind actuator
- User manual.
