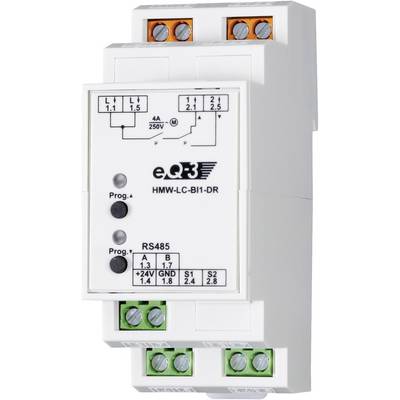

A white electrical device named 'eQ3 HMW-LC-BI1-DR', with multiple connections and a circuit diagram on its surface.

A white electrical device named 'eQ3 HMW-LC-BI1-DR', with multiple connections and a circuit diagram on its surface.

Homematic RS485 Adapter HMW-LC-Bl1-DR-1

1/2

Homematic IP

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 80.66 / piece)

€ 80.66

plus VAT.

14-day return policy included

Report legal concerns

RS485 louver actuator 1-way

Highlights & Details

DIN top-hat rail housing with a width of 2 TE.

Technical specifications

Switching voltage: 230 V
Switching current: 16 A
Number of outputs: 2
Number of inputs: 2
No. of partitions: 2
Power consumption: 70 mA (max.)

Product type: Adapter

Series: Homematic

Transfer Standard (Smart Home): Manufacturer-specific

Max. switching capacity: 3680 W

Power supply (LOV): mains-powered

Operating voltage: 24 V DC

Data transfer (Smart Home): RS485

Channels: 4

Frequency: 868 MHz

Mounting type: DIN rail

Width: 36 mm

Height: 87 mm

Depth: 65 mm

Dim: (W x H x D) 36 x 87 x 65 mm

Hub: Required

Data exchange: Bidirectional (bi)

: n.rel.

Use: Climate control
Lighting and appliance control
Security
Weather and environment

Operating voltage: 24 V DC

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 646384 Homematic RS485 Adapter HMW-LC-Bl1-DR

User & Safety Instructions

European union

User & Safety Instructions 646384 Homematic RS485 Adapter HMW-LC-Bl1-DR

Conformity certificate

Deutsch (Deutschland)

Conformity certificate 646384 Homematic RS485 Adapter HMW-LC-Bl1-DR

Description

Circuit-breakers with 2 potential-free, inter-locked relay switch outputs for opening and closing example: of roller shutter and blind

Features

DIN top-hat rail housing with a width of 2 TE.
Power consumption: 70 mA (max.).

Scope of delivery

Module
User manual.
