Honeywell HEL-705-U-0-12-00 HEL-705-U-0-12-00 Temperature sensor -200 up to +260 °C 1000 Ω
EAN:
Part number:
Item no:
Temperature reading range (max.)
+260 °C
Connector
Cable, open end
Resistance
1000 Ω
Product type
Temperature sensor
Type
HEL-705-U-0-12-00
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Technical specifications
- Material (line): PTFE insulated
- Type
HEL-705-U-0-12-00
- Temperature reading range (min.)
-200 °C
- Temperature reading range (max.)
+260 °C
- Temperature reading range
-200 up to +260 °C
- Connector
Cable, open end
- Cable length
30.50 cm
- Enclosure material
Ceramic
- Accuracy
0.2 %
- Resistance
1000 Ω
- Resistance reference
0 °C

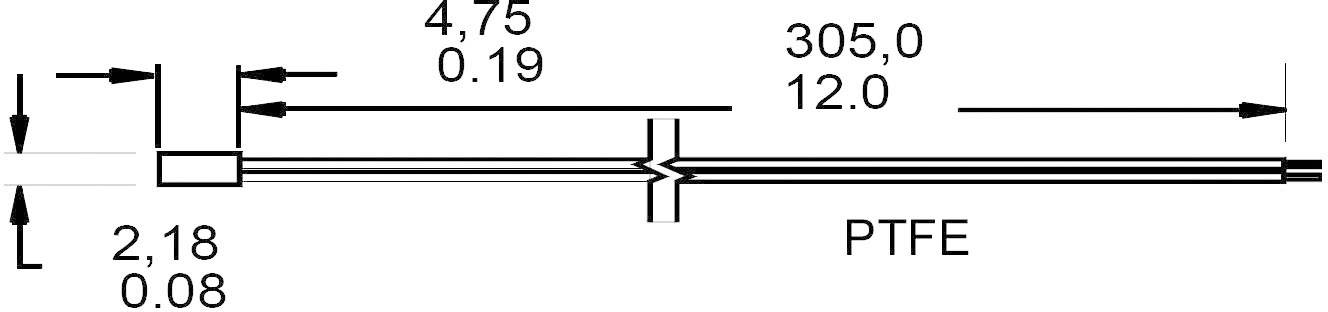

- Length
4.75 mm
- (Ø)
2.18 mm
- Dim
(Ø x L) 2.18 mm x 4.75 mm
- Tolerance
±0.2 %
- Type
HEL-705-U-0-12-00 100
- Connection
PTFE
- Temperature range
-200 - +260 °C
- Casing
Ceramic-housing
- Reading range
-200 - +260 °C
- Product type
Temperature sensor
Documents & Downloads
Datasheet
Datasheet 505311 Honeywell HEL-705-U-0-12-00 HEL-705-U-0-12-00 Temperature sensor -200 up to +260 °C 1000 Ω
Description
Temperature sensor on platinum base with linear characteristic, exact and exchangeable Excellent stability Ceramic-step with Teflon connection
