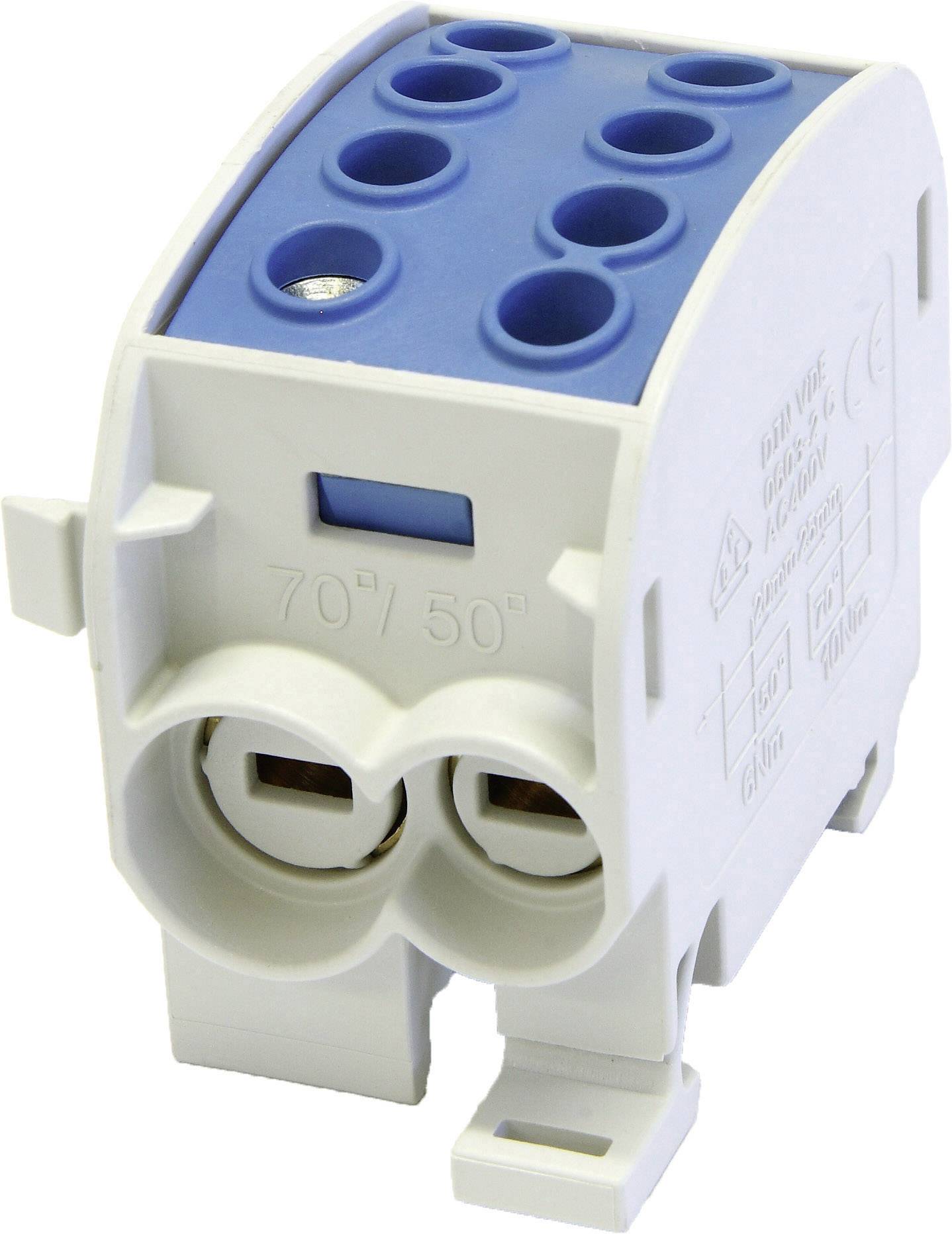

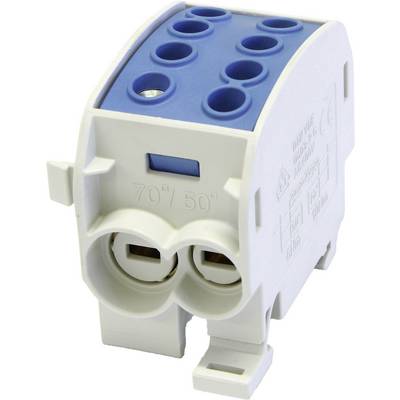

HoraeTec 080310-1-3 Main tap terminal Brass, PA Grey-white (RAL 7035), Light blue 1-pin 160 A 690 V Conductor type = N
EAN:
Part number:
Item no:
Product type
Main tap terminal
Number of pins
1
Nominal current - rounded value
160 A
Nominal voltage
690 V
Type
Main cable branch terminal 70 mm² - 1 pin
Datasheet (PDF)
Highlights & Details
3-PC set main line tap terminal 70 mm²
- For aluminum and copper conductorsAll-round finger-proof designCan be connected in series up to max. 5-pole
Technical specifications
- Nominal voltage
690 V
- Type
Main cable branch terminal 70 mm² - 1 pin
- Product type
Main tap terminal
- Factory colour
Grey-white (RAL 7035)
Light blue
- Number of pins
1
- Dim
(W x H x D) 40 x 53.3 x 63 mm
- Nominal current
160 A
- Nominal current - rounded value
160 A
- Type
Type C - finger-proof, can be stacked on all sides
- Conductor type
N
- Material
Brass
PA
- Width
40 mm
- Height
53.3 mm
- Depth
63 mm
Documents & Downloads
Datasheet
Datasheet 2633590 HoraeTec 080310-1-3 Main tap terminal Brass, PA Grey-white (RAL 7035), Light blue 1-pin 160 A 690 V Conductor type = N
User & Safety Instructions
User & Safety Instructions 2633590 HoraeTec 080310-1-3 Main tap terminal Brass, PA Grey-white (RAL 7035), Light blue 1-pin 160 A 690 V Conductor type = N
Description
Access / outlet 2 x 70 mm² + 2 x 50 mm² according to EN 60947-7-1 / EN 61238-1 "Class A" and UL 1059 with snap-on mounting for horizontal mounting. 1 insert with 4 clamping points (design "N") blue.
