HP Autozubehör Winch 20602 Traction (rolling)=13.608 kg Cordless remote control, Corded remote control, incl. window
EAN:
Part number:
Item no:
Highlights & Details
Motor rope winch professional 13 pcs
- With cable and radio remote control
- Electrical forward and reverse motion
- Manual free run
- 4-way roller-cable window
- Water-resistant housing
- Steel rope 26 m
- 13000 kg
- 3-way planetary gear.
- For fixed mounting
- Be connected to the 12V car battery
Technical specifications
- Wireless remote control with a frequency of 434 MHZ and included batteries (2x CR2032)
- Product type
Winch
- Fastening method
Fixed mount
- Operating voltage
12 V
- Weight
42 kg
- Width
53.5 cm
- Height
16 cm
- Depth
21.8 cm
- Cable speed (with load)
2.4 m/min
- Rope length
26 m
- Rope diameter
9.2 mm
- Features
Cordless remote control
Corded remote control
incl. window
- Transmission ratio
265:1
- Traction (rolling)
13.608 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2793570 HP Autozubehör Winch 20602 Traction (rolling)=13.608 kg Cordless remote control, Corded remote control, incl. window
Description

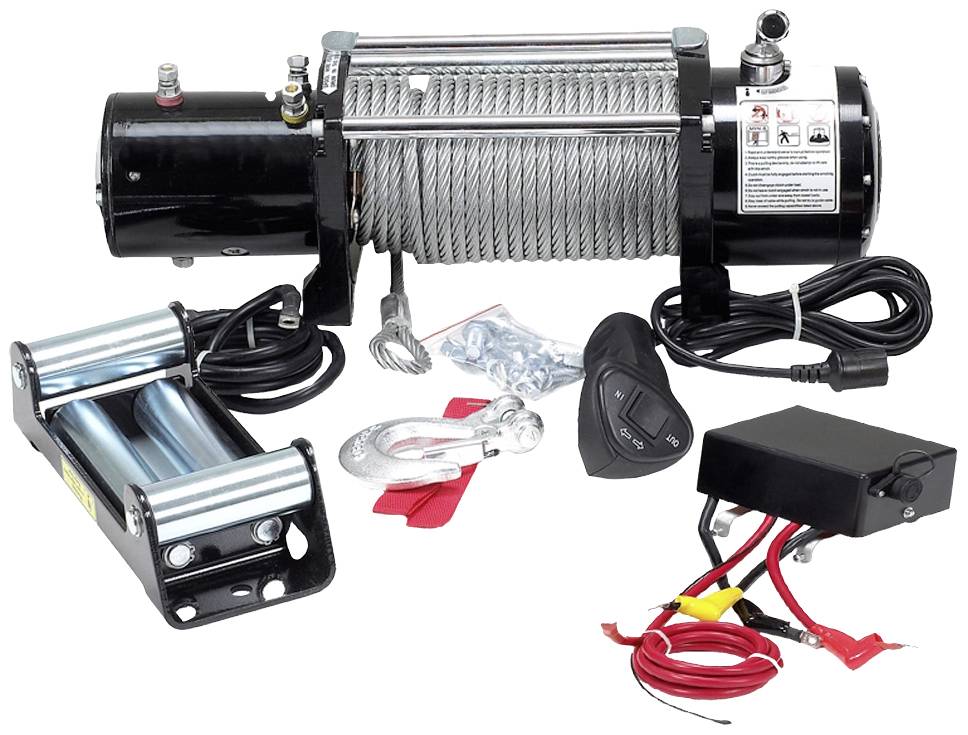

This electric rope winch is extremely powerful and robust, which can be used for almost any vehicle.
Ideal for car, boat, hunting and leisure, especially for quads,
ATV (4x4) and commercial use.
The rope winch has a 12 V electric motor and a pulling force of 13000 kg.
The rope winch can be controlled with the remote control included in the delivery.
The steel cable has a diameter of 9.2 mm and a length of 26 meters.
The maximum towing speed of the rope winch is 1360 kg - 2.4 meters per minute.
265:1 reduction
Rolling pull output 13,636 kg
The specifications of tensile load vary depending upon the underground and sloping position!
Dimensions 53 x 16 x 21.8 cm
Mounting dimensions 254 x 114.3 mm
Drum 225 mm - width 114.3 mm
Motor 12V/ DC permanent magnet 6.5 PS
Output 4.5 kW
Surge protection 500 Amp
This text is machine translated.
Ideal for car, boat, hunting and leisure, especially for quads,
ATV (4x4) and commercial use.
The rope winch has a 12 V electric motor and a pulling force of 13000 kg.
The rope winch can be controlled with the remote control included in the delivery.
The steel cable has a diameter of 9.2 mm and a length of 26 meters.
The maximum towing speed of the rope winch is 1360 kg - 2.4 meters per minute.
265:1 reduction
Rolling pull output 13,636 kg
The specifications of tensile load vary depending upon the underground and sloping position!
Dimensions 53 x 16 x 21.8 cm
Mounting dimensions 254 x 114.3 mm
Drum 225 mm - width 114.3 mm
Motor 12V/ DC permanent magnet 6.5 PS
Output 4.5 kW
Surge protection 500 Amp
This text is machine translated.
Scope of delivery
- Train rope 26 m - 9.2 mm Ø
- Cable remote control approx. 3 m
- 4-way roller-cable window
- Water-resistant housing
- Battery connection cable 1.50 m.
- Wireless remote control
- Cable guide
