HT Instruments Electrical tester VDE standard 0100, 0413
EAN:
Part number:
Item no:
Number
Total (€ 2,906.72 / piece)
€ 2,906.72
plus VAT.
14-day return policy included
Highlights & Details

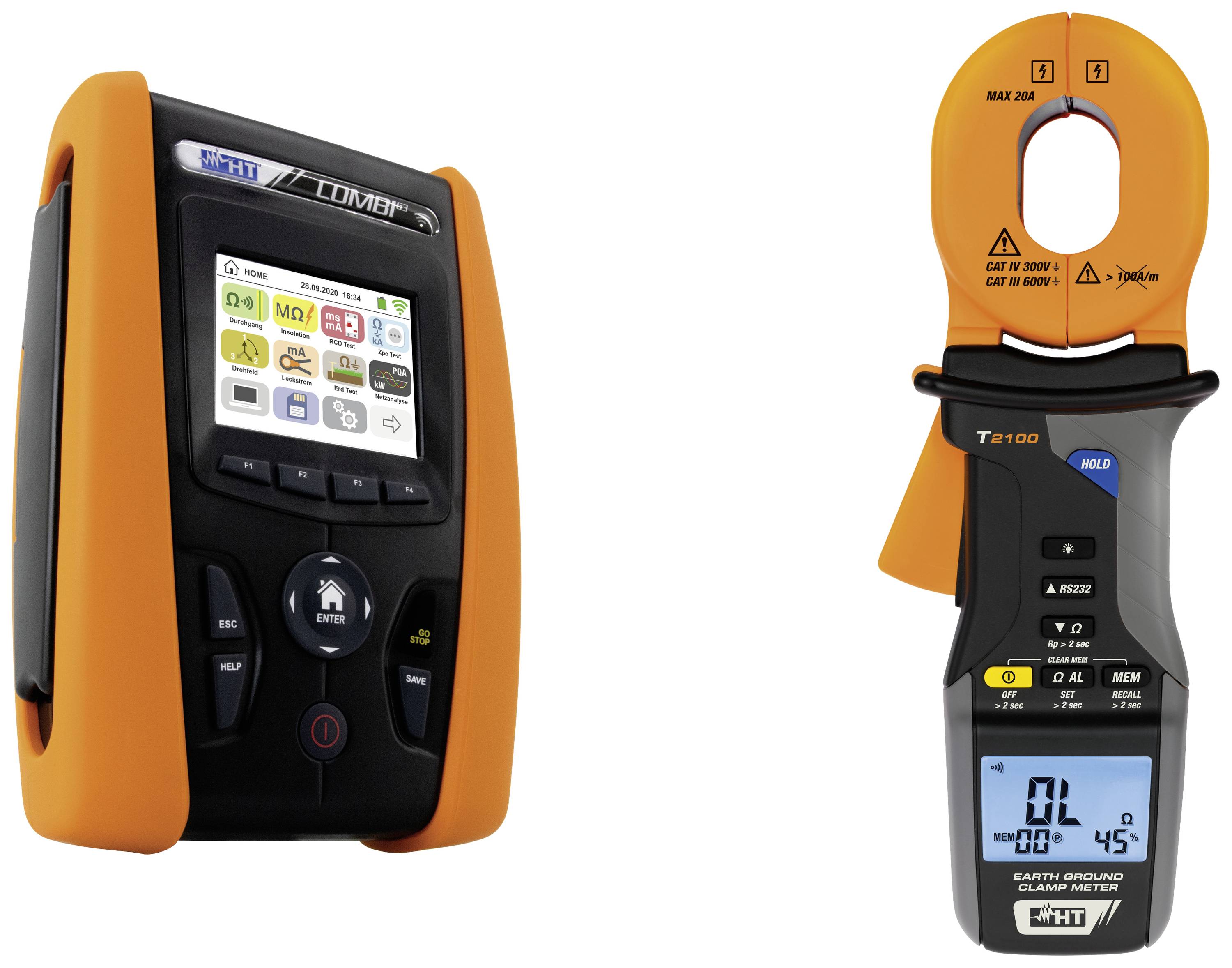

VDE 0100 Installation Tester Combi G3 with Touch Screen + Earthing measurement clamp T2100
- Installation tester COMBI G3
- Continuity test/low ohm measurement 200mA DC
- Insulation measurement with 50, 100, 250, 500, 1000 V DC
- Loop and line impedance with determination of the short-circuit current ik
- Loop impedance without tripping the RCD
- RCD analysis for type: A, AC, F and type B; General and selective
- Earthing measurement & specific earth resistance to erect
- Earthing measurement with optional earthing measurement clamp
- Fault current measurement with optional clamp-on ammeter
- Measurement of environmental parameters (temperature, humidity, light intensity) with optional probes
- Earthing measurement clamp T2100
- Earthing measurement without auxiliary probes from 0.010 Ω to 1000 Ω
- Leakage current measurement from 0.05 mA to 20 A/AC
- Real effective value measurement (TrueRMS)
- RS-232 interface (data transfer to Combi G3)
Technical specifications
- Earthing measurement clamp T 2100: CAT III 150 V
- Earthing clamp: Measuring range - low resistance: 0.010 Ω to 1000 Ω; measuring range AC-current: 0.05 mA - 20 A; clamp-on ammeter opening: 32 mm; power supply 4 AA batteries (AA).
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
- Interfaces
IR
- Dim
(L x W x H) 245 x 280 x 300 mm
- Weight
1.4 kg
IP50
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Leakage current
Touch voltage
Wave impedance
Voltage
Current
- DIN standard
DIN IEC 60364
DIN EN 61557
- Display type
Digital (LCD)
- Width
280 mm
- Height
300 mm
- Length
245 mm
- Test procedure
automated
- Voltage supply
Battery
- Memory (space)
600
- Memory
Yes
- Type
1010780
- VDE standard
0100
0413
- Features
Touchscreen
RCD/FI testing
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1766413 HT Instruments Electrical tester VDE standard 0100, 0413
Description
Installation tester COMBI G3
VDE 0100 Installation Tester with touch-screen
Quick and easy testing of electrical installations according to VDE 0413 (EN 61557) Part 2,3,4,5,6 & 7
It couldn't be simpler-intuitive operation via touch-screen.
Earthing measurement clamp T2100 for Combi G3
The innovative Earthing measurement clamp is optimally suitable for an exact measurement of the earthing resistance without the use of the auxiliary promote. Earthing clamp meter can be used in multiple grounded systems, without the need to loosen the earthing. The earth clamp has a large oval Clamp diameter (32 x 64 mm) and provides fast, secure, as well as precise results. The T2100 is equipped with an RS-232 interface, which allows data transfer of the measured values to the VDE 0100 KOMBI G3 allows you to subsequent protocol creation on the PC. The Earthing measurement clamp is equipped with an automatic cut-off as well as an LCD backlight, a performance of measurements in poorly illuminated environments.
This text is machine translated.
VDE 0100 Installation Tester with touch-screen
Quick and easy testing of electrical installations according to VDE 0413 (EN 61557) Part 2,3,4,5,6 & 7
It couldn't be simpler-intuitive operation via touch-screen.
Earthing measurement clamp T2100 for Combi G3
The innovative Earthing measurement clamp is optimally suitable for an exact measurement of the earthing resistance without the use of the auxiliary promote. Earthing clamp meter can be used in multiple grounded systems, without the need to loosen the earthing. The earth clamp has a large oval Clamp diameter (32 x 64 mm) and provides fast, secure, as well as precise results. The T2100 is equipped with an RS-232 interface, which allows data transfer of the measured values to the VDE 0100 KOMBI G3 allows you to subsequent protocol creation on the PC. The Earthing measurement clamp is equipped with an automatic cut-off as well as an LCD backlight, a performance of measurements in poorly illuminated environments.
This text is machine translated.
Scope of delivery
- Combi-G3
- Earthing measurement clamp T2100
- Color touchscreen and WIFI including connection cables
- Underground cable set
- External test probe PR 400
- Power analysis function
- Battery charger
- Rechargeables
- Documentation software
- Protective case x2
- User manual
