HT Instruments HT´s "Volle Ladung" ECO-KIT Electrical tester
EAN:
Part number:
Item no:
Number
Total (€ 1,836.13 / piece)
€ 1,836.13
plus VAT.
14-day return policy included
Highlights & Details

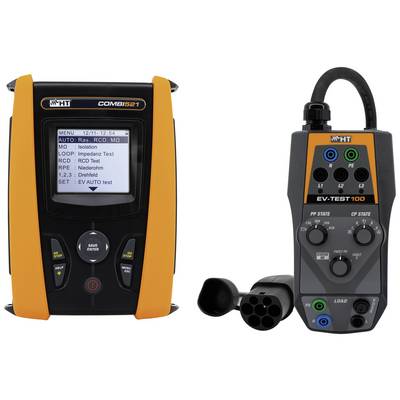

VDE 0100 Installation tester COMBI521 Action with EV-TEST100 charging column adapter
- AUTO-sequence (Ra → RCD → Riso)Low ohm measurement with 200 mA DCINSULATION MEASUREMENT (L-PE / L-N / N-PE)Polarization measurement (PI & DAR)RCD TYPE A, AC, B, EVNetwork and loop impedanceShort-circuit current with OK / NO displayRotating fieldVoltage dropInternal memory and USB portcat IV 300 V safetyEV-TEST100 test adapter for E-charging stations with type 2 plugPR400 external test probe
Technical specifications
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Voltage supply
Battery
- Type
HT´s "Volle Ladung" ECO-KIT
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2587892 HT Instruments HT´s "Volle Ladung" ECO-KIT Electrical tester
Description
The new model from the COMBI series is an innovative and versatile installation tester with the basic functions for testing electrical systems and installations as well as E-charging stations Plug in and simply measure ⇒ the new Auto sequence measurement Ra → RCD → Riso makes´s possible. The insulation measurement against all 3 conductors (L-N-PE) and the large memory for 999 measurements with storage on 3 levels + text commentary are just a few of the many highlights of the new model series. A user-accessible help menu for all measuring functions provides valuable support when connecting the device to the system to be tested, in particular the automatic and menu-driven test sequence for E-charging stations in the top-of-the-range model COMBI 521.EV-Test100The adapter was developed as an accessory especially for testing E-charging stations. It can be used to simulate charging states and test the effectiveness of protective measures on Type 3 E-charging stations with a Type 2 connector. The easy handling in combination with the COMBI521 is guaranteed.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Calibration adapter for impedance measurementBatteries 6 pieces 1.5 V, AATOPVIEW software & USB cableCX2033X 3-conductor Schuko adapter cableB2051 protective caseISO9000 calibration certificateUniversal KIT COMBI 3 test leads, 3 alligator clips and 3 test tips (green, blue and black)SP-0500 rubber holster with integrated eyelets and carrying strap for hands-free workingPR400 external test probe (start/stop)EV-Test100 test adapter
