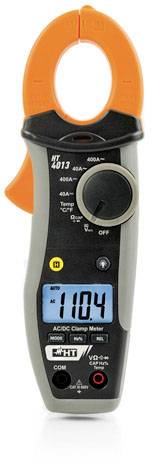

HT Instruments HT4013 Clamp meter Digital CAT III 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
HT4013
- AC/DC Current up to 400 A.
- AC/DC voltage up to 600 V.
- Resistance measurement
- Continuity test with buzzer
- "Voltage” sensor
- Frequency
- Capacitance
- Temperature with K-type sensor
- Diode testing
- Duty cycle
- Automatic range selection
- Data HOLD
- Relative measurement
- Auto power OFF.
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.01 A
- A DC reading range (max.)
400 A
- A AC reading range (min.)
0.01 A
- Amperage reading range AC (max.)
400 A
- Reading range - resistance
0.1 Ω ÷ 40 MΩ
- Reading range - capacity
0.01 nF ÷ 400 µF
- Frequency reading range
0.01 Hz - 10 kHz
- Temperature
-20°C - 760 °C
- Power supply (details)
1.5 V DC
- Height
45 mm
- Width
75 mm
- Length
210 mm
- Weight
205 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
HT4013
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 210 x 75 x 45 mm
- Opening range of current clamps
30 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2176285 HT Instruments HT4013 Clamp meter Digital CAT III 600 V Display (counts): 4000
Datasheet 2176285 HT Instruments HT4013 Clamp meter Digital CAT III 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 2176285 HT Instruments HT4013 Clamp meter Digital CAT III 600 V Display (counts): 4000
Description
The robust HT4013 clamp-on ammeter was developed to measure alternating currents as well as direct currents up to 400 A in the overvoltage category CAT III 600 V and to comply with the specifications of IEC/EN61010-1. In addition to the large 4000-point resolution display, both models are equipped with an Auto Power OFF function to protect the batteries and offer a variety of multimeter measurement functions with a wide measurement range.
This text is machine translated.
This text is machine translated.
Features
- Display: LCD, 4 dgt, 4000 points
- Power supply: 2x 1.5 V AAA battery
- Auto Power OFF: After 30 minutes in standby mode
- Max. Cable diameter 30 mm
- Safety IEC/EN 61010-1
- Insulation: Double insulation
- Pollution level: 2
- Overvoltage category: CAT III 600 V
- Dimensions (L x W x H) 210 x 75 x 45 mm
- Weight (incl. batteries): 205 g
Scope of delivery
- Test lead pair with test probes & alligator clips
- K-type wire probe + adapter
- Battery 2 x 1.5 V AAA
- Bag
- User manual.
