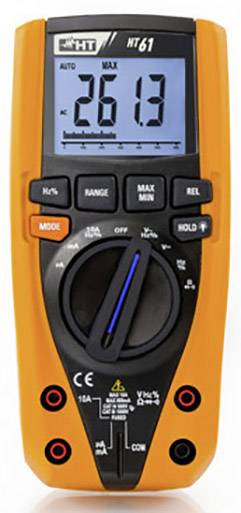

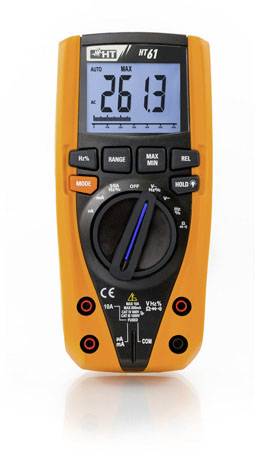

HT Instruments HT61 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Professional TRMS multimeter up to 1000 V / CAT IV.
- Measurement in TRMS
- DC/AC voltage
- DC/AC current
- Resistance & continuity test
- Frequency
- Diode testing
- Duty cycle
- Auto range
- Data HOLD
- Auto power OFF.
- MAX/MIN
- Relative measurement
- Bar graph
- Display resolution 4 ½ dgt, 6000 points
- Backlit display
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
1 mV
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 60 MΩ
- Frequency reading range
0,001 Hz - 1 MHz
- Measurement type (details)
True RMS
- Power supply (details)
1 x 9 V battery V DC
- Height
55 mm
- Width
85 mm
- Length
175 mm
- Weight
360 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
HT61
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 175 x 85 x 55 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2176422 HT Instruments HT61 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 2176422 HT Instruments HT61 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 4000
Description
Our new professional multimeter series HT60 to HT64 is a precise TrueRMS multimeter, approved for measurements in the overvoltage category CAT IV 600 V or CAT III 1000 V. This multimeter series is with an extremely robust housing as well as a large, Clearly readable display and also offers a variety of multimeter measurement functions with a wide measurement range. The simple handling enables a precise execution of the measurement tasks even under extreme ambient conditions.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Test lead pair with 4 mm test tips and alligator clips
- Batteries
- User manual
- Protective case.
