HT Instruments HT8100 Calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Resistance, Frequency
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

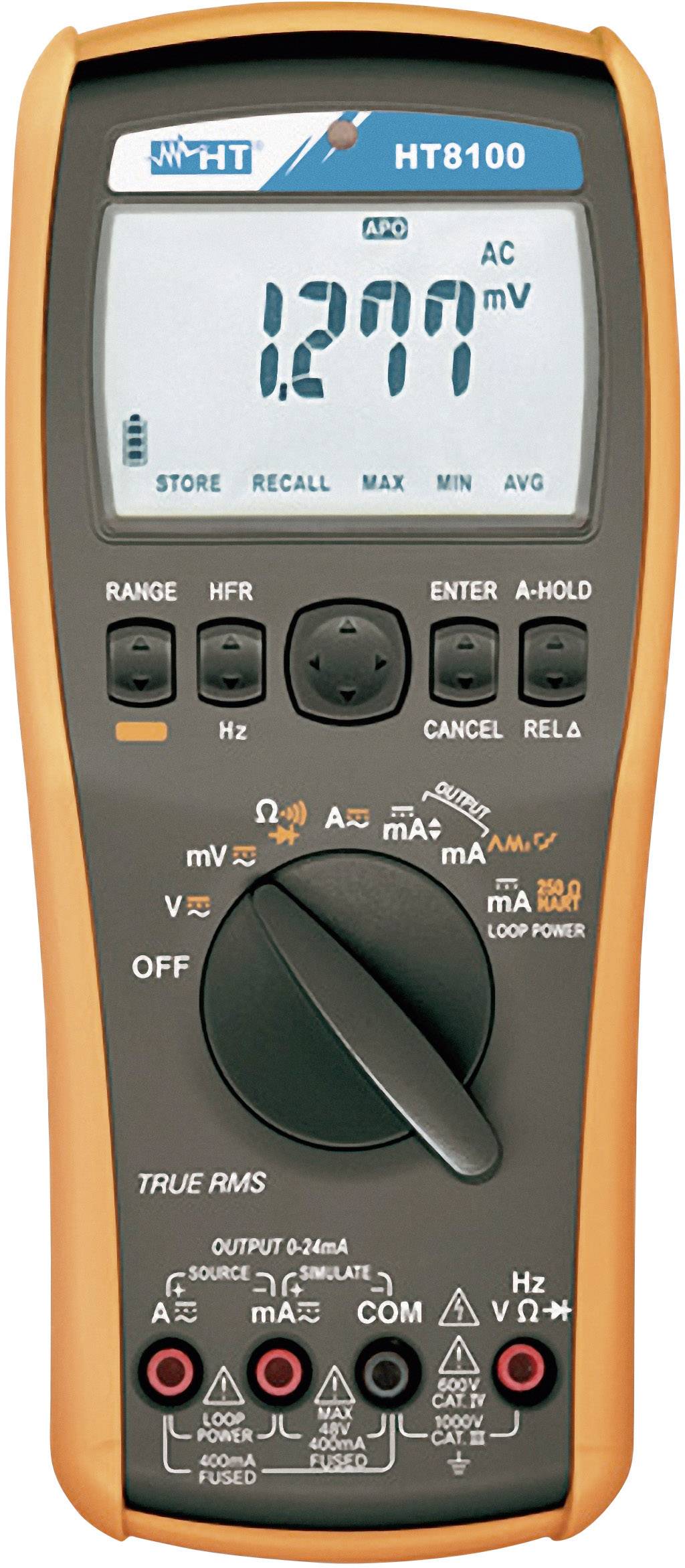

Process Calibrator & TRMS precision multimeter HT8100
- CAT III 1000 V/CAT IV 600 V
- True RMS AC/DC
Technical specifications
- Direct current measuring range: 0.001 mA - 1 A
- Basic accuracy: ±0.05 %
- Dc Supply, Range: 4 - 24 mA
- Dc source, Range: 0.001mV - 1000 V
- Display (details): LCD, 50000 counts.
DAkkS standards
- Product type
Calibrator
- Unit of measurement
Voltage
Amperage
Resistance
Frequency
- Resolution
0.001 mA
- Dim
(L x W x H) 207 x 95 x 52 mm
- Weight
630 g
- Reading category
CAT IV 600 V
- Width
95 mm
- Height
52 mm
- Length
207 mm
- Power supply
4 x AA battery (included)
Documents & Downloads
Datasheet
Datasheet 1241376 HT Instruments HT8100 Calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Resistance, Frequency
User & Safety Instructions
User & Safety Instructions 1241376 HT Instruments HT8100 Calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Resistance, Frequency
Information
Information 1241376 HT Instruments HT8100 Calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Resistance, Frequency
Information 1241376 HT Instruments HT8100 Calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Resistance, Frequency
Description
The HT8100 is a digital process calibrator with multimeter function for the generation and measurement of DC voltage and direct current. For the direct power generation, it is also possible that the percentage values, depending on the set current (0% = 4 mA, 100%=20mA). The HT8100 enables the measurement of current, which is generated by external converter or can simulate current transformer. Via function keys is a simple operation possible. The HT8100 is the ideal solution for the most common industrial applications and for use in the laboratory area.
This text is machine translated.
This text is machine translated.
Features
- Measuring ranges: AC/DC voltage, AC/DC
- AC/DC current
- Resistance
- Continuity testing
- Frequency
- Diode testing
- Relative measurement
- Current measurement in percent (0 - 20 mA, 4 - 20 mA)
- Current up to 24 mA/DC
- Simulation of an external converter
- DATA Hold
- MAX/MIN/AVG
- Auto display lighting
- Auto poweroff.
Scope of delivery
- Safety test leads
- Batteries
- Protective holster
- Magnetic belt
- User manual.
Hints
Please note the scope of calibration the under "Downloads" stored pattern calibration certificate.
Your right to cancel does not apply to this product.
