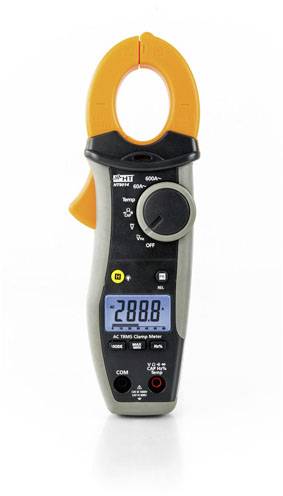

HT Instruments HT9014 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Professional clip-on ammeter 600 A AC / CAT IV.
- Measurements in TRMS
- DC/AC voltage
- AC current
- Resistance/continuity test
- Frequency
- “Voltage” sensor
- Diode testing
- Temperature with K-type sensor
- Capacitance
- Duty cycle
- Automatic range selection
- Data HOLD
- MAX/MIN
- Peak function (< 10 ms)
- Relative measurement
- Bar graph
- Backlit display
- Auto power OFF.
Technical specifications
- Voltage reading range DC (min.)
0.01 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.01 V
- V AC reading range (max.)
1000 V
- A DC reading range (max.)
600 A
- A AC reading range (min.)
0.01 A
- Amperage reading range AC (max.)
600 A
- Reading range - resistance
0.1 Ω - 60 MΩ
- Reading range - capacity
0.01 µF - 4000 µF
- Temperature
-20 to +760 °C
- Measurement type (details)
True RMS
- Power supply (details)
1x 9 V battery
- Height
45 mm
- Width
75 mm
- Length
210 mm
- Weight
400 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC
- Type
HT9014
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 210 x 75 x 45 mm
- Opening range of current clamps
30 mm
Documents & Downloads
Datasheet
Datasheet 2176279 HT Instruments HT9014 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Datasheet 2176279 HT Instruments HT9014 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 2176279 HT Instruments HT9014 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Description
The professional clip-on ammeter HT9014 was developed to measure alternating currents up to 600 A in the overvoltage category CAT IV 600 V or CAT III 1000 V and conforms to the specifications of IEC/EN 61010-1. This current clamp is equipped with a large display and an Auto Power OFF function to protect the batteries. The model HT9014 (TrueRMS measuring) is equipped with a 6000-point resolution display and offers a variety of measuring functions with a wide measuring range.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Test lead pair
- K-type wire probe + adapter
- Battery
- Bag
- User manual.
