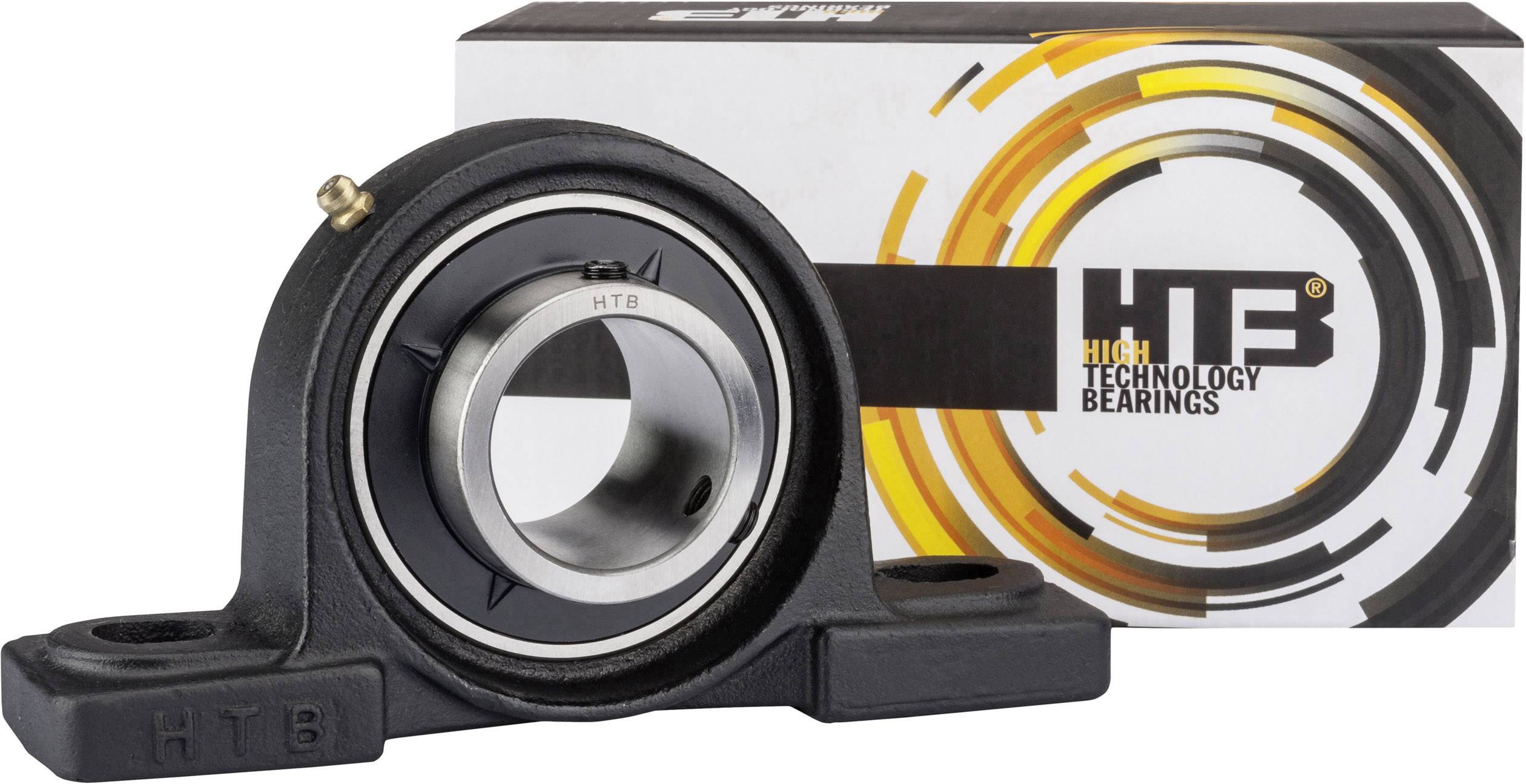

HTB UCP 202 Plummer block Grey iron Bore diameter 15 mm Hole spacing 96 mm
EAN:
Part number:
Item no:
Product type
Plummer block
Bore Ø
15 mm
Enclosure material
Grey iron
Type
UCP 202
Dim
(h x A x E x B x s1 x s2 x g x w x L uc x n uc) 30.2 x 127 x 96 x 38 x 13 x 19 x 15 x 62 x 31 x 12.7 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Type
UCP 202
- Product type
Plummer block
- Bore Ø
15 mm
- Enclosure material
Grey iron
- Dim
(h x A x E x B x s1 x s2 x g x w x L uc x n uc) 30.2 x 127 x 96 x 38 x 13 x 19 x 15 x 62 x 31 x 12.7 mm
- Weight
0.61 kg
- Hole spacing
96 mm
- Dimensions
(h x A x E x B x s1 x s2 x g x w x L uc x n uc) 30.2 x 127 x 96 x 38 x 13 x 19 x 15 x 62 x 31 x 12.7 mm
- Dynamic load rating (radial)
10100 N
- Radial load rating
6300 N
Documents & Downloads
Datasheet
Datasheet 197128 HTB UCP 202 Plummer block Grey iron Bore diameter 15 mm Hole spacing 96 mm
Description
For simple bearings as e.g. in agricultural machinery, conveyor systems, construction machines The UCP unit consists of a sealed bearing with spherical exterior surface and a housing of pedestal bearing made of cast iron. The attachment of shaft is done by means of stud screws at the inner ring. Misalignments at the shaft can become balanced by the spherical exterior surface of the bearing
