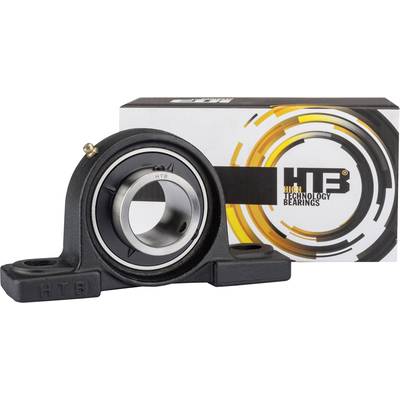

HTB UCP 207 Plummer block Grey iron Bore diameter 35 mm Hole spacing 126 mm
EAN:
Part number:
Item no:
Enclosure material
Grey iron
Bore Ø
35 mm
Product type
Plummer block
Type
UCP 207
Dim
(h x A x E x B x s1 x s2 x g x w x L uc x n uc) 47.6 x 167 x 126 x 48 x 17 x 21 x 19 x 92 x 42.9 x 17.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Technical specifications
- Type
UCP 207
- Dim
(h x A x E x B x s1 x s2 x g x w x L uc x n uc) 47.6 x 167 x 126 x 48 x 17 x 21 x 19 x 92 x 42.9 x 17.5 mm
- Weight
1.56 kg
- Dimensions
(h x A x E x B x s1 x s2 x g x w x L uc x n uc) 47.6 x 167 x 126 x 48 x 17 x 21 x 19 x 92 x 42.9 x 17.5 mm
- Enclosure material
Grey iron
- Bore Ø
35 mm
- Dynamic load rating (radial)
20300 N
- Hole spacing
126 mm
- Radial load rating
14000 N
- Product type
Plummer block
Documents & Downloads
Datasheet
Datasheet 197180 HTB UCP 207 Plummer block Grey iron Bore diameter 35 mm Hole spacing 126 mm
User & Safety Instructions
User & Safety Instructions 197180 HTB UCP 207 Plummer block Grey iron Bore diameter 35 mm Hole spacing 126 mm
Description
For simple bearings as e.g. in agricultural machinery, conveyor systems, construction machines The UCP unit consists of a sealed bearing with spherical exterior surface and a housing of pedestal bearing made of cast iron. The attachment of shaft is done by means of stud screws at the inner ring. Misalignments at the shaft can become balanced by the spherical exterior surface of the bearing
