HUAWEI Router Router Built-in modem: LTE 1167 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)

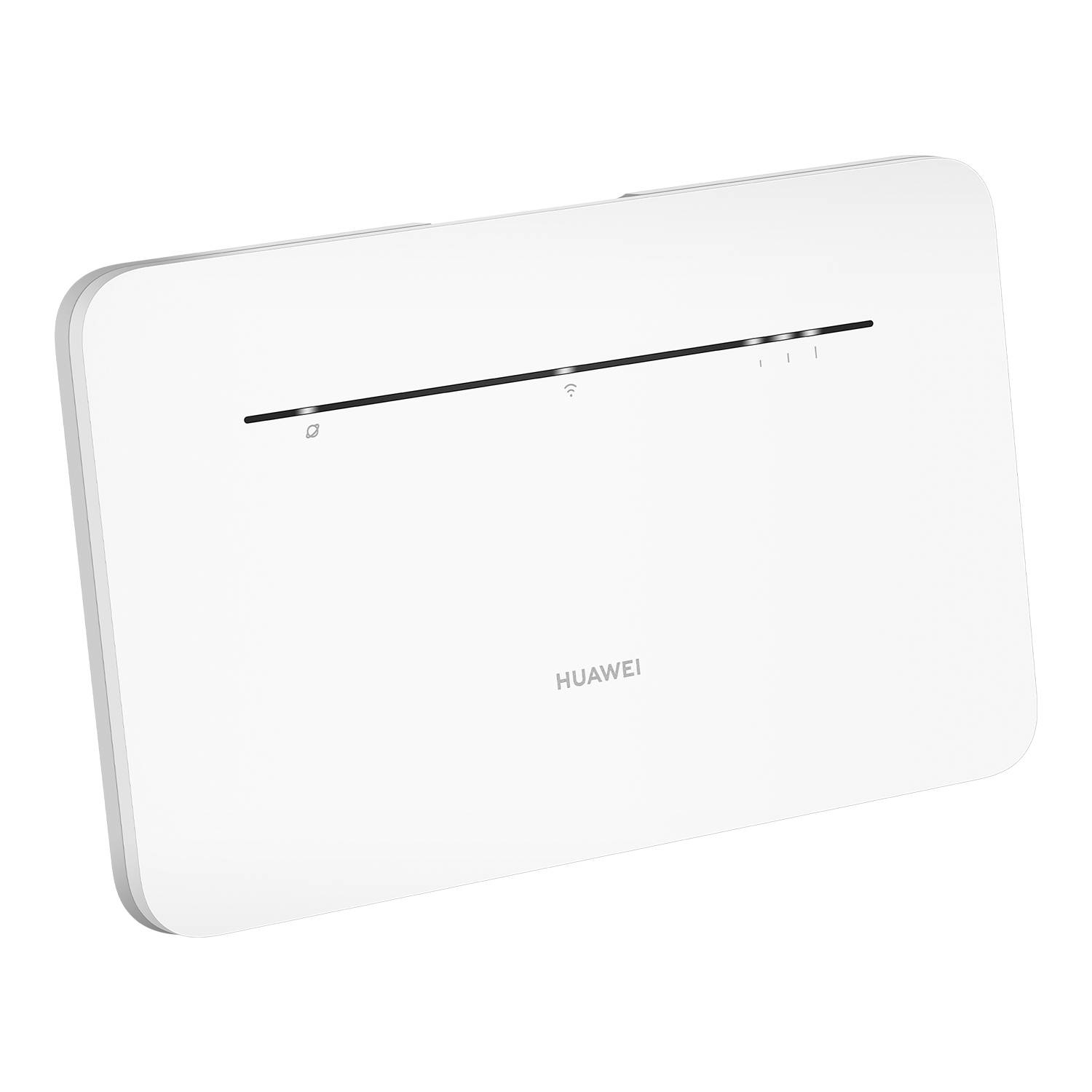

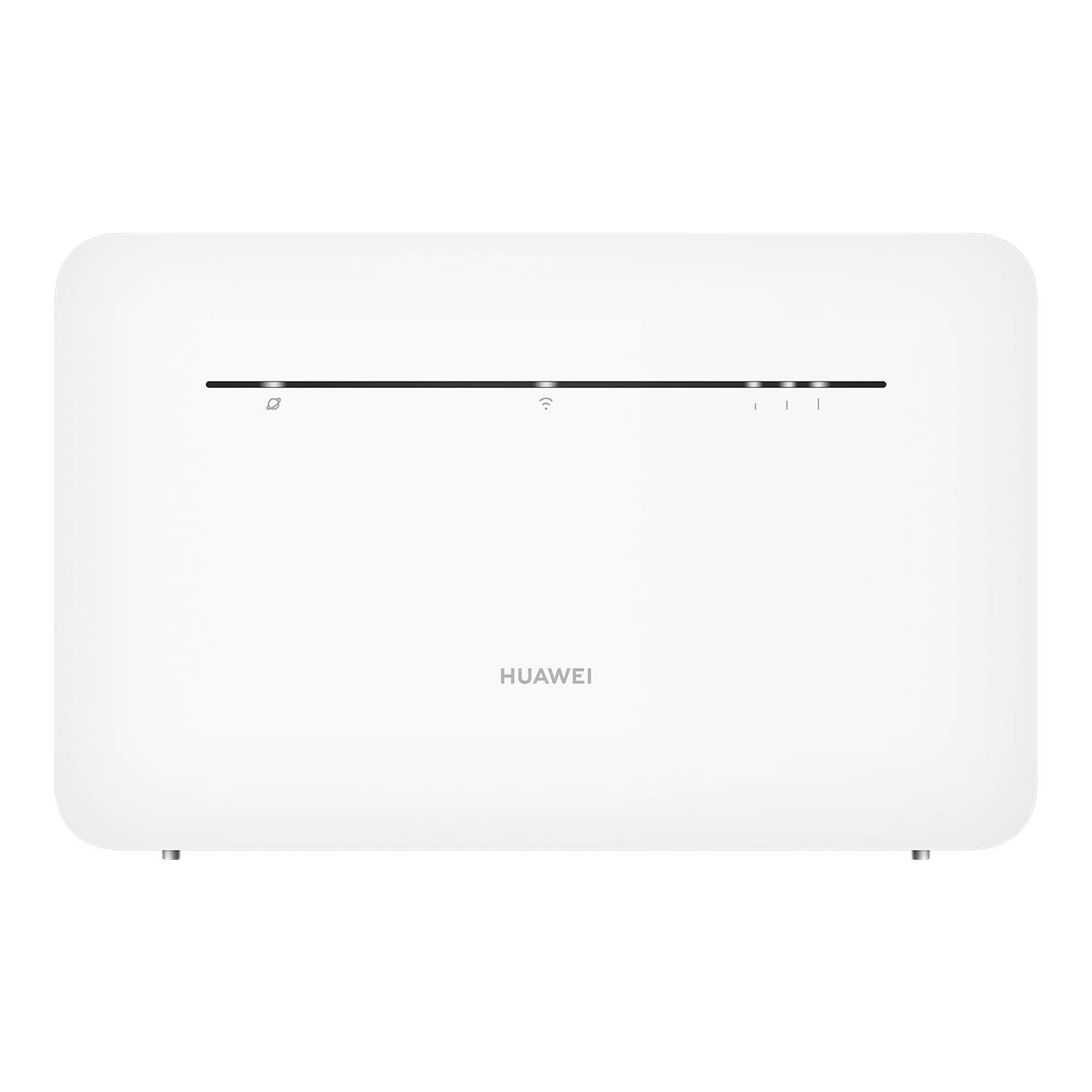

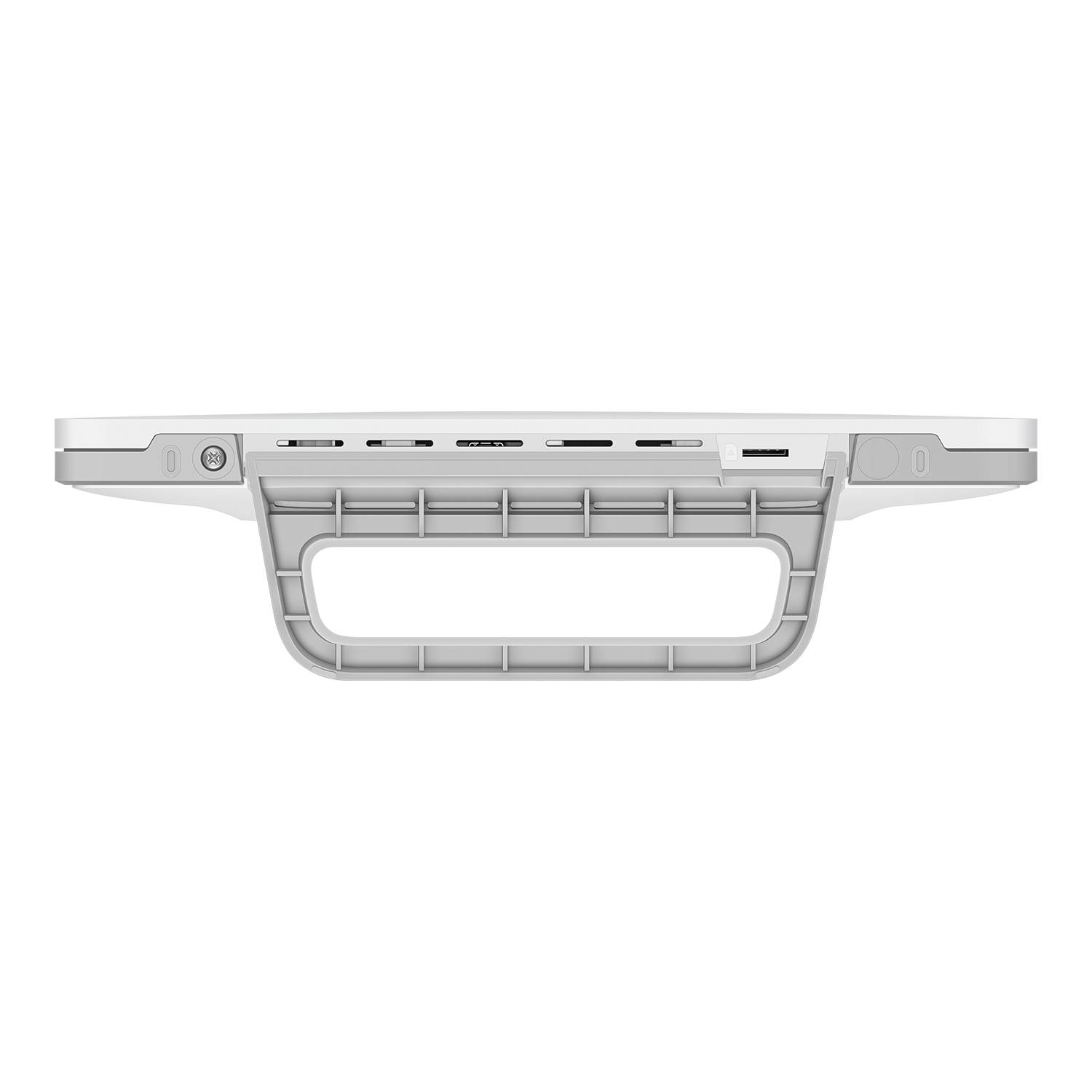

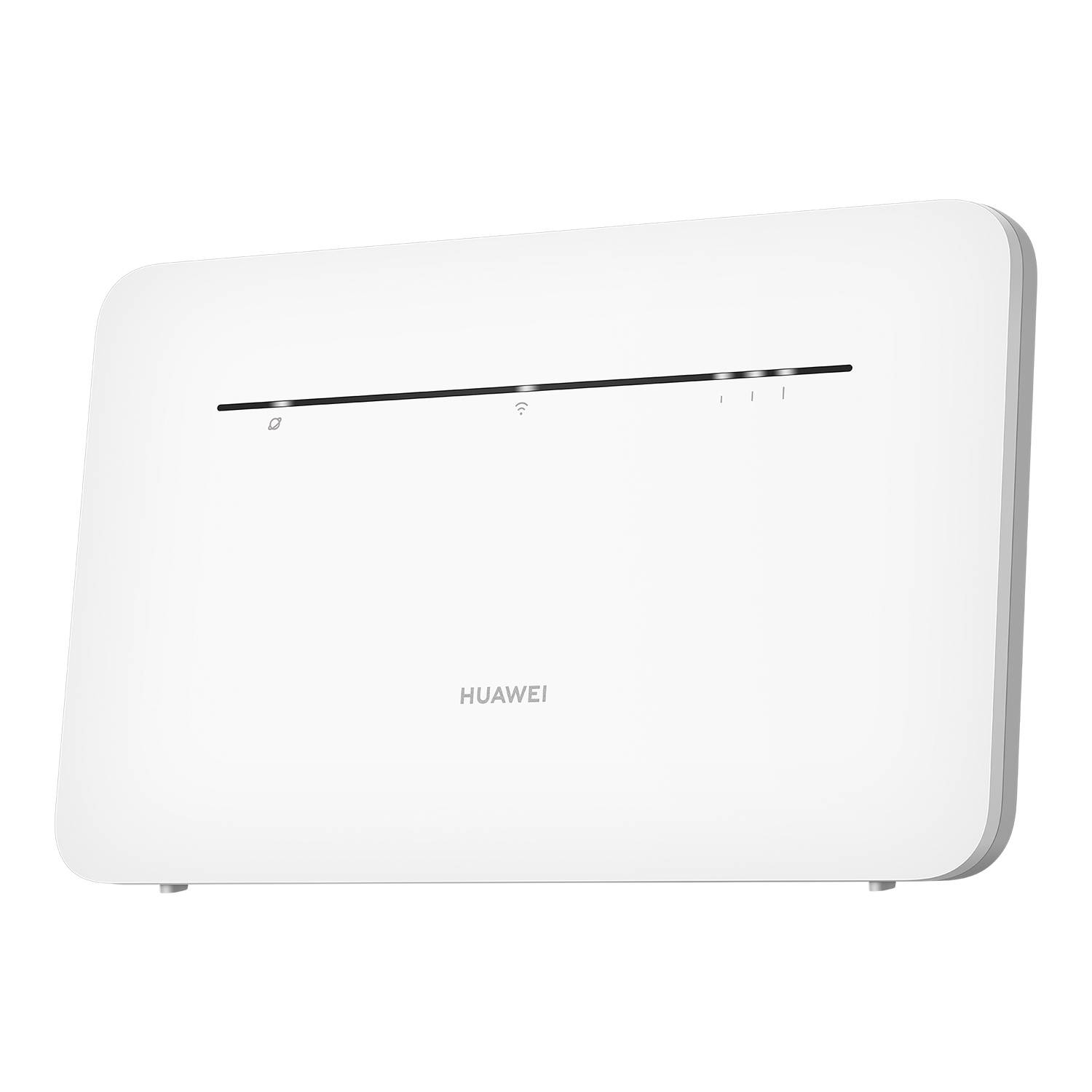

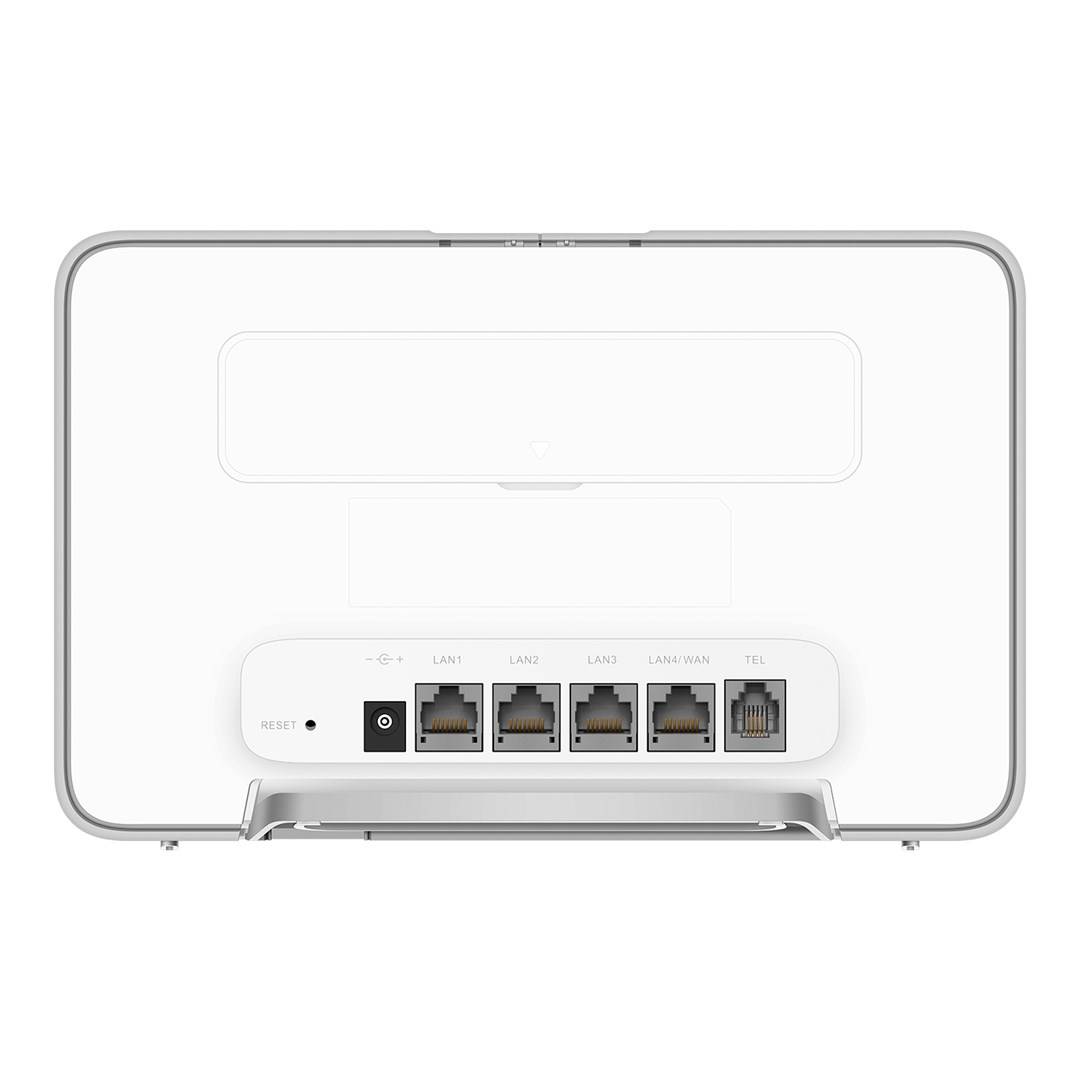

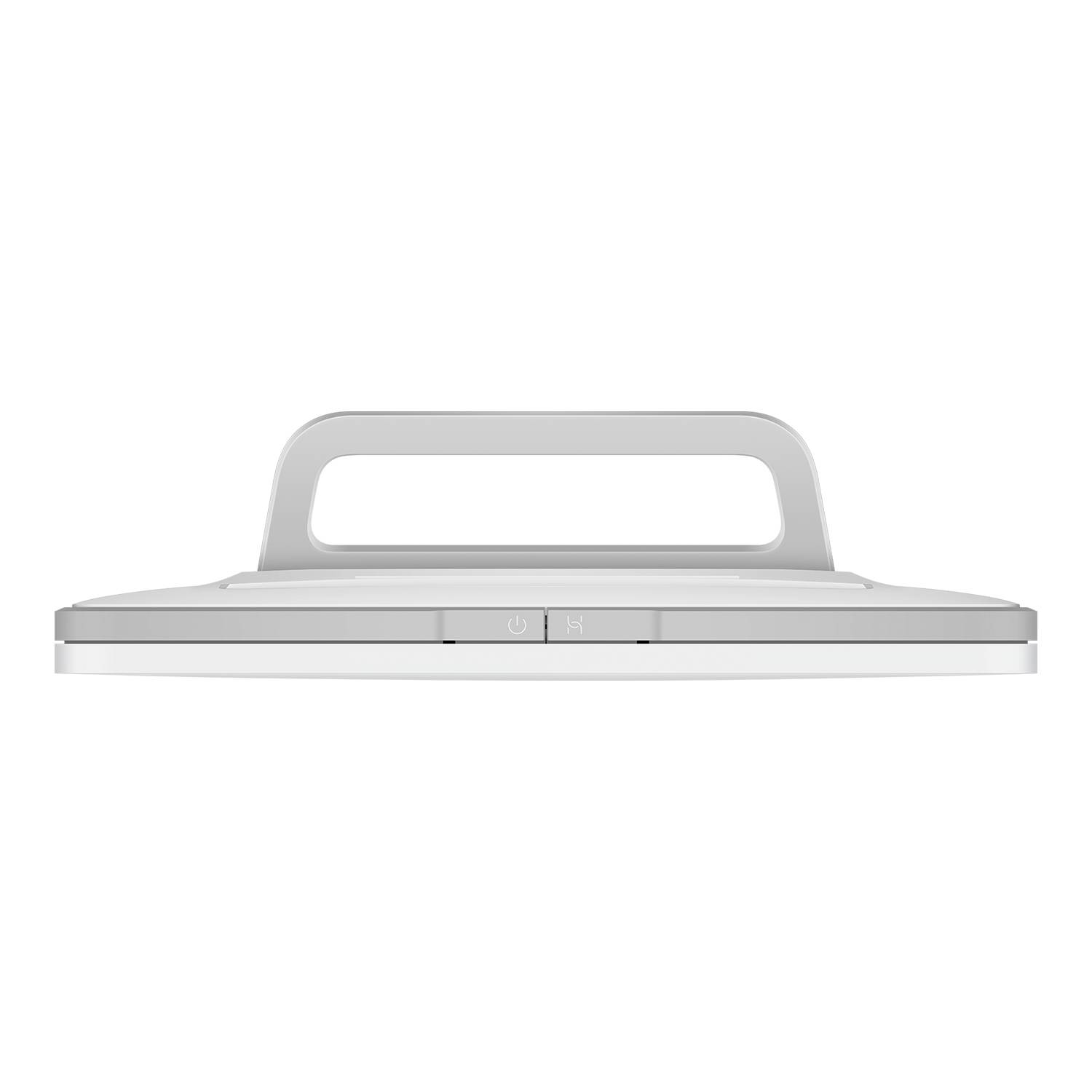

HUAWEI B535-235a Dual-Band WLAN router (2.4 GHz/5 GHz) 4G white
Highlights & Details
- Product type: Router
- Type:Router
- Transfer rate 0.3 Gbps
Technical specifications
- 1GbE Wi-Fi 5 LTE Dual band 4G
- Product type
Router
- Type
Router
- Function
Router
- Built-in modem
LTE
- Wi-Fi standard
IEEE802.11ac
- Dual Band compatibility
2.4 GHz and 5 GHz
- Wi-Fi transmission rate (max.)
1167 MBit/s
- Wi-Fi speed 2.4 GHz
300 MBit/s
- Wi-Fi speed 5 GHz
867 MBit/s
- LAN data transfer rate
1 GBit/s
- Interfaces
Gigabit LAN (1 Gbps)
- WPS compatible
Yes
- 10/100/1000 Mbps WAN ports
1 x
- Width
235 mm
- Height
54 mm
- Depth
225 mm
- Weight
650 g
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3733130 HUAWEI Router Router Built-in modem: LTE 1167 MBit/s
User & Safety Instructions
User & Safety Instructions 3733130 HUAWEI Router Router Built-in modem: LTE 1167 MBit/s
Description
HUAWEI wireless router Dual band 2.4 GHz 5 4G white - (2.4 GHz / 5 GHz) 4G white
This text is machine translated.
This text is machine translated.
Features
- HUAWEI B535-235 – wireless router – WWAN – Wi-Fi 5, LTE – 4G – desktop
- Device Type : Wireless Routers - Wireless Mobile Modem - 4-Port Switch (Integrated)
- Housing type : Desktop
- CELL PROTOCOL : WCDMA, HSPA, HSPA+, DC-HSPA+, FDD LTE, TDD LTE
- Generation : 4G
- MOBILE FREQUENCY BAND : LTE B3, LTE B7, LTE B20, LTE B1, LTE B28, LTE B8, LTE B38, LTE B32, UMTS B1, UMTS B8
- WAN Ports No. : 1
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency band : 2.4 GHZ / 5 GHz
- Data transfer rate : 1167 Mbps
- Power : Maximum data rate (2.4 GHz): 300 Mbps
- Maximum data rate (5 GHz): 867 Mbit/s.
- Capacity : Wireless clients: 64
- NETWORK/TRANSPORT PROTOCOL : TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, ARP, DHCP, DNS, IPv4, IPv6
- Features : NAT support, NAPT support, auto negotiation, auto uplink (auto MDI/MDI-X), ALG support, MAC address filter, VPN pass-through, URL filtering, IP address filtering, WMM support, WPS, DHCP server, port forwarding, reset button, port control, FOTA, VPN client, DMZ support, 2x2 MIMO technology, APN management, PPTP VPN client, NTP-support, 3GPP release 11, Auto APN, L2TP VPN client
- Product certifications : IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac
- Power supply : AC 100-240 V (50/60 Hz)
- Colour : White
- Dimensions (width x depth x height): 21.9 cm x 2.56 cm x 13.8 cm
- System Requirements : Microsoft Windows 7, Windows 8, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple MacOS X 10.12 or higher, Apple MacOS X 10.9
