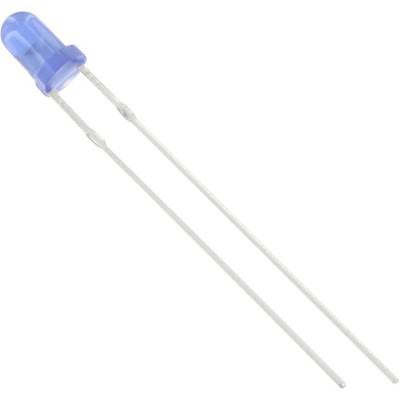

HuiYuan 3034B2D-EHD-A LED wired Blue Circular 3 mm 500 mcd 60 ° 20 mA
EAN:
Part number:
Item no:
Product type
LED wired
Forward current I(F)
20 mA
Casing
3 mm
Type
Radial lead
Light intensity I(V)
500 mcd
Datasheet (PDF)
Number
Minimum order quantity: 20
Total (€ 0.04 / piece)
€ 0.80
plus VAT.
14-day return policy included
Technical specifications
- Product type
LED wired
- Factory colour
Blue
- Forward current I(F)
20 mA
- Operating voltage
3.3 V
- Casing
3 mm
- Type
Radial lead
- Light intensity I(V)
500 mcd
- Wavelength
465 nm
- Radiation angle
60°
- Type (LEDs)
Diffused
- LED features
LED 3 mm
- Technology
InGaN
- Lens type
Circular
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1603084 HuiYuan 3034B2D-EHD-A LED wired Blue Circular 3 mm 500 mcd 60 ° 20 mA
User & Safety Instructions
User & Safety Instructions 1603084 HuiYuan 3034B2D-EHD-A LED wired Blue Circular 3 mm 500 mcd 60 ° 20 mA
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
