i-PRO i-PRO WV-S2536LA WV-S2536LA
EAN:
Part number:
Item no:
Highlights & Details

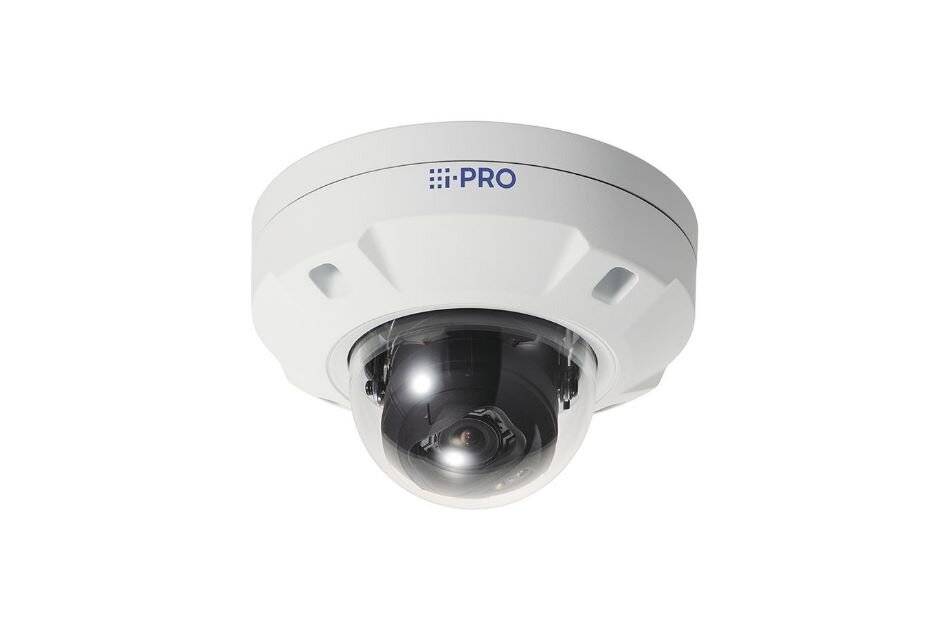

I-PRO WV-S2536LA Outdoor Dome Security Camera 2048 x 1536 Pixel Ceiling
- Outside
- CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 2048 x 1536 pixels
- Wired Ethernet/LAN
- Night vision 70 m
- Optical Zoom 3.1x
- Dome room ceiling dust proof, water proof
- IP66 IK10
- White
- 1.1 kg
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- Supported audio formats: AAC-LC,G.711,G.726
- Transfer type
Corded
- Width
154 mm
- Depth
105 mm
- Weight
1.1 kg
- Factory colour
White
IP66
- Bluetooth
No
- Display resolution
2048 x 1536 Pixel
- Playback of
AAC-LC
- Rotation
270°
- 10/100/1000 Mbps ports
1 x
- Sensor type
CMOS
- Wi-Fi
No
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 60 °C
- Ethernet LAN
yes
- Auto focus
yes
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Detect distance (wide)
25.4 m
- Detect distance (tele)
83.4 m
- Observe distance (wide)
10.2 m
- Observe distance (tele)
47.3 m
- Recognize distance (wide)
5.1 m
- Recognize distance (tele)
23.6 m
- Identify distance (wide)
2.5 m
- Identify distance (tele)
11.8 m
- Dynamic range
144 dB
- Card reader integrated
yes
- Night vision
yes
- Video motion detection
yes
- Operating relative humidity (H-H)
10 - 100 %
- Optical zoom
3.1 x
- Total megapixels
2 MP
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798743 i-PRO i-PRO WV-S2536LA WV-S2536LA
Description
Network Dome S-Series, 2MP@60fps, 2.9-9mm AI, IK10, IP66, IR, out
Manufacturer data sheet
Main features 2MP (1080p)
Up to 2 Edge AI-analysis-Apps
Built-in IR LEDs
Built-in FIPS 140-2 level 3 certified safety element (EdgeLock® SE050F NXP® Solid State)
NDAA-compliant
Specifications<>Manufacturer numberWV-S2536LAManufactureri-PROEAN/GTIN/<><><><>Chip size1/2.8"Resolution standardRecording sensorCMOSLight sensitivity0.007 Lux with F1.3SystemTrue Day&Night;Backlight compensationYesVideoVideo compressionH.264, H.265, M-JPEGImage transfer rate max.60 fpslens<>typevarifocal (motorized)focal length2.9 - 9 mmHorizontal picture angle<>3.1Display / Display<>Image resolution max.1920x1080<>b Functions<>Motion detectorYesAudio supportYesInternal memoryDigital noise reduction (DNR)YesInterfaces / Inputs / Outputs<><>0Control interfacesRJ45 b<>General informationWide Dynamic Range (WDR)WDR 144dBLighting<>white b<>Colour (dome)clearEnclosure typeHousing materialAluminium b<>HeatingYesMounting typeb Ceiling mounting, wall mountingONVIFONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile TPower over Ethernet<><>IP66Power supply12VDC, PoETemperature Range (Operation)<><>YesCertificationsIK10,FIPS 140-2 LV3Product Safety Information:Laarderhoogtwweg 25<>
imv.sales.eu@i-pro.com
This text is machine translated.
Manufacturer data sheet
Main features 2MP (1080p)
Up to 2 Edge AI-analysis-Apps
Built-in IR LEDs
Built-in FIPS 140-2 level 3 certified safety element (EdgeLock® SE050F NXP® Solid State)
NDAA-compliant
Specifications<>Manufacturer numberWV-S2536LAManufactureri-PROEAN/GTIN/<><><><>Chip size1/2.8"Resolution standardRecording sensorCMOSLight sensitivity0.007 Lux with F1.3SystemTrue Day&Night;Backlight compensationYesVideoVideo compressionH.264, H.265, M-JPEGImage transfer rate max.60 fpslens<>typevarifocal (motorized)focal length2.9 - 9 mmHorizontal picture angle<>3.1Display / Display<>Image resolution max.1920x1080<>b Functions<>Motion detectorYesAudio supportYesInternal memoryDigital noise reduction (DNR)YesInterfaces / Inputs / Outputs<><>0Control interfacesRJ45 b<>General informationWide Dynamic Range (WDR)WDR 144dBLighting<>white b<>Colour (dome)clearEnclosure typeHousing materialAluminium b<>HeatingYesMounting typeb Ceiling mounting, wall mountingONVIFONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile TPower over Ethernet<><>IP66Power supply12VDC, PoETemperature Range (Operation)<><>YesCertificationsIK10,FIPS 140-2 LV3Product Safety Information:Laarderhoogtwweg 25<>
