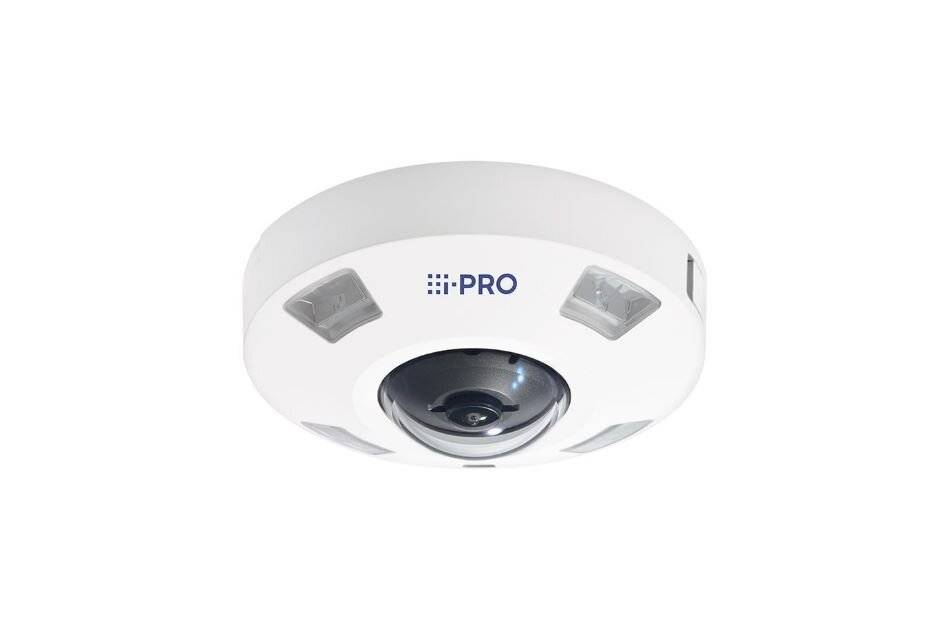

I-PRO WV-S456LA security camera dome IP security camera outdoors 2192 x 2192 pixels ceiling/wall

Highlights & Details

Outdoor IP security camera
CMOS 25.4 / 3 mm (1 / 3") 5 MP 2192 x 2192 pixels
Wired Ethernet/LAN
Night view 14 m IR
Digital zoom: 4x
Dome ceiling / wall dust resistant, shock resistant, water proof
IP66 IK10
White
870 g

Technical specifications

Supported positioning: Outside
Form factor: Dome
Maximum resolution 2192 x 2192 pixel

Transfer type: Corded

Height: 96.3 mm

Weight: 1.3 kg

Factory colour: White

: IP66

Bluetooth: No

(Ø): 15.4 cm

Material (details): Aluminium
Polycarbonate (PC)
Stainless steel

Type: IP-security camera

10/100/1000 Mbps ports: 1 x

Sensor type: CMOS

Safety: 802.1x RADIUS
FIPS 140-2

Wi-Fi: No

UKCA: not relevant

Operating temperature (T-T): -40 - 50 °C

Ethernet LAN: yes

Minimum illumination: 0 Lux

Optical sensor size: 25,4 / 3 mm (1 / 3")

Number of users: 14 Benutzer

Alarm input channels: 3

Privacy masking: yes

Power consumption (Power over Ethernet (PoE)): 12.5 W

Number of sensors: 1

Headphone outputs: 1

Microphone in: yes

Noise reduction: yes

Closest focusing distance: 0.3 m

Composite video out: 1

Detect distance (wide): 20.7 m

Detect distance (tele): 38 m

Observe distance (wide): 8.3 m

Observe distance (tele): 13.2 m

Recognize distance (wide): 4.1 m

Recognize distance (tele): 4.3 m

Identify distance (wide): 2.1 m

Highlight Compensation (HLC): yes

Dynamic range: 120 dB

Card reader integrated: yes

Frame rate: 30 fps

Digest authentication: yes

Number of Privacy masking areas: 8

Digital zoom: 4 x

Maximum aperture number: 2.4

Night vision: yes

Power consumption: 260 mA

Fixed focal length: 0.84 mm

Video motion detection: yes

Audio detection: yes

DC output current: 1.03 A

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 10 - 100 %

Number of languages: 9

Total megapixels: 5 MP

Back Light Compensation (BLC): yes

Built-in HDD: no

Field of view (FOV) angle: 360°

HTTPS encryption: yes

Number of cameras: 1

Power consumption (max): 12.4 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798744 i-PRO i-PRO WV-S4556LA WV-S4556LA

Description
Network Fisheye camera S-series, 5MP@30fps, 0.84mm AI, IK10, IP66, IR, out
Manufacturer data sheet
Main features 5MP (2192x2192 Fisheye)
Up to 3 Edge AI-analysis-Apps
Built-in IR LEDs
Built-in FIPS 140-2 level 3 certified safety element (EdgeLock® SE050F NXP® Solid State)
NDAA-compliant

Specifications<>Manufacturer numberWV-S456LAManufactureri-PROEAN/GTIN/<><><><>Chip size1/3"Resolution standardRecording sensorCMOSLight sensitivity0.15 Lux with F2.4SystemTrue Day&Night;Backlight compensationYesVideoVideo compressionH.264, H.265, M-JPEGImage transfer rate max.30 fpslens<><><><>0.84 mmpicture angle horizontal<><>YesAudio supportYesInternal memoryoptional<>b Digital noise reduction (DNR)YesInterfaces / Inputs / OutputsAlarm Inputs0Control InterfacesRJ45General information<>Wide Dynamic Range (WDR)120dBLightingInfra redColour (housing)whiteColour (dome)clearCasing typeExteriorCase materialAluminium<><>Camera typeFisheye Camera b<>Mounting typeONVIFONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile TPower over Ethernet<><>IP66Power supply12VDC, PoETemperature Range (Operation)<><>YesCertificationsIK10,FIPS 140-2 LV3Product Safety Information:Laarderhoogtwweg 25<>
