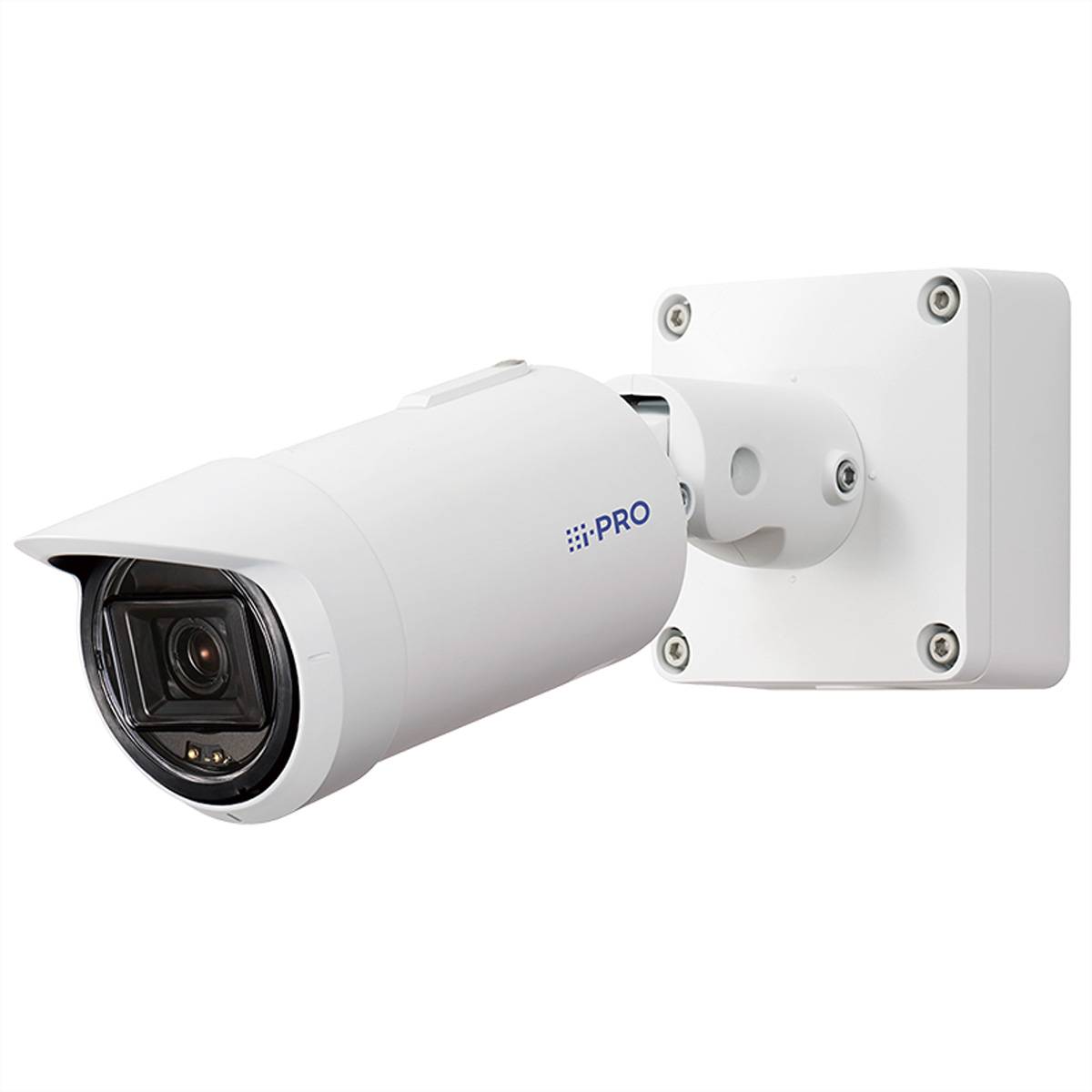

i-PRO Netzwerkkamera WV-S1536LA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
I-PRO WV-S1536LA security camera light bulb IP security camera outdoors 2048 x 1536 pixels ceiling/wall
- Outdoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 2048 x 1536 pixels
- Wired Ethernet/LAN
- Night view 70 m IR
- Optical Zoom 3.1x
- Bulb ceiling/wall
- IP66 IK10
- White
- 2.4 kg
Technical specifications
- Supported positioning: Outside
- Form factor: Light bulb
- Supported audio formats: AAC-LC,G.711,G.726
- Transfer type
Corded
- Width
133 mm
- Height
133 mm
- Depth
382 mm
- Weight
2.4 kg
- Factory colour
White
IP66
- Bluetooth
No
- Display resolution
2048 x 1536 Pixel
- Playback of
AAC-LC
- Type
IP-security camera
- 10/100/1000 Mbps ports
1 x
- Power consumption (ON)
8.5 W
- Sensor type
CMOS
- Wi-Fi
No
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 60 °C
- Ethernet LAN
yes
- Minimum illumination
0 Lux
- Auto focus
yes
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of users
14 Benutzer
- Power consumption (Power over Ethernet (PoE))
9.1 W
- Noise reduction
yes
- Web browser
yes
- Detect distance (wide)
23.5 m
- Detect distance (tele)
114.8 m
- Observe distance (wide)
9.4 m
- Observe distance (tele)
45.9 m
- Recognize distance (wide)
4.7 m
- Recognize distance (tele)
23 m
- Identify distance (wide)
2.4 m
- Identify distance (tele)
11.5 m
- Card reader integrated
yes
- Zoom capability
yes
- Night vision
yes
- Audio detection
yes
- Operating relative humidity (H-H)
10 - 100 %
- Optical zoom
3.1 x
- Total megapixels
2 MP
- Number of cameras
1
Documents & Downloads
Datasheet
Datasheet 3798716 i-PRO Netzwerkkamera WV-S1536LA
User & Safety Instructions
User & Safety Instructions 3798716 i-PRO Netzwerkkamera WV-S1536LA
Description
2MP (1080p) Outdoor Bullet Network Camera The new standard for i-PRO video surveillance. 2MP Bullet camera for outdoor use Up to 2 Edge AI-analysis-Apps. Built-in IR LED (70m, 230ft). IP66, IK10 certified. Built-in FIPS 140-2 level 3 certified SecureElement (EdgeLock® SE050F NXP® Semiconductors). NDAA-compliant
This text is machine translated.
Scope of delivery
- Camera + connection box
